Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

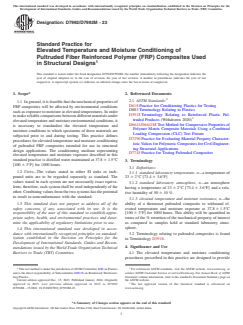

Designation: D7992/D7992M − 23
Standard Practice for
Elevated Temperature and Moisture Conditioning of
Pultruded Fiber Reinforced Polymer (FRP) Composites Used
1
in Structural Designs
This standard is issued under the fixed designation D7992/D7992M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 2. Referenced Documents
2
2.1 ASTM Standards:
1.1 In general, it is feasible that the mechanical properties of
D618 Practice for Conditioning Plastics for Testing
FRP composites will be affected by environmental conditions
D883 Terminology Relating to Plastics
such as exposure to moisture at elevated temperatures. In order
D3918 Terminology Relating to Reinforced Plastic Pul-
to make reliable comparisons between different materials under
3
truded Products (Withdrawn 2020)
elevated temperature and moisture environmental conditions, it
D6641/D6641M Test Method for Compressive Properties of
is necessary to standardize the elevated temperature and
Polymer Matrix Composite Materials Using a Combined
moisture conditions to which specimens of these materials are
Loading Compression (CLC) Test Fixture
subjected prior to and during testing. This practice defines
D7290 Practice for Evaluating Material Property Character-
procedures for elevated temperature and moisture conditioning
istic Values for Polymeric Composites for Civil Engineer-
of pultruded FRP composites intended for use in structural
ing Structural Applications
design applications. The conditioning medium representing
D7745 Practice for Testing Pultruded Composites
elevated temperature and moisture exposure described in this
standard practice is distilled water maintained at 37.8 6 1.5°C
3. Terminology
[100 6 3°F] for 1000 hours.
3.1 Definitions:
1.2 Units—The values stated in either SI units or inch- 3.1.1 standard laboratory temperature, n—a temperature of
pound units are to be regarded separately as standard. The
23 6 2°C [73.4 6 3.6°F]
values stated in each system are not necessarily exact equiva-
3.1.2 standard laboratory atmosphere, n—an atmosphere
lents; therefore, each system shall be used independently of the
having a temperature of 23 6 2°C [73.4 6 3.6°F] and a rela-
other. Combining values from the two systems has the potential
tive humidity of 50 6 10 %.
to result in nonconformance with the standard.
3.1.3 elevated temperature and moisture resistance, n—the
1.3 This standard does not purport to address all of the ability of a thermoset pultruded composite to withstand el-
safety concerns, if any, associated with its use. It is the evated temperature and moisture exposure at 37.8 6 1.5°C
responsibility of the user of this standard to establish appro- [100 6 3°F] for 1000 hours. This ability will be quantified in
terms of the % retention of the mechanical property of interest
priate safety, health, and environmental practices and deter-
mine the applicability of regulatory limitations prior to use. as compared to samples held at standard laboratory atmo-
sphere.
1.4 This international standard was developed in accor-
dance with internationally recognized principles on standard-
3.2 Terminology relating to pultruded composites is found
ization established in the Decision on Principles for the
in Terminology D3918.
Development of International Standards, Guides and Recom-
4. Significance and Use
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
4.1 The elevated temperature and moisture conditioning
procedures prescribed in this practice are designed to provide
1 2
This test method is under the jurisdiction of ASTM Committee D20 on Plastics For referenced ASTM standards, visit the ASTM website, www.astm.org, or
and is the direct responsibility of Subcommittee D20.18 on Reinforced Thermoset- contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
ting Plastics. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved Dec. 15, 2023. Published January 2024. Originally the ASTM website.
3
approved in 2015. Last previous edition approved in 2015 as D7992/ The last approved version of this historical standard is referenced on
D7992M – 15.DOI: 10.1520/D7992_D7992M-23. www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

-------------------
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

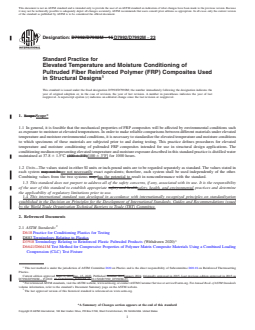

Designation: D7992/D7992M − 15 D7992/D7992M − 23
Standard Practice for
Elevated Temperature and Moisture Conditioning of
Pultruded Fiber Reinforced Polymer (FRP) Composites Used
1
in Structural Designs
This standard is issued under the fixed designation D7992/D7992M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Scope*
1.1 In general, it is feasible that the mechanical properties of FRP composites will be affected by environmental conditions such
as exposure to moisture at elevated temperatures. In order to make reliable comparisons between different materials under elevated
temperature and moisture environmental conditions, it is necessary to standardize the elevated temperature and moisture conditions
to which specimens of these materials are subjected prior to and during testing. This practice defines procedures for elevated
temperature and moisture conditioning of pultruded FRP composites intended for use in structural design applications. The
conditioning medium representing elevated temperature and moisture exposure described in this standard practice is distilled water
maintained at 37.8 6 1.5°C (100 6 3°F)[100 6 3°F] for 1000 hours.
1.2 Units—The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in
each system may not beare not necessarily exact equivalents; therefore, each system shall be used independently of the other.
Combining values from the two systems may has the potential to result in nonconformance with the standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and healthsafety, health, and environmental practices and determine
the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
D618 Practice for Conditioning Plastics for Testing
D883 Terminology Relating to Plastics
3
D3918 Terminology Relating to Reinforced Plastic Pultruded Products (Withdrawn 2020)
D6641/D6641M Test Method for Compressive Properties of Polymer Matrix Composite Materials Using a Combined Loading
Compression (CLC) Test Fixture
1
This test method is under the jurisdiction of ASTM Committee D20 on Plastics and is the direct responsibility of Subcommittee D20.18 on Reinforced Thermosetting
Plastics.
Current edition approved Sept. 1, 2015Dec. 15, 2023. Published October 2015January 2024. Originally approved in 2015. Last previous edition approved in 2015 as
D7992/D7992M – 15.DOI: 10.1520/D7992_D7992M-15.10.1520/D7992_D7992M-23.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
The last approved version of this historical standard is referenced on www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

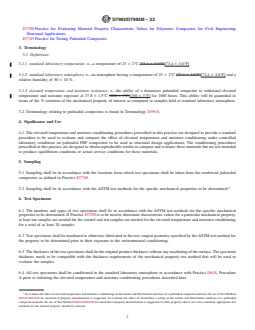

D7992/D7992M − 23
D7290 Practice for Evaluating Material Property Characteristic Values for Polymeric Composites for Civil Engineering
Structural Applications
D7745 Practice for Testing Pultruded Composites
3. Terminology
3.1 Definitions:
3.1.1 standard laboratory temperature, n—a temperature of 23 6 2°C (73.4 6 3.6°F)[73.4 6 3.6°F]
3.1.2 standard laboratory atmosphere, n—an atmosphere having a temperature of 23 6 2°C (73.4 6 3.6°F)[73.4 6 3.6°F] and a
relative humidity of 50 6 10 %.
3.1.3 elevated temperature and moisture resistance, n—the ability of a thermoset pultruded composite to withstand elevated
temperature and moisture exposure at 37.8 6 1.5°C (100 6 3°F)[100 6 3°F] for 1000 hours. This ability will be quantified in
terms of the % retention of the mechanical pro
...
