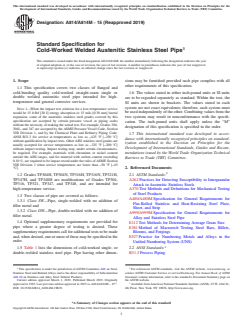

Designation:A814/A814M −15 (Reapproved 2019)
Standard Specification for
Cold-Worked Welded Austenitic Stainless Steel Pipe
This standard is issued under the fixed designationA814/A814M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope sions may be furnished provided such pipe complies with all
other requirements of this specification.
1.1 This specification covers two classes of flanged and
cold-bending quality cold-worked straight-seam single or
1.6 The values stated in either inch-pound units or SI units
double welded austenitic steel pipe intended for high-
are to be regarded separately as standard. Within the text, the
temperature and general corrosive services.
SI units are shown in brackets. The values stated in each
system are not exact equivalents; therefore, each system must
NOTE 1—When the impact test criterion for a low-temperature service
beusedindependentlyoftheother.Combiningvaluesfromthe
would be 15 ft·lbf [20 J] energy absorption or 15 mils [0.38 mm] lateral
expansion, some of the austenitic stainless steel grades covered by this two systems may result in nonconformance with the specifi-
specification are accepted by certain pressure vessel or piping codes
cation. The inch-pound units shall apply unless the “M”
without the necessity of making the actual test. For example, Grades 304,
designation of this specification is specified in the order.
304L, and 347 are accepted by theASME Pressure Vessel Code, Section
VIII Division 1, and by the Chemical Plant and Refinery Piping Code,
1.7 This international standard was developed in accor-
ANSI B31.3 for service at temperatures as low as −425 °F [−250 °C]
dance with internationally recognized principles on standard-
without qualification by impact tests. OtherAISI stainless steel grades are
ization established in the Decision on Principles for the
usually accepted for service temperatures as low as −325 °F [−200 °C]
Development of International Standards, Guides and Recom-
without impact testing. Impact testing may, under certain circumstances,
be required. For example, materials with chromium or nickel content
mendations issued by the World Trade Organization Technical
outside the AISI ranges, and for material with carbon content exceeding
Barriers to Trade (TBT) Committee.
0.10%, are required to be impact tested under the rules ofASME Section
VIII Division 1 when service temperatures are lower than −50 °F [−45
2. Referenced Documents
°C].
1.2 Grades TP304H, TP304N, TP316H, TP316N, TP321H,
2.1 ASTM Standards:
TP347H, and TP348H are modifications of Grades TP304, A262Practices for Detecting Susceptibility to Intergranular
TP316, TP321, TP347, and TP348, and are intended for
Attack in Austenitic Stainless Steels
high-temperature service. A370Test Methods and Definitions for Mechanical Testing
of Steel Products
1.3 Two classes of pipe are covered as follows:
A480/A480MSpecification for General Requirements for
1.3.1 Class SW—Pipe, single-welded with no addition of
Flat-Rolled Stainless and Heat-Resisting Steel Plate,
filler metal and
Sheet, and Strip
1.3.2 Class DW—Pipe, double-welded with no addition of
A999/A999MSpecification for General Requirements for
filler metal.
Alloy and Stainless Steel Pipe
1.4 Optional supplementary requirements are provided for
E112Test Methods for Determining Average Grain Size
pipe where a greater degree of testing is desired. These
E381Method of Macroetch Testing Steel Bars, Billets,
supplementaryrequirementscallforadditionalteststobemade
Blooms, and Forgings
and,whendesired,oneormoreofthesemaybespecifiedinthe
E527Practice for Numbering Metals and Alloys in the
order.
Unified Numbering System (UNS)
1.5 Table 1 lists the dimensions of cold-worked single- or 2.2 ANSI Standards:
double-welded stainless steel pipe. Pipe having other dimen- B31.3Process Piping
1 2
This specification is under the jurisdiction ofASTM Committee A01 on Steel, For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Stainless Steel and RelatedAlloys and is the direct responsibility of Subcommittee contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
A01.10 on Stainless and Alloy Steel Tubular Products. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved March 1, 2019. Published March 2019. Originally the ASTM website.
ɛ1 3
approved in 1983. Last previous edition approved in 2015 as A814/A814M–15 . Available fromAmerican National Standards Institute (ANSI), 25 W. 43rd St.,
DOI: 10.1520/A0814_A0814M-15R19. 4th Floor, New York, NY 10036, http://www.ansi.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
A814/A814M−15 (2019)
A

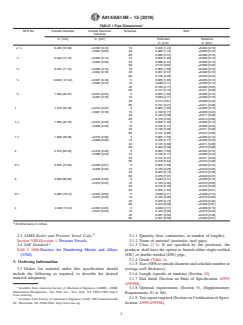

TABLE 1 Pipe Dimensions
NPS No. Outside Diameter Outside Diameter Schedule Wall
Tolerance
in. [mm] in. [mm] Thickness Tolerance
in. [mm] in. [mm]
e ⁄8 0.405 [10.29] +0.004 [0.10] 10 0.049 [1.24] ±0.004 [0.10]
−0.002 [0.05] 40 0.068 [1.72] ±0.005 [0.12]
80 0.095 [2.41] ±0.006 [0.15]
⁄4 0.540 [13.72] +0.005 [0.12] 10 0.065 [1.65] ±0.005 [0.12]
−0.003 [0.08] 40 0.088 [2.24] ±0.006 [0.15]
80 0.119 [3.02] ±0.009 [0.23]
⁄8 0.675 [17.15] +0.006 [0.15] 10 0.065 [1.65] ±0.005 [0.12]
−0.004 [0.10] 40 0.091 [2.31] ±0.006 [0.15]
80 0.126 [3.20] ±0.010 [0.25]
⁄2 0.840 [ 21.34] +0.007 [0.18] 5 0.065 [1.65] ±0.005 [0.12]
−0.005 [0.12] 10 0.083 [2.11] ±0.006 [0.15]
40 0.109 [2.77] ±0.009 [0.23]
80 0.147 [3.73] ±0.011 [0.28]
⁄4 1.050 [26.67] +0.010 [0.25] 5 0.065 [1.65] ±0.005 [0.12]
−0.007 [0.18] 10 0.083 [2.11] ±0.006 [0.15]
40 0.113 [2.87] ±0.009 [0.23]
80 0.154 [3.91] ±0.011 [0.28]
1 1.315 [33.40] +0.010 [0.25] 5 0.065 [1.65] ±0.005 [0.12]
−0.007 [0.18] 10 0.109 [2.77] ±0.009 [0.23]
40 0.133 [3.38] ±0.011 [0.28]
80 0.179 [4.55] ±0.014 [0.36]
1 ⁄4 1.660 [42.16] +0.012 [0.30] 5 0.065 [1.65] ±0.005 [0.12]
−0.008 [0.20] 10 0.109 [2.77] ±0.009 [0.23]
40 0.140 [3.56] ±0.011 [0.28]
80 0.191 [4.85] ±0.014 [0.36]
1 ⁄2 1.900 [48.26] +0.015 [0.38] 5 0.065 [1.65] ±0.005 [0.12]
−0.008 [0.20] 10 0.109 [2.77] ±0.009 [0.23]
40 0.145 [3.68] ±0.011 [0.28]
80 0.200 [5.08] ±0.015 [0.38]
2 2.375 [60.33] +0.018 [0.46] 5 0.065 [1.65] ±0.005 [0.12]
−0.008 [0.20] 10 0.109 [2.77] ±0.009 [0.23]
40 0.154 [3.91] ±0.011 [0.28]
80 0.218 [5.54] ±0.015 [0.38]
2 ⁄2 2.875 [73.03] +0.020 [0.51] 5 0.065 [1.65] ±0.005 [0.12]
−0.009 [0.23] 10 0.120 [3.05] ±0.010 [0.25]
40 0.203 [5.16] ±0.015 [0.38]
80 0.276 [7.01] ±0.020 [0.51]
3 3.500 [88.90] +0.025 [0.63] 5 0.083 [2.11] ±0.006 [0.15]
−0.010 [0.25] 10 0.120 [3.05] ±0.010 [0.25]
40 0.216 [5.49] ±0.015 [0.38]
80 0.300 [7.62] ±0.020 [0.51]
3 ⁄2 4.000 [101.6] +0.025 [0.63] 5 0.083 [2.11] ±0.006 [0.15]
−0.010 [0.25] 10 0.120 [3.05] ±0.010 [0.25]
40 0.226 [5.74] ±0.018 [0.46]
80 0.318 [8.08] ±0.020 [0.51]
4 4.500 [114.3] +0.025 [0.63] 5 0.083 [2.11] ±0.006 [0.15]
−0.010 [0.25] 10 0.120 [3.05] ±0.010 [0.25]
40 0.237 [6.02] ±0.019 [0.48]
80 0.337 [8.56] ±0.020 [0.51]
A
All dimensions in inches.
2.3 ASME Boiler and Pressure Vessel Code: 3.1.1 Quantity (feet, centimetres, or number of lengths),
Section VIII Division 1,Pressure Vessels 3.1.2 Name of material (austenitic steel pipe),
2.4 SAE Standard: 3.1.3 Class (1.3). If not specified by the purchaser, the
SAE J 1086Practice for Numbering Metals and Alloys producer shall have the option to furnish either single-welded
(UNS) (SW) or double-welded (DW) pipe,
3.1.4 Grade (Table 2),
3. Ordering Information
3.1.5 Size(NPSoroutsidediameterandschedulenumberor
3.1 Orders for material under this specification should
average wall thickness),
include the following as required, to describe the desired
3.1.6 Length (specific or random) (Section 10),
material adequately:
3.1.7 End finish (Section on Ends of Specification A999/
A999M),
Available from American Society of Mechanical Engineers (ASME), ASME
3.1.8 Optional requirements (Section 9), (Supplementary
International Headquarters, Two Park Ave., New York, NY 10016-5990, http://
Requirements S1 to S8),
www.asme.org.
3.1.9 Testreportrequired(SectiononCertificationofSpeci-
Available from Society of Automotive Engineers (SAE), 400 Commonwealth
Dr., Warrendale, PA 15096-0001, http://www.sae.org. fication A999/A999M),
A814/A814M−15 (2019)

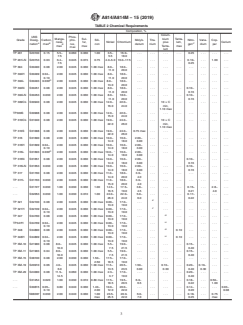

TABLE 2 Chemical Requirements
Composition, %
Colum-
UNS Phos-
Manga- Sul- bium Tanta-
Grade Desig- Carbon, pho- Sili- Molyb- Tita- Nitro- Vana- Cop-
nese, fur, Nickel Chromium plus lum, Cerium
A B C
nation max rus, con denum nium gen dium per
B
max max Tanta- max
max
lum
TP 201 S20100 0.15 5.5– 0.060 0.030 1.00 3.5– 16.0– . . . . 0.25 . . .
7.5 5.5 18.0
TP 201LN S20153 0.03 6.4– 0.045 0.015 0.75 4.0–5.0 16.0–17.5 . . . . . . . . . . . . 0.10– . 1.00 .
7.5 0.25
TP 304 S30400 0.08 2.00 0.045 0.030 1.00 max 8.0– 18.0– . . . . . . . .
11.0 20.0
TP 304H S30409 0.04– 2.00 0.045 0.030 1.00 max 8.0– 18.0– . . . . . . . .
0.10 11.0 20.0
D
TP 304L S30403 0.030 2.00 0.045 0.030 1.00 max 8.0– 18.0– . . . . . . . .
13.0 20.0
TP 304N S30451 0.08 2.00 0.045 0.030 1.00 max 8.0– 18.0– . . . . 0.10– . . .
11.0 20.0 0.16
TP 304LN S30453 0.030 2.00 0.045 0.030 1.00 max 8.0– 18.0– . . . . 0.10– . . .
11.0 20.0 0.16
TP 309Cb S30940 0.08 2.00 0.045 0.030 1.00 max 12.0– 22.0– . . 10×C . . . . .
16.0 24.0 min,
1.10 max
TP309S S30908 0.08 2.00 0.045 0.030 1.00 max 12.0– 22.0– . . . . . . . .
15.0 24.0
TP 310Cb S31040 0.08 2.00 0.045 0.030 1.00 max 19.0– 24.0– . . 10×C . . . . .
22.0 26.0 min,
1.10 max
TP 310S S31008 0.08 2.00 0.045 0.030 1.00 max 19.0– 24.0– 0.75max . . . . . . .
22.0 26.0
TP 316 S31600 0.08 2.00 0.045 0.030 1.00 max 10.0– 16.0– 2.00– . . . . . . .
14.0 18.0 3.00
TP 316H S31609 0.04– 2.00 0.045 0.030 1.00 max 10.0– 16.0– 2.00– . . . . . . .
0.10 14.0 18.0 3.00
D
TP 316L S31603 0.030 2.00 0.045 0.030 1.00 max 10.0– ¯ 16.0– 2.00– . . . . . . .
14.0 18.0 3.00
TP 316N S31651 0.08 2.00 0.045 0.030 1.00 max 10.0– 16.0– 2.00– 0.10– . . .
14.0 18.0 3.00 0.16
TP 316LN S31653 0.030 2.00 0.045 0.030 1.00 max 10.0– 16.0– 2.00– . . . 0.10– . . .
14.0 18.0 3.00 0.16
TP 317 S31700 0.08 2.00 0.045 0.030 1.00 max 11.0– 18.0– 3.0– . . . . . . .
14.0 20.0 4.0
TP 317L S31703 0.030 2.00 0.045 0.030 1.00 max 11.0– 18.0– 3.0– . . . . . . .
15.0 20.0 4.0
. . . S31727 0.030 1.00 0.030 0.030 1.00 14.5– 17.5– 3.8– . . . 0.15– . . . 2.8– .
16.5 19.0 4.5 0.21 4.0
. . . S32053 0.030 1.00 0.030 0.010 1.00 24.0– 22.0– 5.0– . . . 0.17– . . .
26.0 24.0 6.0 0.22
E
TP 321 S32100 0.08 2.00 0.045 0.030 1.00 max 9.00– 17.0– . . . . . . .
13.0 19.0
F
TP 321H S32109 0.04– 2.00 0.045 0.030 1.00 max 9.00– 17.0– . . . . . . .
0.10 13.0 19.0
G
TP 347 S34700 0.08 2.00 0.045 0.030 1.00 max 9.00– 17.0– . . . . . . .
13.0 19.0
H
TP347H S34709 0.04– 2.00 0.045 0.030 1.00 max 9.00– 17.0– . . . . . . .
0.10 13.0 19.0
G
TP 348 S34800 0.08 2.00 0.045 0.030 1.00 max 9.00– 17.0– . . 0.10 . . .
13.0 19.0
H
TP 348H S34809 0.04– 2.00 0.045 0.030 1.00 max 9.00– 17.0– . . 0.10 . . . .
0.10 13.0 19.0
TP XM-10 S21900 0.08 8.0– 0.045 0.030 1.00 max 5.5– 19.0– . . . . 0.15– . . .
10.0 7.5 21.5 0.40
TP XM-11 S21903 0.04 8.0– 0.045 0.030 1.00 max 5.5– 19.0– . . . . 0.15– . . .
10.0 7.5 21.5 0.40
TP XM-15 S38100 0.08 2.00 0.030 0.030 1.50– 17.5– 17.0– . . . . . . . .
2.50 18.5 19.0
TP XM-19 S20910 0.06 4.0– 0.045 0.030 1.00 max 11.5– 20.5– 1.50– . . . 0.10– . . . 0.20– 0.10– . .
6.0 13.5 23.5 3.00 0.30 0.40 0.30
TP XM-29 S24000 0.08 11.5– 0.060 0.030 1.00 max 2.3– 17.0– . . . . 0.20– . . .
14.5 3.7 19.0 0.40
. . . S31254 0.020 1.00 0.030 0.010 0.80 max 17.5– 19.5– 6.0– . . . 0.18– . . . 0.50– .
18.5 20.5 6.5 0.22 1.00
. . . S30815 0.05– 0.80 0.040 0.030 1.40– 10.0– 20.0– . . . . 0.14– . . 0.03–
0.10 2.00 12.0 22.0 0.20 0.08
N08367 0.030 2.00 0.040 0.030 1.00 23.5- 20.0- 6.0- . . . 0.18- . . . 0.75 .
max 25.5 22.0 7.0 0.25 max
A814/A814M−15 (2019)
A
New designation established in accordance with Practice E527 and SAE J 1086.
B
Maximum, unless otherwise indicated.
C
The method of analysis for nitrogen shall be a matter of agreement between the purchaser and manufacturer.
D
For small diameter or thin walls or both, where many drawing passes are required, a carbon maximum of 0.040 % is necessary in grades TP304L and TP316L. Small
outside diameter tubes are defined as those less than 0.500 in. [12.7 mm] in outside diameter and light wall tubes as those less than 0.049 in. [1.2 mm] in average wall
thickness (0.044 in. [1 mm] in minimum wall thickness).
E
The titanium content shall be not less than five times the carbon content and not more than 0.70 %.
F
The titanium content shall be not less than four times the carbon content and not more than 0.70 %.
G
The columbium plus tantalum content shall be not less than ten times the carbon content and not more than 1.10 %.
H
The columbium plus tantalum content shall be not less than eight times the carbon content and not more than 1.10 %.
3.1.10 Specification designation, and 5. Chemical Composition
3.1.11 Special requirements or exceptions to the specifica-
5.1 The steel shall conform to the chemical composition
tion.
prescribed in Table 2.
5.2 When specified on the purchase order, a product analy-
4. Materials and Manufacture
sisshallbesuppliedfromonetubeorcoilofsteelperheat.The
4.1 Manufacture:
product analysis tolerance of Specification A480/A480M shall
4.1.1 The pipe shall be made by a machine-welding or an
apply.
automatic-weldingprocess,weldingfromoneorbothsidesand
producing full penetration welds with no addition of filler
6. Tensile Requirements
metal in the welding operation.
6.1 The tensile properties of the material shall conform to
4.1.2 Weld repairs, with the addition of compatible filler
the requirements prescribed in Table 3.
metal, may be made to the weld joint in accordance with the
requirements of the section on Repair by Welding of Specifi-
7. Permissible Va
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
