ASTM C1486-18(2023)
(Practice)Standard Practice for Testing Chemical-Resistant Broadcast and Slurry-Broadcast Resin Monolithic Floor Surfacings
Standard Practice for Testing Chemical-Resistant Broadcast and Slurry-Broadcast Resin Monolithic Floor Surfacings
SIGNIFICANCE AND USE
4.1 Because the sample is prepared in a manner as it would be applied in the field, the test specimens may be considered representative of the application of a specified surfacing. Such methods include application by squeegees, rollers, trowels, notched trowels, and gage rakes.
4.2 These systems vary in several ways, including the number of layers or application steps, the surface finish, and variation in composition.
4.3 The results obtained in carrying out this practice should serve as a guide in comparing similarly applied surfacings. No attempt has been made to incorporate into this practice all of the various factors that may affect the performance of such applications when subjected to actual service.
SCOPE
1.1 This practice covers methods for preparing test specimens and testing procedures for broadcast or slurry-broadcast monolithic floor surfacings in areas where chemical resistance is required.
1.2 These floor surfacings are applied by various application methods including squeegees, rollers, trowels, notched trowels, and gage rakes onto suitably prepared concrete substrates. The surfacings bond to the substrate upon curing to provide a nominal thickness of 60 mils (1.5 mm) or greater.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

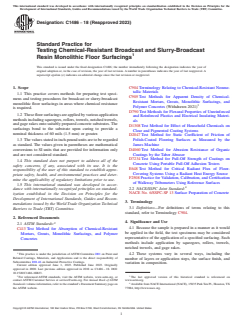

Designation: C1486 − 18 (Reapproved 2023)
Standard Practice for
Testing Chemical-Resistant Broadcast and Slurry-Broadcast
Resin Monolithic Floor Surfacings
This standard is issued under the fixed designation C1486; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope C904 Terminology Relating to Chemical-Resistant Nonme-
tallic Materials
1.1 This practice covers methods for preparing test speci-
C905 Test Methods for Apparent Density of Chemical-
mens and testing procedures for broadcast or slurry-broadcast
Resistant Mortars, Grouts, Monolithic Surfacings, and
monolithic floor surfacings in areas where chemical resistance
Polymer Concretes (Withdrawn 2021)
is required.
D790 Test Methods for Flexural Properties of Unreinforced
1.2 These floor surfacings are applied by various application
and Reinforced Plastics and Electrical Insulating Materi-
methods including squeegees, rollers, trowels, notched trowels,
als
and gage rakes onto suitably prepared concrete substrates. The
D1308 Test Method for Effect of Household Chemicals on
surfacings bond to the substrate upon curing to provide a
Clear and Pigmented Coating Systems
nominal thickness of 60 mils (1.5 mm) or greater.
D2047 Test Method for Static Coefficient of Friction of
Polish-Coated Flooring Surfaces as Measured by the
1.3 The values stated in inch-pound units are to be regarded
as standard. The values given in parentheses are mathematical James Machine
D4060 Test Method for Abrasion Resistance of Organic
conversions to SI units that are provided for information only
and are not considered standard. Coatings by the Taber Abraser
D7234 Test Method for Pull-Off Strength of Coatings on
1.4 This standard does not purport to address all of the
Concrete Using Portable Pull-Off Adhesion Testers
safety concerns, if any, associated with its use. It is the
E648 Test Method for Critical Radiant Flux of Floor-
responsibility of the user of this standard to establish appro-
Covering Systems Using a Radiant Heat Energy Source
priate safety, health, and environmental practices and deter-
F2508 Practice for Validation, Calibration, and Certification
mine the applicability of regulatory limitations prior to use.
of Walkway Tribometers Using Reference Surfaces
1.5 This international standard was developed in accor-
2.2 NACE/SSPC Joint Standard:
dance with internationally recognized principles on standard-
NACE No. 6/SSPC-SP 13 Surface Preparation of Concrete
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
3. Terminology
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee. 3.1 Definitions—For definitions of terms relating to this
standard, refer to Terminology C904.
2. Referenced Documents
4. Significance and Use
2.1 ASTM Standards:
4.1 Because the sample is prepared in a manner as it would
C413 Test Method for Absorption of Chemical-Resistant
be applied in the field, the test specimens may be considered
Mortars, Grouts, Monolithic Surfacings, and Polymer
representative of the application of a specified surfacing. Such
Concretes
methods include application by squeegees, rollers, trowels,
notched trowels, and gage rakes.
This practice is under the jurisdiction of ASTM Committee D01 on Paint and 4.2 These systems vary in several ways, including the
Related Coatings, Materials, and Applications and is the direct responsibility of
number of layers or application steps, the surface finish, and
Subcommittee D01.46 on Industrial Protective Coatings.
variation in composition.
Current edition approved June 1, 2023. Published June 2023. Originally
approved in 2000. Last previous edition approved in 2018 as C1486 – 18. DOI:
10.1520/C1486-18R23.
2 3
For referenced ASTM standards, visit the ASTM website, www.astm.org, or The last approved version of this historical standard is referenced on
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM www.astm.org.
Standards volume information, refer to the standard’s Document Summary page on Available from NACE International (NACE), 15835 Park Ten Pl., Houston, TX
the ASTM website. 77084, http://www.nace.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

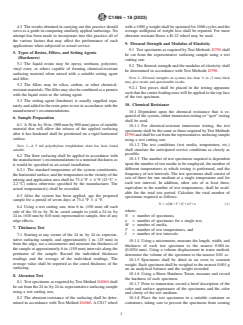

C1486 − 18 (2023)
4.3 The results obtained in carrying out this practice should with a 1000 g weight shall be operated for 1000 cycles and the
serve as a guide in comparing similarly applied surfacings. No average milligram of weight loss shall be reported. For more
attempt has been made to incorporate into this practice all of abrasion resistant floors a H-22 wheel may be used.
the various factors that may affect the performance of such
9. Flexural Strength and Modulus of Elasticity
applications when subjected to actual service.
9.1 Test specimens as required by Test Methods D790 shall
5. Types of Resins, Fillers, and Setting Agents
be cut from the representative surfacing sample using a wet
(Hardeners)
cutting saw.
5.1 The liquid resins may be epoxy, urethane, polyester,
9.2 The flexural strength and the modulus of elasticity shall
vinyl ester, or others capable of forming chemical-resistant
be determined in accordance with Test Methods D790.
surfacing material when mixed with a suitable setting agent
NOTE 2—Flexural strengths on systems less than ⁄8 in. (3 mm) thick
and filler.
may give erratic and questionable results.
5.2 The fillers may be silica, carbon, or other chemical-
9.2.1 Test pieces shall be placed in the testing apparatus
resistant materials. The filler may also be combined as a premix
such that the center loading nose will be applied to the top face
with the liquid resin or the setting agent.
of the test specimen.
5.3 The setting agent (hardener) is usually supplied sepa-
10. Chemical Resistance
rately and added to the resin prior to use in accordance with the
manufacturer’s recommendations.
10.1 Dependent upon the chemical resistance that is re-
quired of the system, either immersion testing or “spot” testing
6. Sample Preparation
shall be used.
6.1 A 36 in. by 36 in. (900 mm by 900 mm) piece of suitable
10.1.1 For chemical-resistant immersion testing, the test
material that will allow the release of the applied surfacing
specimens shall be the same as those required by Test Methods
after it has hardened shall be positioned on a rigid horizontal
D790 and shall be cut from the representative surfacing sample
surface.
using a wet cutting saw.
10.1.2 The test conditions (test media, temperature, etc.)
NOTE 1—A 5 mil polyethylene terephthalate sheet has been found
suitable. shall simulate the anticipated service conditions as closely as
possible.
6.2 The floor surfacing shall be applied in accordance with
10.1.3 The number of test specimens required is dependent
the manufacturer’s recommendations to a nominal thickness as
upon the number of test media to be employed, the number of
it would be specified in an actual installation.
different temperatures at which testing is performed, and the
6.2.1 The standard temperature of the system constituents,
frequency of test intervals. The test specimens shall consist of
the horizontal surface, and the temperature in the vicinity of the
sets of three for one medium at a single temperature and for
mixing and application area shall be 73.4 °F 6 4 °F (23 °C 6
each test interval. In addition, other sets of at least three,
2.2 °C) unless otherwise specified by the manufacturer. The
equivalent to the number of test temperatures, shall be avail-
actual temperature(s) shall be recorded.
able for the total test period. Calculate the total number of
6.3 After the system has been applied, age the prepared
specimens required as follows:
sample for a period of seven days at 73.4 °F 6 4 °F.
N 5 n~M × T × I!1nT1n (1)
6.4 Using a wet cutting saw, trim 6 in. (150 mm) off each
where:
side of the 36 in. by 36 in. cured sample to yield a 24 in. by
24 in. (610 mm by 610 mm) representative sample, free of any N = number of specimens,
n = number of specimens for a single test,
edge effects.
M = number of media,
7. Thickness Test
T = number of test temperatures, and
I = number of test intervals.
7.1 Starting at any corner of the 24 in. by 24 in. represen-
tative surfacing sample, and approximately 1 in. (25 mm) in
10.1.4 Using a micrometer, measure the length, width, and
from the edge, use a micrometer and measure the thickness of
thickness of each test specimen to the nearest 0.001 in.
the sample at approximately 6 in. (150 mm) intervals along the
(0.0254 mm). Using a volume displacement in water method,
perimeter of the sample. Record the individual thickness
determine the volume of the specimen to the nearest 0.01 cc.
readings and the average of the individual readings. The
10.1.5 Specimens shall be dried in an oven to constant
average value shall be reported as the cured thickness of the
weight. Each specimen shall be weighed to the nearest 0.001 g
surfacing.
on an analytical balance and the weight recorded.
10.1.6 Using a Shore Hardness Tester, measure and record
8. Abrasion Test
the hardness of
...
