ASTM D1155-10(2020)

Standard Test Method for Roundness of Glass Spheres

SIGNIFICANCE AND USE
4.1 The roundness of glass spheres is one measurable aspect relating to their performance as a retroreflective media. The function of this test method is to measure the percent of true spheres as related to compliance with applicable specifications.
Note 1: This method has been used in other industrial areas outside the intended scope of this test method.
SCOPE
1.1 This test method2 covers the determination of the percent of true spheres in glass spheres used for retroreflective marking purposes and industrial uses.
1.2 This test method includes two procedures as follows:
1.2.1 Procedure A, in which the selected specimen is split into two size ranges or groups prior to separation into true spheres and irregular particles, and
1.2.2 Procedure B, in which the selected specimen is split into five size ranges or groups prior to separation.
1.2.3 In determining compliance with specification requirements, either Procedure A or Procedure B may be used. Where tests indicate failure to meet the specified percent of true spheres and irregular particles, the referee test shall be made in accordance with Procedure B.
1.3 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-May-2020
• ICS: 81.040.30 - Glass products
• Technical Committee: D01 - Paint and Related Coatings, Materials, and Applications
• Drafting Committee: D01.44 - Traffic Coatings

Relations

• Replaces: ASTM D1155-10(2015) - Standard Test Method for Roundness of Glass Spheres
• Effective Date: 01-Jun-2020
• Refers: ASTM E177-14 - Standard Practice for Use of the Terms Precision and Bias in ASTM Test Methods
• Effective Date: 01-May-2014
• Refers: ASTM E11-13 - Standard Specification for Woven Wire Test Sieve Cloth and Test Sieves
• Effective Date: 01-Oct-2013
• Refers: ASTM E691-13 - Standard Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
• Effective Date: 01-May-2013
• Refers: ASTM E177-13 - Standard Practice for Use of the Terms Precision and Bias in ASTM Test Methods
• Effective Date: 01-May-2013
• Refers: ASTM E691-11 - Standard Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
• Effective Date: 01-Nov-2011
• Refers: ASTM E177-10 - Standard Practice for Use of the Terms Precision and Bias in ASTM Test Methods
• Effective Date: 01-Oct-2010
• Refers: ASTM E11-09e1 - Standard Specification for Woven Wire Test Sieve Cloth and Test Sieves
• Effective Date: 01-May-2009
• Refers: ASTM E177-08 - Standard Practice for Use of the Terms Precision and Bias in ASTM Test Methods
• Effective Date: 01-Oct-2008
• Refers: ASTM E691-08 - Standard Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
• Effective Date: 01-Oct-2008
• Refers: ASTM E177-06b - Standard Practice for Use of the Terms Precision and Bias in ASTM Test Methods
• Effective Date: 15-Nov-2006
• Refers: ASTM E177-06a - Standard Practice for Use of the Terms Precision and Bias in ASTM Test Methods
• Effective Date: 01-Nov-2006
• Refers: ASTM E691-05 - Standard Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
• Effective Date: 01-Nov-2005
• Refers: ASTM E177-04e1 - Standard Practice for Use of the Terms Precision and Bias in ASTM Test Methods
• Effective Date: 01-Nov-2004
• Refers: ASTM E177-06 - Standard Practice for Use of the Terms Precision and Bias in ASTM Test Methods
• Effective Date: 01-Nov-2004

Overview

ASTM D1155-10(2020): Standard Test Method for Roundness of Glass Spheres is a globally recognized method published by ASTM International. This standard provides procedures to determine the percent of true, round spheres in samples of glass beads. Primarily used to evaluate materials for retroreflective applications, such as road marking media, this test method ensures product quality and compliance with industry specifications. The standard outlines two procedures for separating true spheres from irregular particles based on size, delivering reliable results vital for both industrial and safety applications.

Key Topics

• Test Purpose: Measures the roundness of glass spheres, a critical property affecting their retroreflective and functional performance.
• Test Procedures:
  • Procedure A: Divides specimens into two size groups before testing.
  • Procedure B: Uses five size groups for more detailed analysis and is required for referee testing in cases of non-compliance.
• Apparatus: Utilizes a vibrating glass panel at a variable slope to mechanically segregate true spheres from irregular particles.
• Sample Selection: Involves random selection and mechanical splitting to ensure representative sampling.
• Performance Reporting: Results are expressed as the weight percent of true spheres in the sample, with clear documentation of the method used.
• Precision and Reproducibility: The standard defines statistical limits for repeatability and reproducibility, ensuring reliability across different labs and operators.
• Compliance: Either Procedure A or B may be used for compliance testing; Procedure B is required if results do not meet specification requirements.

Applications

This standard is widely applied in quality control and compliance testing in the following areas:

• Retroreflective Road Markings: Ensuring the roundness of glass beads used in paints and coatings for traffic lines, enhancing nighttime visibility.
• Industrial Processing: Reliable evaluation of glass beads for blasting, peening, or filler materials where roundness impacts performance or flow properties.
• Safety Materials Manufacturing: Specification compliance for products requiring high retroreflectivity, such as signage and safety clothing.
• General Industrial Use: The test is referenced in various industries where glass spheres are integral, even beyond its originally intended application.

Organizations benefit from using ASTM D1155 by:

• Validating the quality and consistency of glass spheres.
• Meeting regulatory and contract requirements for material supply.
• Supporting research and development for performance-optimized materials.
• Facilitating fair dispute resolution between suppliers and purchasers through standardized measurement.

Related Standards

Users of ASTM D1155-10(2020) may also consult these relevant standards to ensure comprehensive material characterization:

• ASTM E11: Specification for woven wire test sieve cloth and sieves, used in sample preparation for size grouping.
• ASTM E177: Practice for use of the terms precision and bias in ASTM test methods, supporting interpretation of results.
• ASTM E691: Practice for conducting interlaboratory studies to determine the precision of a test method.
• ASTM MNL32: Manual on test sieving methods.
• Other Retroreflectivity Standards: For comprehensive retroreflective performance, refer to relevant standards specific to road marking materials and safety applications.

Keywords: ASTM D1155, glass spheres, roundness, retroreflective media, test method, quality control, road marking beads, industrial glass beads, standard compliance.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

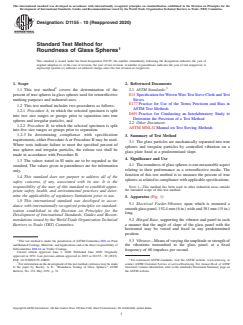

Designation: D1155 − 10 (Reapproved 2020)
Standard Test Method for
Roundness of Glass Spheres
This standard is issued under the fixed designation D1155; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2.1 ASTM Standards:
1.1 This test method covers the determination of the
percent of true spheres in glass spheres used for retroreflective E11 Specification for Woven Wire Test Sieve Cloth and Test
Sieves
marking purposes and industrial uses.
E177 Practice for Use of the Terms Precision and Bias in
1.2 This test method includes two procedures as follows:
ASTM Test Methods
1.2.1 Procedure A, in which the selected specimen is split
E691 Practice for Conducting an Interlaboratory Study to
into two size ranges or groups prior to separation into true
Determine the Precision of a Test Method
spheres and irregular particles, and
2.2 Other Document:
1.2.2 Procedure B, in which the selected specimen is split
ASTM MNL32 Manual on Test Sieving Methods
into five size ranges or groups prior to separation.
1.2.3 In determining compliance with specification 3. Summary of Test Method
requirements, either ProcedureAor Procedure B may be used.
3.1 The glass particles are mechanically separated into true
Where tests indicate failure to meet the specified percent of
spheres and irregular particles by controlled vibration on a
true spheres and irregular particles, the referee test shall be
glass plate fixed at a predetermined slope.
made in accordance with Procedure B.
4. Significance and Use
1.3 The values stated in SI units are to be regarded as the
4.1 The roundness of glass spheres is one measurable aspect
standard. The values given in parentheses are for information
relating to their performance as a retroreflective media. The
only.
function of this test method is to measure the percent of true
1.4 This standard does not purport to address all of the
spheres as related to compliance with applicable specifications.
safety concerns, if any, associated with its use. It is the
NOTE 1—This method has been used in other industrial areas outside
responsibility of the user of this standard to establish appro-
the intended scope of this test method.
priate safety, health, and environmental practices and deter-
mine the applicability of regulatory limitations prior to use.
5. Apparatus (Fig. 1)
1.5 This international standard was developed in accor-
5.1 Electrical Feeder-Vibrator, upon which is mounted a
dance with internationally recognized principles on standard-
smoothglasspanel,152.4mm(6in.)wideand381mm(15in.)
ization established in the Decision on Principles for the
long.
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical 5.2 Hinged Base, supporting the vibrator and panel in such
a manner that the angle of slope of the glass panel with the
Barriers to Trade (TBT) Committee.
horizontal may be varied and fixed in any predetermined
position.
5.3 Vibrator—Meansofvaryingtheamplitudeorstrengthof
This test method is under the jurisdiction of ASTM Committee D01 on Paint
and Related Coatings, Materials, andApplications and is the direct responsibility of
the vibrations transmitted to the glass panel, at a fixed
Subcommittee D01.44 on Traffic Coatings.
frequency of 60 impulses per second.
Current edition approved June 1, 2020. Published June 2020. Originally
approved in 1951. Last previous edition approved in 2015 as D1155 – 10 (2015).
DOI: 10.1520/D1155-10R20. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Forinformationonthedevelopmentofthistestmethod,referencemaybemade contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
to the paper by Keeley, A. E., “Roundness Testing of Glass Spheres,” ASTM Standards volume information, refer to the standard’s Document Summary page on
Bulletin, No. 174, May 1951, p. 72. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D1155 − 10 (2020)

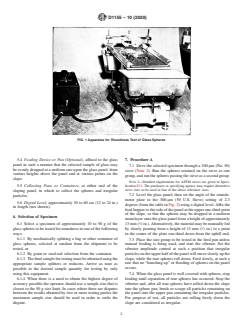

FIG. 1 Apparatus for Roundness Test of Glass Spheres
