ASTM F1200-21a

(Specification)

Standard Specification for Fabricated (Welded) Pipe Line Strainers (Above 150 psig and 150°F (1 MPa and 65°C))

Standard Specification for Fabricated (Welded) Pipe Line Strainers (Above 150 psig and 150°F (1 MPa and 65°C))

ABSTRACT
This specification covers welded pipe line strainers for use in applications above 150 psig and 150 F as well as in marine environment conditions. Strainers covered in this specification are classified into simplex, duplex (or multiplex), and automatic (self-cleaning) based on general construction. However, other bases for further classifying strainers are available: pressure ratings and types of port connection, port alignments relative to unit center lines, cover closures, valve types (in duplex), types of baskets or elements, materials of construction, and other design features. Strainers shall be manufactured by casting or forging or fabricated from plates, tubes, or pipes, with inlet and outlet connections requiring welding joined by butt welding. On the other hand, strainers made of carbon or low alloy steel shall be post-weld heat treated. The strainers shall undergo either hydrostatic or air test, while the welds shall be examined visually or radiographically. All tests shall conform to the requirements specified.
SCOPE
1.1 This specification covers welded strainers in services above 150 psig or 150°F (1 MPa and 65°C). For welded strainers in services at or below these ratings and cast strainers, see Specification F1199.
1.2 This specification provides the minimum requirements for the design fabrication, rating, marking, and testing of welded pipe line strainers for services above 150 psig or 150°F (1 MPa and 65°C).
Note 1: Fabricated (welded) pipe line strainers meeting this standard may also be used at pressures of 150 psig (1 MPa) and below and 0°F (–18°C) and above.
1.3 Strainers manufactured to this specification are acceptable for use in the marine environment.
1.4 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.5 The following safety hazards caveat pertains only to the test methods portion, Section 8, of this specification.  This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
31-Aug-2021
ICS
23.040.01 - Pipeline components and pipelines in general
Technical Committee
F25 - Ships and Marine Technology
Drafting Committee
F25.11 - Machinery and Piping Systems
Current Stage
Ref Project

Relations

Refers
ASTM D93-20 - Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester
Effective Date
01-Aug-2020

Buy Standard

ASTM F1200-21a - Standard Specification for Fabricated (Welded) Pipe Line Strainers (Above 150 psig and 150°F (1 MPa and 65°C))ASTM F1200-21a - Standard Specification for Fabricated (Welded) Pipe Line Strainers (Above 150 psig and 150°F (1 MPa and 65°C))
PreviousNext
Technical specification
ASTM F1200-21a - Standard Specification for Fabricated (Welded) Pipe Line Strainers (Above 150 psig and 150°F (1 MPa and 65°C))
English language
4 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM F1200-21a - Standard Specification for Fabricated (Welded) Pipe Line Strainers (Above 150 psig and 150°F (1 MPa and 65°C))REDLINE ASTM F1200-21a - Standard Specification for Fabricated (Welded) Pipe Line Strainers (Above 150 psig and 150°F (1 MPa and 65°C))
PreviousNext
Technical specification
REDLINE ASTM F1200-21a - Standard Specification for Fabricated (Welded) Pipe Line Strainers (Above 150 psig and 150°F (1 MPa and 65°C))
English language
4 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

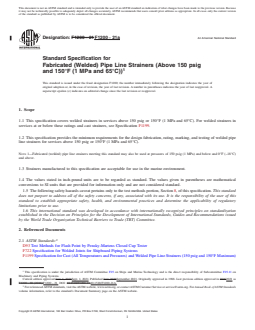

Designation: F1200 −21a An American National Standard
Standard Specification for
Fabricated (Welded) Pipe Line Strainers (Above 150 psig
1
and 150°F (1 MPa and 65°C))
This standard is issued under the fixed designation F1200; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2
1.1 This specification covers welded strainers in services 2.1 ASTM Standards:
above 150 psig or 150°F (1 MPa and 65°C). For welded D93 Test Methods for Flash Point by Pensky-Martens
strainers in services at or below these ratings and cast strainers, Closed Cup Tester
see Specification F1199. F722 Specification for Welded Joints for Shipboard Piping
Systems
1.2 This specification provides the minimum requirements
F1199 Specification for Cast (All Temperatures and Pres-
for the design fabrication, rating, marking, and testing of
sures) and Welded Pipe Line Strainers (150 psig and
welded pipe line strainers for services above 150 psig or 150°F
150°F Maximum)
(1 MPa and 65°C).
3
2.2 MSS Standards:
NOTE 1—Fabricated (welded) pipe line strainers meeting this standard
SP-51 150 lb Corrosion Resistant Cast Flanges and Flanged
may also be used at pressures of 150 psig (1 MPa) and below and 0°F
Fittings
(–18°C) and above.
SP-63 High Strength Wrought Welding Fittings
4
1.3 Strainers manufactured to this specification are accept-
2.3 ASME Standards:
able for use in the marine environment.
ASME Boiler and Pressure Vessel Code Section VIII, Divi-
sion 1
1.4 The values stated in inch-pound units are to be regarded
as standard. The values given in parentheses are mathematical ASME Boiler and Pressure Vessel Code Section IX
B1.20.1 Pipe Threads, General Purpose, Inch
conversions to SI units that are provided for information only
and are not considered standard. B16.1 Gray Iron Pipe Flanges and Flanged Fittings: Classes
25, 125, and 250
1.5 The following safety hazards caveat pertains only to the
B16.3 Malleable Iron Threaded Fittings: Classes 150 and
test methods portion, Section 8, of this specification. This
300
standard does not purport to address all of the safety concerns,
B16.4 Gray Iron Threaded Fittings: Classes 125 and 150
if any, associated with its use. It is the responsibility of the user
B16.5 Pipe Flanges and Flanged Fittings: NPS 1/2 through
of this standard to establish appropriate safety, health, and
NPS 24 Metric/Inch Standard
environmental practices and determine the applicability of
B16.11 Forged Fittings, Socket-Welding and Threaded
regulatory limitations prior to use.
B16.15 Cast Copper Alloy Threaded Fittings: Classes 125
1.6 This international standard was developed in accor-
and 250
dance with internationally recognized principles on standard-
B16.24 Cast Copper Alloy Pipe Flanges, Flanged Fittings,
ization established in the Decision on Principles for the
and Valves: Classes 150, 300, 600, 900, 1500, and 2500
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
2
Barriers to Trade (TBT) Committee.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on
1
This specification is under the jurisdiction of ASTM Committee F25 on Ships the ASTM website.
3
and Marine Technology and is the direct responsibility of Subcommittee F25.11 on AvailablefromManufacturersStandardizationSocietyoftheValveandFittings
Machinery and Piping Systems. Industry (MSS), 127 Park St., NE,Vienna,VA22180-4602, http://www.mss-hq.org.
4
Current edition approved Sept. 1, 2021. Published September 2021. Originally Available from American Society of Mechanical Engineers (ASME), ASME
approved in 1988. Last previous edition approved in 2021 as F1200 – 21. DOI: International Headquarters, Two Park Ave., New York, NY 10016-5990, http://
10.1520/F1200-21A. www.asme.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
F1200 − 21a

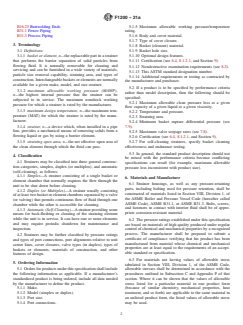

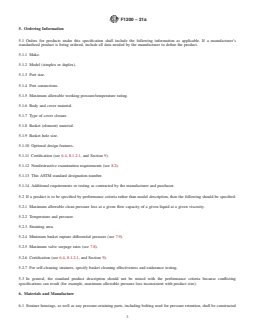

B16.25 Buttwelding Ends 5.1.5 Maximum allowable working pressure/temperature
B31.1 Power Piping rating.
B31.3 Process Piping
5.1.6 Body and cover material.
5.1.7 Type of cover closure.
3. Terminology
5.1.8 Basket (element) material.
3.1 Definitions:
5.1.9 Basket hole size.
3.1.1 basket or element, n—th
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

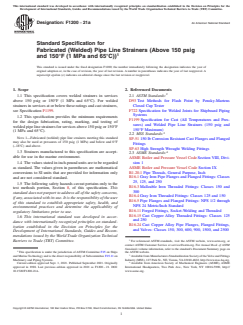

Designation: F1200 − 21 F1200 − 21a An American National Standard
Standard Specification for
Fabricated (Welded) Pipe Line Strainers (Above 150 psig
1
and 150°F (1 MPa and 65°C))
This standard is issued under the fixed designation F1200; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers welded strainers in services above 150 psig or 150°F (1 MPa and 65°C). For welded strainers in
services at or below these ratings and cast strainers, see Specification F1199.
1.2 This specification provides the minimum requirements for the design fabrication, rating, marking, and testing of welded pipe
line strainers for services above 150 psig or 150°F (1 MPa and 65°C).
NOTE 1—Fabricated (welded) pipe line strainers meeting this standard may also be used at pressures of 150 psig (1 MPa) and below and 0°F (–18°C)
and above.
1.3 Strainers manufactured to this specification are acceptable for use in the marine environment.
1.4 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.5 The following safety hazards caveat pertains only to the test methods portion, Section 8, of this specification. This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory
limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
D93 Test Methods for Flash Point by Pensky-Martens Closed Cup Tester
F722 Specification for Welded Joints for Shipboard Piping Systems
F1199 Specification for Cast (All Temperatures and Pressures) and Welded Pipe Line Strainers (150 psig and 150°F Maximum)
1
This specification is under the jurisdiction of ASTM Committee F25 on Ships and Marine Technology and is the direct responsibility of Subcommittee F25.11 on
Machinery and Piping Systems.
Current edition approved June 1, 2021Sept. 1, 2021. Published June 2021September 2021. Originally approved in 1988. Last previous edition approved in 20162021 as
F1200 – 88 (2016).F1200 – 21. DOI: 10.1520/F1200-21.10.1520/F1200-21A.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

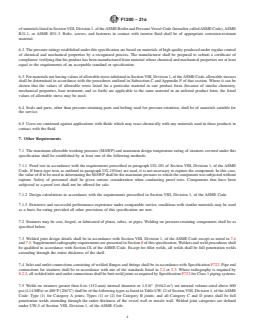

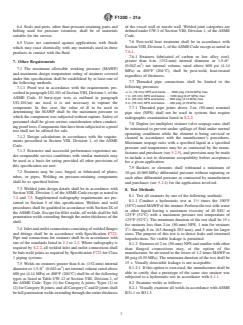

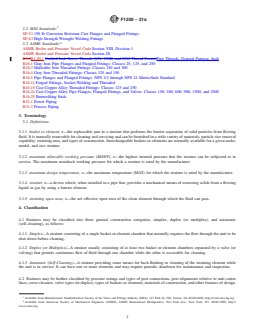

F1200 − 21a
3
2.2 MSS Standards:
SP-51 150 lb Corrosion Resistant Cast Flanges and Flanged Fittings
SP-63 High Strength Wrought Welding Fittings
4
2.3 ASME Standards:
ASME Boiler and Pressure Vessel Code Section VIII, Division 1
ASME Boiler and Pressure Vessel Code Section IX
B1.1B1.20.1 Unified Inch Screw Threads (UN, UNR, and UNJ Thread Forms)Pipe Threads, General Purpose, Inch
B16.1 Gray Iron Pipe Flanges and Flanged Fittings: Classes 25, 125, and 250
B16.3 Malleable Iron Threaded Fittings: Classes 150 and 300
B16.4 Gray Iron Threaded Fittings: Classes 125 and 150
B16.5 Pipe Flanges and Flanged Fittings: NPS 1/2 through NPS 24 Metric/Inch Standard
B16.11 Forged Fittings, Socket-Welding and Threaded
B16.15 Cast Copper Alloy Threaded Fittings: Classes 125 and 250
B16.24 Cast Copper Alloy Pipe Flanges, Flanged Fittings, and Valves: Classes 150, 300, 600, 900, 1500, and 2500
B16.25 Buttwelding Ends
B31.1 Power Piping
B31.3 Process Piping
3. Terminology
3.1 Definitions:
3.1.1 basket or element, n—the replaceable part in a strainer that performs the barrier separation of solid particles from flowing
fluid. It is normally removable for cleaning and servicing and can be furnished in a wide variety of materials, particle size removal
capability,
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM F1330-91(2023)(Guide)
Standard Guide for Metallic Abrasive Blasting to Descale the Interior of Pipe

SIGNIFICANCE AND USE
3.1 The maximum length and minimum diameter of the pipe shall be determined by the capacity of the blast equipment used.
3.2 This guide is recommended for removing mill scale, rust scale, paints, zincs, and oxides.
SCOPE
1.1 This guide covers metallic abrasive blasting to descale the interior of carbon steel pipe.
1.2 This guide is recommended for use in conjunction with an abrasive reclamation system.
1.3 The values stated in SI units are to be regarded as standard. The values given in parentheses are mathematical conversions to inch-pound units that are provided for information only and are not considered standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    3 pages
    English language
    sale 15% off
ASTM
ASTM F1199-21(Specification)
Standard Specification for Cast (All Temperatures and Pressures) and Welded Pipe Line Strainers (150 psig and 150°F Maximum)

ABSTRACT
This specification provides the minimum requirements for the design, fabrication, rating, marking, and testing of all cast pipe line strainers, and welded pipe line strainers used in services up to 150 psig and 150°F (1 MPa and 65°C) that are acceptable for use in marine environments. The strainers may be classified into three general construction categories, namely, simplex, duplex (or multiplex), and automatic (self-cleaning). They may also be further classified according to pressure ratings and types of port connections, port alignments relative to unit center lines, cover closures, valve types (in duplex), types of baskets or elements, materials of construction, and other features of design.
SCOPE
1.1 This specification covers all cast strainers and welded strainers in services up to 150 psig and 150°F (1 MPa and 65°C). For welded strainers used in services above 150 psig and 150°F, see Specification F1200.
1.2 This standard provides the minimum requirements for the design, fabrication, rating, marking, and testing of cast and welded pipe line strainers for services above 0°F (−18°C).
1.3 Strainers manufactured to this specification are acceptable for use in the marine environment.
1.4 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.5 The following safety hazards caveat pertains only to the test methods portion, Section 8, of this specification.  This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    3 pages
    English language
    sale 15% off
  • Technical specification
    3 pages
    English language
    sale 15% off
ASTM
ASTM F1330-91(2023)(Guide)
Standard Guide for Metallic Abrasive Blasting to Descale the Interior of Pipe

SIGNIFICANCE AND USE
3.1 The maximum length and minimum diameter of the pipe shall be determined by the capacity of the blast equipment used.
3.2 This guide is recommended for removing mill scale, rust scale, paints, zincs, and oxides.
SCOPE
1.1 This guide covers metallic abrasive blasting to descale the interior of carbon steel pipe.
1.2 This guide is recommended for use in conjunction with an abrasive reclamation system.
1.3 The values stated in SI units are to be regarded as standard. The values given in parentheses are mathematical conversions to inch-pound units that are provided for information only and are not considered standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    3 pages
    English language
    sale 15% off
ASTM
ASTM A961/A961M-23(Specification)
Standard Specification for Common Requirements for Steel Flanges, Forged Fittings, Valves, and Parts for Piping Applications

ABSTRACT
This specification covers a group of common requirements that shall apply to steel flanges, forged fittings, valves, and parts for piping applications. If the primary melting is required it shall incorporate separate degassing or refining and may be followed by secondary melting, such as electroslag remelting or vacuum remelting. If secondary melting is employed, the heat shall be defined as all of the ingot remelted from a single primary heat. Material requiring heat treatment shall be treated as specified in the individual product specification using the following procedures such as full annealing, solution annealing, isothermal annealing, normalizing, tempering and post-weld heat treatment, stress relieving. Heat analysis shall be used to determine the percentages of carbon, manganese, phosphorus, sulfur, silicon, chromium, nickel, molybdenum, titanium, tantalum, copper, cobalt, nitrogen, aluminum, vanadium, cerium to meet the required chemical composition. The product analysis shall be used to determine if the chemical composition shall conform to the limits of the product specified. Mechanical tests shall be performed to determine the mechanical properties such as hardness, tensile properties, and impact properties.
SCOPE
1.1 This specification covers a group of common requirements that shall apply to steel flanges, forged fittings, valves, and parts for piping applications under any of the following individual product specifications:
Title of Specification
ASTM Designation
Forgings, Carbon Steel, for Piping Components
A105/A105M
Forgings, Carbon Steel, for General-Purpose Piping
A181/A181M
Forged or Rolled Alloy-Steel Pipe Flanges, Forged
A182/A182M
Fittings, and Valves and Parts for High Temperature
Service
Forgings, Carbon and Low Alloy Steel, Requiring Notch
A350/A350M
Toughness Testing for Piping Components
Forged or Rolled 8 and 9 % Nickel Alloy
A522/A522M
Steel Flanges, Fittings, Valves, and Parts
for Low-Temperature Service
Forgings, Carbon and Alloy Steel, for Pipe Flanges,
A694/A694M
Fittings, Valves, and Parts for High-Pressure
Transmission Service
Flanges, Forged, Carbon and Alloy Steel for Low
A707/A707M
Temperature Service
Forgings, Carbon Steel, for Piping Components with
A727/A727M
Inherent Notch Toughness
Forgings, Titanium-Stabilized Carbon Steel, for
A836/A836M
Glass-Lined Piping and Pressure Vessel Service
1.2 In case of conflict between a requirement of the individual product specification and a requirement of this general requirement specification, the requirements of the individual product specification shall prevail over those of this specification.
1.3 By mutual agreement between the purchaser and the supplier, additional requirements may be specified (see Section 4.1.2). The acceptance of any such additional requirements shall be dependent on negotiations with the supplier and must be included in the order as agreed upon between the purchaser and supplier.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. Within the text and the tables, the SI units are shown in brackets. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. The inch-pound units shall apply, unless the “M” designation (SI) of the product specification is specified in the order.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    9 pages
    English language
    sale 15% off
  • Technical specification
    9 pages
    English language
    sale 15% off
ASTM
ASTM F2769-23a(Specification)
Standard Specification for Polyethylene of Raised Temperature (PE-RT) Plastic Hot and Cold-Water Tubing and Distribution Systems

ABSTRACT
This specification covers the requirements for polyethylene of raised temperature (PE-RT) plastic hot- and cold-water tubing and distribution systems components made in one standard dimension ratio and intended for specified water service pressures and maximum working temperatures. The components covered here are comprised of tubing, fittings, valves, and manifolds intended for use in residential and commercial, hot and cold, potable water distribution systems. The polyethylene used to make tubing shall be virgin plastic and/or reworked plastic, while fittings shall be made from materials that are generally regarded as corrosion resistant. Sampled specimens shall be tested for conformance with workmanship, dimension (out-of-roundness, outside diameter, and wall thickness), burst pressure, sustained pressure, oxidative stability in potable chlorinated water, thermocycling, bend strength, excessive temperature-pressure capacity, environmental stress cracking, adhesion, and slow crack growth resistance requirements.
SCOPE
1.1 This specification establishes requirements for polyethylene of raised temperature (PE-RT) plastic hot- and cold-water tubing and distribution systems components made in one standard dimension ratio and intended for 100 psig (6.9 bar) water service up to and including a maximum working temperature of 180 °F (82 °C). Components are comprised of tubing, fittings, valves and manifolds. Tubing may incorporate an optional polymeric inner, middle or outer layer. Testing of fittings and PE-RT tubing to the requirements of this standard indicate that these fittings are appropriate for use with PE-RT piping systems. Requirements and test methods are included for materials, workmanship, dimensions and tolerances, burst pressure, sustained pressure, oxidative resistance, temperature cycling tests, bend strength and environmental stress cracking. Also included are tests related to system malfunctions. The components covered by this specification are intended for use in residential and commercial, hot and cold, potable water distribution systems, and building supply lines.
1.2 The text of this specification references notes, footnotes, and appendixes which provide explanatory material. These notes and footnotes (excluding those in tables and figures) shall not be considered as requirements of the specification.
Note 1: Suggested hydrostatic design stresses and hydrostatic pressure ratings for tubing and fittings are listed in Appendix X1. UV labeling guidelines are provided in Appendix X2. Design, assembly, and installation considerations are provided in Appendix X3. An optional performance qualification and an in-plant quality control program are recommended in Appendix X4.
1.3 Units—The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 The following safety hazards caveat pertains only to the test methods portion, Section 7, of this specification. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    12 pages
    English language
    sale 15% off
  • Technical specification
    12 pages
    English language
    sale 15% off
ASTM
ASTM C828-23(Test Method)
Standard Test Method for Low-Pressure Air Test of Vitrified Clay Pipe Lines

ABSTRACT
This test method contains procedures using low-pressure air for testing the integrity of installed vitrified clay pipe lines such as gravity-flow sewer pipes. The procedures detailed here should be performed on lines after adequately and properly plugging and bracing connection laterals, if any, and after the trenches are backfilled for a sufficient time. This test method can also be used as a preliminary test to demonstrate the condition of the line prior to backfill and further construction activities.
SCOPE
1.1 This test method defines procedures for testing vitrified clay pipe lines, using low-pressure air, to demonstrate the integrity of the installed line. Refer to Practice C12.
1.2 This test method shall be performed on lines after connection laterals, if any, have been plugged and braced adequately to withstand the test pressure, and after the trenches have been backfilled for a sufficient time to generate a significant portion of the ultimate trench load on the pipe line. The time between completion of the backfill operation and low-pressure air testing shall be determined by the approving authority.
1.3 This test method may also be used as a preliminary test, which enables the installer to demonstrate the condition of the line prior to backfill and further construction activities.
1.4 This test method is suitable for testing gravity-flow sewer pipe constructed of vitrified clay or combinations of clay and other pipe materials.
1.5 Terminology C896 is to be used for clarification of terminology in this test method.
1.6 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM B1020/B1020M-22(Specification)
Standard Specification for Seamless Nickel Alloy Mechanical Tubing and Hollow Bar

SCOPE
1.1 This specification covers seamless nickel alloy tubing for use in mechanical applications or as hollow bar for use in the production of hollow components such as, but not limited to, nozzles, reducers, and couplings by machining where corrosion-resistant or high-temperature strength is needed. The grades covered are listed in Table 1.
1.2 This specification covers seamless cold-finished mechanical tubing and hollow bar, and seamless hot-finished mechanical tubing and hollow bar in sizes up to 123/4 in. [325 mm] in outside nominal diameter (for round tubing) with wall thicknesses or inside diameters as required.
1.3 Optional supplementary requirements are provided and when desired, shall be stated in the order.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    11 pages
    English language
    sale 15% off
  • Technical specification
    11 pages
    English language
    sale 15% off
ASTM
ASTM C12-22a(Practice)
Standard Practice for Installing Vitrified Clay Pipe Lines

ABSTRACT
This practice covers the proper methods of installing vitified clay pipe lines in order to fully utilize the structural properties of such pipe. The external loads on installed vitrified clay pipe are of two general types: (I) dead loads and (2) live loads. For pipes installed in trenches at a given depth, the dead load increases as the trench width, measured at the top of the pipe, increases. Live loads that act at the ground surface are partially transmitted to the pipe. Live loads may be produced by wheel loading, construction equipment or by compactive effort. Classes of bedding and encasements for pipe in trenches are defined as Class D wherein the pipe shall be placed on a firm and unyielding trench bottom with bell holes provided, Class C wherein the pipe shall be bedded in clean coarse-grained gravels and sands, Class B wherein the pipe shall be bedded in suitable material and Class A. Trenches shall be excavated to a width that will provide adequate working space, but not more than the maximum design width. Trench walls shall not be undercut. Bell holes shall be excavated to prevent point loading of the bells or couplings of laid pipe, and to establish full-length support of the pipe barrel. Final backfill need not be compacted to develop field supporting strength of the pipe. Final backfill may require compaction to prevent settlement of the ground surface.
SCOPE
1.1 This practice covers the proper methods of installing vitrified clay pipe lines by open trench construction methods in order to fully utilize the structural properties of such pipe.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    9 pages
    English language
    sale 15% off
  • Standard
    9 pages
    English language
    sale 15% off
ASTM
ASTM F1901-22(Specification)
Standard Specification for Polyethylene (PE) Pipe and Fittings for Roof Drain Systems

ABSTRACT
This specification covers requirements for polyethylene (PE) pipe and fittings for normal residential and commercial roof drain systems. Material for pipe or fitting shall be made from PE virgin plastic as defined by hydrostatic design stresses and shall contain suitable stabilizers and antioxidants. Pipe and fitting requirements include pipe dimensions, fitting dimensions, chemical resistance, water absorption, system integrity, sealing rings, flattening, impact resistance, workmanship, finish, and appearance. Test methods include test conditions, chemical resistance, water absorption, hydrostatic pressure test, mechanical-joint pullout test, threads, flattening, and impact resistance. Quality and product marking shall also conform to the requirements of this specification.
SCOPE
1.1 This specification covers requirements for polyethylene (PE) pipe and fittings for nonpressure roof drain systems.
1.2 This specification covers pipe and fittings intended for normal residential and commercial uses and is not intended for use in unusual corrosive conditions.
Note 1: Before installing pipe for waste disposal use, the approval of the cognizant building code authority shall be obtained as conditions not found in normal use or temperatures approaching 140 °F (60 °C) may be encountered.
1.3 Pipe is produced in dimensions based on outside diameters of 32 mm (1.250 in.) and larger in accordance with Specification F714.
1.4 The interchangeability of pipe and fittings made by different manufacturers is not addressed in this specification. Transition fittings for joining pipe and fittings of different manufacturers is provided for in this specification.
1.5 Pipe and fittings are joined by the heat-fusion method, by the electrofusion method, or by using mechanical joints (excluding insert fittings) recommended by the manufacturer.
1.6 In referee decisions, the SI units shall be used for metric-sized pipe and inch-pound units for pipe sized in the IPS system (ANSI B36.10). In all cases, the values given in parentheses are provided for information only.
1.7 The following safety hazards caveat pertains only to the test method, Section 7, of this specification.  This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    7 pages
    English language
    sale 15% off
  • Technical specification
    7 pages
    English language
    sale 15% off
ASTM
ASTM F2536-17(2022)(Guide)
Standard Guide for Installing Plastic DWV Piping Suspended from On-Grade Slabs

SIGNIFICANCE AND USE
4.1 This guide is for use by designers, specifiers, installation contractors, regulatory agencies, owners and inspection organizations who are involved in these piping installations in buildings of this type.
SCOPE
1.1 This guide provides procedures for the installation of DWV piping in buildings that are built where soil conditions require the use of pier or piling supported grade beam construction or in filled ground where the soil compaction is less than 95 %. These procedures are intended to ensure that the DWV piping suspended from the on grade concrete slabs is not damaged or destroyed by movement of the soil or fill under the slab after the building is completed and occupied.
1.2 In this type of construction, the area within the grade beams is filled with soil up to a level that allows the concrete slab to be poured directly on the fill without a supporting form. In this process the sanitary waste piping is installed by trenching into the fill, and then putting hangers with support rods on the pipes as they are installed. The hanger rods extending upward must be long enough so that the top of the rod will be embedded in and anchored in the concrete.
1.3 The hanger rods are intended to provide adequate strength and corrosion resistance to assure long term service.
1.4 The details of installation are intended to ensure that the rods remain vertical, that they extend into the concrete an adequate amount and that the upper ends are terminated so that they have adequate “pull out” strength.
1.5 The details of backfill are intended to limit or minimize the loads on the a suspended piping. These loads result from consolidation or movement of the soil/fill beneath the slab.
1.6 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    3 pages
    English language
    sale 15% off
