ASTM A813/A813M-24
(Specification)Standard Specification for Single- or Double-Welded Austenitic Stainless Steel Pipe
Standard Specification for Single- or Double-Welded Austenitic Stainless Steel Pipe
ABSTRACT
This specification covers two classes of fit-up and alignment quality straight-seam single- or double-welded austenitic steel pipe intended for high-temperature and general corrosive service. The steel shall conform to the specified chemical composition and tensile property requirements. Both ends of each double-welded pipe shall be visually examined to determine that complete fusion is attained between the two welds. Tension tests shall be made on specimens from two tubes for lots of more than 100 pipes, and one tension test shall be made on a specimen for lots of not more than 100 pipes, Also, for material heat treated in a batch type-furnace, flattening tests shall be made on 5 % of the pipe from each heat-treated lot. Finally, each pipe shall be subjected to the non-destructive electric test or the hydrostatic test.
SCOPE
1.1 This specification covers two classes of fit-up and alignment quality straight-seam single- or double-welded austenitic steel pipe intended for high-temperature and general corrosive service.
Note 1: When the impact test criterion for a low-temperature service would be 15 ft·lbf [20 J] energy absorption or 15 mils [0.38 mm] lateral expansion, some of the austenitic stainless steel grades covered by this specification are accepted by certain pressure vessel or piping codes without the necessity of making the actual test. For example, Grades 304, 304L, and 347 are accepted by the ASME Pressure Vessel Code, Section VIII Division 1, and by the Chemical Plant and Refinery Piping Code, ANSI B31.3 for service at temperatures as low as −425 °F [−250 °C] without qualification by impact tests. Other AISI stainless steel grades are usually accepted for service temperatures as low as −325 °F [−200 °C] without impact testing. Impact testing may, under certain circumstances, be required. For example, materials with chromium or nickel content outside the AISI ranges, and for material with carbon content exceeding 0.10 %, are required to be impact tested under the rules of ASME Section VIII Division 1 when service temperatures are lower than −50 °F [−45 °C]
1.2 Grades TP304H, TP304N, TP316H, TP316N, TP321H, TP347H, and TP348H are modifications of Grades TP304, TP316, TP321, TP347, and TP348, and are intended for high-temperature service.
1.3 Two classes of pipe are covered as follows:
1.3.1 Class SW—Pipe, single-welded with no addition of filler metal and
1.3.2 Class DW—Pipe, double-welded with no addition of filler metal.
1.4 Optional supplementary requirements are provided for pipe where a greater degree of testing is desired. These supplementary requirements call for additional tests to be made and, when desired, one or more of these may be specified in the order.
1.5 Table 1 lists the dimensions of welded stainless steel pipe as shown in ANSI B36.19. Pipe having other dimensions may be furnished provided such pipe complies with all other requirements of this specification.
1.6 The values stated in either SI units or inch-pound units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. The inch-pound units shall apply unless the “M” designation of this specification is specified in the order.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

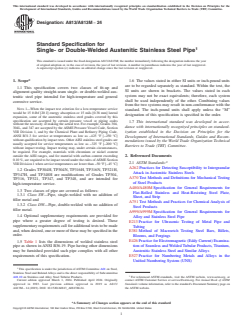

Designation: A813/A813M − 24
Standard Specification for
1
Single- or Double-Welded Austenitic Stainless Steel Pipe
This standard is issued under the fixed designation A813/A813M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 1.6 The values stated in either SI units or inch-pound units
are to be regarded separately as standard. Within the text, the
1.1 This specification covers two classes of fit-up and
SI units are shown in brackets. The values stated in each
alignment quality straight-seam single- or double-welded aus-
system may not be exact equivalents; therefore, each system
tenitic steel pipe intended for high-temperature and general
shall be used independently of the other. Combining values
corrosive service.
from the two systems may result in non-conformance with the
NOTE 1—When the impact test criterion for a low-temperature service
standard. The inch-pound units shall apply unless the “M”
would be 15 ft·lbf [20 J] energy absorption or 15 mils [0.38 mm] lateral
designation of this specification is specified in the order.
expansion, some of the austenitic stainless steel grades covered by this
specification are accepted by certain pressure vessel or piping codes
1.7 This international standard was developed in accor-
without the necessity of making the actual test. For example, Grades 304,
dance with internationally recognized principles on standard-
304L, and 347 are accepted by the ASME Pressure Vessel Code, Section
ization established in the Decision on Principles for the
VIII Division 1, and by the Chemical Plant and Refinery Piping Code,
ANSI B31.3 for service at temperatures as low as −425 °F [−250 °C] Development of International Standards, Guides and Recom-
without qualification by impact tests. Other AISI stainless steel grades are
mendations issued by the World Trade Organization Technical
usually accepted for service temperatures as low as −325 °F [−200 °C]
Barriers to Trade (TBT) Committee.
without impact testing. Impact testing may, under certain circumstances,
be required. For example, materials with chromium or nickel content
outside the AISI ranges, and for material with carbon content exceeding 2. Referenced Documents
0.10 %, are required to be impact tested under the rules of ASME Section
2
2.1 ASTM Standards:
VIII Division 1 when service temperatures are lower than −50 °F [−45 °C]
A262 Practices for Detecting Susceptibility to Intergranular
1.2 Grades TP304H, TP304N, TP316H, TP316N, TP321H,
Attack in Austenitic Stainless Steels
TP347H, and TP348H are modifications of Grades TP304,
A370 Test Methods and Definitions for Mechanical Testing
TP316, TP321, TP347, and TP348, and are intended for
of Steel Products
high-temperature service.
A480/A480M Specification for General Requirements for
1.3 Two classes of pipe are covered as follows:
Flat-Rolled Stainless and Heat-Resisting Steel Plate,
1.3.1 Class SW—Pipe, single-welded with no addition of
Sheet, and Strip
filler metal and
A751 Test Methods and Practices for Chemical Analysis of
1.3.2 Class DW—Pipe, double-welded with no addition of
Steel Products
filler metal.
A999/A999M Specification for General Requirements for
1.4 Optional supplementary requirements are provided for
Alloy and Stainless Steel Pipe
pipe where a greater degree of testing is desired. These
E213 Practice for Ultrasonic Testing of Metal Pipe and
supplementary requirements call for additional tests to be made
Tubing
and, when desired, one or more of these may be specified in the
E381 Method of Macroetch Testing Steel Bars, Billets,
order.
Blooms, and Forgings
E426 Practice for Electromagnetic (Eddy Current) Examina-
1.5 Table 1 lists the dimensions of welded stainless steel
tion of Seamless and Welded Tubular Products, Titanium,
pipe as shown in ANSI B36.19. Pipe having other dimensions
Austenitic Stainless Steel and Similar Alloys
may be furnished provided such pipe complies with all other
E527 Practice for Numbering Metals and Alloys in the
requirements of this specification.
Unified Numbering System (UNS)
1
This specification is under the jurisdiction of ASTM Committee A01 on Steel,
Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee
2
A01.10 on Stainless and Alloy Steel Tubular Products. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved March 1, 2024. Published April 2024. Originally contact ASTM Customer Service at service@astm.o
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

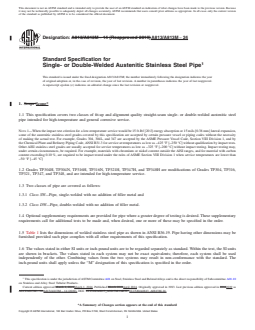

Designation: A813/A813M − 14 (Reapproved 2019) A813/A813M − 24
Standard Specification for
1
Single- or Double-Welded Austenitic Stainless Steel Pipe
This standard is issued under the fixed designation A813/A813M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Scope*
1.1 This specification covers two classes of fit-up and alignment quality straight-seam single- or double-welded austenitic steel
pipe intended for high-temperature and general corrosive service.
NOTE 1—When the impact test criterion for a low-temperature service would be 15 ft·lbf [20 J] energy absorption or 15 mils [0.38 mm] lateral expansion,
some of the austenitic stainless steel grades covered by this specification are accepted by certain pressure vessel or piping codes without the necessity
of making the actual test. For example, Grades 304, 304L, and 347 are accepted by the ASME Pressure Vessel Code, Section VIII Division 1, and by
the Chemical Plant and Refinery Piping Code, ANSI B31.3 for service at temperatures as low as −425 °F [−250 °C] without qualification by impact tests.
Other AISI stainless steel grades are usually accepted for service temperatures as low as −325 °F [−200 °C] without impact testing. Impact testing may,
under certain circumstances, be required. For example, materials with chromium or nickel content outside the AISI ranges, and for material with carbon
content exceeding 0.10 %, are required to be impact tested under the rules of ASME Section VIII Division 1 when service temperatures are lower than
−50 °F [−45 °C]
1.2 Grades TP304H, TP304N, TP316H, TP316N, TP321H, TP347H, and TP348H are modifications of Grades TP304, TP316,
TP321, TP347, and TP348, and are intended for high-temperature service.
1.3 Two classes of pipe are covered as follows:
1.3.1 Class SW—Pipe, single-welded with no addition of filler metal and
1.3.2 Class DW—Pipe, double-welded with no addition of filler metal.
1.4 Optional supplementary requirements are provided for pipe where a greater degree of testing is desired. These supplementary
requirements call for additional tests to be made and, when desired, one or more of these may be specified in the order.
1.5 Table 1 lists the dimensions of welded stainless steel pipe as shown in ANSI B36.19. Pipe having other dimensions may be
furnished provided such pipe complies with all other requirements of this specification.
1.6 The values stated in either SI units or inch-pound units are to be regarded separately as standard. Within the text, the SI units
are shown in brackets. The values stated in each system may not be exact equivalents; therefore, each system shall be used
independently of the other. Combining values from the two systems may result in non-conformance with the standard. The
inch-pound units shall apply unless the “M” designation of this specification is specified in the order.
1
This specification is under the jurisdiction of ASTM Committee A01 on Steel, Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee A01.10
on Stainless and Alloy Steel Tubular Products.
Current edition approved March 1, 2019March 1, 2024. Published March 2019April 2024. Originally approved in 1983. Last previous edition approved in 20142019 as
A813/A813M – 14.A813/A813M – 14 (2019). DOI: 10.1520/A0813_A0813M-14R19. 10.1520/A0813_A0813M-24.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
A813/A813M − 24
A

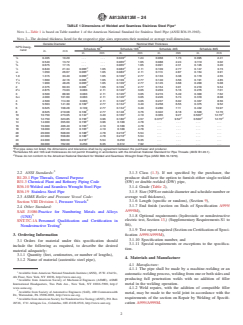

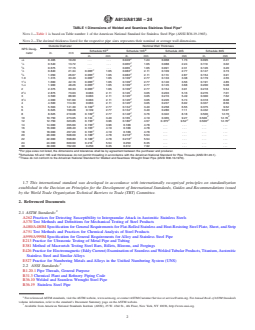

TABLE 1 Dimensions of Welded and Seamless Stainless Steel Pipe
NOTE 1—Table 1 is based on Table number 1 of the American National Standard for Stainless Steel Pipe (ANSI B36.19-1965).
NOTE 2—The decimal thickness listed for the respective pipe sizes represents their nominal or average wall dimensions.
Outside Diameter Nominal Wall Thickness
NPS Desig-
B B
Schedule 5S Schedule 10S Schedule 40S Schedule 80S
nator
in. mm
in. mm in. mm in. mm in. mm
C
1
⁄8 0.405 10.29 . . . . . . 0.049 1.24 0.068 1.73 0.095 2.41
C
1
⁄4 0.540 13.72 . . . . . . 0.065 1.65 0.088 2.24 0.119 3.02
C
3
⁄8 0.675 17.15 . . . . . . 0.065 1.65 0.091 2.31 0.126 3.20
C C
1
⁄2 0.840 21.34 0.065 1.65 0.083 2.11 0.109 2.77 0.147 3.73
3 C C
⁄4 1.050 26
...
