ASTM F2054/F2054M-13(2020)
(Test Method)Standard Test Method for Burst Testing of Flexible Package Seals Using Internal Air Pressurization Within Restraining Plates
Standard Test Method for Burst Testing of Flexible Package Seals Using Internal Air Pressurization Within Restraining Plates
SIGNIFICANCE AND USE
5.1 This test provides a rapid means of evaluating tendencies for package seal failure when the package is exposed to a pressure differential. Pressure differentials may occur during such processes as sterilization and transportation. This test method provides an indicator of the burst strength of a package, where the burst will normally occur in one or more areas of the seal. An indicator of the minimum burst strength may be of importance to the package manufacturer and end user in ensuring adequate package integrity. This test method cannot provide a measure of package seal uniformity. This test method also cannot provide an evaluation of overall package integrity or the burst strength of areas of the package that contact the surface of the restraining plates used. This test method should be combined with other methods of evaluating overall package integrity, uniformity of the package seal, or opening functionality, if so required.
5.2 This test frequently is used to quickly evaluate package seal strength during the manufacturing process and at various stages of the package's life cycle.
5.3 If correlations between pieces of test equipment are to be made it is important that all parameters of the test be equivalent. Typical parameters can include, but are not limited to the package size, material, type and configuration of seal, rate of air flow into the package, pressure detection sensing mechanism and sensitivity (machine response to pressure drop), position of test article, rigidity of restraining plates, and distance between restraining plates. See Appendix X2 for further information.
5.4 This test may not necessarily provide correlation with package seal strength as typically measured using Test Methods F1140 or F88 (or equivalents).
SCOPE
1.1 This test method covers the procedure for determining the minimum burst strength of a seal placed around the perimeter of a flexible package as it is internally pressurized and enclosed within restraining plates.
1.2 The test methods described herein are functionally similar to Test Methods F1140 with the exception of the use of restraining plates. Test Methods F1140 describes methods of burst testing that do not include the use of restraining plates and are suitable to determine a packages general ability to withstand pressurization stresses. Under Test Methods F1140 the stresses are not distributed uniformly to all areas of the package seal. Under unrestrained conditions the stress on the package is highest at the middle of the pouch where it inflates to the packages maximum diameter; therefore, Test Methods F1140 may not reliably detect the weakest area of the seal.
1.3 The burst test internally and increasingly pressurizes a package until an area of the package seal around the perimeter “bursts” open in response to pressurization. By placing the package within restraining plates during pressurization, the dimensional stability of the package is maintained in a manner that results in stresses applied more uniformly along the perimeter of the package, where seals are normally placed. This allows the test to have a higher probability of detecting the weakest area of the seal and provide a measurement of the pressure required to “burst” open the package.
1.4 This test only applies to flexible packages with seals placed around the perimeter of a flexible package (often referred to as a pouch). In particular it is intended as applicable to packages with seals that have a peelable seal feature (peeled open by end user to remove contents of package).
1.4.1 Porous barrier materials' failure to reach adequate pressure to burst the package seals may be due to insufficient volume flow. See Appendix X4 for information.
1.5 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with t...
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

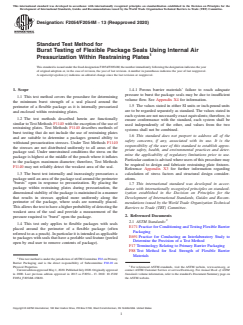

Designation:F2054/F2054M −13 (Reapproved 2020)
Standard Test Method for
Burst Testing of Flexible Package Seals Using Internal Air
Pressurization Within Restraining Plates
ThisstandardisissuedunderthefixeddesignationF2054/F2054M;thenumberimmediatelyfollowingthedesignationindicatestheyear
of original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 1.4.1 Porous barrier materials’ failure to reach adequate
pressure to burst the package seals may be due to insufficient
1.1 This test method covers the procedure for determining
volume flow. See Appendix X4 for information.
the minimum burst strength of a seal placed around the
1.5 The values stated in either SI units or inch-pound units
perimeter of a flexible package as it is internally pressurized
are to be regarded separately as standard. The values stated in
and enclosed within restraining plates.
each system are not necessarily exact equivalents; therefore, to
1.2 The test methods described herein are functionally
ensure conformance with the standard, each system shall be
similar toTest Methods F1140 with the exception of the use of
used independently of the other, and values from the two
restraining plates. Test Methods F1140 describes methods of
systems shall not be combined.
burst testing that do not include the use of restraining plates
1.6 This standard does not purport to address all of the
and are suitable to determine a packages general ability to
safety concerns, if any, associated with its use. It is the
withstand pressurization stresses. Under Test Methods F1140
responsibility of the user of this standard to establish appro-
the stresses are not distributed uniformly to all areas of the
priate safety, health, and environmental practices and deter-
package seal. Under unrestrained conditions the stress on the
mine the applicability of regulatory limitations prior to use.
package is highest at the middle of the pouch where it inflates
Particularcautionisadvisedwhereusersofthisproceduremay
to the packages maximum diameter; therefore, Test Methods
be required to design and fabricate restraining plate fixtures.
F1140 may not reliably detect the weakest area of the seal.
Reference Appendix X3 for further information regarding
1.3 The burst test internally and increasingly pressurizes a
calculation of stress factors and structural design consider-
package until an area of the package seal around the perimeter
ations.
“bursts” open in response to pressurization. By placing the
1.7 This international standard was developed in accor-
package within restraining plates during pressurization, the
dance with internationally recognized principles on standard-
dimensional stability of the package is maintained in a manner
ization established in the Decision on Principles for the
that results in stresses applied more uniformly along the
Development of International Standards, Guides and Recom-
perimeter of the package, where seals are normally placed.
mendations issued by the World Trade Organization Technical
Thisallowsthetesttohaveahigherprobabilityofdetectingthe
Barriers to Trade (TBT) Committee.
weakest area of the seal and provide a measurement of the
2. Referenced Documents
pressure required to “burst” open the package.
2.1 ASTM Standards:
1.4 This test only applies to flexible packages with seals
E171Practice for Conditioning and Testing Flexible Barrier
placed around the perimeter of a flexible package (often
Packaging
referredtoasapouch).Inparticularitisintendedasapplicable
E691Practice for Conducting an Interlaboratory Study to
to packages with seals that have a peelable seal feature (peeled
Determine the Precision of a Test Method
open by end user to remove contents of package).
F17Terminology Relating to Primary Barrier Packaging
F88Test Method for Seal Strength of Flexible Barrier
Materials
ThistestmethodisunderthejurisdictionofASTMCommitteeF02onPrimary
Barrier Packaging and is the direct responsibility of Subcommittee F02.20 on
Physical Properties. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
CurrenteditionapprovedMay1,2020.PublishedJuly2020.Originallyapproved contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
in 2000. Last previous edition approved in 2013 as F2054–13. DOI: 10.1520/ Standards volume information, refer to the standard’s Document Summary page on
F2054_F2054M-13R20. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2054/F2054M−13 (2020)
F1140Test Methods for Internal Pressurization Failure Re-
sistance of Unrestrained Packages
3. Terminology
3.1 Definitions—For definitions and terms used in this test
method, refer to Terminology F17 for standardized terminol-
ogy for flexible barrier packaging.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 restraining plates, n—refers to plates that are rigid in
nature and configured to contact and limit the packages
expandable surface area as the package is pressurized.
4. Summary of Test Method
4.1 Packages are tested in an apparatus that internally
pressurizes the package until an area of the package ruptures
(burst). For most applications the rupture (burst) will occur at
one or more areas of the seal. The pneumatic supply and
pressurization equipment need the capability to maintain an

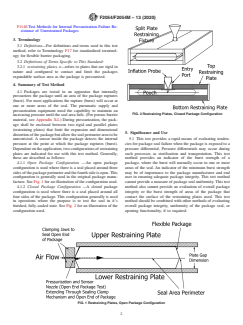

FIG. 2Restraining Plates, Closed Package Configuration
increasing pressure until the seal area fails. (For porous barrier
material, see Appendix X4.) During pressurization, the pack-
age shall be enclosed between two rigid and parallel plates
(restraining plates) that limit the expansion and dimensional
5. Significance and Use
distortionofthepackagebutallowthesealperimeterareatobe
unrestricted. A sensor inside the package detects the internal 5.1 This test provides a rapid means of evaluating tenden-
cies for package seal failure when the package is exposed to a
pressure at the point at which the package ruptures (burst).
Dependentontheapplication,twoconfigurationsofrestraining pressure differential. Pressure differentials may occur during
plates are indicated for use with this test method. Generally, such processes as sterilization and transportation. This test
these are described as follows: method provides an indicator of the burst strength of a
4.1.1 Open Package Configuration —An open package package, where the burst will normally occur in one or more
configuration is used where there is a seal placed around three areas of the seal. An indicator of the minimum burst strength
sidesofthepackageperimeterandthefourthsideisopen.This may be of importance to the package manufacturer and end
configuration is generally used in the original package manu- user in ensuring adequate package integrity. This test method
facture. See Fig. 1 for an illustration of the configuration used. cannot provide a measure of package seal uniformity.This test
4.1.2 Closed Package Configuration —A closed package method also cannot provide an evaluation of overall package
configuration is used where there is a seal placed around all integrity or the burst strength of areas of the package that
four sides of the package. This configuration generally is used contact the surface of the restraining plates used. This test
in operations where the purpose is to test the seal in it’s method should be combined with other methods of evaluating
finished, fully-sealed state. See Fig. 2 for an illustration of the overall package integrity, uniformity of the package seal, or
configuration used. opening functionality, if so required.
FIG. 1Restraining Plates, Open Package Configuration

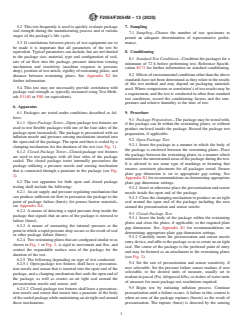

F2054/F2054M−13 (2020)
5.2 This test frequently is used to quickly evaluate package 7. Sampling
seal strength during the manufacturing process and at various
7.1 Sampling—Choose the number of test specimens to
stages of the package’s life cycle.
permit an adequate determination of representative perfor-
5.3 If correlations between pieces of test equipment are to mance.
be made it is important that all parameters of the test be
equivalent. Typical parameters can include, but are not limited 8. Conditioning
to the package size, material, type and configuration of seal,
8.1 Standard Test Conditions—Conditionthepackagesfora
rate of air flow into the package, pressure detection sensing
minimum of 72 h before performing test. Reference Specifi-
mechanism and sensitivity (machine response to pressure
cation E171 for further information on standard conditioning.
drop), position of test article, rigidity of restraining plates, and
8.2 Effectsofenvironmentalconditionsotherthantheabove
distance between restraining plates. See Appendix X2 for
standardshavenotbeendeterminedastheyrelatetotheresults
further information.
of this test method and may depend on packaging materials
5.4 This test may not necessarily provide correlation with
used.Wherecomparisonsorcorrelation’softestresultsmaybe
package seal strength as typically measured using Test Meth-
a requirement, and the test is conducted in other than standard
ods F1140 or F88 (or equivalents).
test conditions, record the conditioning factors and the tem-
perature and relative humidity at the time of test.
6. Apparatus
9. Procedure
6.1 Packages are tested under conditions described as fol-
lows:
9.1 Package Preparation—Thepackagemaybetestedwith,
6.1.1 Open-Package Tester—Open-package test fixtures are
if the package can fit within the restraining plates, or without
used to test flexible packages with one of the four sides of the
product enclosed inside the package. Record the package test
package open (nonsealed). The package is pressurized with an
preparation, if applicable.
inflation nozzle and pressure sensing mechanism inserted into
9.2 Open-Package Test:
the open end of the package. The open end then is sealed by a
9.2.1 Insert the package in a manner in which the body of
clamping mechanism for the duration of the test (see Fig. 1).
the package is enclosed between the restraining plates. Place
6.1.2 Closed-Package Tester—Closed-package test fixtures
the package between the restraining plates in a manner which
are used to test packages with all four sides of the package
minimizestheunrestrainedareasofthepackageduringthetest.
sealed. The closed package tester internally pressurizes the
It is advised to use some type of markings or fixturing that
package utilizing a pressure nozzle and sensing mechanism
ensures consistent placement for all packages tested. Ensure
that is connected through a puncture in the package (see Fig.
plate gap dimension is set to appropriate gap setting. See
2).
AppendixX1forrecommendationsondeterminingappropriate
6.2 The test apparatus for both open and closed package
plate gap dimension settings.
testing shall include the following:
9.2.2 Insert or otherwise place the pressurization and sensor
6.2.1 An air supply and pressure regulating mechanism that
nozzle inside the open end of the package.
can produce sufficient air flow to pressurize the package to the
9.2.3 Close the clamping mechanism to produce an air tight
point of package failure (burst); for porous barrier materials,
seal around the open end of the package including the area
see Appendix X4;
around the pressurization and sensor nozzle.
6.2.2 Ameans of detecting a rapid pressure drop inside the
9.3 Closed-Package Test:
package that signals that an area of the package is stressed to
9.3.1 Insert the body of the package within the restraining
failure (burst);
plates and close the plates, if applicable, to the required plate
6.2.3 A means of measuring the internal pressure at the
gap dimension. See Appendix X1 for recommendations on
pointinwhicharapidpressuredropoccursastheresultofseal
determining appropriate plate gap dimension settings.
or other package failure (burst);
9.3.2 Carefully insert the pressurization and sensor nozzle
6.2.4 Tworestrainingplatesthatareconfiguredsimilartoas
entrydevice,andaffixtothepackagesoastocreateanairtight
shown in Fig. 1 or Fig. 2, is rigid to movement and flex, and
seal. The center of the package is the preferred point of entry
contact the expandable surface area of the package for the
and may be fixtured as an attachment to the restraining plates
duration of the test.
(see Fig. 2).
6.2.5 The following depending on type of test conducted.
9.4 Set the rate of pressurization and sensor sensitivity, if
6.2.5.1 Open-package test fixtures shall have a pressuriza-
user selectable. Set the pressure failure sensor readout, if user
tion nozzle and sensor that is inserted into the open end of the
selectable, to the desired units of measure, usually set to
package, and a clamping mechanism that seals the open end of
readoutinpascal(Pa),kilopascalkPa),orinchesofwaterunits
the package, as well as creates an air tight seal around the
of measure for most package test resolutions required.
pressurization nozzle and sensor; and
6.2.5.2 Closed-package test fixtures shall have a pressuriza- 9.5 Begin test by initiating inflation process. Continue
tion nozzle and sensor that inserts into a puncture of the body pressurization until a failure occurs.Afailure in this context is
ofthesealedpackagewhilemaintaininganairtightsealaround when an area of the package ruptures (bursts) as the result of
those mechanisms. pressurization. The rupture (burst) is detected by the sensing

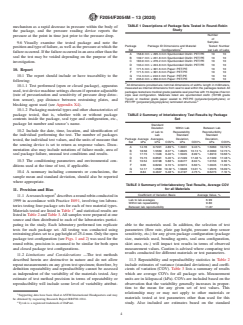

F2054/F2054M−13 (2020)
TABLE 1 Descriptions of Package Sets Tested in Round-Robin
mechanism as a rapid decrease in pressure within the body of
Study
the package, and the pressure reading device reports the
Number
pressure at the point in time just prior to the pressure drop.
of
Samples
9.6 Visually examine the tested package and note the
Package Package ID Dimensions and Material Tested Number
positionandtypeoffailure,aswellasthepressureatwhichthe
A
Set Configurations per Lab of Labs
failureoccurred.Ifthefailureoccurredinanareaotherthanthe
A 158.8 mm × 295.3 mm Spunbonded Olefin: PET/PE 10 10
seal the test may be voided depending on the purpose of the
B 139.7 mm × 231.8 mm Spunbonded Olefin: PET/PE 10 10
C 183.9 mm × 276.2 mm Spunbonded Olefin: PET/PE 10 10
investigation.
D 133.4 mm × 224.8 mm Spunbonded Olefin: PET/PE 10 10
E 171.5 mm × 301.6 mm Paper: PET/PE 10 10
10. Report
F 171.5 mm × 301.6 mm Paper: PET/PE 10 10
G 114.3 mm × 222.3 mm Paper: PET/PE 10 10
10.1 The report should include or have trace
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
