ASTM E2465-23
(Test Method)Standard Test Method for Analysis of Ni-Base Alloys by Wavelength Dispersive X-Ray Fluorescence Spectrometry
Standard Test Method for Analysis of Ni-Base Alloys by Wavelength Dispersive X-Ray Fluorescence Spectrometry
SIGNIFICANCE AND USE
5.1 This procedure is suitable for manufacturing control and for verifying that the product meets specifications. It provides rapid, multi-element determinations with sufficient accuracy to assure product quality. The analytical performance data included may be used as a benchmark to determine if similar X-ray spectrometers provide equivalent precision and accuracy, or if the performance of a particular spectrometer has changed.
SCOPE
1.1 This test method covers the analysis of nickel and cobalt based alloys by wavelength dispersive X-ray fluorescence spectrometry for determination of the following elements:
Element
Composition Range
Aluminum
0.0X to X.XX
Chromium
0.XX to XX.XX
Copper
0.0X to XX.XX
Cobalt
0.XX to XX.XX
Hafnium
0.0X to 0.XX
Iron
0.XX to XX.XX
Manganese
0.XX to X.XX
Molybdenum
0.0X to XX.XX
Nickel
XX.XX to XX.XX
Niobium
0.XX to X.XX
Phosphorus
0.00X to 0.0XX
Silicon
0.0X to 0.XX
Tantalum
0.00X to X.XX
Titanium
0.XX to X.XX
Tungsten
0.XX to X.XX
Vanadium
0.00X to 0.XX
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This method has been interlaboratory tested for the elements and quantification ranges specified in 1.1. The ranges in 1.1 indicate intervals within which results have been demonstrated to be quantitative by the interlaboratory study. It may be possible to extend this method to other elements or different composition ranges provided that a method validation study as described in Guide E2857 is performed and that the results of this study show that the method extension is meeting laboratory data quality objectives.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

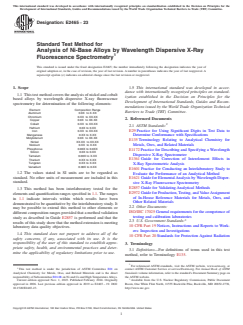

Designation: E2465 − 23
Standard Test Method for
Analysis of Ni-Base Alloys by Wavelength Dispersive X-Ray
1
Fluorescence Spectrometry
This standard is issued under the fixed designation E2465; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 1.5 This international standard was developed in accor-
dance with internationally recognized principles on standard-
1.1 This test method covers the analysis of nickel and cobalt
ization established in the Decision on Principles for the
based alloys by wavelength dispersive X-ray fluorescence
Development of International Standards, Guides and Recom-
spectrometry for determination of the following elements:
mendations issued by the World Trade Organization Technical
Element Composition Range
Barriers to Trade (TBT) Committee.
Aluminum 0.0X to X.XX
Chromium 0.XX to XX.XX
2. Referenced Documents
Copper 0.0X to XX.XX
Cobalt 0.XX to XX.XX
2
2.1 ASTM Standards:
Hafnium 0.0X to 0.XX
E29 Practice for Using Significant Digits in Test Data to
Iron 0.XX to XX.XX
Manganese 0.XX to X.XX
Determine Conformance with Specifications
Molybdenum 0.0X to XX.XX
E135 Terminology Relating to Analytical Chemistry for
Nickel XX.XX to XX.XX
Niobium 0.XX to X.XX Metals, Ores, and Related Materials
Phosphorus 0.00X to 0.0XX
E1172 Practice for Describing and Specifying a Wavelength
Silicon 0.0X to 0.XX
Dispersive X-Ray Spectrometer
Tantalum 0.00X to X.XX
E1361 Guide for Correction of Interelement Effects in
Titanium 0.XX to X.XX
Tungsten 0.XX to X.XX
X-Ray Spectrometric Analysis
Vanadium 0.00X to 0.XX
E1601 Practice for Conducting an Interlaboratory Study to
1.2 The values stated in SI units are to be regarded as
Evaluate the Performance of an Analytical Method
standard. No other units of measurement are included in this
E1621 Guide for Elemental Analysis by Wavelength Disper-
standard.
sive X-Ray Fluorescence Spectrometry
E2857 Guide for Validating Analytical Methods
1.3 This method has been interlaboratory tested for the
E2972 Guide for Production, Testing, and Value Assignment
elements and quantification ranges specified in 1.1. The ranges
of In-House Reference Materials for Metals, Ores, and
in 1.1 indicate intervals within which results have been
Other Related Materials
demonstrated to be quantitative by the interlaboratory study. It
2.2 Other Documents:
may be possible to extend this method to other elements or
ISO/IEC 17025 General requirements for the competence of
different composition ranges provided that a method validation
testing and calibration laboratories
study as described in Guide E2857 is performed and that the
3
2.3 U.S. Government Standards:
results of this study show that the method extension is meeting
10 CFR Part 19 Notices, Instructions and Reports to Work-
laboratory data quality objectives.
ers: Inspection and Investigations
1.4 This standard does not purport to address all of the
10 CFR Part 20 Standards for Protection Against Radiation
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro-
3. Terminology
priate safety, health, and environmental practices and deter-
3.1 Definitions—For definitions of terms used in this test
mine the applicability of regulatory limitations prior to use.
method, refer to Terminology E135.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
1
This test method is under the jurisdiction of ASTM Committee E01 on contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Analytical Chemistry for Metals, Ores, and Related Materials and is the direct Standards volume information, refer to the standard’s Document Summary page on
responsibility of Subcommittee E01.08 on Ni and Co and High Temperature Alloys. the ASTM website.
3
Current edition approved Nov. 1, 2023. Published February 2024. Originally Available from the U.S. Nuclear Regulatory Commission, Public Document
approved in 2006. Last previous edition approved in 2019 as E2465 – 19. DOI: Room, One White Flint North, 11555 Rockville Pike, Rockville, MD 20852-2738,
10.1520/E2465-23. http://www.nrc.gov.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
E2465 − 23

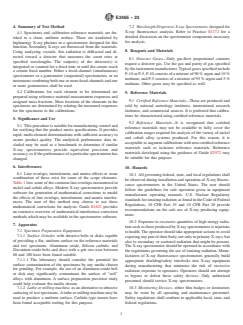

4. Summary of Test Method 7.2 Wavelength Dispersive X-ray Spectrometer, designed for
X-ray fluorescence analysis. Refer to Practice E1172 f
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

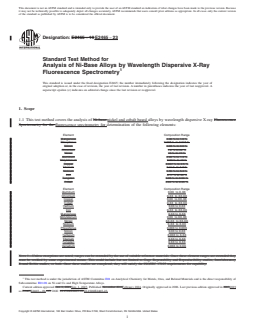

Designation: E2465 − 19 E2465 − 23
Standard Test Method for
Analysis of Ni-Base Alloys by Wavelength Dispersive X-Ray
1
Fluorescence Spectrometry
This standard is issued under the fixed designation E2465; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This test method covers the analysis of Ni-base nickel and cobalt based alloys by wavelength dispersive X-ray Fluorescence
Spectrometry for the fluorescence spectrometry for determination of the following elements:
Element Composition Range
Manganese 0.06 % to 1.6 %
Phosphorus 0.008 % to 0.015 %
Silicon 0.08 % to 0.6 %
Chromium 1.6 % to 22 %
Nickel 23 % to 77 %
Aluminum 0.20 % to 1.3 %
Molybdenum 0.03 % to 10 %
Copper 0.007 % to 2.5 %
Titanium 0.11 % to 3.0 %
Niobium 0.55 % to 5.3 %
Iron 0.17 % to 46 %
Tungsten 0.06 % to 0.50 %
Cobalt 0.04 % to 0.35 %
Element Composition Range
Aluminum 0.0X to X.XX
Chromium 0.XX to XX.XX
Copper 0.0X to XX.XX
Cobalt 0.XX to XX.XX
Hafnium 0.0X to 0.XX
Iron 0.XX to XX.XX
Manganese 0.XX to X.XX
Molybdenum 0.0X to XX.XX
Nickel XX.XX to XX.XX
Niobium 0.XX to X.XX
Phosphorus 0.00X to 0.0XX
Silicon 0.0X to 0.XX
Tantalum 0.00X to X.XX
Titanium 0.XX to X.XX
Tungsten 0.XX to X.XX
Vanadium 0.00X to 0.XX
NOTE 1—Unless exceptions are noted, ranges can be extended by the use of suitable reference materials. Once these element ranges are extended they
must be verified by some experimental means. This could include but not limited to Gage Repeatability and Reproducibility studies, Interlaboratory
Round Robin studies, or both. Once these studies are completed, they will satisfy the ISO/IEC 17025 requirements for capability.
1
This test method is under the jurisdiction of ASTM Committee E01 on Analytical Chemistry for Metals, Ores, and Related Materials and is the direct responsibility of
Subcommittee E01.08 on Ni and Co and High Temperature Alloys.
Current edition approved Oct. 1, 2019Nov. 1, 2023. Published November 2019February 2024. Originally approved in 2006. Last previous edition approved in 20132019
as E2465E2465 – 19.–13. DOI: 10.1520/E2465-19.10.1520/E2465-23.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

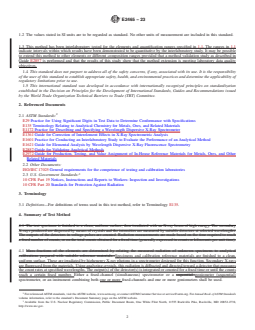

E2465 − 23
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This method has been interlaboratory tested for the elements and quantification ranges specified in 1.1. The ranges in 1.1
indicate intervals within which results have been demonstrated to be quantitative by the interlaboratory study. It may be possible
to extend this method to other elements or different composition ranges provided that a method validation study as described in
Guide E2857 is performed and that the results of this study show that the method extension is meeting laboratory data quality
objectives.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E135 Terminology Relating to Analytical Chemistry for Metals, Ores, and Related Materials
E1172 Practice for Describing and Specifying a Wavelength Dispersive X-Ray Spectrometer
E1361 Guide for Correction of Interelement Effects in X-Ray Spectrometric Analysis
E1601 Practice for Conducting an Interlaboratory Study to Evaluate the Performance of an Analytical Method
E1621 Guide for Elemental Analysis by Wavelength Dispersive X-Ray Fluorescence Spectrometry
E2857 Guide for Validating Analytical Methods
E2972 Guide for Production, Testing, and Value Assignment of In-House Reference Materials for Metals, Ores, and O
...
