ASTM F2569-11(2019)
(Test Method)Standard Test Method for Evaluating the Force Reduction Properties of Surfaces for Athletic Use
Standard Test Method for Evaluating the Force Reduction Properties of Surfaces for Athletic Use
SIGNIFICANCE AND USE
5.1 The force reduction property is just one of the important properties of a surface used for athletic activity. It may be an indicator of the performance, safety, comfort, or suitability of the surface.
5.2 Manufacturers of athletic surfaces may use this test method to evaluate the effects of design changes on the impact forces generated on the surface.
5.3 Facility owners may use this standard to evaluate the performance of existing sport/athletic surfaces. Results may be useful during the selection process for a replacement surface, or for an additional athletic surface being added to the facility.
5.4 Facility owners may also use this test method to verify that newly installed surfaces perform at or near the levels included in project specifications.
SCOPE
1.1 This test method covers the quantitative measurement and normalization of impact forces generated through a mechanical impact test on an athletic surface. The impact forces simulated in this test method are intended to represent those produced by lower extremities of an athlete during landing events on sport or athletic surfaces.
1.2 This test method may be applied to any surface where athletic activity may be conducted.
1.3 The test methods described are applicable in both laboratory and field settings.
1.4 The values stated in SI units are to be regarded as standard. The values given in parentheses are for information only.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

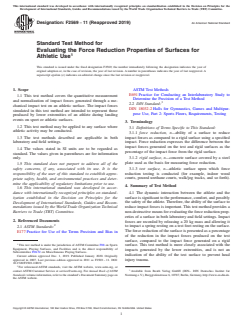

Designation: F2569 − 11 (Reapproved 2019) An American National Standard
Standard Test Method for
Evaluating the Force Reduction Properties of Surfaces for
Athletic Use
This standard is issued under the fixed designation F2569; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope ASTM Test Methods
E691 Practice for Conducting an Interlaboratory Study to
1.1 This test method covers the quantitative measurement
Determine the Precision of a Test Method
and normalization of impact forces generated through a me-
2.2 DIN Standard:
chanical impact test on an athletic surface. The impact forces
DIN 18032-2 Halls for Gymnastics, Games and Multipur-
simulated in this test method are intended to represent those
pose Use, Part 2: Sports Floors, Requirements, Testing
produced by lower extremities of an athlete during landing
events on sport or athletic surfaces.
3. Terminology
1.2 This test method may be applied to any surface where
3.1 Definitions of Terms Specific to This Standard:
athletic activity may be conducted.
3.1.1 force reduction, n—ability of a surface to reduce
1.3 The test methods described are applicable in both impact forces as compared to a rigid surface using a specified
laboratory and field settings. impact. Force reduction expresses the difference between the
impact forces generated on the test and rigid surfaces as the
1.4 The values stated in SI units are to be regarded as
percentage of the impact force from the rigid surface.
standard. The values given in parentheses are for information
3.1.2 rigid surface, n—concrete surface covered by a steel
only.
plate used as the basis for measuring force reduction.
1.5 This standard does not purport to address all of the
3.1.3 test surface, n—athletic surface upon which force
safety concerns, if any, associated with its use. It is the
reduction testing is conducted (for example, indoor wood
responsibility of the user of this standard to establish appro-
courts, poured urethane courts, walk/jog tracks, and so forth).
priate safety, health, and environmental practices and deter-
mine the applicability of regulatory limitations prior to use.
4. Summary of Test Method
1.6 This international standard was developed in accor-
dance with internationally recognized principles on standard- 4.1 The dynamic interaction between the athlete and the
surface is significant to the performance, comfort, and possibly
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom- the safety of the athlete. Therefore, the ability of the surface to
reduce impact forces is important. This test method provides a
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee. non-destructive means for evaluating the force reduction prop-
erties of a surface in both laboratory and field settings. Impact
2. Referenced Documents
forces are recorded by releasing a 20 kg mass and allowing it
to impact a spring resting on a test foot resting on the surface.
2.1 ASTM Standards:
The force reduction of the surface is presented as a percentage
E177 Practice for Use of the Terms Precision and Bias in
of the reduction in the impact forces produced on the test
surface, compared to the impact force generated on a rigid
This test method is under the jurisdiction of ASTM Committee F08 on Sports
surface. This test method is more closely associated with the
Equipment, Playing Surfaces, and Facilities and is the direct responsibility of
impacts generated by the lower extremities, and is not an
Subcommittee F08.52 on Miscellaneous Playing Surfaces.
indication of the ability of the test surface to prevent head
Current edition approved Dec. 1, 2019. Published January 2020. Originally
approved in 2007. Last previous edition approved in 2011 as F2569 – 11. DOI: injury trauma.
10.1520/F2569-11R19.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Available from Beuth Verlag GmbH (DIN-- DIN Deutsches Institut fur
Standards volume information, refer to the standard’s Document Summary page on Normunge.V.),Burggrafenstrasse6,10787,Berlin,Germany,http://www.en.din.de.
the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2569 − 11 (2019)
1 = drop mass and striker
2 = guide rod
3 = spring
4 = upper end-cap
5 = bottom end-cap
6 = test foot
7 = adjustable support
8 = height adjustment and
release mechanism
9 = load cell
10 = housing sleeve
11 = guide hole

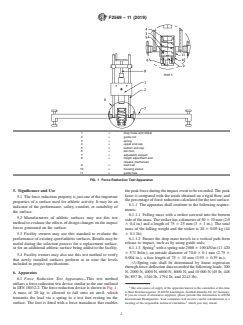

FIG. 1 Force Reduction Test Apparatus
5. Significance and Use thepeakforceduringtheimpacteventtoberecorded.Thepeak
force is compared with the result obtained on a rigid floor, and
5.1 The force reduction property is just one of the important
thepercentageofforcereductioncalculatedforthetestsurface.
properties of a surface used for athletic activity. It may be an
6.1.1 The apparatus shall conform to the following require-
indicator of the performance, safety, comfort, or suitability of
ments:
the surface.
6.1.1.1 Falling mass with a striker screwed into the bottom
5.2 Manufacturers of athletic surfaces may use this test
sideofthemass.Thestrikerhasadiameterof50 610mm(2.0
method to evaluate the effects of design changes on the impact
6 0.4 in.) and a length of 75 6 25 mm (3 6 1 in.). The total
forces generated on the surface.
mass of the falling weight and the striker is 20 6 0.05 kg (44
6 0.1 lb);
5.3 Facility owners may use this standard to evaluate the
performance of existing sport/athletic surfaces. Results may be 6.1.1.2 Ensure the drop mass travels in a vertical path from
release to impact, such as by using guide rods;
useful during the selection process for a replacement surface,
or for an additional athletic surface being added to the facility. 6.1.1.3 Spring withaspringrate2000 6100kN/m(11 420
6 571 lb/in.), an outside diameter of 70.0 6 0.1 mm (2.75 6
5.4 Facility owners may also use this test method to verify
0.004 in.), a free length of 75 6 10 mm (3.95 6 0.39 in.);
that newly installed surfaces perform at or near the levels
(1) Spring rate shall be determined by linear regression
included in project specifications.
throughforce-deflectiondatarecordedthefollowingloads;200
N, 2000 N, 4000 N, 6000 N, 8000 N, and 10 000 N (45 lb, 448
6. Apparatus
lb, 897 lb, 1346 lb, 1794 lb, and 2243 lb).
6.1 Force Reduction Test Apparatus—This test method
utilizes a force reduction test device similar to the one outlined
The sole source of supply of the apparatus known to the committee at this time
in DIN 18032-2.The force reduction device is shown in Fig. 1.
is Rein Kratmessegerate, D-89150 Laichingen, Gottlieb-Diamler-Str. 62 Germany.
A mass of 20 kg is allowed to fall onto an anvil, which
If you are aware of alternative suppliers, please provide this information to ASTM
transmits the load via a spring to a test foot resting on the
International Headquarters. Your comments will receive careful consideration at a
surface. The foot is fitted with a force transducer that enables meeting of the responsible technical committee, which you may attend.

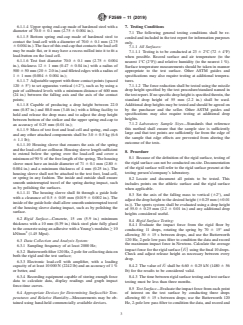

F2569 − 11 (2019)
6.1.1.4 Upper spring end-cap made of hardened steel with a 7. Testing Conditions
diameter of 70.0 6 0.1 mm (2.75 6 0.004 in.).
7.1 The following general testing conditions shall be re-
6.1.1.5 Bottom spring end-cap made of hardened steel to
corded and included in the test report for information purposes
contact the load-cell with a diameter of 70.0 6 0.1 mm (2.75
only.
60.004in.).Thefaceofthisend-capthatcontactstheloadcell
7.1.1 All Surfaces:
may be made flat, or it may have a recess milled into it to fit a
7.1.1.1 Testing is to be conducted at 23 6 2°C (72 6 4°F)
load-button on the load cell.
when possible. Record surface and air temperature (to the
6.1.1.6 Test foot diameter 70.0 6 0.1 mm (2.75 6 0.004
nearest 1°C (2°F)) and relative humidity (to the nearest 1 %).
in.), thickness 12 6 1 mm (0.47 6 0.04 in.) with a radius of
Surface temperature measurements should be taken in manner
500 6 50 mm (20 6 2.0 in.) and filleted edges with a radius of
appropriate to the test surface. Other ASTM guides and
1 6 1 mm (0.004 6 0.004 in.);
specifications may also require testing at additional tempera-
6.1.1.7 Adjustable support with three contact points (spaced tures.
120 6 5°) to set apparatus vertical (62°), such as by using a 7.1.1.2 The force reduction shall be tested using the missile
drop height specified by the test procedure/standard named in
pair of calibrated levels with a minimum distance of 600 mm
(24 in.) between the falling axis and the axis of the contact thetestreport.Ifnospecificdropheightisspecifiedtherein,the
standard drop height of 55 mm (2.2 in.) shall be used.
points;
Additional drop heights may be tested and should be agreed on
6.1.1.8 Capable of producing a drop height between 22.0
by the purchaser and the seller. Other ASTM guides and
mm (0.87 in.) and 88.0 mm (3.46 in.) with a lifting facility to
specifications may also require testing at additional drop
hold and release the drop mass and to adjust the drop height
heights.
between bottom of the striker and the upper spring end-cap to
7.1.2 Laboratory Sample Sizes—Standards that reference
an accuracy of 0.25 mm (0.01 in.);
this method shall ensure that the sample size is sufficiently
6.1.1.9 Mass of test foot and load cell and spring, end-caps
large and that test points are sufficiently far from the edge of
and any other attached components shall be 3.0 6 0.5 kg (6.6
the sample that edge effects are prevented from altering the
6 1.1 lb);
outcome of the tests.
6.1.1.10 Housing sleeve that ensures the axis of the spring
...
