ASTM F1379-95(2022)
(Terminology)Standard Terminology Relating to Barbed Tape
Standard Terminology Relating to Barbed Tape
SCOPE
1.1 This terminology is intended for use by barbed tape specifiers and end-users to give a general understanding of the types, sizes, and configuration of barbed tape.
1.2 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

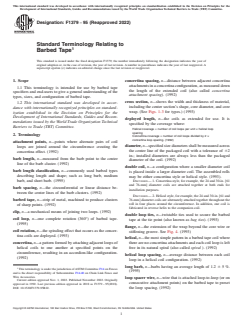

Designation: F1379 − 95 (Reapproved 2022)
Standard Terminology Relating to
Barbed Tape
This standard is issued under the fixed designation F1379; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope concertina spacing, n—distance between adjacent concertina
attachments in a concertina configuration, as measured down
1.1 This terminology is intended for use by barbed tape
the length of the extended coil (also called concertina
specifiers and end-users to give a general understanding of the
attachment spacing). (1992)
types, sizes, and configuration of barbed tape.

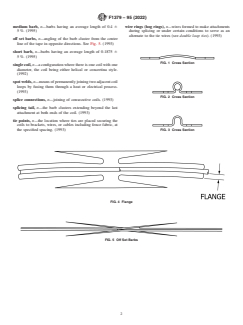

cross section, n—shows the width and thickness of material,
1.2 This international standard was developed in accor-
including the center section’s shape, core diameter, and core
dance with internationally recognized principles on standard-
wrap. (See Figs. 1-3 for types.) (1993)
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
deployed length, n—the coils as extended for use. It is
mendations issued by the World Trade Organization Technical
specified by the coverage where:
Barriers to Trade (TBT) Committee.
Helical coverage = number of coil loops per unit × helical loop
spacing
2. Terminology
Concertina coverage = number of coil loops divided by 2 ×
concertina loop spacing. (1992)
attachment points, n—points where alternate pairs of coil
diameter,n—specified size diameters shall be measured across
loops are joined around the circumference creating the
the center line of the packaged coil with a tolerance of 62
concertina effect. (1992)
in.; installed diameters are always less than the packaged
barb length, n—measured from the barb point to the center
diameter of the coil. (1992)
line of the barb cluster. (1992)
double coil, n—a configuration where a smaller diameter coil
barb length classification, n—commonly used barbed types
is placed inside a larger diameter coil. The assembled rolls
describing length and shape; such as long barb, medium
may be either concertina style or helical style. (1993).
barb, and short barb. (1995)
DISCUSSION— 1. Concertina style, for example, the 24 and 30-in. [61
and 76-mm] diameter coils are attached together at both ends for
barb spacing, n—the circumferential or linear distance be-
installation purposes.
tween the center lines of the barb clusters. (1992)
DISCUSSION— 2. Helical style, for example, the 24 and 30-in. [61 and
barbed tape, n—strip of metal, machined to produce clusters 76-mm] diameter coils are alternately attached together throughout the
roll in four places around the circumference. In addition, one coil is
of sharp points. (1992)
fabricated in reverse helix to the companion coil.
clip, n—a mechanical means of joining two loops. (1992)
double loop ties, n—twistable ties used to secure the barbed
coil loop, n—one complete rotation (360°) of barbed tape.
tape at the tie point (also known as bag ties). (1993)
(1995)
flange, n—the extension of the wrap beyond the core wire or
coil rotation, n—the spiraling effect that occurs as the concer-
stiffening groove. See Fig. 4. (1993)
tina coils are deployed. (1993)
helical, n—the most simple pattern in a barbed tape coil where
concertina,n—a pattern formed by attaching adjacent loops of there a
...
