ASTM D3230-19

(Test Method)

Standard Test Method for Salts in Crude Oil (Electrometric Method)

Standard Test Method for Salts in Crude Oil (Electrometric Method)

SIGNIFICANCE AND USE
5.1 This test method is used to determine the approximate chloride content of crude oils, a knowledge of which is important in deciding whether or not the crude oil needs desalting. The efficiency of the process desalter can also be evaluated.
5.2 Excessive chloride left in the crude oil frequently results in higher corrosion rates in refining units and also has detrimental effects on catalysts used in these units.
5.3 This test method provides a rapid and convenient means of determining the approximate content of chlorides in crude oil and is useful to crude oil processors.
SCOPE
1.1 This test method covers the determination of the approximate chloride (salts) concentration in crude oil. The range of concentration covered is 3.5 mg/kg to 500 mg/kg or 1.0 lb/1000 bbl to 150 lb/1000 bbl (PTB) as chloride concentration/volume of crude oil.
1.2 This test method measures conductivity in the crude oil due to the presence of common chlorides, such as sodium, calcium, and magnesium. Other conductive materials may also be present in the crude oil.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3.1 Exception—Acceptable concentration units are g/m3 or PTB (lb/1000 bbl).
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific warning statements, see 7.3, 7.4, and 7.11.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
30-Apr-2019
ICS
75.040 - Crude petroleum
Technical Committee
D02 - Petroleum Products, Liquid Fuels, and Lubricants
Drafting Committee
D02.03 - Elemental Analysis
Current Stage
Ref Project

Relations

Refers
ASTM D5002-15 - Standard Test Method for Density and Relative Density of Crude Oils by Digital Density Analyzer
Effective Date
15-Dec-2015

Buy Standard

ASTM D3230-19 - Standard Test Method for Salts in Crude Oil (Electrometric Method)ASTM D3230-19 - Standard Test Method for Salts in Crude Oil (Electrometric Method)
PreviousNext
Standard
ASTM D3230-19 - Standard Test Method for Salts in Crude Oil (Electrometric Method)
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM D3230-19 - Standard Test Method for Salts in Crude Oil (Electrometric Method)REDLINE ASTM D3230-19 - Standard Test Method for Salts in Crude Oil (Electrometric Method)
PreviousNext
Standard
REDLINE ASTM D3230-19 - Standard Test Method for Salts in Crude Oil (Electrometric Method)
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

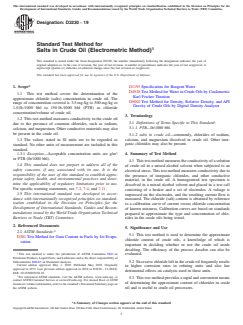

Designation: D3230 − 19
Standard Test Method for
1
Salts in Crude Oil (Electrometric Method)
This standard is issued under the fixed designation D3230; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope* D1193 Specification for Reagent Water
D4928 Test Method for Water in Crude Oils by Coulometric
1.1 This test method covers the determination of the
Karl Fischer Titration
approximate chloride (salts) concentration in crude oil. The
D5002 Test Method for Density, Relative Density, and API
range of concentration covered is 3.5 mg⁄kg to 500 mg⁄kg or
Gravity of Crude Oils by Digital Density Analyzer
1.0 lb⁄1000 bbl to 150 lb⁄1000 bbl (PTB) as chloride
concentration/volume of crude oil.
3. Terminology
1.2 This test method measures conductivity in the crude oil
3.1 Definitions of Terms Specific to This Standard:
due to the presence of common chlorides, such as sodium,
3.1.1 PTB—lb/1000 bbl.
calcium, and magnesium. Other conductive materials may also
be present in the crude oil.
3.1.2 salts in crude oil—commonly, chlorides of sodium,
calcium, and magnesium dissolved in crude oil. Other inor-
1.3 The values stated in SI units are to be regarded as
ganic chlorides may also be present.
standard. No other units of measurement are included in this
standard.
3
4. Summary of Test Method
1.3.1 Exception—Acceptable concentration units are g/m
or PTB (lb/1000 bbl).
4.1 Thistestmethodmeasurestheconductivityofasolution
1.4 This standard does not purport to address all of the
of crude oil in a mixed alcohol solvent when subjected to an
safety concerns, if any, associated with its use. It is the
electrical stress.This test method measures conductivity due to
responsibility of the user of this standard to establish appro-
the presence of inorganic chlorides, and other conductive
priate safety, health, and environmental practices and deter-
material, in the crude oil. A homogenized test specimen is
mine the applicability of regulatory limitations prior to use.
dissolved in a mixed alcohol solvent and placed in a test cell
For specific warning statements, see 7.3, 7.4, and 7.11.
consisting of a beaker and a set of electrodes. A voltage is
1.5 This international standard was developed in accor-
impressed on the electrodes, and the resulting current flow is
dance with internationally recognized principles on standard-
measured. The chloride (salt) content is obtained by reference
ization established in the Decision on Principles for the
to a calibration curve of current versus chloride concentration
Development of International Standards, Guides and Recom-
of known mixtures. Calibration curves are based on standards
mendations issued by the World Trade Organization Technical
prepared to approximate the type and concentration of chlo-
Barriers to Trade (TBT) Committee.
rides in the crude oils being tested.
2. Referenced Documents
5. Significance and Use
2
2.1 ASTM Standards:
5.1 This test method is used to determine the approximate
D381 Test Method for Gum Content in Fuels by Jet Evapo-
chloride content of crude oils, a knowledge of which is
ration
important in deciding whether or not the crude oil needs
desalting. The efficiency of the process desalter can also be
1
This test method is under the jurisdiction of ASTM Committee D02 on
evaluated.
Petroleum Products, Liquid Fuels, and Lubricants and is the direct responsibility of
Subcommittee D02.03 on Elemental Analysis. 5.2 Excessivechlorideleftinthecrudeoilfrequentlyresults
Current edition approved May 1, 2019. Published May 2019. Originally
in higher corrosion rates in refining units and also has
approved in 1973. Last previous edition approved in 2018 as D3230 – 13 (2018).
detrimental effects on catalysts used in these units.
DOI: 10.1520/D3230-19.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
5.3 This test method provides a rapid and convenient means
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
of determining the approximate content of chlorides in crude
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. oil and is useful to crude oil processors.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

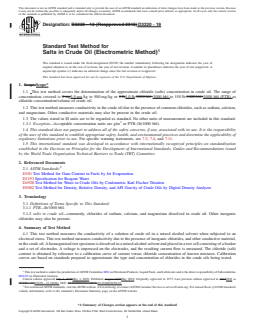

Designation: D3230 − 13 (Reapproved 2018) D3230 − 19
Standard Test Method for
1
Salts in Crude Oil (Electrometric Method)
This standard is issued under the fixed designation D3230; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope Scope*
1.1 This test method covers the determination of the approximate chloride (salts) concentration in crude oil. The range of
concentration covered is 0 mg3.5 mg ⁄kg to 500 mg ⁄kg or 0 lb1.0 lb ⁄1000 bbl ⁄1000 bbl to 150 lb ⁄1000 bbl ⁄1000 bbl (PTB) as
chloride concentration/volume of crude oil.
1.2 This test method measures conductivity in the crude oil due to the presence of common chlorides, such as sodium, calcium,
and magnesium. Other conductive materials may also be present in the crude oil.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
3
1.3.1 Exception—Acceptable concentration units are g/m or PTB (lb/1000 bbl).
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use. For specific warning statements, see 7.3, 7.4, and 7.11.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
D381 Test Method for Gum Content in Fuels by Jet Evaporation
D1193 Specification for Reagent Water
D4928 Test Method for Water in Crude Oils by Coulometric Karl Fischer Titration
D5002 Test Method for Density, Relative Density, and API Gravity of Crude Oils by Digital Density Analyzer
3. Terminology
3.1 Definitions of Terms Specific to This Standard:
3.1.1 PTB—lb/1000 bbl.
3.1.2 salts in crude oil—commonly, chlorides of sodium, calcium, and magnesium dissolved in crude oil. Other inorganic
chlorides may also be present.
4. Summary of Test Method
4.1 This test method measures the conductivity of a solution of crude oil in a mixed alcohol solvent when subjected to an
electrical stress. This test method measures conductivity due to the presence of inorganic chlorides, and other conductive material,
in the crude oil. A homogenized test specimen is dissolved in a mixed alcohol solvent and placed in a test cell consisting of a beaker
and a set of electrodes. A voltage is impressed on the electrodes, and the resulting current flow is measured. The chloride (salt)
content is obtained by reference to a calibration curve of current versus chloride concentration of known mixtures. Calibration
curves are based on standards prepared to approximate the type and concentration of chlorides in the crude oils being tested.
1
This test method is under the jurisdiction of ASTM Committee D02 on Petroleum Products, Liquid Fuels, and Lubricants and is the direct responsibility of Subcommittee
D02.03 on Elemental Analysis.
Current edition approved July 1, 2018May 1, 2019. Published August 2018May 2019. Originally approved in 1973. Last previous edition approved in 20132018 as
D3230 – 13.D3230 – 13 (2018). DOI: 10.1520/D3230-13R18.10.1520/D3230-19.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

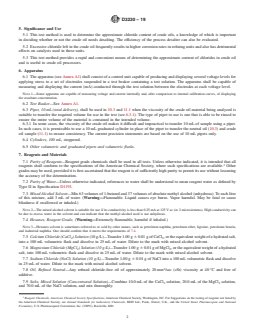

D3230 − 19
5. Significance and Use
5.1 This test method is used to determine the approximate chloride content of crude oils, a knowledge of which is important
in deciding whether or not the crude oil needs desalting. The efficiency of the process desalter can also be evaluated.
5.2 Excessive chloride
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM D7691-23(Test Method)
Standard Test Method for Multielement Analysis of Crude Oils Using Inductively Coupled Plasma Atomic Emission Spectrometry (ICP-AES)

SIGNIFICANCE AND USE
5.1 Most often determined trace elements in crude oils are nickel and vanadium, which are usually the most abundant; however, as many as 45 elements in crude oils have been reported. Knowledge of trace elements in crude oil is important because they can have an adverse effect on petroleum refining and product quality. These effects can include catalyst poisoning in the refinery and excessive atmospheric emission in combustion of fuels. Trace element concentrations are also useful in correlating production from different wells and horizons in a field. Elements such as iron, arsenic, and lead are catalyst poisons. Vanadium compounds can cause refractory damage in furnaces, and sodium compounds have been found to cause superficial fusion on fire brick. Some organometallic compounds are volatile which can lead to the contamination of distillate fractions, and a reduction in their stability or malfunctions of equipment when they are combusted.
5.2 The value of crude oil can be determined, in part, by the concentrations of nickel, vanadium, and iron.
5.3 Inductively coupled plasma-atomic emission spectrometry (ICP-AES) is a widely used technique in the oil industry. Its advantages over traditional atomic absorption spectrometry (AAS) include greater sensitivity, freedom from molecular interferences, wide dynamic range, and multi-element capability. See Practice D7260.
SCOPE
1.1 This test method covers the determination of several elements (including iron, nickel, sulfur, and vanadium) occurring in crude oils.
1.2 For analysis of any element using wavelengths below 190 nm, a vacuum or inert gas optical path is required.
1.3 Analysis for elements such as arsenic, selenium, or sulfur in whole crude oil may be difficult by this test method due to the presence of their volatile compounds of these elements in crude oil; but this test method should work for resid samples.
1.4 Because of the particulates present in crude oil samples, if they do not dissolve in the organic solvents used or if they do not get aspirated in the nebulizer, low elemental values may result, particularly for iron and sodium. This can also occur if the elements are associated with water which can drop out of the solution when diluted with solvent.
1.4.1 An alternative in such cases is using Test Method D5708, Procedure B, which involves wet decomposition of the oil sample and measurement by ICP-AES for nickel, vanadium, and iron, or Test Method D5863, Procedure A, which also uses wet acid decomposition and determines vanadium, nickel, iron, and sodium using atomic absorption spectrometry.
1.4.2 From ASTM Interlaboratory Crosscheck Programs (ILCP) on crude oils data available so far, it is not clear that organic solvent dilution techniques would necessarily give lower results than those obtained using acid decomposition techniques.2
1.4.3 It is also possible that, particularly in the case of silicon, low results may be obtained irrespective of whether organic dilution or acid decomposition is utilized. Silicones are present as oil field additives and can be lost in ashing. Silicates should be retained but unless hydrofluoric acid or alkali fusion is used for sample dissolution, they may not be accounted for.
1.5 This test method uses oil-soluble metals for calibration and does not purport to quantitatively determine insoluble particulates. Analytical results are particle size dependent and low results may be obtained for particles larger than a few micrometers.
1.6 The precision in Section 18 defines the concentration ranges covered in the interlaboratory study. However, lower and particularly higher concentrations can be determined by this test method. The low concentration limits are dependent on the sensitivity of the ICP instrument and the dilution factor used. The high concentration limits are determined by the product of the maximum concentration defined by the calibration curve and the sample di...

  • Standard
    10 pages
    English language
    sale 15% off
  • Standard
    10 pages
    English language
    sale 15% off
ASTM
ASTM D7157-23(Test Method)
Standard Test Method for Determination of Intrinsic Stability of Asphaltene-Containing Residues, Heavy Fuel Oils, and Crude Oils (n-Heptane Phase Separation; Optical Detection)

SIGNIFICANCE AND USE
5.1 This test method describes a sensitive method for estimating the intrinsic stability of an oil. The intrinsic stability is expressed as S-value. An oil with a low S-value is likely to undergo flocculation of asphaltenes when stressed (for example, extended heated storage) or blended with a range of other oils. Two oils each with a high S-value are likely to maintain asphaltenes in a peptized state and not lead to asphaltene flocculation when blended together.
5.2 This test method can be used by petroleum refiners to control and optimize the refinery processes and by blenders and marketers to assess the intrinsic stability of blended asphaltene-containing heavy fuel oils.
SCOPE
1.1 This test method covers procedures for quantifying the intrinsic stability of the asphaltenes in an oil by automatic instruments using optical detection.
1.2 This test method is applicable to residual products from thermal and hydrocracking processes, to products typical of Specifications D396 Grades No. 5L, 5H, and 6, and D2880 Grades No. 3-GT and 4-GT, and to crude oils, providing these products contain 0.5 % by mass or greater concentration of asphaltenes (see Test Method D6560).
1.3 This test method quantifies asphaltene stability in terms of state of peptization of the asphaltenes (S-value), intrinsic stability of the oily medium (So) and the solvency requirements of the peptized asphaltenes (Sa).
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    13 pages
    English language
    sale 15% off
  • Standard
    13 pages
    English language
    sale 15% off
ASTM
ASTM D8045-17(2023)(Test Method)
Standard Test Method for Acid Number of Crude Oils and Petroleum Products by Catalytic Thermometric Titration

SIGNIFICANCE AND USE
5.1 Crude oils and oil sands bitumen contain naturally occurring acidic species. Acidity of crude oil has been implicated in corrosion of distribution and process systems. The relative amount of these materials can be determined by titrating with bases. The acid number is a measure of this amount of acidic substance in the oil under the conditions of the test.
5.2 Acid number of crude and distilled petroleum fractions has been measured by Test Method D664. Test Method D664 was developed for the analysis of lubricants and biodiesel. The titration solvent used in Test Method D664 does not properly address dissolving difficult samples such as crude oil, bitumen, and high wax samples addressed in this test method. Refer to Appendix X1.
5.3 Test Method D974 is also not applicable to measuring acidity of crudes and highly colored samples because the indicator is not visible or it is difficult to discern a color change to detect the end point of the titration.
SCOPE
1.1 This test method covers the determination of acidic components in crude oil and petroleum products including waxes, bitumen, base stocks, and asphalts that are soluble in mixtures of xylenes and propan-2-ol. It is applicable for the determination of acids whose dissociation constants in water are larger than 10–9; extremely weak acids whose dissociation constants are smaller than 10–9 do not interfere. The values obtained by this test method may not be numerically equivalent to other acid value measurements. The range of KOH acid numbers included in the precision statement is 0.1 mg/g to 16 mg/g.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Some specific hazards statements are given in Section 7 on Safety Precautions.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM D5863-22(Test Method)
Standard Test Methods for Determination of Nickel, Vanadium, Iron, and Sodium in Crude Oils and Residual Fuels by Flame Atomic Absorption Spectrometry

SIGNIFICANCE AND USE
5.1 When fuels are combusted, metals present in the fuels can form low melting compounds that are corrosive to metal parts. Metals present at trace levels in petroleum can deactivate catalysts during processing. These test methods provide a means of quantitatively determining the concentrations of vanadium, nickel, iron, and sodium. Thus, these test methods can be used to aid in determining the quality and value of the crude oil and residual oil.
SCOPE
1.1 These test methods cover the determination of nickel, vanadium, iron, and sodium in crude oils and residual fuels by flame atomic absorption spectrometry (AAS). Two different test methods are presented.
1.2 Procedure A, Sections 8–14—Flame AAS is used to analyze a sample that is decomposed with acid for the determination of total Ni, V, and Fe.
1.3 Procedure B, Sections 15–20—Flame AAS is used to analyze a sample diluted with an organic solvent for the determination of Ni, V, and Na. This test method uses oil-soluble metals for calibration to determine dissolved metals and does not purport to quantitatively determine nor detect insoluble particulates. Hence, this test method may underestimate the metal content, especially sodium, present as inorganic sodium salts.
1.4 The concentration ranges covered by these test methods are determined by the sensitivity of the instruments, the amount of sample taken for analysis, and the dilution volume. A specific statement is given in Note 1.
1.5 For each element, each test method has its own unique precision. The user can select the appropriate test method based on the precision required for the specific analysis.
1.6 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard, unless specifically stated. Other units that appear in this standard are included for information purposes only or because they are in embedded pictures that cannot be edited.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific warning statements are given in 8.1, 9.2, 9.5, 11.2, 11.4, and 16.1.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    8 pages
    English language
    sale 15% off
  • Standard
    8 pages
    English language
    sale 15% off
ASTM
ASTM D4310-22a(Test Method)
Standard Test Method for Determination of Sludging and Corrosion Tendencies of Inhibited Mineral Oils

SIGNIFICANCE AND USE
5.1 Insoluble material may form in oils that are subjected to oxidizing conditions.
5.2 Significant formation of oil insolubles or metal corrosion products, or both, during this test may indicate that the oil will form insolubles or corrode metals, or both, during field service. However, no correlation with field service has been established.
SCOPE
1.1 This test method covers and is used to evaluate the tendency of inhibited mineral oil based steam turbine lubricants and mineral oil based anti-wear hydraulic oils to corrode copper catalyst metal and to form sludge during oxidation in the presence of oxygen, water, and copper and iron metals at an elevated temperature. The test method is also used for testing circulating oils having a specific gravity less than that of water and containing rust and oxidation inhibitors.
Note 1: During round robin testing copper and iron in the oil, water and sludge phases were measured. However, the values for the total iron were found to be so low (that is, below 0.8 mg), that statistical analysis was inappropriate. The results of the cooperative test program are available (see Section 16).
1.2 This test method is a modification of Test Method D943 where the oxidation stability of the same kinds of oils is determined by following the acid number of oil. The number of test hours required for the oil to reach an acid number of 2.0 mg KOH/g is the oxidation lifetime.
1.3 Procedure A of this test method requires the determination and report of the weight of the sludge and the total amount of copper in the oil, water, and sludge phases. Procedure B requires the sludge determination only. The acid number determination is optional for both procedures.
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 WARNING—Mercury has been designated by many regulatory agencies as a hazardous substance that can cause serious medical issues. Mercury, or its vapor, has been demonstrated to be hazardous to health and corrosive to materials. Use Caution when handling mercury and mercury-containing products. See the applicable product Safety Data Sheet (SDS) for additional information. The potential exists that selling mercury or mercury-containing products, or both, is prohibited by local or national law. Users must determine legality of sales in their location.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific warning statements, see Section 7 and X1.1.5.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    12 pages
    English language
    sale 15% off
  • Standard
    12 pages
    English language
    sale 15% off
ASTM
ASTM D8003-22(Test Method)
Standard Test Method for Determination of Light Hydrocarbons and Cut Point Intervals in Live Crude Oils and Condensates by Gas Chromatography

SIGNIFICANCE AND USE
5.1 This test method determines methane (nC1) to hexane (nC6), cut point carbon fraction intervals to nC24 and recovery (nC24+) of live crude oils and condensates without depressurizing, thereby avoiding the loss of highly volatile components and maintaining sample integrity. This test method provides a highly resolved light end profile which can aid in determining and improving appropriate safety measures and product custody transport procedures. Decisions in regards to marketing, scheduling, and processing of crude oils may rely on light end compositional results.
5.2 Equation of state calculations can be applied to variables provided by this method to allow for additional sample characterization.
SCOPE
1.1 This test method covers the determination of light hydrocarbons and cut point intervals by gas chromatography in live crude oils and condensates with VPCR4 (see Note 1) up to 500 kPa at 37.8 °C.
Note 1: As described in Test Method D6377.
1.2 Methane (C1) to hexane (nC6) and benzene are speciated and quantitated. Samples containing mass fractions of up to 0.5 % methane, 2.0 % ethane, 10 % propane, or 15 % isobutane may be analyzed. A mass fraction with a lower limit of 0.001 % exists for these compounds.
1.3 This test method may be used for the determination of cut point carbon fraction intervals (see 3.2.1) of live crude oils and condensates from initial boiling point (IBP) to 391 °C (nC24). The nC24 plus fraction is reported.
1.4 Dead oils or condensates sampled in accordance with 12.1 may also be analyzed.
1.5 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5.1 Exception—Where there is no direct SI equivalent such as tubing size.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    15 pages
    English language
    sale 15% off
  • Standard
    15 pages
    English language
    sale 15% off
ASTM
ASTM D4006-22(Test Method)
Standard Test Method for Water in Crude Oil by Distillation

SIGNIFICANCE AND USE
5.1 A knowledge of the water content of crude oil is important in the refining, purchase, sale, or transfer of crude oils.
5.2 This test method may not be suitable for crude oils that contain alcohols that are soluble in water. In cases where the impact on the results may be significant, the user is advised to consider using another test method, such as Test Method D4928 (API MPMS Chapter 10.9).
SCOPE
1.1 This test method covers the determination of water in crude oil by distillation.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific warning statements, see 7.1 and A1.1.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    11 pages
    English language
    sale 15% off
  • Standard
    11 pages
    English language
    sale 15% off
ASTM
ASTM D8150-22(Test Method)
Standard Test Method for Determination of Organic Chloride Content in Crude Oil by Distillation Followed by Detection Using Combustion Ion Chromatography

SIGNIFICANCE AND USE
5.1 Organic chlorides do not occur naturally in crude oil. When present, they result from contamination in some manner, such as disposal of chlorinated solvent used in many dewaxing pipeline or other equipment operations.
5.1.1 Uncontaminated crude oil will contain no detectable organic chloride, and most refineries can handle very small amounts without deleterious effects.
5.1.1.1 Most trade contracts specify that no organic chloride is present in the crude oil.
5.1.2 Several pipelines have set specification limits less than 1 μg/g organic chlorides in the whole crude, and less than 5 μg/g in the light naphtha, based on the yield of naphtha being 20 % of the original sample.
5.1.2.1 To ensure less than 1 μg/g organic chloride in the crude oil, the amount measured in the naphtha fraction shall be less than 1/f (where f is the naphtha fraction calculated with Eq 1). For example, a crude oil sample with 1 μg/g of organic chloride but a 10 % yield of naphtha would create a naphtha containing 10 μg/g organic chloride. Further, a crude containing 1 μg/g of organic chloride but a 40 % yield of naphtha would create a naphtha containing 2.5 μg/g organic chloride. Due to the difference in naphtha yields, the impact on refining operations can be significantly different.
5.1.2.2 Since crude oil deposits worldwide exhibit different yields of naphtha, the working range of detection for this method shall cover a broad range, possibly as high as 50 μg/g in a naphtha fraction.
5.1.3 Organic chloride present in the crude oil (for example, methylene chloride, perchloroethylene, etc.) is usually distilled into the naphtha fraction. Some compounds break down during fractionation and produce hydrochloric acid, which has a corrosive effect. Some compounds survive fractionation and are destroyed during hydro-treating (desulfurization of the naphtha).
5.2 Other halides can also be used for dewaxing crude oil; in such cases, any organic halides will have similar impact on ...
SCOPE
1.1 This test method covers the determination of organic chloride (above 1 μg/g organically-bound chlorine) in crude oils, using distillation and combustion ion chromatography.
1.2 This test method involves the distillation of crude oil test specimens to obtain a naphtha fraction prior to chloride determination. The chloride content of the naphtha fraction of the whole crude oil can thereby be obtained. See Section 6 regarding potential interferences.
1.3 The test procedure covers the determination of organic chloride in the washed naphtha fraction of crude oil by combustion ion chromatography. Other halides can be determined but are not included in the precision statement of the test method.
1.4 The values stated in SI units are to be regarded as standard. The preferred concentration units are micrograms of chloride per gram of sample.
1.4.1 Exception—The values given in parentheses are for information only.
1.5 Warning—Mercury has been designated by many regulatory agencies as a hazardous substance that can cause serious medical issues. Mercury, or its vapor, has been demonstrated to be hazardous to health and corrosive to materials. Use caution when handling mercury and mercury-containing products. See the applicable product Safety Data Sheet (SDS) for additional information. The potential exists that selling mercury or mercury-containing products, or both, is prohibited by local or national law. Users must determine legality of sales in their location.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision ...

  • Standard
    10 pages
    English language
    sale 15% off
  • Standard
    10 pages
    English language
    sale 15% off
ASTM
ASTM D4929-22(Test Method)
Standard Test Method for Determination of Organic Chloride Content in Crude Oil

SIGNIFICANCE AND USE
5.1 Organic chlorides do not occur naturally in crude oil. When present, they result from contamination in some manner, such as disposal of chlorinated solvent used in many dewaxing pipeline or other equipment operations.
5.1.1 Uncontaminated crude oil will contain no detectable organic chloride, and most refineries can handle very small amounts without deleterious effects.
5.1.1.1 Most trade contracts specify that no organic chloride is present in the crude oil.
5.1.2 Several pipelines have set specification limits at
5.1.2.1 To ensure Eq 3).
5.1.3 Organic chloride present in the crude oil (for example, methylene chloride, perchloroethylene, etc.) is usually distilled into the naphtha fraction. Some compounds break down during fractionation and produce hydrochloric acid, which has a corrosive effect. Some compounds survive fractionation and are destroyed during hydro-treating (desulfurization of the naphtha).
5.2 Other halides can also be used for dewaxing crude oil; in such cases, any organic halides will have similar impact on the refining operations as the organic chlorides.
5.3 Organic chloride species are potentially damaging to refinery processes. Hydrochloric acid can be produced in hydrotreating or reforming reactors and the acid accumulates in condensing regions of the refinery. Unexpected concentrations of organic chlorides cannot be effectively neutralized and damage can result. Organic chlorides are not known to be naturally present in crude oils and usually result from cleaning operations at producing sites, pipelines, or tanks. It is important for the oil industry to have common methods available for the determination of organic chlorides in crude oil, particularly when transfer of custody is involved.
SCOPE
1.1 The procedures in this test method cover the determination of organic chloride (above 1 μg/g organically-bound chlorine) in crude oils, using either distillation and sodium biphenyl reduction, distillation and microcoulometry, or distillation and X-ray fluorescence (XRF) spectrometry.
1.2 The procedures in this test method involve the distillation of crude oil test specimens to obtain a naphtha fraction prior to chloride determination. The chloride content of the naphtha fraction of the whole crude oil can thereby be obtained. See Section 6 regarding potential interferences.
1.3 Procedure A covers the determination of organic chloride in the washed naphtha fraction of crude oil by sodium biphenyl reduction followed by potentiometric titration.
1.4 Procedure B covers the determination of organic chloride in the washed naphtha fraction of crude oil by oxidative combustion followed by microcoulometric titration.
1.5 Procedure C covers the determination of organic chloride in the washed naphtha fraction of crude oil by X-ray fluorescence spectrometry.
1.6 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.6.1 The preferred concentration units are micrograms of chloride per gram of sample, though milligrams of chloride per kilogram of sample is commonly used for Procedure C.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    16 pages
    English language
    sale 15% off
  • Standard
    16 pages
    English language
    sale 15% off
ASTM
ASTM D4007-22(Test Method)
Standard Test Method for Water and Sediment in Crude Oil by the Centrifuge Method (Laboratory Procedure)

SIGNIFICANCE AND USE
5.1 The water and sediment content of crude oil is significant because it can cause corrosion of equipment and problems in processing. A determination of water and sediment content is required to measure accurately net volumes of actual oil in sales, taxation, exchanges, and custody transfers. It is not anticipated that this test method, which is written with a dedicated laboratory facility in mind, is likely to be used in field test rooms or sample rooms due to safety concerns for proper ventilation and handling.
5.2 This test method may not be suitable for crude oils that contain alcohols that are soluble in water. In cases where the impact on the results may be significant, the user is advised to consider using another test method, such as Test Method D4928 (API MPMS Chapter 10.9).
SCOPE
1.1 This test method describes the laboratory determination of water and sediment in crude oils by means of the centrifuge procedure. This centrifuge method for determining water and sediment in crude oils is not entirely satisfactory. The amount of water detected is almost always lower than the actual water content. When a highly accurate value is required, the revised procedures for water by distillation, Test Method D4006 (API MPMS Chapter 10.2) (Note 1), and sediment by extraction, Test Method D473 (API MPMS Chapter 10.1), shall be used.
Note 1: Test Method D4006 (API MPMS Chapter 10.2) has been determined to be the preferred and most accurate method for the determination of water.
1.2 The values stated in SI units are to be regarded as standard.
1.2.1 Exception—The values given in parentheses are for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific warning statements appear in 7.1, 9.3, and A1.5.4.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    13 pages
    English language
    sale 15% off
  • Standard
    13 pages
    English language
    sale 15% off
