ASTM G175-13(2021)
(Test Method)Standard Test Method for Evaluating the Ignition Sensitivity and Fault Tolerance of Oxygen Pressure Regulators Used for Medical and Emergency Applications
Standard Test Method for Evaluating the Ignition Sensitivity and Fault Tolerance of Oxygen Pressure Regulators Used for Medical and Emergency Applications
SIGNIFICANCE AND USE
4.1 This test method comprises two phases and is used to evaluate the ignition sensitivity and fault tolerance of oxygen pressure regulators used for medical and emergency applications.
4.2 Phase 1: Oxygen Pressure Shock Test—The objective of this test phase is to determine whether the heat or temperature from oxygen pressure shocks will result in burnout or visible heat damage to the internal parts of the pressure regulator.
4.2.1 The criteria for a valid test are specified in ISO 10524–1, Section 6.6 for oxygen pressure regulators and ISO 10524–3, Section 6.6 for oxygen VIPRs.
4.2.2 The pass/fail criteria for a pressure regulator are specified in ISO 10524–1, Section 6.6 for oxygen pressure regulators and ISO 10524–3, Section 6.6 for oxygen VIPRs.
4.3 Phase 2: Promoted Ignition Test—
4.3.1 Oxygen Pressure Regulator—The objective of this test phase is to determine if an ignition event upstream of the pressure regulator inlet filter will result in sustained combustion and burnout of the pressure regulator.
4.3.1.1 The criterion for a valid test is either, (1) failure of the pressure regulator, as defined in 4.3.1.2, or (2) if the pressure regulator does not fail, consumption of at least 90 % of the ignition pill as determined by visual inspection or mass determination.
4.3.1.2 Failure of the pressure regulator is defined as the breach of the pressurized regulator component (burnout), which may include the CGA 870 seal ring, and ejection of molten or burning metal or any parts, including the gauge, from the pressure regulator. See Appendix X6 Testing Pressure Regulators and VIPRs with Gauges. However, momentary (less than 1 s) ejection of flame through normal vent paths, with sparks that look similar to those from metal applied to a grinding wheel, is acceptable and does not constitute a failure.
4.3.2 Oxygen VIPR—The objective of this test is to determine if an ignition event upstream of the shut-off valve or within the shut-off valve will resu...
SCOPE
1.1 For the purpose of this standard, a pressure regulator, also called a pressure-reducing valve, is a device intended for medical or emergency purposes that is used to convert a medical or emergency gas pressure from a high, variable pressure to a lower, more constant working pressure [21 CFR 868.2700 (a)]. Some of these oxygen pressure regulators are a combination of a pressure regulator and cylinder valve. These devices are often referred to as valve integrated pressure regulators, or VIPRs.
1.2 This standard provides an evaluation tool for determining the ignition sensitivity and fault tolerance of oxygen pressure regulators and VIPRs used for medical and emergency applications. An ignition-sensitive pressure regulator or VIPR is defined as having a high probability of ignition as evaluated by rapid pressurization testing (Phase 1). A fault-tolerant pressure regulator or VIPR is defined as having a low consequence of ignition as evaluated by forced ignition testing (Phase 2).
Note 1: It is essential that a risk assessment be carried out on breathing gas systems, especially concerning toxic product formation due to ignition or decomposition of nonmetallic materials as weighed against the risk of flammability (refer to Guide G63 and ISO 15001.2). See Appendix X1 and Appendix X2 for details.
1.3 This standard applies only to:
1.3.1 Oxygen pressure regulators used for medical and emergency applications that are designed and fitted with CGA 540 inlet connections, CGA 870 pin-index adapters (CGA V-1), or EN ISO 407 pin-index adapters.
1.3.2 Oxygen VIPRs used for medical and emergency applications that are designed to be permanently fitted to a medical gas cylinder.
1.4 This standard is a test standard not a design standard; This test standard is not intended as a substitute for traditional design requirements for oxygen cylinder valves, pressure regulators and VIPRs. A well-designed pressure regulator or ...
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

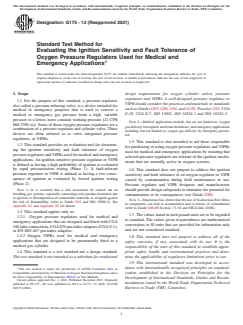

Designation: G175 − 13 (Reapproved 2021)
Standard Test Method for
Evaluating the Ignition Sensitivity and Fault Tolerance of
Oxygen Pressure Regulators Used for Medical and
Emergency Applications
This standard is issued under the fixed designation G175; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope design requirements for oxygen cylinder valves, pressure
regulators and VIPRs. A well-designed pressure regulator or
1.1 For the purpose of this standard, a pressure regulator,
VIPR should consider the practices and materials in standards
also called a pressure-reducing valve, is a device intended for
suchasGuidesG63,G88,G94,andG128,PracticeG93,CGA
medical or emergency purposes that is used to convert a
E-18, CGA E-7, ISO 15001, ISO 10524-1 and ISO 10524-3.
medical or emergency gas pressure from a high, variable
pressure to a lower, more constant working pressure [21 CFR
NOTE 2—Medical applications include, but are not limited to, oxygen
868.2700 (a)]. Some of these oxygen pressure regulators are a
gasdeliveryinhospitalsandhomehealthcare,andemergencyapplications
combination of a pressure regulator and cylinder valve. These
including, but not limited to, oxygen gas delivery by emergency person-
devices are often referred to as valve integrated pressure
nel.
regulators, or VIPRs.
1.5 This standard is also intended to aid those responsible
1.2 This standard provides an evaluation tool for determin-
for purchasing or using oxygen pressure regulators and VIPRs
ing the ignition sensitivity and fault tolerance of oxygen
used for medical and emergency applications by ensuring that
pressureregulatorsandVIPRsusedformedicalandemergency
selected pressure regulators are tolerant of the ignition mecha-
applications. An ignition-sensitive pressure regulator or VIPR
nisms that are normally active in oxygen systems.
is defined as having a high probability of ignition as evaluated
by rapid pressurization testing (Phase 1). A fault-tolerant
1.6 This standard does not purport to address the ignition
pressure regulator or VIPR is defined as having a low conse-
sensitivity and fault tolerance of an oxygen regulator or VIPR
quence of ignition as evaluated by forced ignition testing
caused by contamination during field maintenance or use.
(Phase 2).
Pressure regulator and VIPR designers and manufacturers
should provide design safeguards to minimize the potential for
NOTE 1—It is essential that a risk assessment be carried out on
breathing gas systems, especially concerning toxic product formation due
contamination or its consequences (see Guide G88).
to ignition or decomposition of nonmetallic materials as weighed against
NOTE 3—Experience has shown that the use of bi-direction flow filters
the risk of flammability (refer to Guide G63 and ISO 15001.2). See
in components can lead to accumulation and re-release of contaminants
Appendix X1 and Appendix X2 for details.
(refer to Guide G88-05 Section 7.5.3.8 and EIGA Info 21/08).
1.3 This standard applies only to:
1.7 The values stated in inch-pound units are to be regarded
1.3.1 Oxygen pressure regulators used for medical and
as standard. The values given in parentheses are mathematical
emergency applications that are designed and fitted with CGA
conversions to SI units that are provided for information only
540inletconnections,CGA870pin-indexadapters(CGAV-1),
and are not considered standard.
or EN ISO 407 pin-index adapters.
1.3.2 Oxygen VIPRs used for medical and emergency
1.8 This standard does not purport to address all of the
applications that are designed to be permanently fitted to a
safety concerns, if any, associated with its use. It is the
medical gas cylinder.
responsibility of the user of this standard to establish appro-
1.4 This standard is a test standard not a design standard; priate safety, health, and environmental practices and deter-
Thisteststandardisnotintendedasasubstitutefortraditional mine the applicability of regulatory limitations prior to use.
1.9 This international standard was developed in accor-
dance with internationally recognized principles on standard-
This test method is under the jurisdiction of ASTM Committee G04 on
Compatibility and Sensitivity of Materials in Oxygen EnrichedAtmospheres and is ization established in the Decision on Principles for the
the direct responsibility of Subcommittee G04.01 on Test Methods.
Development of International Standards, Guides and Recom-
Current edition approved Dec. 1, 2021. Published December 2021. Originally
mendations issued by the World Trade Organization Technical
published as PS127–00. Last published in 2013 as G175–13. DOI: 10.1520/
G0175-13R21. Barriers to Trade (TBT) Committee.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
G175 − 13 (2021)

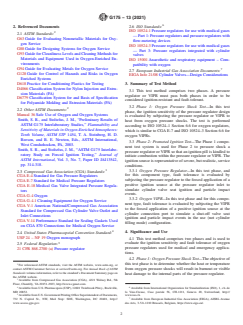

2. Referenced Documents 2.6 ISO Standards:
ISO 10524-1Pressure regulators for use with medical gases
2.1 ASTM Standards:
—Part1:Pressureregulatorsandpressureregulatorswith
G63Guide for Evaluating Nonmetallic Materials for Oxy-
flow-metering devices
gen Service
ISO 10524-3Pressure regulators for use with medical gases
G88Guide for Designing Systems for Oxygen Service
— Part 3: Pressure regulators integrated with cylinder
G93GuideforCleanlinessLevelsandCleaningMethodsfor
valves
Materials and Equipment Used in Oxygen-Enriched En-
ISO 15001Anaesthetic and respiratory equipment – Com-
vironments
patibility with oxygen
G94Guide for Evaluating Metals for Oxygen Service
2.7 European Industrial Gas Association Documents:
G128Guide for Control of Hazards and Risks in Oxygen
EIGA Info 21/08Cylinder Valves—Design Considerations
Enriched Systems
D618Practice for Conditioning Plastics for Testing
3. Summary of Test Method
D4066Classification System for Nylon Injection and Extru-
3.1 This test method comprises two phases. A pressure
sion Materials (PA)
regulator or VIPR must pass both phases in order to be
D6779Classification System for and Basis of Specification
considered ignition-resistant and fault-tolerant.
for Polyamide Molding and Extrusion Materials (PA)
3.2 Phase 1: Oxygen Pressure Shock Test—In this test
2.2 Other ASTM Documents:
phase, the ignition sensitivity of the pressure regulator design
Manual 36Safe Use of Oxygen and Oxygen Systems
is evaluated by subjecting the pressure regulator or VIPR to
Smith, S. R., and Stoltzfus, J. M., “Preliminary Results of
heat from oxygen pressure shocks. The test is performed
ASTM G175 Interlaboratory Studies,” Flammability and
according to ISO 10524–1 Section 6.6 for oxygen regulators,
SensitivityofMaterialsinOxygen-EnrichedAtmospheres:
which is similar to CGAE-7 and ISO 10524–3 Section 6.6 for
Tenth Volume, ASTM STP 1454, T. A. Steinberg, H. D.
oxygen VIPRs.
Beeson, and B. E. Newton, Eds., ASTM International,
3.3 Phase 2: Promoted Ignition Test—The Phase 1 compo-
West Conshohocken, PA, 2003.
nent test system is used for Phase 2 to pressure shock a
Smith, S. R., and Stoltzfus, J. M., “ASTM G175 Interlabo-
pressure regulator orVIPR so that an ignition pill is kindled to
ratory Study on Forced Ignition Testing,” Journal of
initiate combustion within the pressure regulator orVIPR.The
ASTM International, Vol. 3, No. 7, Paper ID JAI13542,
ignitionsourceisrepresentativeofsevere,butrealistic,service
pp. 314-318.
conditions.
3.3.1 Oxygen Pressure Regulator—In this test phase, and
2.3 Compressed Gas Association (CGA) Standards:
for this component type, fault tolerance is evaluated by
CGA E-4Standard for Gas Pressure Regulators
subjecting the pressure regulator to the forced application of a
CGA E-7Standard for Medical Pressure Regulators
positive ignition source at the pressure regulator inlet to
CGA E-18Medical Gas Valve Integrated Pressure Regula-
simulate cylinder valve seat ignition and particle impact
tors
events.
CGA G-4Oxygen
3.3.2 Oxygen VIPR—In this test phase and for this compo-
CGA G-4.1Cleaning Equipment for Oxygen Service
nent type, fault tolerance is evaluated by subjecting the VIPR
CGA V-1American National/Compressed Gas Association
to the forced application of a positive ignition source at the
Standard for Compressed Gas Cylinder Valve Outlet and
cylinder connection port to simulate a shut-off valve seat
Inlet Connections
ignition and particle impact events in the use (not cylinder
CGAV-14Performance Standard for Sealing Gaskets Used
filling mode) configuration.
on CGA 870 Connections for Medical Oxygen Service
4. Significance and Use
2.4 United States Pharmacopeial Convention Standard:
USP24–NF19Oxygen monograph
4.1 This test method comprises two phases and is used to
evaluate the ignition sensitivity and fault tolerance of oxygen
2.5 Federal Regulation:
pressure regulators used for medical and emergency applica-
21 CFR 868.2700 (a)Pressure regulator
tions.
4.2 Phase 1: Oxygen Pressure Shock Test—Theobjectiveof
this test phase is to determine whether the heat or temperature
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM from oxygen pressure shocks will result in burnout or visible
Standards volume information, refer to the standard’s Document Summary page on
heat damage to the internal parts of the pressure regulator.
the ASTM website.
Available from Compressed Gas Association (CGA), 4221 Walney Rd., 5th
Floor, Chantilly, VA 20151-2923, http://www.cganet.com.
4 6
Available from U.S. Pharmacopeia (USP), 12601Twinbrook Pkwy., Rockville, Available from International Organization for Standardization (ISO), 1, ch. de
MD 20852. la Voie-Creuse, Case postale 56, CH-1211, Geneva 20, Switzerland, http://
AvailablefromU.S.GovernmentPrintingOfficeSuperintendentofDocuments, www.iso.ch.
732 N. Capitol St., NW, Mail Stop: SDE, Washington, DC 20401, http:// Available from European Industrial Gas Association (EIGA), AISBL Avenue
www.access.gpo.gov. des Arts, 3-5-b-1210 Brussels, Belgium, https://www.eiga.eu/.
G175 − 13 (2021)
4.2.1 The criteria for a valid test are specified in ISO 4.3.2.2 Failure of the VIPR is defined as the breach of the
10524–1, Section 6.6 for oxygen pressure regulators and ISO pressurized VIPR component (burnout) and ejection of molten
10524–3, Section 6.6 for oxygen VIPRs. or burning metal or any parts, including the gauge, from the
4.2.2 The pass/fail criteria for a pressure regulator are VIPR. See Appendix X6 Testing Pressure Regulators and
specified in ISO 10524–1, Section 6.6 for oxygen pressure VIPRs with Gauges. However, momentary (less than 1 s)
regulators and ISO 10524–3, Section 6.6 for oxygen VIPRs. ejection of flame through normal vent paths, with sparks that
looksimilartothosefrommetalappliedtoagrindingwheel,is
4.3 Phase 2: Promoted Ignition Test—
acceptable and does not constitute a failure.
4.3.1 OxygenPressureRegulator—Theobjectiveofthistest
4.3.3 There is no requirement that the oxygen pressure
phase is to determine if an ignition event upstream of the
regulator or oxygen VIPR be functional after being subjected
pressure regulator inlet filter will result in sustained combus-
to the promoted ignition test.
tion and burnout of the pressure regulator.
4.3.1.1 The criterion for a valid test is either, (1) failure of
NOTE 4—The criterion for both the pressure regulator and VIPR Phase
2 tests does not include evaluation of external hardware (such as plastic
the pressure regulator, as defined in 4.3.1.2,or(2)ifthe
guardsandbags)thatcouldbesubjectedtoamomentaryejectionofflame
pressure regulator does not fail, consumption of at least 90%
through normal vent paths.
of the ignition pill as determined by visual inspection or mass
determination.
5. Apparatus
4.3.1.2 Failure of the pressure regulator is defined as the
5.1 Both phases of this test shall be performed in a test
breach of the pressurized regulator component (burnout),
system as specified by ISO 10524-1 and ISO 10524-3.
which may include the CGA 870 seal ring, and ejection of

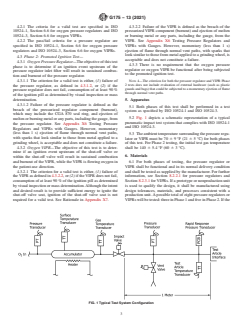

5.2 Fig. 1 depicts a schematic representation of a typical
moltenorburningmetaloranyparts,includingthegauge,from
pneumatic impact test system that complies with ISO 10524-1
the pressure regulator. See Appendix X6 Testing Pressure
and ISO 10524-3.
Regulators and VIPRs with Gauges. However, momentary
(less than 1 s) ejection of flame through normal vent paths,
5.3 Theambienttemperaturesurroundingthepressureregu-
with sparks that look similar to those from metal applied to a
lator or VIPR must be 70 6 9°F (21 6 5°C) for both phases
grinding wheel, is acceptable and does not constitute a failure.
of this test. For Phase 2 testing, the initial test gas temperature
4.3.2 Oxygen VIPR—The objective of this test is to deter-
shall be 140 6 5.4°F (60 6 3°C).
mine if an ignition event upstream of the shut-off valve or
6. Materials
within the shut-off valve will result in sustained combustion
and burnout of theVIPR, while theVIPR is flowing oxygen in 6.1 For both phases of testing, the pressure regulator or
the patient-use direction. VIPR shall be functional and in its normal delivery condition
4.3.2.1 The criterion for a valid test is either, (1) failure of andshallbetestedassuppliedbythemanufacturer.Forfurther
theVIPR as defined in 4.3.2.2,or (2) if theVIPR does not fail, information, see Section 8.2.2.1 for pressure regulators and
consumption of at least 90 % of the ignition pill as determined Section8.2.3.1forVIPRs.Ifaprototypeornonproductionunit
byvisualinspectionormassdetermination.Althoughtheintent is used to qualify the design, it shall be manufactured using
and desired result is to provide sufficient energy to ignite the
design tolerances, materials, and processes consistent with a
shut-off valve seat, ignition of the shut-off valve seat is not production unit.Apossible total of eight pressure regulators or
required for a valid test. See Rationale in Appendix X7.
VIPRswillbetested:threeinPhase1andfiveinPhase2.Ifthe
FIG. 1 Typical Test System Configuration
G175 − 13 (2021)

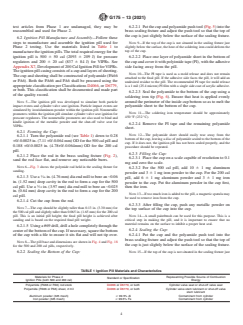

test articles from Phase 1 are undamaged, they may be 6.2.2.1 Putthecupandpolyamidepushtool(Fig.5)intothe
reassembled and used for Phase 2. brass sealing fixture and adjust the push tool so that the top of
the cup is just slightly below the surface of the sealing fixture.
6.2 Ignition Pill Manufacture and Assembly—Foll
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
