ASTM F1068-90(2023)

Standard Specification for Doors, Double, Gastight/Airtight, Individually Dogged, for Marine Use

ABSTRACT
This specification covers the principal dimensions and the mechanical requirements for manufacturing individually dogged, airtight/gastight double doors of steel and aluminum construction for personnel access through bulkheads, complete with frames, intended to maintain the structural and the air and gas tightness integrity of the bulkheads.
SCOPE
1.1 This specification, to be used in conjunction with Specification F1073, covers the principal dimensions and the mechanical requirements for manufacturing steel and aluminum individually dogged, airtight/gastight double doors for personnel access through bulkheads, complete with frames, intended to maintain the structural and the air and gas tightness integrity of the bulkheads.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 The following precautionary caveat pertains only to the Test Methods portion, Section 6, of this specification:  This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 30-Jun-2023
• ICS: 47.020.10 - Hulls and their structure elements
• Technical Committee: F25 - Ships and Marine Technology
• Drafting Committee: F25.03 - Outfitting and Deck Machinery

Relations

• Refers: ASTM F1073-19 - Standard Specification for Door Fittings, for Watertight /Gastight /Airtight, Weathertight, and Non-Tight Doors, for Marine Use
• Effective Date: 01-Mar-2019
• Refers: ASTM A131/A131M-14 - Standard Specification for Structural Steel for Ships
• Effective Date: 01-Oct-2014
• Refers: ASTM A131/A131M-13 - Standard Specification for Structural Steel for Ships
• Effective Date: 01-Nov-2013
• Refers: ASTM A36/A36M-12 - Standard Specification for Carbon Structural Steel
• Effective Date: 01-Nov-2012
• Refers: ASTM F1073-87(2012) - Standard Specification for Door Fittings, for Watertight /Gastight /Airtight, Weathertight, and Non-Tight Doors, for Marine Use
• Effective Date: 01-Oct-2012
• Refers: ASTM B209-10 - Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate
• Effective Date: 01-Nov-2010
• Refers: ASTM A36/A36M-08 - Standard Specification for Carbon Structural Steel
• Effective Date: 15-May-2008
• Refers: ASTM A131/A131M-08 - Standard Specification for Structural Steel for Ships
• Effective Date: 01-Mar-2008
• Refers: ASTM F1073-87(2007) - Standard Specification for Door Fittings, for Watertight /Gastight /Airtight, Weathertight, and Non-Tight Doors, for Marine Use
• Effective Date: 01-Aug-2007
• Refers: ASTM B209-07 - Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate
• Effective Date: 01-Aug-2007
• Refers: ASTM A131/A131M-07 - Standard Specification for Structural Steel for Ships
• Effective Date: 01-Mar-2007
• Refers: ASTM B209-06 - Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate
• Effective Date: 01-Jul-2006
• Refers: ASTM A36/A36M-05 - Standard Specification for Carbon Structural Steel
• Effective Date: 01-Mar-2005
• Refers: ASTM A131/A131M-04a - Standard Specification for Structural Steel for Ships
• Effective Date: 01-Sep-2004
• Refers: ASTM A131/A131M-04ae1 - Standard Specification for Structural Steel for Ships
• Effective Date: 01-Sep-2004

Overview

ASTM F1068-90(2023) specifies the design, dimensions, and requirements for manufacturing double, individually dogged, gastight and airtight doors-fabricated from steel or aluminum-for personnel access through bulkheads in marine environments. These doors are engineered to maintain bulkhead integrity, ensuring air and gas tightness, which is essential for marine safety, compartmentalization, and operational reliability. This standard works in conjunction with ASTM F1073, which covers the essential door fittings used in marine applications.

Key Topics

• Material Requirements
  • Covers steel (ASTM A36/A131M) and aluminum (ASTM B209) panels, stiffeners, and frames.
  • Specifies use of neoprene or equivalent gaskets (MIL-R-900), and both steel and aluminum gaskets retainers and stiffeners.
• Design and Construction
  • Double-door design is individually dogged to ensure each panel achieves effective airtightness and gastightness.
  • Frames and panels must conform to specified principal dimensions and mechanical tolerances for fit and function.
  • All sharp edges are removed to provide safe handling and operation.
• Finishing and Corrosion Protection
  • Steel components require zinc-rich primer coatings.
  • Aluminum components undergo vinyl wash primer and anti-corrosion priming.
  • Supplementary treatments and specific primers are covered for high-demand environments.
• Testing and Certification
  • Each door must sustain a 5 psi (34 kPa) internal pressure and demonstrate no deformation; proof tested at 7.5 psi (50 kPa).
  • Airtight and gastight performance certification is required before delivery.
• Product Marking and Packaging
  • Clear labeling for identification, including purchase order number, ASTM designation, and nominal size.
  • Secure crating or palletizing of door sets for safe shipment, with protective measures for gaskets.

Applications

• Marine Vessel Construction
  Essential for ships, offshore structures, and naval vessels where maintaining air and gas-tight compartmentation is critical for crew safety and vessel integrity.
• Bulkheads and Compartmentalization
  Used in forming fire and smoke barriers, ensuring controlled atmosphere in select vessel compartments.
• Retrofitting and Vessel Repairs
  Provides guidance for consistent, safety-focused door replacement or upgrades on existing marine assets.
• Compliance with International Maritime Regulations
  Adoption of ASTM F1068-90(2023) supports compliance with shipping class rules and international safety standards.

Related Standards

• ASTM F1073 – Standard Specification for Door Fittings, for Watertight/Gastight/Airtight, Weathertight, and Non-Tight Doors for Marine Use.
• ABS Rules for Building and Classing Steel Vessels – Reference for construction, welding, and inspection of marine steel structures.
• MIL-R-900 – Rubber Gasket Material, 45 Durometer Hardness.
• MIL-C-81706 – Chemical Conversion Coating for Aluminum and Aluminum Alloys.
• MIL-P-24441 – Epoxy-Polyamide Paint.
• ZZ-R-765 – Rubber, Silicone for special gasket requirements.
• DoD-STD-2138 – Metal Sprayed Coating Systems for Corrosion Protection.

Practical Value

By adhering to ASTM F1068-90(2023), marine industry professionals ensure that double, individually dogged doors meet stringent safety and durability requirements for air and gas tightness. This not only improves vessel safety but also supports regulatory compliance and operational reliability in harsh marine environments. The specification’s clear guidance on material, construction, testing, and marking facilitates efficient procurement, manufacturing, and quality assurance for marine doors worldwide.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

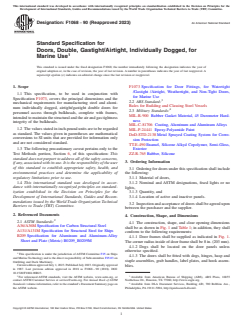

Designation: F1068 − 90 (Reapproved 2023) An American National Standard
Standard Specification for
Doors, Double, Gastight/Airtight, Individually Dogged, for
Marine Use
This standard is issued under the fixed designation F1068; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope F1073 Specification for Door Fittings, for Watertight
/Gastight /Airtight, Weathertight, and Non-Tight Doors,
1.1 This specification, to be used in conjunction with
for Marine Use
Specification F1073, covers the principal dimensions and the
2.2 ABS Standard:
mechanical requirements for manufacturing steel and alumi-
Rules for Building and Classing Steel Vessels
num individually dogged, airtight/gastight double doors for
2.3 Military Standards:
personnel access through bulkheads, complete with frames,
MIL-R-900 Rubber Gasket Material, 45 Durometer Hard-
intended to maintain the structural and the air and gas tightness
ness
integrity of the bulkheads.
MIL-C-81706 Coating, Aluminum and Aluminum Alloys
1.2 The values stated in inch-pound units are to be regarded
MIL-P-24441 Epoxy-Polyamide Paint
as standard. The values given in parentheses are mathematical
DoD-STD-2138 Metal Sprayed Coating System for Corro-
conversions to SI units that are provided for information only
sion Protection
and are not considered standard.
TT-E-490 Enamel, Silicone Alkyd Copolymer, Semi-Gloss,
1.3 The following precautionary caveat pertains only to the Exterior
Test Methods portion, Section 6, of this specification: This
ZZ-R-765 Rubber, Silicone
standard does not purport to address all of the safety concerns,
3. Ordering Information
if any, associated with its use. It is the responsibility of the user
of this standard to establish appropriate safety, health, and 3.1 Ordering for doors under this specification shall include
environmental practices and determine the applicability of
the following:
regulatory limitations prior to use. 3.1.1 Material of doors,
1.4 This international standard was developed in accor-
3.1.2 Nominal and ASTM designations, fixed lights or no
dance with internationally recognized principles on standard-
lights,
ization established in the Decision on Principles for the
3.1.3 Quantity, and
Development of International Standards, Guides and Recom-
3.1.4 Location of active and inactive panels.
mendations issued by the World Trade Organization Technical
3.2 Inspection and acceptance of doors shall be agreed upon
Barriers to Trade (TBT) Committee.
between the purchaser and the supplier.
2. Referenced Documents
4. Construction, Shape, and Dimensions
2.1 ASTM Standards:

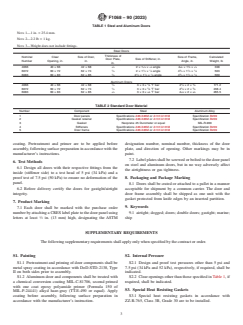

4.1 The construction, shape, and clear opening dimensions
A36/A36M Specification for Carbon Structural Steel
shall be as shown in Fig. 1 and Table 1; in addition, they shall
A131/A131M Specification for Structural Steel for Ships
conform to the following requirements:
B209 Specification for Aluminum and Aluminum-Alloy
4.1.1 Door frames shall be supplied as indicated in Fig. 1.
Sheet and Plate (Metric) B0209_B0209M
The corner radius inside of door frame shall be 8 in. (203 mm).
4.1.2 Dogs shall be located on the door panels unless
otherwise specified.
This specification is under the jurisdiction of ASTM Committee F25 on Ships
4.1.3 The doors shall be fitted with dogs, hinges, hasp and
and Marine Technology and is the direct responsibility of Subcommittee F25.03 on
staple assemblies, grab handles, label plates, and hook assem-
Outfitting and Deck Machinery.
Current edition approved July 1, 2023. Published July 2023. Originally approved
blies.
in 1987. Last previous edition approved in 2018 as F1068 – 90 (2018). DOI:
10.1520/F1068-90R23.
2 3
For referenced ASTM standards, visit the ASTM website, www.astm.org, or Available from American Bureau of Shipping (ABS), ABS Plaza, 16855
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Northchase Dr., Houston, TX 77060, http://www.eagle.org.
Standards volume information, refer to the standard’s Document Summary page on Available from DLA Document Services, Building 4/D, 700 Robbins Ave.,
the ASTM website. Philadelphia, PA 19111-5094, http://quicksearch.dla.mil.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F1068 − 90 (2023)
NOTE 1—1 in. = 25.4 mm.

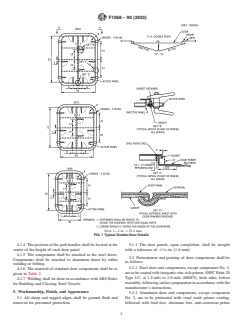

FIG. 1 Typical Double-Door Details
4.1.4 The position of the grab handles shall be located at the 5.1.1 The door panels, upon completion, shall be straight
center of the height of each door panel. with a tolerance of 6 ⁄16 in. (1.6 mm).
4.1.5 The components shall be attached to the steel doors.
5.2 Pretreatment and priming of door components shall be
Components shall be attached to aluminum doors by either
as follows:
welding or bolting.
5.2.1 Steel door and components, except component No. 3,
4.1.6 The material of standard door components shall be as
are to be coated with inorganic zinc rich primer, SSPC Paint 20
given in Table 2.
Type I-C, at 1.5 mils to 3.0 mils (MDFT), both sides, before
4.1.7 Welding shall be done in accordance with ABS Rules
assembly, following surface preparation in accordance with the
for Building and Classing
...
