ASTM C429-21

Standard Test Method for Sieve Analysis of Raw Materials for Glass Manufacture

SIGNIFICANCE AND USE
4.1 The purpose of this test method is to determine the particle size distribution of the glass raw materials.
SCOPE
1.1 This test method covers the sieve analysis of common raw materials for glass manufacture, such as sand, soda-ash, limestone, alkali-alumina silicates, and other granular materials used in glass batch.
1.2 The values stated in SI units are to be regarded as standard. The values given in parentheses after SI units are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-May-2021
• ICS: 19.120 - Particle size analysis. Sieving
• ICS: 81.040.10 - Raw materials and raw glass
• Technical Committee: C14 - Glass and Glass Products
• Drafting Committee: C14.02 - Chemical Properties and Analysis

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

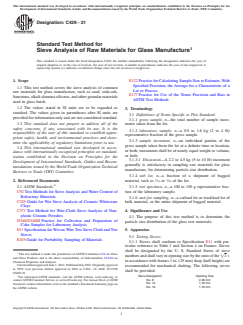

Designation: C429 − 21
Standard Test Method for
1
Sieve Analysis of Raw Materials for Glass Manufacture
This standard is issued under the fixed designation C429; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope E122PracticeforCalculatingSampleSizetoEstimate,With
Specified Precision, the Average for a Characteristic of a
1.1 This test method covers the sieve analysis of common
Lot or Process
raw materials for glass manufacture, such as sand, soda-ash,
E177Practice for Use of the Terms Precision and Bias in
limestone,alkali-aluminasilicates,andothergranularmaterials
ASTM Test Methods
used in glass batch.
1.2 The values stated in SI units are to be regarded as
3. Terminology
standard. The values given in parentheses after SI units are
3.1 Definitions of Terms Specific to This Standard:
provided for information only and are not considered standard.
3.1.1 gross sample, n—the total number of sample incre-
1.3 This standard does not purport to address all of the
ments taken from the lot.
safety concerns, if any, associated with its use. It is the
3.1.2 laboratory sample, n—a 0.9 to 1.8 kg (2 to 4 lb)
responsibility of the user of this standard to establish appro-
representative fraction of the gross sample.
priate safety, health, and environmental practices and deter-
3.1.3 sample increment, n—an individual portion of the
mine the applicability of regulatory limitations prior to use.
gross sample taken from the lot at a definite time or location,
1.4 This international standard was developed in accor-
or both; increments shall be of nearly equal weight or volume,
dance with internationally recognized principles on standard-
or both.
ization established in the Decision on Principles for the
3.1.3.1 Discussion—A 2.2 to 4.5kg (5 to 10 lb) increment
Development of International Standards, Guides and Recom-
generally is satisfactory in sampling raw materials for glass
mendations issued by the World Trade Organization Technical
manufacture, for determining particle size distribution.
Barriers to Trade (TBT) Committee.
3.1.4sublot,n—a fraction of a shipment of bagged
1 1
2. Referenced Documents material, such as ⁄10 or ⁄20 of the lot.
2
3.1.5 test specimen, n—a 100 to 150 g representative frac-
2.1 ASTM Standards:
tion of the laboratory sample.
C92Test Methods for Sieve Analysis and Water Content of
Refractory Materials
3.1.6 unit for sampling, n—a carload lot or truckload lot of
C325Guide for Wet Sieve Analysis of Ceramic Whiteware
bulk material, or the entire shipment of bagged material.
Clays
4. Significance and Use
C371Test Method for Wire-Cloth Sieve Analysis of Non-
plastic Ceramic Powders
4.1 The purpose of this test method is to determine the
D346/D346MPractice for Collection and Preparation of
particle size distribution of the glass raw materials.
Coke Samples for Laboratory Analysis
E11Specification forWovenWireTest Sieve Cloth andTest
5. Apparatus
Sieves
5.1 Testing Sieves:
E105Guide for Probability Sampling of Materials
5.1.1 Sieves shall conform to Specification E11 with par-
ticular reference to Table1 and Section 4 on Frames. Sieves
shall be designated by the U. S. Standard Series of sieve
1
This test method is under the jurisdiction of ASTM Committee C14 on Glass
=
numbersandshallvaryinopeningsizebytheratioofthe 2:1
and Glass Products and is the direct responsibility of Subcommittee C14.02 on
in accordance with frames 1 in. (25 mm) deep (half height) are
Chemical Properties and Analysis.
CurrenteditionapprovedJune1,2021.PublishedJuly2021.Originallyapproved
recommended for mechanical shaking. The following sieves
in 1959. Last previous edition approved in 2016 as C429–16. DOI: 10.1520/
shall be provided:
C0429-21.
2
Sieve Designation Opening Size
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
No. 8 2.36 mm
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
No. 12 1.70 mm
Standards volume information, refer to the standard’s Document Summary page on
No. 16 1.18 mm
the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

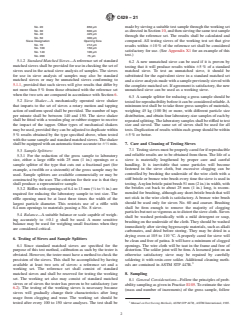

C429 − 21
made by sieving a suitable test sample through the working set
No. 20 850 µm
No. 30 600 µm
asdirectedinSection10,andthensievingthesametestsample
No. 40 425 µm
through the reference set. The results shall be calculated and
No. 50 300 µm
co
...

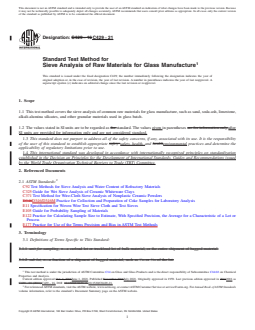

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: C429 − 16 C429 − 21
Standard Test Method for
1
Sieve Analysis of Raw Materials for Glass Manufacture
This standard is issued under the fixed designation C429; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This test method covers the sieve analysis of common raw materials for glass manufacture, such as sand, soda-ash, limestone,
alkali-alumina silicates, and other granular materials used in glass batch.
1.2 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.after
SI units are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
C92 Test Methods for Sieve Analysis and Water Content of Refractory Materials
C325 Guide for Wet Sieve Analysis of Ceramic Whiteware Clays
C371 Test Method for Wire-Cloth Sieve Analysis of Nonplastic Ceramic Powders
D346D346/D346M Practice for Collection and Preparation of Coke Samples for Laboratory Analysis
E11 Specification for Woven Wire Test Sieve Cloth and Test Sieves
E105 Guide for Probability Sampling of Materials
E122 Practice for Calculating Sample Size to Estimate, With Specified Precision, the Average for a Characteristic of a Lot or
Process
E177 Practice for Use of the Terms Precision and Bias in ASTM Test Methods
3. Terminology
3.1 Definitions of Terms Specific to This Standard:
3.1.1 unit for sampling, n—a carload lot or truckload lot of bulk material, or the entire shipment of bagged material.
1 1
3.1.2 sub lot, n—a fraction of a shipment of bagged material, such as ⁄10 or ⁄20 of the lot.
1
This test method is under the jurisdiction of ASTM Committee C14 on Glass and Glass Products and is the direct responsibility of Subcommittee C14.02 on Chemical
Properties and Analysis.
Current edition approved Oct. 1, 2016June 1, 2021. Published November 2016July 2021. Originally approved in 1959. Last previous edition approved in 20112016 as
C429 – 01 (2011).C429 – 16. DOI: 10.1520/C0429-16.10.1520/C0429-21.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

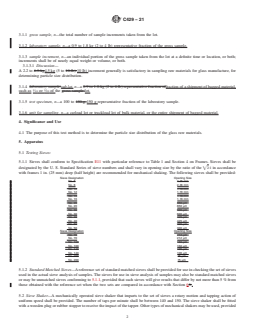

C429 − 21
3.1.1 gross sample, n—the total number of sample increments taken from the lot.
3.1.2 laboratory sample, n—a 0.9 to 1.8 kg (2 to 4 lb) representative fraction of the gross sample.
3.1.3 sample increment, n—an individual portion of the gross sample taken from the lot at a definite time or location, or both;
increments shall be of nearly equal weight or volume, or both.
3.1.3.1 Discussion—
A 2.2 to 4.5-kg4.5 kg (5 to 10-lb) 10 lb) increment generally is satisfactory in sampling raw materials for glass manufacture, for
determining particle size distribution.
3.1.4 laboratory sample,sub lot, n—a 0.9 to 1.8-kg (2 to 4-lb) representative fraction offraction of a shipment of bagged material,
1 1
such as ⁄10 or ⁄20 of the gross sample.lot.
3.1.5 test specimen, n—a 100 to 150-g 150 g representative fraction of the laboratory sample.
3.1.6 unit for sampling, n—a carload lot or truckload lot of bulk material, or the entire shipment of bagged material.
4. Significance and Use
4.1 The purpose of this test method is to determine the particle size distribution of the glass raw materials.
5. Apparatus
5.1 Testing Sieves:
5.1.1 Sieves shall conform to Specification E11 with particular reference to Table 1 and Sectio
...
