ASTM C1290-16(2021)
(Specification)Standard Specification for Flexible Fibrous Glass Blanket Insulation Used to Externally Insulate HVAC Ducts
Standard Specification for Flexible Fibrous Glass Blanket Insulation Used to Externally Insulate HVAC Ducts
ABSTRACT
This specification covers the standard for composition, size, dimensions, and physical properties of flexible glass blanket, ductwrap intended for use to insulate HVAC ducts. The basic materials shall be fibers manufacture from glass processed from the molten state into fibrous form. Bonded fibers formed into flexible blank rolls shall consist the insulation. Materials shall conform to physical requirements such as thermal resistance, surface burning characteristics, hot surface performance, water vapor permeance, water vapor sorption, odor emission, corrosiveness, and fungi resistance.
SCOPE
1.1 This specification covers the composition, size, dimensions, and physical properties of flexible fiber glass blanket, ductwrap, used to externally insulate HVAC ducts used for the distribution of condition air within the temperature range of 35°F (1.7°C) and 250°F (121°C).
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 When the installation and use of thermal insulation materials, accessories, and systems may pose safety and health problems, the manufacturer shall provide the user appropriate current information regarding any known problems associated with the recommended use of the company's products, and shall also recommend protective measures to be employed in their safe utilization. The user shall establish appropriate safety and health practices and determine the applicability of regulatory requirements prior to use.
1.4 The following safety hazards caveat pertains only to the test methods, Section 13, in this specification. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

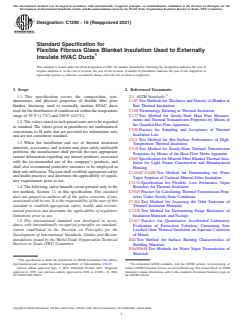

Designation:C1290 −16 (Reapproved 2021)
Standard Specification for
Flexible Fibrous Glass Blanket Insulation Used to Externally
Insulate HVAC Ducts
This standard is issued under the fixed designation C1290; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
1.1 This specification covers the composition, size, 2.1 ASTM Standards:
dimensions, and physical properties of flexible fiber glass C167 Test Methods for Thickness and Density of Blanket or
blanket, ductwrap, used to externally insulate HVAC ducts Batt Thermal Insulations
usedforthedistributionofconditionairwithinthetemperature C168 Terminology Relating to Thermal Insulation
range of 35°F (1.7°C) and 250°F (121°C). C177 Test Method for Steady-State Heat Flux Measure-
ments and Thermal Transmission Properties by Means of
1.2 The values stated in inch-pound units are to be regarded
the Guarded-Hot-Plate Apparatus
as standard. The values given in parentheses are mathematical
C390 Practice for Sampling and Acceptance of Thermal
conversions to SI units that are provided for information only
Insulation Lots
and are not considered standard.
C411 Test Method for Hot-Surface Performance of High-
1.3 When the installation and use of thermal insulation
Temperature Thermal Insulation
materials, accessories, and systems may pose safety and health
C518 Test Method for Steady-State Thermal Transmission
problems, the manufacturer shall provide the user appropriate
Properties by Means of the Heat Flow Meter Apparatus
current information regarding any known problems associated
C665 Specification for Mineral-Fiber Blanket Thermal Insu-
with the recommended use of the company’s products, and
lation for Light Frame Construction and Manufactured
shall also recommend protective measures to be employed in
Housing
theirsafe utilization.Theusershallestablishappropriatesafety
C1104/C1104M Test Method for Determining the Water
and health practices and determine the applicability of regula-
Vapor Sorption of Unfaced Mineral Fiber Insulation
tory requirements prior to use.
C1136 Specification for Flexible, Low Permeance Vapor
1.4 The following safety hazards caveat pertains only to the Retarders for Thermal Insulation
test methods, Section 13, in this specification. This standard
C1045 Practice for Calculating Thermal Transmission Prop-
does not purport to address all of the safety concerns, if any, erties Under Steady-State Conditions
associated with its use. It is the responsibility of the user of this
C1304 Test Method for Assessing the Odor Emission of
standard to establish appropriate safety, health, and environ- Thermal Insulation Materials
mental practices and determine the applicability of regulatory
C1338 Test Method for Determining Fungi Resistance of
limitations prior to use. Insulation Materials and Facings
1.5 This international standard was developed in accor-
C1617 Practice for Quantitative Accelerated Laboratory
dance with internationally recognized principles on standard- Evaluation of Extraction Solutions Containing Ions
ization established in the Decision on Principles for the
Leached from Thermal Insulation on Aqueous Corrosion
Development of International Standards, Guides and Recom- of Metals
mendations issued by the World Trade Organization Technical
E84 Test Method for Surface Burning Characteristics of
Barriers to Trade (TBT) Committee. Building Materials
E96/E96M Test Methods for Water Vapor Transmission of
Materials
This specification is under the jurisdiction of ASTM Committee C16 onTher-
mal Insulation and is under the direct responsibility of Subcommittee C16.23 . For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Sept. 1, 2021. Published October 2021. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 1995. Last previous edition approved in 2016 as C1290 – 16. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/C1290-16R21. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
C1290−16 (2021)

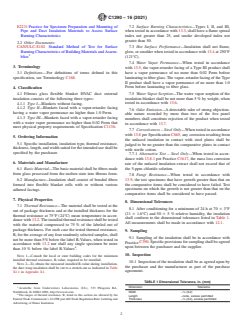

E2231 Practice for Specimen Preparation and Mounting of 7.2 Surface Burning Characteristics—Types I, II, and III,
Pipe and Duct Insulation Materials to Assess Surface when tested in accordance with 13.3, shall have a flame spread
Burning Characteristics index not greater than 25, and smoke developed index not
greater than 50.
2.2 Other Documents:
CAN/ULC-S102 Standard Method of Test for Surface 7.3 Hot Surface Performance—Insulation shall not flame,
Burning Characteristics of Building Materials andAssem- glow, or smolder when tested in accordance with 13.4 at 250°F
blies (121°C).
7.4 Water Vapor Permeance—When tested in accordance
3. Terminology
with 13.5, the vapor-retarder facing of a Type III product shall
3.1 Definitions—For definitions of terms defined in this have a vapor permeance of no more than 0.02 Perm before
specification, see Terminology C168. laminatingtofiberglass.Thevapor–retarderfacingoftheType
II product shall have a vapor permeance of no more than 1.0
Perm before laminating to fiber glass.
4. Classification
7.5 Water Vapor Sorption—The water vapor sorption of the
4.1 Fibrous glass flexible blanket HVAC duct external
insulation blanket shall be not more than 5 % by weight, when
insulation consists of the following three types:
tested in accordance with 13.6.
4.1.1 Type I—Blankets without facing.
4.1.2 Type II—Blankets faced with a vapor-retarder facing
7.6 Odor Emission—A detectable odor of strong objection-
having a water vapor permeance no higher than 1.0 Perm.
able nature recorded by more than two of the five panel
4.1.3 Type III—Blankets faced with a vapor-retarder facing
members shall constitute rejection of the product when tested
with a water vapor permeance no higher than 0.02 Perm that
in accordance with 13.7.
meet physical property requirements of Specification C1136.
7.7 Corrosiveness – Steel Only—When tested in accordance
with 13.8 per Specification C665, any corrosion resulting from
5. Ordering Information
the unfaced insulation in contact with steel plates shall be
5.1 Specific installation, insulation type, thermal resistance,
judged to be no greater than the comparative plates in contact
thickness,length,andwidthsuitedfortheintendeduseshallbe
with sterile cotton.
specified by the purchaser.
7.7.1 Alternative Test – Steel Only—When tested in accor-
dance with 13.8.1 per Practice C1617, the mass loss corrosion
6. Materials and Manufacture
rate of the unfaced insulation extract shall not exceed that of
the 5-ppm chloride solution.
6.1 Basic Material—The basic material shall be fibers made
from glass processed from the molten state into fibrous form.
7.8 Fungi Resistance—When tested in accordance with
13.9, the test specimens that have growth greater than that on
6.2 Manufacture—Insulation shall consist of bonded fibers
the comparative items shall be considered to have failed. Test
formed into flexible blanket rolls with or without various
specimens on which the growth is not greater than that on the
adhered facings.
comparative items shall be considered to have passed.
7. Physical Properties
8. Dimensional Tolerances
7.1 Thermal Resistance—The material shall be tested at the
8.1 After conditioning for a minimum of 24 h at 70 6 3°F
out of package thickness and at the installed thickness for the
(21 6 1.6°C) and 50 6 5 % relative humidity, the insulation
thermal resistance at 75°F (24°C) mean temperature in accor-
shall conform to the dimensional tolerances listed in Table 1.
dancewith13.2.Theinstalledthermalresistanceshallbetested
All measurements shall be made in accordance with 12.1.
with the material compressed to 75 % of the labeled out of
package thickness. For each case the tested thermal resistance,
9. Sampling
R, for the average of any four randomly selected samples, shall
9.1 Sampling of the insulation shall be in accordance with

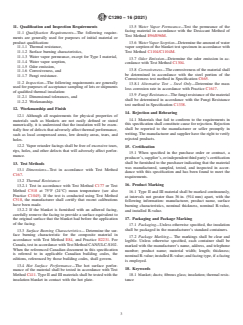

not be more than 5% below the
...
