ASTM D3517-19
(Specification)Standard Specification for “Fiberglass” (Glass-Fiber-Reinforced Thermosetting-Resin) Pressure Pipe
Standard Specification for “Fiberglass” (Glass-Fiber-Reinforced Thermosetting-Resin) Pressure Pipe
ABSTRACT
This specification covers machine-made fiberglass (glass-fiber-reinforced thermosetting-resin or glass-fiber-reinforced polymer mortar) pressure pipe intended for use in water conveyance systems. It is suited primarily for pipes to be installed in buried applications, although it may be used to the extent applicable for other installations such as, but not limited to, jacking, tunnel lining, and slip lining rehabilitation of existing pipelines. The materials shall include the following: structural wall composition which shall consist of thermosetting resin, glass fiber reinforcement, and, if used, aggregate filler; a thermosetting polyester or epoxy resin with or without filler; E-type glass reinforcement; siliceous sand aggregates; liner and surface layers; unrestrained or restrained joints; and elastomeric gaskets. Pipe shall be supplied in the nominal diameters, lengths, wall thickness, squareness of pipe ends, and soundness. Test specimen shall be subjected to longitudinal loads or circumferential bending to test for its long-term hydrostatic design pressure. The pipe shall conform to the stiffness, hoop-tensile strength, joint tightness, beam strength, longitudinal compressive strength, and longitudinal tensile strength requirements.
SCOPE
1.1 This specification covers machine-made fiberglass pipe, 8 in. (200 mm) through 156 in. (4000 mm), intended for use in water conveyance systems which operate at internal gage pressures of 450 psi (3103 kPa) or less. Both glass-fiber-reinforced thermosetting-resin pipe (RTRP) and glass-fiber-reinforced polymer mortar pipe (RPMP) are fiberglass pipes. The standard is suited primarily for pipes to be installed in buried applications, although it may be used to the extent applicable for other installations such as, but not limited to, jacking, tunnel lining and slip-lining rehabilitation of existing pipelines.
Note 1: For the purposes of this standard, polymer does not include natural polymers.
1.2 The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are provided for information purposes only.
Note 2: There is no known ISO equivalent to this standard.
1.3 The following safety hazards caveat pertains only to the test methods portion, Section 8, of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

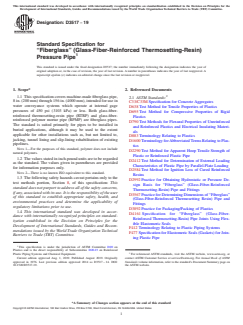

Designation:D3517 −19
Standard Specification for
“Fiberglass” (Glass-Fiber-Reinforced Thermosetting-Resin)
1
Pressure Pipe
This standard is issued under the fixed designation D3517; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 2. Referenced Documents
2
1.1 This specification covers machine-made fiberglass pipe,
2.1 ASTM Standards:
8 in. (200 mm) through 156 in. (4000 mm), intended for use in
C33/C33M Specification for Concrete Aggregates
water conveyance systems which operate at internal gage
D638 Test Method for Tensile Properties of Plastics
pressures of 450 psi (3103 kPa) or less. Both glass-fiber-
D695 Test Method for Compressive Properties of Rigid
reinforced thermosetting-resin pipe (RTRP) and glass-fiber-
Plastics
reinforced polymer mortar pipe (RPMP) are fiberglass pipes.
D790 Test Methods for Flexural Properties of Unreinforced
The standard is suited primarily for pipes to be installed in
and Reinforced Plastics and Electrical Insulating Materi-
buried applications, although it may be used to the extent
als
applicable for other installations such as, but not limited to,
D883 Terminology Relating to Plastics
jacking, tunnel lining and slip-lining rehabilitation of existing
D1600 Terminology forAbbreviatedTerms Relating to Plas-
pipelines.
tics
NOTE 1—For the purposes of this standard, polymer does not include
D2290 Test Method for Apparent Hoop Tensile Strength of
natural polymers.
Plastic or Reinforced Plastic Pipe
1.2 The values stated in inch-pound units are to be regarded
D2412 Test Method for Determination of External Loading
as the standard. The values given in parentheses are provided
Characteristics of Plastic Pipe by Parallel-Plate Loading
for information purposes only.
D2584 Test Method for Ignition Loss of Cured Reinforced
NOTE 2—There is no known ISO equivalent to this standard.
Resins
1.3 The following safety hazards caveat pertains only to the
D2992 Practice for Obtaining Hydrostatic or Pressure De-
test methods portion, Section 8, of this specification: This
sign Basis for “Fiberglass” (Glass-Fiber-Reinforced
standard does not purport to address all of the safety concerns,
Thermosetting-Resin) Pipe and Fittings
if any, associated with its use. It is the responsibility of the user
D3567 Practice for Determining Dimensions of “Fiberglass”
of this standard to establish appropriate safety, health, and
(Glass-Fiber-Reinforced Thermosetting Resin) Pipe and
environmental practices and determine the applicability of
Fittings
regulatory limitations prior to use.
D3892 Practice for Packaging/Packing of Plastics
1.4 This international standard was developed in accor-
D4161 Specification for “Fiberglass” (Glass-Fiber-
dance with internationally recognized principles on standard-
Reinforced Thermosetting-Resin) Pipe Joints Using Flex-
ization established in the Decision on Principles for the
ible Elastomeric Seals
Development of International Standards, Guides and Recom-
F412 Terminology Relating to Plastic Piping Systems
mendations issued by the World Trade Organization Technical
F477 Specification for Elastomeric Seals (Gaskets) for Join-
Barriers to Trade (TBT) Committee.
ing Plastic Pipe
1
This specification is under the jurisdiction of ASTM Committee D20 on
Plastics and is the direct responsibility of Subcommittee D20.23 on Reinforced
2
Plastic Piping Systems and Chemical Equipment. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Aug. 1, 2019. Published August 2019. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 1976. Last previous edition approved 2014 as D3517 – 14. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/D3517-19. the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

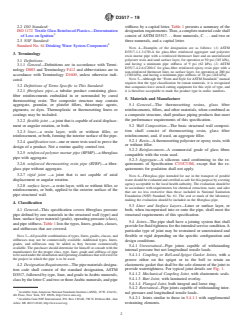

D3517−19

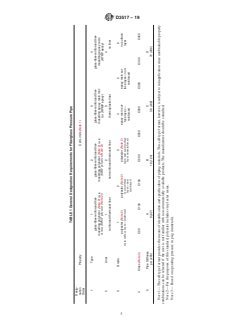

2.2 ISO Standard: stiffness by a capital letter. Table 1 presents a summary of the
ISO 1172 TextileGlassReinforcedPlastics—Determination designation requirements.Thus, a complete material code shall
3
of Loss on Ignition consist of ASTM D3517. . . three numerals, C . . . and two or
2.3 NSF Standard: three numerals, and a capital letter.
4
Standard No. 61 Drinking Water System Components
NOTE 4—Examples
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

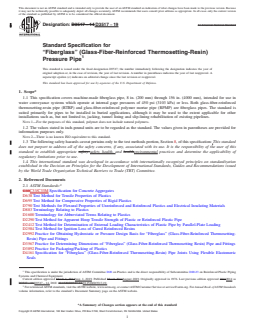

Designation: D3517 − 14 D3517 − 19 An American National Standard
Standard Specification for
“Fiberglass” (Glass-Fiber-Reinforced Thermosetting-Resin)
1
Pressure Pipe
This standard is issued under the fixed designation D3517; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This specification covers machine-made fiberglass pipe, 8 in. (200 mm) through 156 in. (4000 mm), intended for use in
water conveyance systems which operate at internal gage pressures of 450 psi (3103 kPa) or less. Both glass-fiber-reinforced
thermosetting-resin pipe (RTRP) and glass-fiber-reinforced polymer mortar pipe (RPMP) are fiberglass pipes. The standard is
suited primarily for pipes to be installed in buried applications, although it may be used to the extent applicable for other
installations such as, but not limited to, jacking, tunnel lining and slip-lining rehabilitation of existing pipelines.
NOTE 1—For the purposes of this standard, polymer does not include natural polymers.
1.2 The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are provided for
information purposes only.
NOTE 2—There is no known ISO equivalent to this standard.
1.3 The following safety hazards caveat pertains only to the test methods portion, Section 8, of this specification: This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the applicability of
regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
C33C33/C33M Specification for Concrete Aggregates
D638 Test Method for Tensile Properties of Plastics
D695 Test Method for Compressive Properties of Rigid Plastics
D790 Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
D883 Terminology Relating to Plastics
D1600 Terminology for Abbreviated Terms Relating to Plastics
D2290 Test Method for Apparent Hoop Tensile Strength of Plastic or Reinforced Plastic Pipe
D2412 Test Method for Determination of External Loading Characteristics of Plastic Pipe by Parallel-Plate Loading
D2584 Test Method for Ignition Loss of Cured Reinforced Resins
D2992 Practice for Obtaining Hydrostatic or Pressure Design Basis for “Fiberglass” (Glass-Fiber-Reinforced Thermosetting-
Resin) Pipe and Fittings
D3567 Practice for Determining Dimensions of “Fiberglass” (Glass-Fiber-Reinforced Thermosetting Resin) Pipe and Fittings
D3892 Practice for Packaging/Packing of Plastics
D4161 Specification for “Fiberglass” (Glass-Fiber-Reinforced Thermosetting-Resin) Pipe Joints Using Flexible Elastomeric
Seals
1
This specification is under the jurisdiction of ASTM Committee D20 on Plastics and is the direct responsibility of Subcommittee D20.23 on Reinforced Plastic Piping
Systems and Chemical Equipment.
Current edition approved March 1, 2014Aug. 1, 2019. Published March 2014August 2019. Originally approved in 1976. Last previous edition approved 20112014 as
D3517 – 11.D3517 – 14. DOI: 10.1520/D3517-14.10.1520/D3517-19.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
D3517 − 19

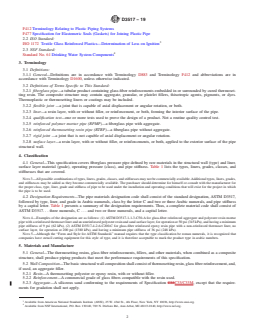

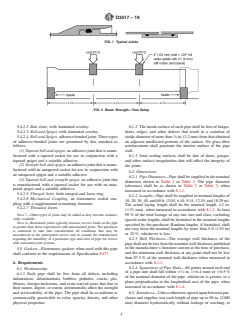

F412 Terminology Relating to Plastic Piping Systems
F477 Specification for Elastomeric Seals (Gaskets) for Joining Plastic Pipe
2.2 ISO Standard:
3
ISO 1172 Textile Glass Reinforced Plastics—Determination of Loss on Ignition
...
