ASTM D3289-17(2022)
(Test Method)Standard Test Method for Density of Semi-Solid and Solid Asphalt Materials (Nickel Crucible Method)
Standard Test Method for Density of Semi-Solid and Solid Asphalt Materials (Nickel Crucible Method)
SIGNIFICANCE AND USE
5.1 Values of density are used for converting volumes to units of mass, and for correcting measured volumes from the temperature of measurement to a standard temperature using Practice D4311/D4311M.
SCOPE
1.1 This test method covers the determination of the density of semi-solid and solid asphalt materials by weighing in air and in water.
Note 1: An alternate method for determining the density of semi-solid and solid asphalt materials is Test Method D70/D70M. For materials which are too fluid for use of this method, use Test Method D3142/D3142M.
1.2 The values stated in SI units are to be regarded as the standard. No other units of measurement are included in this standard.
1.3 Warning— Mercury has been designated by the United States Environmental Protection Agency (EPA) and many state agencies as a hazardous material that can cause central nervous system, kidney, and liver damage. Mercury or its vapor may be hazardous to health and corrosive to materials. Caution should be taken when handling mercury and mercury-containing products. See the applicable product Safety Data Sheet (SDS) for details and EPA’s website—www.epa.gov/mercury/faq.htm—for additional information. Users should be aware that selling mercury, mercury-containing products, or both, in your state may be prohibited by state law.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

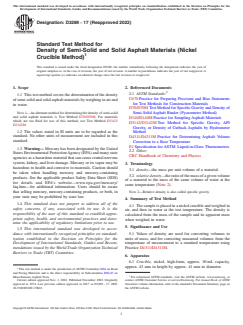

Designation: D3289 − 17 (Reapproved 2022)
Standard Test Method for
Density of Semi-Solid and Solid Asphalt Materials (Nickel
Crucible Method)
This standard is issued under the fixed designation D3289; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2.1 ASTM Standards:
1.1 This test method covers the determination of the density
C670 Practice for Preparing Precision and Bias Statements
ofsemi-solidandsolidasphaltmaterialsbyweighinginairand
for Test Methods for Construction Materials
in water.
D70/D70M Test Method for Specific Gravity and Density of
NOTE 1—An alternate method for determining the density of semi-solid
Semi-Solid Asphalt Binder (Pycnometer Method)
and solid asphalt materials is Test Method D70/D70M. For materials
D140/D140M Practice for Sampling Asphalt Materials
which are too fluid for use of this method, use Test Method D3142/
D3142/D3142M Test Method for Specific Gravity, API
D3142M.
Gravity, or Density of Cutback Asphalts by Hydrometer
1.2 The values stated in SI units are to be regarded as the
Method
standard. No other units of measurement are included in this
D4311/D4311M Practice for Determining Asphalt Volume
standard.
Correction to a Base Temperature
E1 Specification for ASTM Liquid-in-Glass Thermometers
1.3 Warning— Mercury has been designated by the United
2.2 Other:
States Environmental ProtectionAgency (EPA) and many state
CRC Handbook of Chemistry and Physics
agencies as a hazardous material that can cause central nervous
system, kidney, and liver damage. Mercury or its vapor may be
3. Terminology
hazardous to health and corrosive to materials. Caution should
3.1 density—the mass per unit volume of a material.
be taken when handling mercury and mercury-containing
3.2 relativedensity—the ratio of the mass of a given volume
products. See the applicable product Safety Data Sheet (SDS)
of a material to the mass of the same volume of water at the
for details and EPA’s website—www.epa.gov/mercury/
same temperature (Note 2).
faq.htm—for additional information. Users should be aware
that selling mercury, mercury-containing products, or both, in NOTE 2—Relative density is also called specific gravity.
your state may be prohibited by state law.
4. Summary of Test Method
1.4 This standard does not purport to address all of the
4.1 Thesampleisplacedinanickelcrucibleandweighedin
safety concerns, if any, associated with its use. It is the
air, and then in water at the test temperature. The density is
responsibility of the user of this standard to establish appro-
calculated from the mass of the sample and its apparent mass
priate safety, health, and environmental practices and deter-
when weighed in water.
mine the applicability of regulatory limitations prior to use.
5. Significance and Use
1.5 This international standard was developed in accor-
dance with internationally recognized principles on standard- 5.1 Values of density are used for converting volumes to
ization established in the Decision on Principles for the units of mass, and for correcting measured volumes from the
Development of International Standards, Guides and Recom- temperature of measurement to a standard temperature using
mendations issued by the World Trade Organization Technical Practice D4311/D4311M.
Barriers to Trade (TBT) Committee.
6. Apparatus
6.1 Crucible, nickel, high-form, approx. 30 mL capacity,
approx. 43 mm in height by approx. 41 mm in diameter.
This test method is under the jurisdiction of ASTM Committee D04 on Road
and Paving Materials and is the direct responsibility of Subcommittee D04.47 on
Miscellaneous Asphalt Tests. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Nov. 1, 2022. Published November 2022. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 1974. Last previous edition approved in 2017 as D3289 – 17. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/D3289-17R22. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

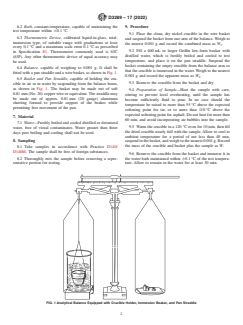

D3289 − 17 (2022)
6.2 Bath, constant-temperature, capable of maintaining the 9. Procedure
test temperature within 60.1 °C.
9.1 Place the clean, dry nickel crucible in the wire basket
6.3 Thermometric Device, calibrated liquid-in-glass, total-
and suspend the basket from one arm of the balance. Weigh to
immersion type, of suitable range with graduations at least
the nearest 0.001 g and record the combined mass as W .
every 0.1 °C and a maximum scale error 0.1 °C as prescribed
9.2 Fill a 600 mL or larger Griffin low-form beaker with
in Specification E1. Thermometer commonly used is 63C
distilled water, which is freshly boiled and cooled to test
(63F). Any other thermometric device of equal accuracy may
temperature, and place it on the pan straddle. Suspend the
be used.
basket containing the empty crucible from the balance arm so
6.4 Balance, capable of weighing to 0.001 g. It shall be
that the crucible is immersed in the water. Weigh to the nearest
fitted wi
...
