ASTM D2517-18(2023)
(Specification)Standard Specification for Reinforced Epoxy Resin Gas Pressure Pipe and Fittings
Standard Specification for Reinforced Epoxy Resin Gas Pressure Pipe and Fittings
ABSTRACT
This specification focuses on the requirements and methods of testing for materials, dimensions and tolerances, hydrostatic-burst strength, chemical resistance, and longitudinal tensile properties, for reinforced epoxy resin pipes and fittings for use in gas mains and services for direct burial and insertion applications. Pipes and fittings covered here are intended for use in the distribution of natural gas, petroleum fuels (propane-air and propane-butane vapor mixtures), and manufactured and mixed gases, where resistance to gas permeation, toughness, resistance to corrosion, aging, and deterioration from water, gas, and gas additives are required.
SCOPE
1.1 This specification covers requirements and methods of test for materials, dimensions and tolerances, hydrostatic-burst strength, chemical resistance, and longitudinal tensile properties, for reinforced epoxy resin pipe and fittings for use in gas mains and services for direct burial and insertion applications. The pipe and fittings covered by this specification are intended for use in the distribution of natural gas, petroleum fuels (propane–air and propane–butane vapor mixtures), manufactured and mixed gases where resistance to gas permeation, toughness, resistance to corrosion, aging, and deterioration from water, gas, and gas additives are required. Methods of marking are also given. Design considerations are discussed in Appendix X1.
1.2 The values in SI units are to be regarded as the standard.
1.3 The following safety hazards caveat pertains only to the test method portion, Section 8, of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
Note 1: There is no known ISO equivalent to this standard.
1.4 A recommended inplant quality control program is given in Appendix X2.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

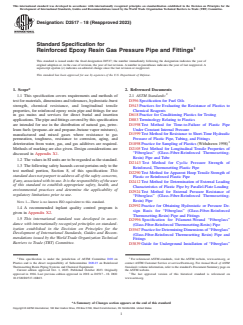

Designation: D2517 − 18 (Reapproved 2023)
Standard Specification for
Reinforced Epoxy Resin Gas Pressure Pipe and Fittings
This standard is issued under the fixed designation D2517; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope* 2. Referenced Documents
2.1 ASTM Standards:
1.1 This specification covers requirements and methods of
test for materials, dimensions and tolerances, hydrostatic-burst D396 Specification for Fuel Oils
D543 Practices for Evaluating the Resistance of Plastics to
strength, chemical resistance, and longitudinal tensile
properties, for reinforced epoxy resin pipe and fittings for use Chemical Reagents
D618 Practice for Conditioning Plastics for Testing
in gas mains and services for direct burial and insertion
applications. The pipe and fittings covered by this specification D883 Terminology Relating to Plastics
D1598 Test Method for Time-to-Failure of Plastic Pipe
are intended for use in the distribution of natural gas, petro-
leum fuels (propane–air and propane–butane vapor mixtures), Under Constant Internal Pressure
D1599 Test Method for Resistance to Short-Time Hydraulic
manufactured and mixed gases where resistance to gas
permeation, toughness, resistance to corrosion, aging, and Pressure of Plastic Pipe, Tubing, and Fittings
deterioration from water, gas, and gas additives are required. D1898 Practice for Sampling of Plastics (Withdrawn 1998)
Methods of marking are also given. Design considerations are D2105 Test Method for Longitudinal Tensile Properties of
discussed in Appendix X1. “Fiberglass” (Glass-Fiber-Reinforced Thermosetting-
Resin) Pipe and Tube
1.2 The values in SI units are to be regarded as the standard.
D2143 Test Method for Cyclic Pressure Strength of
1.3 The following safety hazards caveat pertains only to the
Reinforced, Thermosetting Plastic Pipe
test method portion, Section 8, of this specification: This
D2290 Test Method for Apparent Hoop Tensile Strength of
standard does not purport to address all of the safety concerns,
Plastic or Reinforced Plastic Pipe
if any, associated with its use. It is the responsibility of the user
D2412 Test Method for Determination of External Loading
of this standard to establish appropriate safety, health, and
Characteristics of Plastic Pipe by Parallel-Plate Loading
environmental practices and determine the applicability of
D2924 Test Method for External Pressure Resistance of
regulatory limitations prior to use.
“Fiberglass” (Glass-Fiber-Reinforced Thermosetting-
Resin) Pipe
NOTE 1—There is no known ISO equivalent to this standard.
D2992 Practice for Obtaining Hydrostatic or Pressure De-
1.4 A recommended inplant quality control program is
sign Basis for “Fiberglass” (Glass-Fiber-Reinforced
given in Appendix X2.
Thermosetting-Resin) Pipe and Fittings
1.5 This international standard was developed in accor-
D2996 Specification for Filament-Wound “Fiberglass”
dance with internationally recognized principles on standard-
(Glass-Fiber-Reinforced Thermosetting-Resin) Pipe
ization established in the Decision on Principles for the
D3567 Practice for Determining Dimensions of “Fiberglass”
Development of International Standards, Guides and Recom-
(Glass-Fiber-Reinforced Thermosetting Resin) Pipe and
mendations issued by the World Trade Organization Technical
Fittings
Barriers to Trade (TBT) Committee.
D3839 Guide for Underground Installation of “Fiberglass”
1 2
This specification is under the jurisdiction of ASTM Committee D20 on For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Plastics and is the direct responsibility of Subcommittee D20.23 on Reinforced contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Thermosetting Resin Piping Systems and Chemical Equipment. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved Oct. 1, 2023. Published October 2023. Originally the ASTM website.
approved in 1966. Last previous edition approved in 2018 as D2517 – 18. DOI: The last approved version of this historical standard is referenced on
10.1520/D2517-18R23. www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

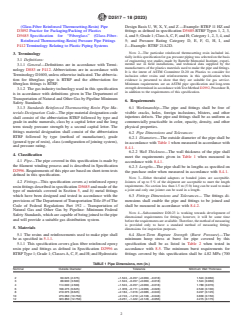

D2517 − 18 (2023)
(Glass-Fiber Reinforced Thermosetting-Resin) Pipe Design Basis U, W, X, Y, and Z —Example: RTRP 11 HZ and
D3892 Practice for Packaging/Packing of Plastics fittings as defined in specification D5685-RTRF Types 1, 2, 3,
D5685 Specification for “Fiberglass” (Glass-Fiber- 4, and 5; Grade 1; Class A, C, F, and H; Category 1, 2, 3, 4, and
Reinforced Thermosetting-Resin) Pressure Pipe Fittings 5; and Pressure Rating Category D, E, F, G, H, I, and
F412 Terminology Relating to Plastic Piping Systems J—Example: RTRF 21A2D.
NOTE 2—The particular reinforced thermosetting resin included ini-
3. Terminology
tially in this specification for gas pressure piping was selected on the basis
3.1 Definitions:
of engineering test studies made by Battelle Memorial Institute, experi-
mental use in field installations, and technical data supplied by the
3.1.1 General—Definitions are in accordance with Termi-
manufacturers of the plastics materials used to make the pipe and fittings.
nology D883 or F412. Abbreviations are in accordance with
It is the intent of ASTM Committee D-20 on Plastics to consider for
Terminology D1600, unless otherwise indicated. The abbrevia-
inclusion other resins and reinforcements in this specification when
tion for fiberglass pipe is RTRP and the abbreviation for
evidence is presented to show that they are suitable for gas service.
fiberglass fittings is RTRF. Minimum requirements are an ASTM pipe specification and long-term
strength determined in accordance with Test Method D2992, Procedure B,
3.1.2 The gas industry technology used in this specification
in addition to the requirements of this specification.
is in accordance with definitions given in The Department of
Transportation of Natural and Other Gas by Pipeline Minimum
6. Requirements
Safety Standards.
6.1 Workmanship—The pipe and fittings shall be free of
3.1.3 Standards Reinforced Thermosetting Resin Pipe Ma-
visible cracks, holes, foreign inclusions, blisters, and other
terials Designation Code—The pipe material designation code
injurious defects. The pipe and fittings shall be as uniform as
shall consist of the abbreviation RTRP followed by type and
commercially practicable in color, opacity, density, and other
grade in arabic numerals, class by a capital letter and the long
physical properties.
term steady pressure strength by a second capital letter. The
fittings material designation shall consist of the abbreviation
6.2 Pipe Dimensions and Tolerances:
RTRF followed by type (method of manufacture), grade
6.2.1 Diameters—The outside diameter of the pipe shall be
(general type of resin), class (configuration of joining system),
in accordance with Table 1 when measured in accordance with
and pressure rating.
8.4.1.
6.2.2 Wall Thickness—The wall thickness of the pipe shall
4. Classification
meet the requirements given in Table 1 when measured in
4.1 Pipe—The pipe covered in this specification is made by
accordance with 8.4.1.
the filament winding process and is described in Specification
6.2.3 Lengths—The pipe shall be in lengths as specified on
D2996. Requirements of this pipe are based on short-term tests
the purchase order when measured in accordance with 8.4.1.
defined in this specification.
NOTE 3—Either threaded adaptors or bonded joints are acceptable.
4.2 Fittings—This specification covers a) reinforced epoxy
Jointers of up to 5 % of the shipment are acceptable to meet the length
resin fittings described in specification D5685 and made of the requirements. No section less than 1.5 m (5 ft) long can be used to make
a joint and only one jointer can be used in a length.
type of materials covered in Section 5, and b) metal fittings
which have been designed and tested in accordance with the
6.3 Fittings Dimensions and Tolerances— The fittings di-
provisions of The Department of Transportation Title 49 of The mensions shall enable the pipe and fittings to be joined and
Code of Federal Regulations Part 192 – Transportation of
shall be measured in accordance with 8.4.2.
Natural Gas and Other Gas by Pipeline: Minimum Federal
NOTE 4—Subcommittee D20.23 is working towards development of
Safety Standards, which are capable of being joined to the pipe
dimensional requirements for fittings; however, it will be some time
and will provide a suitable gas distribution system.
before the requirements are available. Therefore, the method of measuring
is provided only to have a standard method of measuring fittings
5. Materials dimensions for inspection purposes.
5.1 The resins and reinforcements used to make pipe shall 6.4 Short-Term Rupture Strength (Burst Pressure)—The
minimum hoop stress at burst for pipe covered by this
be as specified in 5.1.1.
5.1.1 This specification covers glass fiber reinforced epoxy specification shall be as listed in Table 2 when tested in
resin pipe and fittings as defined in Specification D2996 as accordance with 8.5. The minimum burst requirements for
RTRP Type 1; Grade 1; Classes A, C, F, and H; and Hydrostatic fittings covered by this specification shall be 4.82 MPa (700
TABLE 1 Pipe Dimensions, mm (in.)
Nominal Outside Diameter Tolerance Minimum Wall Thickness
2 60.325 (2.375) +1.524, −0.457 (+0.060, −0.018) 1.524 (0.060)
3 88.900 (3.500) +1.524, −0.457 (+0.060, −0.018) 1.524 (0.060)
4 114.300 (4.500) +1.524, −0.457 (+0.060, −0.018) 1.780 (0.070)
6 168.275 (6.625) +1.678, −0.711 (+0.066, −0.028) 2.540 (0.100)
8 219.075 (8.625) +2.184, −1.016 (+0.086, −0.040) 3.227 (0.125)
10 273.050 (10.750) +2.743, −1.219 (+0.108, −0.048) 3.830 (0.150)
12 323.850 (12.750) +3.251, −1.422 (+0.128, −0.056) 4.215 (0.175)

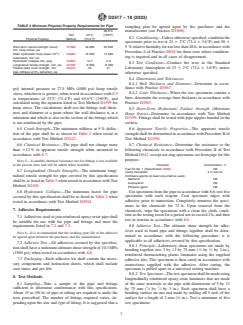

D2517 − 18 (2023)
TABLE 2 Minimum Physical Property Requirements for Pipe
sampling plan be agreed upon by the purchaser and the
65.6°C manufacturer (see Practice D1898).
Test 23°C (150°F)
8.2 Conditioning—Unless otherwise specified, condition the
Physical Property Method (73.4°F)
specimens prior to test at 23 6 2°C (73.4 6 3.6°F) and 50 6
Short-term rupture strength (burst) D1599 40 000 35 000
5 % relative humidity for not less than 48 h, in accordance with
min, hoop stress, psi
Procedure A of Practice D618 for those tests where condition-
Static hydrostatic hoop stress 10 h D2992 15 000 14 000
ing is required and in all cases of disagreement.
(estimated), min, psi
Hydrostatic collapse min, psig D2924 14.7 11.0
8.3 Test Conditions—Conduct the tests in the Standard
Longitudinal tensile strength, min, psi D2105 8 900 8 300
Laboratory Atmosphere of 23 6 2°C (73.4 6 3.6°F), unless
Parallel plate crush strength, min D2412 45 41
pipe stiffness at 5% deflection, psi
otherwise specified.
8.4 Dimensions and Tolerances:
8.4.1 Wall Thickness and Diameter—Determine in accor-
dance with Practice D3567.
psi) internal pressure or 27.5 MPa (4000 psi) hoop tensile
8.4.2 Liner Thickness—When the test specimens contain a
stress, whichever is greater, when tested in accordance with 8.5
liner, determine the average liner thickness in accordance with
at temperatures of 23°C (73.4°F) and 65.6°C (150°F), and
Practice D3567.
calculated using the equation listed in Test Method D1599 for
hoop stress. The calculations shall use the fittings wall thick-
8.5 Short-Term Hydrostatic Failure Strength (Minimum
ness and diameter at a point where the wall thickness is at a
Hoop Stress)—Determine in accordance with Test Method
minimum and which is also in the section of the fittings which
D1599. Fittings shall be tested with pipe nipples bonded in the
is not reinforced by the pipe.
sockets.
6.5 Crush Strength—The minimum stiffness at 5 % deflec-
8.6 Apparent Tensile Properties—The apparent tensile
tion of the pipe shall be as shown in Table 2 when tested in
strength shall be determined in accordance with Procedure B of
accordance with Test Method D2412.
Test Method D2290.
6.6 Chemical Resistance—The pipe shall not change more 8.7 Chemical Resistance—Determine the resistance to the
than 612 % in apparent tensile strength when measured in
following chemicals in accordance with Procedure II of Test
accordance with 8.7. Method D543, except use ring specimens cut from pipe for this
purpose:
NOTE 5—A suitable chemical resistance test for fittings is not available
Chemical Concentration, %
at the present time and will be added when available.
Fuel Oil No. 1 (Specification D396) 100
6.7 Longitudinal (Tensile Strength)—The minimum longi-
t-butyl mercaptan 5 in fuel oil
tudinal tensile strength for pipe covered by this specification Antifreeze agents (at least one shall be used):
Methanol 100
shall be as listed in Table 2 when tested in accordance with Test
Isopropanol 100
Method D2105.
Ethylene glycol 100
Cut specimens from the pipe in accordance with 8.6; test five
6.8 Hydrostatic Collapse—The minimum factor for pipe
specimens with each reagent. Coat specimen edges with
covered by this specification shall be as listed in Table 2 when
adhesive prior to immersion. Completely immerse the speci-
tested in accordance with Test Method D2924.
mens in the chemicals for 72 h. Upon removal from the
7. Adhesive Requirements
chemicals, wipe the specimens with a clean dry cloth, condi-
tion in the testing room for a period not to exceed 2 h, and then
7.1 Adhesives used to join reinforced epoxy resin pipe shall
test in tension in accordance with 8.6.
be suitable for use with the pipe and fittings and meet the
requirements listed in 7.2 and 7.3.
8.8 Adhesive Test—The ultimate shear strength for adhe-
sives used to bond pipe and fittings together shall be deter-
NOTE 6—It is recommended that the working (pot) life of the adhesive
mined in accordance with the following procedure; it is
be agreed upon between the purchaser and the manufacturer.
applicable to all adhesives covered by this specification.
7.2 Adhesive Test—All adhesives covered by this specifica-
8.8.1 Principle—Laboratory shear specimens are made by
tion shall have a minimum ultimate shear strength of 10.3 MPa
1 1
bonding together two 3 by 13 by 75-mm ( ⁄8 by ⁄2 by 3-in.),
(1500 psi) when tested
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
