ASTM B409-22

Standard Specification for Nickel-Iron-Chromium Alloy Plate, Sheet, and Strip

SCOPE
1.1 This specification2 covers UNS N08120, UNS N08890, UNS N08800, UNS N08810, and UNS N088113 in the form of rolled plate, sheet, and strip. Alloy UNS N08800 is normally employed in service temperatures up to and including 1100 °F (593 °C). Alloys UNS N08120, UNS N08810, UNS N08811, and UNS N08890 are normally employed in service temperatures above 1100 °F (593 °C) where resistance to creep and rupture is required, and they are annealed to develop controlled grain size for optimum properties in this temperature range.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 30-Sep-2022
• ICS: 77.150.40 - Nickel and chromium products
• Technical Committee: B02 - Nonferrous Metals and Alloys
• Drafting Committee: B02.07 - Refined Nickel and Cobalt and Their Alloys

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

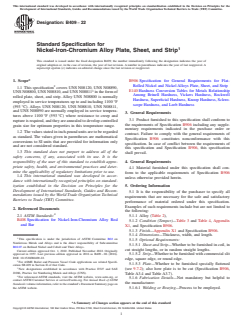

Designation:B409 −22
Standard Specification for
1
Nickel-Iron-Chromium Alloy Plate, Sheet, and Strip
This standard is issued under the fixed designation B409; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* B906 Specification for General Requirements for Flat-
2
Rolled Nickel and Nickel Alloys Plate, Sheet, and Strip
1.1 This specification covers UNS N08120, UNS N08890,
3 E140 Hardness Conversion Tables for Metals Relationship
UNS N08800, UNS N08810, and UNS N08811 in the form of
Among Brinell Hardness, Vickers Hardness, Rockwell
rolled plate, sheet, and strip. Alloy UNS N08800 is normally
Hardness, Superficial Hardness, Knoop Hardness, Sclero-
employed in service temperatures up to and including 1100 °F
scope Hardness, and Leeb Hardness
(593 °C). Alloys UNS N08120, UNS N08810, UNS N08811,
and UNS N08890 are normally employed in service tempera-
3. General Requirements
tures above 1100 °F (593 °C) where resistance to creep and
3.1 Product furnished to this specification shall conform to
rupture is required, and they are annealed to develop controlled
the requirements of Specification B906 including any supple-
grain size for optimum properties in this temperature range.
mentary requirements indicated in the purchase order or
1.2 The values stated in inch-pound units are to be regarded
contract. Failure to comply with the general requirements of
as standard. The values given in parentheses are mathematical
Specification B906 constitutes nonconformance with this
conversions to SI units that are provided for information only
specification. In case of conflict between the requirements of
and are not considered standard.
this specification and Specification B906, this specification
1.3 This standard does not purport to address all of the
shall prevail.
safety concerns, if any, associated with its use. It is the
4. General Requirements
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter-
4.1 Material furnished under this specification shall con-
mine the applicability of regulatory limitations prior to use.
form to the applicable requirements of Specification B906
1.4 This international standard was developed in accor-
unless otherwise provided herein.
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the 5. Ordering Information
Development of International Standards, Guides and Recom-
5.1 It is the responsibility of the purchaser to specify all
mendations issued by the World Trade Organization Technical
requirements that are necessary for the safe and satisfactory
Barriers to Trade (TBT) Committee.
performance of material ordered under this specification.
Examples of such requirements include but are not limited to
2. Referenced Documents
the following:
4
2.1 ASTM Standards:

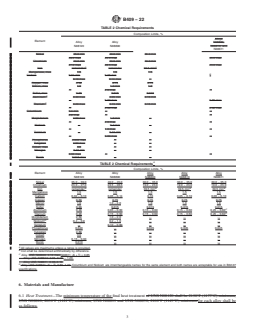

5.1.1 Alloy (Table 2),
B408 Specification for Nickel-Iron-Chromium Alloy Rod

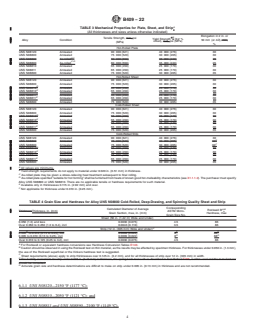

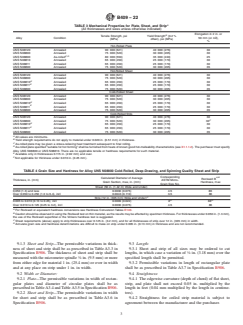

5.1.2 Condition (Temper)—Table 3 and Table 4, Appendix
and Bar
X1, and Specification B906.
5.1.3 Finish—Appendix X1 and Specification B906.
5.1.4 Dimensions—Thickness, width, and length.
1
This specification is under the jurisdiction of ASTM Committee B02 on
5.1.5 Optional Requirements:
Nonferrous Metals and Alloys and is the direct responsibility of Subcommittee
5.1.5.1 Sheet and Strip—Whether to be furnished in coil, in
B02.07 on Refined Nickel and Cobalt and Their Alloys.
cut straight lengths, or in random straight lengths.
Current edition approved Oct. 1, 2022. Published November 2022. Originally
approved in 1957. Last previous edition approved in 2016 as B409 – 06 (2016).
5.1.5.2 Strip—Whether to be furnished with commercial slit
DOI: 10.1520/B0409-22.
edge, square edge, or round edge.
2
For ASME Boiler and Pressure Vessel Code applications see related Specifi-

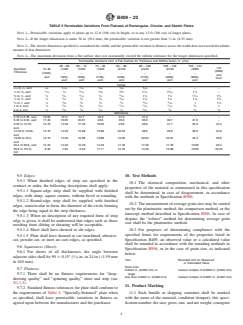

5.1.5.3 Plate—Whether to be furnished specially flattened
cation SB 409 in Section II of that Code.
3
(see 9.7.2); also how plate is to be cut (Specification B906,
New designations established in accordance with Practice E527 and SAE
J1086, Practice for Numbering Metals and Alloys (UNS).
Table A3.4 and Table A3.7).
4
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
5.1.6 Fabrication Details—Not mandatory but helpful to
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
the manufacturer:
Standards volume information, refer to the standard’s Document Summary page on
the AST
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

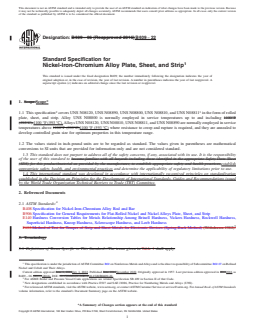

Designation: B409 − 06 (Reapproved 2016) B409 − 22
Standard Specification for
1
Nickel-Iron-Chromium Alloy Plate, Sheet, and Strip
This standard is issued under the fixed designation B409; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Scope*
2 3
1.1 This specification covers UNS N08120, UNS N08890, UNS N08800, UNS N08810, and UNS N08811 in the form of rolled
plate, sheet, and strip. Alloy UNS N08800 is normally employed in service temperatures up to and including 1100°F
(593°C).1100 °F (593 °C). Alloys UNS N08120, UNS N08810, UNS N08811, and UNS N08890 are normally employed in service
temperatures above 1100°F (593°C)1100 °F (593 °C) where resistance to creep and rupture is required, and they are annealed to
develop controlled grain size for optimum properties in this temperature range.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to become familiar with all hazards including those identified in the appropriate Safety Data Sheet
(SDS) for this product/material as provided by the manufacturer, to establish appropriate safety and health practices,establish
appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
4
2.1 ASTM Standards:
B408 Specification for Nickel-Iron-Chromium Alloy Rod and Bar
B906 Specification for General Requirements for Flat-Rolled Nickel and Nickel Alloys Plate, Sheet, and Strip
E140 Hardness Conversion Tables for Metals Relationship Among Brinell Hardness, Vickers Hardness, Rockwell Hardness,
Superficial Hardness, Knoop Hardness, Scleroscope Hardness, and Leeb Hardness
5
F155 Method of Test for Temper of Strip and Sheet Metals for Electronic Devices (Spring-Back Method) (Withdrawn 1982)
3. Terminology
3.1 Definitions of Terms Specific to This Standard—The terms given in Table 1 shall apply.
1
This specification is under the jurisdiction of ASTM Committee B02 on Nonferrous Metals and Alloys and is the direct responsibility of Subcommittee B02.07 on Refined
Nickel and Cobalt and Their Alloys.
Current edition approved June 1, 2016Oct. 1, 2022. Published June 2016November 2022. Originally approved in 1957. Last previous edition approved in 20112016 as
B409 – 06 (2011).(2016). DOI: 10.1520/B0409-06R16.10.1520/B0409-22.
2
For ASME Boiler and Pressure Vessel Code applications see related Specification SB 409 in Section II of that Code.
3
New designations established in accordance with Practice E527 and SAE J1086, Practice for Numbering Metals and Alloys (UNS).
4
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

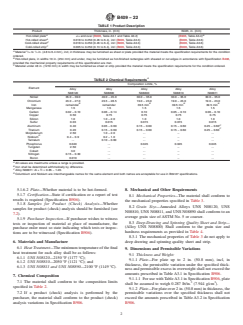

B409 − 22

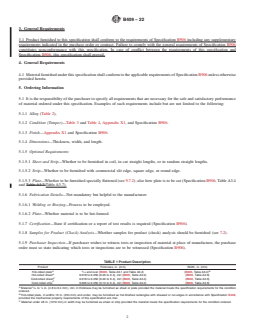

3. General Requirements
3.1 Product furnished to this specification shall conform to the requirements of Specification B906 including any supplementary
requirements indicated in the purchase order or contract. Failure to comply with the general requirements of Specification B906
constitutes nonconformance with this specification. In case of conflict between the requirements of this specification and
Specification B906, this specification shall prevail.
4. General Requirements
4.1 Material furnished under this specification shall conform to the applicable requirements of Specification B906 unless otherwise
provided herein.
5. Ordering Inf
...
