ASTM B280-23
(Specification)Standard Specification for Seamless Copper Tube for Air Conditioning and Refrigeration Field Service
Standard Specification for Seamless Copper Tube for Air Conditioning and Refrigeration Field Service
ABSTRACT
This specification covers the requirements for seamless UNS C10200, C12000, or C12200 copper alloy tubes used for connection, repairs, or alternations of field air conditioning or refrigeration units. Materials in the form of billets, bars, or tubes should be used to produce a homogeneous uniform wrought structure by either hot or cold working. Each tube should be cold drawn to the finished size and wall thickness. Coiled lengths with soft annealed tempers should be bright annealed after coiling then dehydrated and either capped, plugged, crimped, or otherwise closed at both ends. Straight lengths with hard drawn tempers should be cleaned and either capped, plugged, or otherwise closed at both ends. The grain sizes, tensile properties, and eddy-current and cleanness test results should conform to the values listed herein.
SCOPE
1.1 This specification covers the requirements for seamless copper tube intended for use in the connection, repairs, or alternations of air conditioning or refrigeration units in the field.
Note 1: Fittings used for soldered or brazed connections in air conditioning and refrigeration systems are described in ASME Standard B16.22.
Note 2: The assembly of copper tubular systems by soldering is described in Practice B828.
Note 3: Solders for joining copper tubular systems are described in Specification B32. The requirements for acceptable fluxes for these systems are described in Specification B813.
1.2 The tube shall be produced from the following coppers, and the manufacturer has the option to supply any one of them, unless otherwise specified:
Copper
UNS No.
Previously Used
Designation
Description
C10200
OF
Oxygen free without
residual deoxidants
C12000
DLP
Phosphorus deoxidized,
low residual phosphorus
C12200
DHP
Phosphorus deoxidized,
high residual phosphorus
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 The following hazard statement pertains only to the test method described in 18.2.4 of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

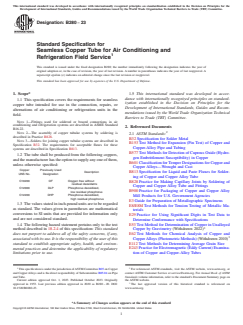

Designation: B280 − 23
Standard Specification for
Seamless Copper Tube for Air Conditioning and
1
Refrigeration Field Service
This standard is issued under the fixed designation B280; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope* 1.5 This international standard was developed in accor-
dance with internationally recognized principles on standard-
1.1 This specification covers the requirements for seamless
ization established in the Decision on Principles for the
copper tube intended for use in the connection, repairs, or
Development of International Standards, Guides and Recom-
alternations of air conditioning or refrigeration units in the
mendations issued by the World Trade Organization Technical
field.
Barriers to Trade (TBT) Committee.
NOTE 1—Fittings used for soldered or brazed connections in air
conditioning and refrigeration systems are described in ASME Standard
2. Referenced Documents
B16.22.
2
NOTE 2—The assembly of copper tubular systems by soldering is
2.1 ASTM Standards:
described in Practice B828.
B32 Specification for Solder Metal
NOTE 3—Solders for joining copper tubular systems are described in
B153 Test Method for Expansion (Pin Test) of Copper and
Specification B32. The requirements for acceptable fluxes for these
Copper-Alloy Pipe and Tubing
systems are described in Specification B813.
B577 Test Methods for Detection of Cuprous Oxide (Hydro-
1.2 The tube shall be produced from the following coppers,
gen Embrittlement Susceptibility) in Copper
and the manufacturer has the option to supply any one of them,
B601 Classification for Temper Designations for Copper and
unless otherwise specified:
Copper Alloys—Wrought and Cast
Copper Previously Used
Description B813 Specification for Liquid and Paste Fluxes for Solder-
UNS No. Designation
ing of Copper and Copper Alloy Tube
C10200 OF Oxygen free without
B828 Practice for Making Capillary Joints by Soldering of
residual deoxidants
Copper and Copper Alloy Tube and Fittings
C12000 DLP Phosphorus deoxidized,
B900 Practice for Packaging of Copper and Copper Alloy
low residual phosphorus
C12200 DHP Phosphorus deoxidized,
Mill Products for U.S. Government Agencies
high residual phosphorus
E3 Guide for Preparation of Metallographic Specimens
1.3 The values stated in inch-pound units are to be regarded
E8/E8M Test Methods for Tension Testing of Metallic Ma-
as standard. The values given in parentheses are mathematical
terials
conversions to SI units that are provided for information only
E29 Practice for Using Significant Digits in Test Data to
and are not considered standard.
Determine Conformance with Specifications
1.4 The following hazard statement pertains only to the test E53 Test Method for Determination of Copper in Unalloyed
3
method described in 18.2.4 of this specification: This standard Copper by Gravimetry (Withdrawn 2022)
does not purport to address all of the safety concerns, if any, E62 Test Methods for Chemical Analysis of Copper and
3
Copper Alloys (Photometric Methods) (Withdrawn 2010)
associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety, health, and environ- E112 Test Methods for Determining Average Grain Size
E243 Practice for Electromagnetic (Eddy Current) Examina-
mental practices and determine the applicability of regulatory
limitations prior to use. tion of Copper and Copper-Alloy Tubes
1 2
This specification is under the jurisdiction of ASTM Committee B05 on Copper For referenced ASTM standards, visit the ASTM website, www.astm.org, or
and Copper Alloys and is the direct responsibility of Subcommittee B05.04 on Pipe contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
and Tube. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved Oct. 1, 2023. Published October 2023. Originally the ASTM website.
3
approved in 1953. Last previous edition approved in 2020 as B280 – 20. DOI: The last approved version of this historical standard is referenced on
10.1520/B0280-23. www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
B280 − 23
E255 Practice for Sampling Copper
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

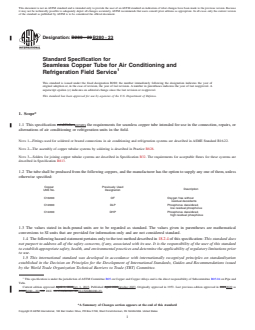

Designation: B280 − 20 B280 − 23
Standard Specification for
Seamless Copper Tube for Air Conditioning and
1
Refrigeration Field Service
This standard is issued under the fixed designation B280; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This specification establishescovers the requirements for seamless copper tube intended for use in the connection, repairs, or
alternations of air conditioning or refrigeration units in the field.
NOTE 1—Fittings used for soldered or brazed connections in air conditioning and refrigeration systems are described in ASME Standard B16.22.
NOTE 2—The assembly of copper tubular systems by soldering is described in Practice B828.
NOTE 3—Solders for joining copper tubular systems are described in Specification B32. The requirements for acceptable fluxes for these systems are
described in Specification B813.
1.2 The tube shall be produced from the following coppers, and the manufacturer has the option to supply any one of them, unless
otherwise specified:
Copper Previously Used
Description
UNS No. Designation
C10200 OF Oxygen free without
residual deoxidants
C12000 DLP Phosphorus deoxidized,
low residual phosphorus
C12200 DHP Phosphorus deoxidized,
high residual phosphorus
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.4 The following hazard statement pertains only to the test method described in 18.2.4 of this specification: This standard does
not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard
to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior
to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
1
This specification is under the jurisdiction of ASTM Committee B05 on Copper and Copper Alloys and is the direct responsibility of Subcommittee B05.04 on Pipe and
Tube.
Current edition approved April 1, 2020Oct. 1, 2023. Published April 2020October 2023. Originally approved in 1953. Last previous edition approved in 20192020 as
B280B280 – 20.–19. DOI: 10.1520/B0280–20.10.1520/B0280-23.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
B280 − 23
2. Referenced Documents
2
2.1 ASTM Standards:
B32 Specification for Solder Metal
B153 Test Method for Expansion (Pin Test) of Copper and Copper-Alloy Pipe and Tubing
B577 Test Methods for Detection of Cuprous Oxide (Hydrogen Embrittlement Susceptibility) in Copper
B601 Classification for Temper Designations for Copper and Copper Alloys—Wrought and Cast
B813 Specification for Liquid and Paste Fluxes for Soldering of Copper and Copper Alloy Tube
B828 Practice for Making Capillary Joints by Soldering of Copper and Copper Alloy Tube and Fittings
B900 Practice for Packaging of Copper and Copper Alloy Mill Products for U.S. Government Agencies
E3 Guide for Preparation of Metallographic Specimens
E8/E8M Test Methods for Tension Testing of Metallic Materials
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
3
E53 Test Method for Determination of Copper in Unalloyed Copper by Gravimetry (Withdrawn 2022)
3
E62 Test Methods for Chemical Analysis of Copper and Copper Alloys (Photometric Methods) (Withdrawn 2010)
E112 Test Methods for Determining Average Grain Size
E243 Practice for Electromagnetic (Eddy Current) Examination of Copper and Copper-Alloy Tubes
E255 Practice for Sampling Copper and Copper Alloys for the Determination of Chemical Composition
4
2.2 ASME Standard:
B16.22 Wrought Copper and Copper Alloy Solder Joint Pressure Fittings
...
