ASTM F842-17(2023)
(Test Method)Standard Test Methods for Measuring the Forced Entry Resistance of Sliding Door Assemblies, Excluding Glazing Impact
Standard Test Methods for Measuring the Forced Entry Resistance of Sliding Door Assemblies, Excluding Glazing Impact
SIGNIFICANCE AND USE
5.1 These test methods are intended to establish a measure of resistance for sliding door assemblies subjected to attacks (other than impacting glazing materials) by unskilled or opportunistic burglars. Resistance to higher levels of force generated by skilled burglary attack requires methods, such as alarms, communication, or apprehension systems, or special security glazing materials more sophisticated than those evaluated by these test methods. Technicians performing the test should understand the intent of this test method and should be trained on the execution and pass/fail criteria.
5.2 Entry through a sliding door assembly can be accomplished by impacting or removing glazing materials. This method does not evaluate glazing materials for breakage or de-glazing. Other standards must be used to evaluate forced entry by impacting or removing glazing.
5.3 Acceptance criteria for performance levels are a matter for authorities having specific jurisdiction to establish. Suggested guidelines are found in Annex A1.
SCOPE
1.1 These test methods determine the ability of sliding door assemblies to restrain, delay, or frustrate forced entry.
1.2 For purposes of these test methods, sliding door assemblies are defined as described in 1.2.1 – 1.2.4 and as shown in Fig. 1. Sliding door assemblies with a combination of operable panels and fixed panels (lites) shall be classified and tested separately for each type.
FIG. 1 Typical Horizontal Sliding Door Assembly Types (viewed from the exterior)
1.2.1 Type A—A sliding door assembly which incorporates one or more sliding panels that lock to the jamb.
1.2.2 Type B—A sliding door assembly which incorporates one or more sliding panels that lock to an intermediate jamb.
1.2.3 Type C—A sliding door assembly which incorporates one or more sliding panels that abut and lock to other panels.
1.2.4 Type D—A sliding door assembly which incorporates one or more fixed or stationary panels that are designed not to open.
Note 1: See Fig. 1 for graphic depiction of sliding door assembly types.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

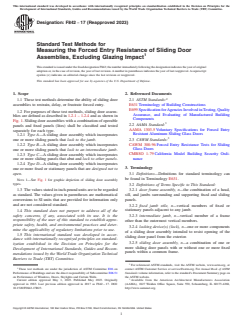

Designation: F842 − 17 (Reapproved 2023)
Standard Test Methods for
Measuring the Forced Entry Resistance of Sliding Door
Assemblies, Excluding Glazing Impact
This standard is issued under the fixed designation F842; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope 2. Referenced Documents
1.1 These test methods determine the ability of sliding door 2.1 ASTM Standards:
assemblies to restrain, delay, or frustrate forced entry. E631 Terminology of Building Constructions
E699 Specification for Agencies Involved in Testing, Quality
1.2 For purposes of these test methods, sliding door assem-
Assurance, and Evaluating of Manufactured Building
blies are defined as described in 1.2.1 – 1.2.4 and as shown in
Components
Fig. 1. Sliding door assemblies with a combination of operable
2.2 AAMA Standard:
panels and fixed panels (lites) shall be classified and tested
AAMA 1303.5 Voluntary Specifications for Forced Entry
separately for each type.
Resistant Aluminum Sliding Glass Doors
1.2.1 Type A—A sliding door assembly which incorporates
2.3 CAWM Standards:
one or more sliding panels that lock to the jamb.
CAWM 300-96 Forced Entry Resistance Tests for Sliding
1.2.2 Type B—A sliding door assembly which incorporates
Glass Doors
one or more sliding panels that lock to an intermediate jamb.
CMBSO 1-79 California Model Building Security Ordi-
1.2.3 Type C—A sliding door assembly which incorporates
nance
one or more sliding panels that abut and lock to other panels.
1.2.4 Type D—A sliding door assembly which incorporates
3. Terminology
one or more fixed or stationary panels that are designed not to
open.
3.1 Definitions—Definitions for standard terminology can
be found in Terminology E631.
NOTE 1—See Fig. 1 for graphic depiction of sliding door assembly
types.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 door frame assembly, n—the combination of a head,
1.3 The values stated in inch-pound units are to be regarded
sill, and jambs surrounding and supporting fixed and sliding
as standard. The values given in parentheses are mathematical
panels.
conversions to SI units that are provided for information only
and are not considered standard.
3.2.2 fixed jamb stile, n—vertical members of fixed or
stationary panels adjacent to any jamb.
1.4 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
3.2.3 intermediate jamb, n—vertical member of a frame
responsibility of the user of this standard to establish appro-
other than the outermost vertical members.
priate safety, health, and environmental practices and deter-
3.2.4 locking device(s) (lock), n—one or more components
mine the applicability of regulatory limitations prior to use.
of a sliding door assembly intended to resist opening of the
1.5 This international standard was developed in accor-
sliding door panel from the exterior.
dance with internationally recognized principles on standard-
3.2.5 sliding door assembly, n—a combination of one or
ization established in the Decision on Principles for the
more sliding door panels with or without one or more fixed
Development of International Standards, Guides and Recom-
panels within a common frame.
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
These test methods are under the jurisdiction of ASTM Committee E06 on contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Performance of Buildings and are the direct responsibility of Subcommittee E06.51 Standards volume information, refer to the standard’s Document Summary page on
on Performance of Windows, Doors, Skylights and Curtain Walls. the ASTM website.
Current edition approved May 1, 2023. Published May 2023. Originally Available from the American Architectural Manufacturers Association
approved in 1983. Last previous edition approved in 2017 as F842 – 17. DOI: (AAMA), 1827 Walden Office Square, Suite 550, Schaumburg, IL 60173-4268,
10.1520/F0842-17R23. http://www.aamanet.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F842 − 17 (2023)

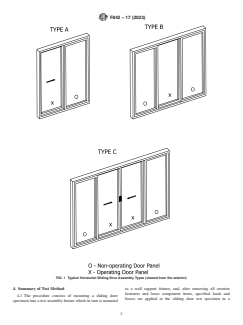

FIG. 1 Typical Horizontal Sliding Door Assembly Types (viewed from the exterior)
4. Summary of Test Method to a wall support fixture, and, after removing all exterior
fasteners and loose component items, specified loads and
4.1 The procedure consists of mounting a sliding door
forces are applied to the sliding door test specimen in a
specimen into a test assembly fixture which in turn is mounted

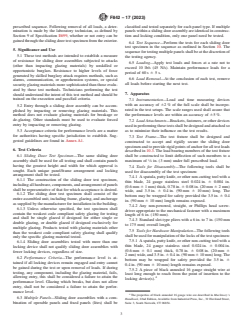

F842 − 17 (2023)
prescribed sequence. Following removal of all loads, a deter- classified and tested separately for each panel type. If multiple
mination is made by the laboratory technician, as defined by panels within a sliding door assembly are identical in construc-
Section 9 of Specification E699, whether or not entry can be tion and locking condition, only one panel need be tested.
gained through the sliding door test specimen from the exterior.
6.4 Test Sequence—Perform the tests for each sliding door
test specimen in the sequence as outlined in Section 10. The
5. Significance and Use
sequence for testing multiple panels shall be at the discretion of
5.1 These test methods are intended to establish a measure
the testing agency.
of resistance for sliding door assemblies subjected to attacks
6.5 Loading—Apply test loads and forces at a rate not to
(other than impacting glazing materials) by unskilled or
exceed 10 lb/s (45 N/s). Maintain performance loads for a
opportunistic burglars. Resistance to higher levels of force
period of 60 s 6 5 s.
generated by skilled burglary attack requires methods, such as
6.6 Load Removal—At the conclusion of each test, remove
alarms, communication, or apprehension systems, or special
all loads before starting the next test.
security glazing materials more sophisticated than those evalu-
ated by these test methods. Technicians performing the test
7. Apparatus
should understand the intent of this test method and should be
trained on the execution and pass/fail criteria.
7.1 Instrumentation—Load and time measuring devices
with an accuracy of 62 % of the full scale shall be incorpo-
5.2 Entry through a sliding door assembly can be accom-
rated in the test setups. The scale ranges used shall assure that
plished by impacting or removing glazing materials. This
the performance levels are within an accuracy of 65 %.
method does not evaluate glazing materials for breakage or
de-glazing. Other standards must be used to evaluate forced
7.2 Load Attachments—Brackets, fasteners, or other devices
entry by impacting or removing glazing.
used in performing these tests shall be designed and attached so
as to minimize their influence on the test results.
5.3 Acceptance criteria for performance levels are a matter
for authorities having specific jurisdiction to establish. Sug-
7.3 Test Frame—The test fixture shall be designed and
gested guidelines are found in Annex A1.
constructed to accept and rigidly secure the sliding door
specimen and to provide rigid points of anchor for all test loads
6. Test Criteria
described in 10.3. The load bearing members of the test fixture
6.1 Sliding Door Test Specimen—The same sliding door shall be constructed to limit deflection of such members to a
assembly shall be used for all testing and shall contain panels maximum of ⁄8 in. (3 mm) under full prescribed load.
having the greatest height and width for which approval is
7.4 Tools for Disassembly—The following tools shall be
sought. Each unique panel/frame arrangement and locking
used for disassembly of the test specimen:
arrangement shall be tested.
7.4.1 A spatula, putty knife, or other non-cutting tool with a
6.1.1 The construction of the sliding door test specimen,
thin blade, 24 gauge stainless steel 0.024 in. 6 0.004 in.
including all hardware, components, and arrangement of panels
(0.6 mm 6 1 mm) thick, 0.78 in. 6 0.08 in. (20 mm 6 2 mm)
shall be representative of that for which acceptance is desired.
wide, and 3.5 in. 6 0.4 in. (90 mm 6 10 mm) long. The
6.1.2 The sliding door test specimen shall consist of the
bottom may be wrapped for safety provided the 3.5 in. 6 0.4
entire assembled unit, including frame, glazing, and anchorage
in. (90 mm 6 10 mm) length remains exposed.
as supplied by the manufacturer for installation in the building.
7.4.2 Any non-powered, straight, or Phillips head screw-
6.1.3 Unless otherwise specified, the test specimen shall
driver appropriate to the mechanical fastener with a maximum
contain the weakest code compliant safety glazing for testing
length of 6 in. (150 mm).
and shall be single glazed if designed for either single or
7.4.3 Standard slot-type pliers with a 6 in. to 7 in. (150 mm
double glazing, or double glazed if designed exclusively for
to 175 mm) overall length.
multiple glazing. Products tested with glazing materials other
7.5 Tools for Hardware Manipulation—The following tools
than the weakest code compliant safety glazing shall qualify
shall be used for manipulation of the locks of the test specimen:
only the specific glazing material tested.
7.5.1 A spatula, putty knife, or other non-cutting tool with a
6.1.4 Sliding door assemblies tested with more than one
thin blade, 24 gauge stainless steel 0.024 in. 6 0.004 in.
locking device shall not qualify sliding door assemblies with
(0.6 mm 6 0.1 mm) thick, 0.78 in. 6 0.08 in. (20 mm 6
fewer locking devices, regardless of size.
2 mm) wide, and 3.5 in. 6 0.4 in. (90 mm 6 10 mm) long. The
6.2 Performance Criteria—The performance level is at-
bottom may be wrapped for safety provided the 3.5 in. 6
tained if all locking devices remain engaged and entry cannot
0.4 in. (90 mm 6 10 mm) length remains exposed.
be gained during the test or upon removal of loads. If during
7.5.2 A piece of black annealed 16 gauge straight wire at
testing, any component, including the glazing material, fails,
least long enough to reach from the point of insertion to the
allowing entry, this shall be considered a failure to attain the 4
locking device(s).
performance level. Glazing which breaks, but does not allow
entry, shall not be considered a failure to attain the perfor-
mance level.
The properties of black annealed 16 gauge wire are described in Machinery’s
6.3 Multiple Panels—Sliding door assemblies with a com-
Handbook, 22nd Edition, Available from Industrial Press, Inc., 32 Haviland Street,
bination of operable panels and fixed panels (lites) shall be Suite 3, South Norwalk, CT 06854.

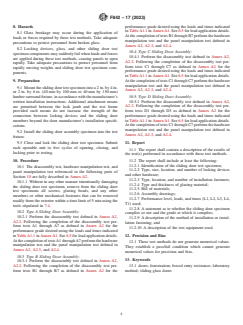

F842 − 17 (2023)
8. Hazards performance grade desired using the loads and times indicated
in Table A1.1 in Annex A1. See 6.5 for load application details.
8.1 Glass breakage may occur during the application of
At the completion of tests B1 through B7 perform the hardware
loads or forces required by these test methods. Take adequate
manipulation test and the panel manipulation test defined in
precautions to protect personnel from broken glass.
Annex A2, A2.3, and A2.4.
8.2 Locking devices, glass, and other sliding door test
10.4 Type C Sliding Door Assembly:
specimen components may suddenly fail when loads and forces
10.4.1 Perform the disassembly test defined in Annex A2,
are applied during these test methods, causing panels to open
A2.2. Following the completion of the disassembly test per-
rapidly. Take adequate precautions to protect personnel from
form tests C1 through C7 as defined in Annex A2 for the
rapidly moving weights and sliding door test specimen com-
performance grade desired using the loads and times indicated
ponents.
in Table A1.1 in Annex A1. See 6.5 for load application details.
9. Preparation At the completion of tests C1 through C7 perform the hardware
manipulation test and the panel manipulation test defined in
9.1 Mount the sliding door test specimen into a 2 in. by 4 in.
Annex A2, A2.3, and A2.4.
or 2 in. by 6 in. (40 mm by 100 mm or 40 mm by 150 mm)
lumber surround fixture, in accordance with the manufacturer’s 10.5 Type D Sliding Door Assembly:
10.5.1 Perform the disassembly test defined in Annex A2,
written installation instructions. Additional attachment means
are permitted between the lock jamb and the test frame A2.2. Following the completion of the disassembly test per-
form tests D1 through D3 as defined in Annex A2 for the
provided such means do not increase the strength of the
connection between locking devices and the sliding door performance grade desired using the loads and times indicated
in Table A1.1 in Annex A1. See 6.5 for load application details.
members beyond the door manufacturer’s installation specifi-
cations. At the completion of tests C1 through C7 perform the hardware
manipulation test and the panel manipulation test defined in
9.2 Install the sliding door assembly specimen into the test
Annex A2, A2.3, and A2.4.
fixture.
11. Report
9.3 Close and lock the sliding door test specimen. Submit
each operable unit to five cycles of opening, closing, and
11.1 The report shall contain a description of the results of
locking prior to testing.
the test(s) performed in accordance with these test methods.
10. Procedure 11.2 The report shall include at least the following:
11.2.1 Identification of the sliding door test specimen;
10.1 The disassembly test, hardware manipulation test, and
11.2.2 Type, size, location, and number of locking devices
panel manipulation test referenced in the following parts of
and other hardware;
Section 10 are fully described in Annex A2.
11.2.3 Type, location, and number of installation fasteners;
10.1.1 Without in any other manner intentionally damaging
11.2.4 Type and thickness of glazing material;
the sliding door test specimen, remove from the sliding door
11.2.5 Bill of materials;
test specimens all screws, glazing beads, and any other
11.2.6 Assembly drawings;
members or other mechanical fasteners that can be removed
11.2.7 Performance level, loads, and times (L1, L2, L3, L4,
readily from the exterior within a time limit of 5 min using the
T1) used;
tools stipulated in 7.4.
11.2.8 A statement as to whether the sliding door specimen
10.2 Type
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
