ASTM E3036-15(2021)
(Guide)Standard Guide for Notating Facade Conditions in the Field
Standard Guide for Notating Facade Conditions in the Field
SCOPE
1.1 This guide consists of symbols and notations pertaining to documenting deficient conditions observed during facade inspections.
1.2 The purpose of this guide is to provide a quick shorthand, notation system that will serve as a uniform system for facade inspectors to record their observations on existing elevation drawings or photographs, or both, of existing building facades.
1.3 This guide is not intended to be used to record or document a diagnosis for the particular symptom.
1.4 Notations are listed in alphabetical order. Compound terms appear as per the first word as spoken.
1.5 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

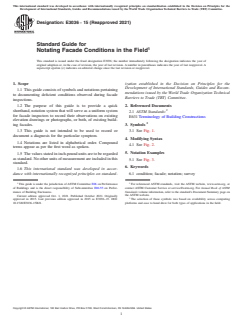

Designation: E3036 − 15 (Reapproved 2021)
Standard Guide for
Notating Facade Conditions in the Field
This standard is issued under the fixed designation E3036; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
1.1 This guide consists of symbols and notations pertaining
mendations issued by the World Trade Organization Technical
to documenting deficient conditions observed during facade
Barriers to Trade (TBT) Committee.
inspections.
2. Referenced Documents
1.2 The purpose of this guide is to provide a quick
shorthand, notation system that will serve as a uniform system
2.1 ASTM Standards:
for facade inspectors to record their observations on existing
E631 Terminology of Building Constructions
elevation drawings or photographs, or both, of existing build-

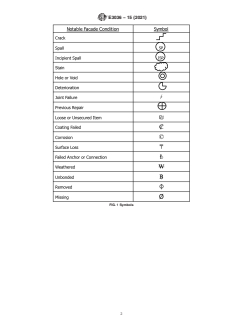

3. Symbols
ing facades.
3.1 See Fig. 1.
1.3 This guide is not intended to be used to record or
document a diagnosis for the particular symptom.

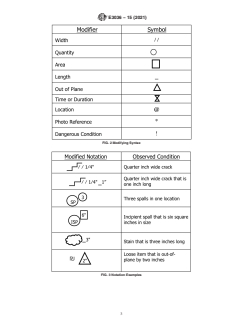

4. Modifying Syntax
1.4 Notations are listed in alphabetical order. Compound
4.1 See Fig. 2.
terms appear as per the first word as spoken.
5. Notation Examples
1.5 The values stated in inch-pound units are to be regarded
as standard. No other units of measurement are included in this
5.1 See Fig. 3.
standard.
6. Keywords
1.6 This international standard was developed in accor-
6.1 condition; facade; notation; survey
dance with internationally recognized principles on standard-
1 2
This guide is under the jurisdiction of ASTM Committee E06 on Performance For referenced ASTM standards, visit the ASTM website, www.astm.org, or
of Buildings and is the direct responsibility of Subcommittee E06.55 on Perfor- contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
mance of Bu
...
