ASTM D4266-17

Standard Test Methods for Precoat Capacity of Powdered Ion-Exchange Resins

SIGNIFICANCE AND USE
4.1 The salt removal capacity of a powdered resin precoat is limited by the capacity of either the anion-exchange resin or the cation-exchange resin contained in it. Applications include condensate polishing in fossil-fueled electric generating plants, as well as condensate polishing, spent fuel pool water treatment, reactor water treatment, and low-level radioactive liquid waste treatment in nuclear-powered electric generating plants.
4.2 By determining the ion-exchange capacity profile of either a cation exchange resin or an anion-exchange resin (capacity expended per unit of time under specific conditions), it is possible to estimate runlength and remaining capacity when treating a liquid of the same makeup. Although they cannot accurately predict performance during condenser leaks, these test methods are useful for determining operating capacities as measured under the test conditions used.
4.3 These test methods may be used to monitor the performance of either powdered anion-exchange resin or powdered cation-exchange resin. The total capacity of either resin depends primarily upon the number density of ion-exchange sites within the resin. The operating capacity is a function of the total capacity, degree of conversion to the desired ionic form when received, and properties of the resin and the system that affect ion exchange kinetics.
SCOPE
1.1 These test methods cover the determination of the operating ion-exchange capacity of both powdered cation-exchange resins (hydrogen form) and powdered anion-exchange resins (hydroxide form). These test methods are intended for use in testing new powdered ion-exchange resins when used for the treatment of water. The following two test methods are included:
Sections
Test Method A—Operating Capacity, Anion-Exchange
Resin, Hydroxide Form
7 to 15
Test Method B—Operating Capacity, Cation-Exchange
Resin, Hydrogen Form
16 to 24
1.2 The values stated in SI units are to be regarded as the standard. The inch-pound units given in parentheses are for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-May-2017
• ICS: 71.100.40 - Surface active agents
• Technical Committee: D19 - Water
• Drafting Committee: D19.08 - Membranes and Ion Exchange Materials

Relations

• Replaces: ASTM D4266-96(2009)e1 - Standard Test Methods for Precoat Capacity of Powdered Ion-Exchange Resins
• Effective Date: 01-Jun-2017
• Refers: ASTM D2687-95(2024) - Standard Practices for Sampling Particulate Ion-Exchange Materials
• Effective Date: 01-Apr-2024
• Refers: ASTM D1129-13(2020)e2 - Standard Terminology Relating to Water
• Effective Date: 01-May-2020
• Refers: ASTM D4456-17 - Standard Test Methods for Physical and Chemical Properties of Powdered Ion Exchange Resins
• Effective Date: 01-Aug-2017
• Refers: ASTM D2687-95(2016) - Standard Practices for Sampling Particulate Ion-Exchange Materials
• Effective Date: 15-May-2016
• Refers: ASTM D1129-10 - Standard Terminology Relating to Water
• Effective Date: 01-Mar-2010
• Refers: ASTM D4456-99(2009)e1 - Standard Test Methods for Physical and Chemical Properties of Powdered Ion Exchange Resins
• Effective Date: 01-May-2009
• Refers: ASTM D2687-95(2007)e1 - Standard Practices for Sampling Particulate Ion-Exchange Materials
• Effective Date: 01-Dec-2007
• Refers: ASTM D1129-06a - Standard Terminology Relating to Water
• Effective Date: 01-Sep-2006
• Refers: ASTM D1129-06ae1 - Standard Terminology Relating to Water
• Effective Date: 01-Sep-2006
• Refers: ASTM D1193-06 - Standard Specification for Reagent Water
• Effective Date: 01-Mar-2006
• Refers: ASTM D1129-06 - Standard Terminology Relating to Water
• Effective Date: 15-Feb-2006
• Refers: ASTM D4456-99(2005) - Standard Test Methods for Physical and Chemical Properties of Powdered Ion Exchange Resins
• Effective Date: 01-Jun-2005
• Refers: ASTM D5391-99(2005) - Standard Test Method for Electrical Conductivity and Resistivity of a Flowing High Purity Water Sample
• Effective Date: 01-Apr-2005
• Refers: ASTM D1125-95(2005) - Standard Test Methods for Electrical Conductivity and Resistivity of Water
• Effective Date: 01-Apr-2005

Overview

ASTM D4266-17: Standard Test Methods for Precoat Capacity of Powdered Ion-Exchange Resins provides established methodologies for determining the operating ion-exchange capacity of both powdered cation-exchange resins (hydrogen form) and powdered anion-exchange resins (hydroxide form). Developed by ASTM International, this standard is critical for industries that employ ion-exchange resins in water treatment applications, ensuring the effective removal of dissolved salts and improving water purity.

The procedures covered in ASTM D4266-17 are designed for testing new powdered resins intended for water treatment processes. By evaluating the precoat capacity, users can better estimate runlength, monitor resin performance, and maintain optimal operation in facilities such as power plants.

Key Topics

• Ion-Exchange Resin Capacity Measurement: The standard details methods to determine the salt removal (ion-exchange) capacity of powdered resin precoats, focusing specifically on their operational effectiveness under predefined conditions.
• Test Method A: Describes the operating capacity determination for powdered anion-exchange resin in the hydroxide form.
• Test Method B: Outlines the procedure for measuring the operating capacity of powdered cation-exchange resin in the hydrogen form.
• Resin Performance Monitoring: Enables operators to assess and compare the performance of different resins in precoat filtration systems, even though direct prediction under leak or unusual conditions is limited.
• Material Definitions: Provides terminology for key parameters such as “resin dosage,” “resin floc,” and “resin ratio.”
• Applicability: Procedures address both the upper bound of potential resin performance and comparative analysis across resin batches or sources.

Applications

The test methods specified in ASTM D4266-17 are essential in multiple high-value applications, especially within the power generation sector:

• Condensate Polishing: In both fossil-fueled and nuclear-powered electric generating plants, maintaining high-purity water cycles is vital. Measuring powdered resin precoat capacity ensures efficient condensate polishing and protection of plant equipment.
• Nuclear Plant Water Treatment: Used in reactor water systems, spent fuel pool water purification, and low-level radioactive liquid waste treatment.
• Quality Assurance: Standardized testing enables utilities, water treatment companies, and resin manufacturers to monitor new batches, troubleshoot system performance, and verify supplier claims.
• Process Optimization: Operators can use results from these test methods to adjust the dosage and composition of resin precoats, maximizing service life and improving cost-efficiency.
• Regulatory Compliance: Supporting adherence to international standards and water purity requirements set by governing bodies.

Related Standards

ASTM D4266-17 refers to several other important ASTM standards related to water analysis and ion-exchange materials, including:

• ASTM D1125: Test Methods for Electrical Conductivity and Resistivity of Water
• ASTM D1129: Terminology Relating to Water
• ASTM D1193: Specification for Reagent Water
• ASTM D2687: Practices for Sampling Particulate Ion-Exchange Materials
• ASTM D4456: Test Methods for Physical and Chemical Properties of Powdered Ion Exchange Resins
• ASTM D5391: Test Method for Electrical Conductivity and Resistivity of a Flowing High Purity Water Sample
• ASTM E200: Practice for Preparation, Standardization, and Storage of Standard and Reagent Solutions for Chemical Analysis

In summary, ASTM D4266-17 is a foundational reference for professionals and organizations aiming to standardize the assessment and operational management of powdered ion-exchange resins in critical water treatment processes. By applying the methods outlined in this standard, users can achieve consistent, reliable results essential to effective plant operation and water quality management.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

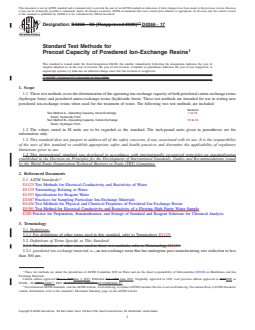

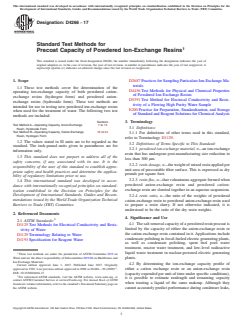

Designation: D4266 − 17
Standard Test Methods for
Precoat Capacity of Powdered Ion-Exchange Resins
This standard is issued under the fixed designation D4266; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D2687PracticesforSamplingParticulateIon-ExchangeMa-
terials
1.1 These test methods cover the determination of the
D4456Test Methods for Physical and Chemical Properties
operating ion-exchange capacity of both powdered cation-
of Powdered Ion Exchange Resins
exchange resins (hydrogen form) and powdered anion-
D5391Test Method for Electrical Conductivity and Resis-
exchange resins (hydroxide form). These test methods are
tivity of a Flowing High Purity Water Sample
intended for use in testing new powdered ion-exchange resins
E200Practice for Preparation, Standardization, and Storage
when used for the treatment of water. The following two test
of Standard and Reagent Solutions for ChemicalAnalysis
methods are included:
Sections
3. Terminology
Test Method A—Operating Capacity, Anion-Exchange 7 to 15
3.1 Definitions:
Resin, Hydroxide Form
Test Method B—Operating Capacity, Cation-Exchange 16 to 24
3.1.1 For definitions of other terms used in this standard,
Resin, Hydrogen Form
refer to Terminology D1129.
1.2 The values stated in SI units are to be regarded as the
3.2 Definitions of Terms Specific to This Standard:
standard. The inch-pound units given in parentheses are for
3.2.1 powdered ion-exchange material, n—an ion-exchange
information only.
resin that has undergone post-manufacturing size reduction to
1.3 This standard does not purport to address all of the
less than 300 µm.
safety concerns, if any, associated with its use. It is the

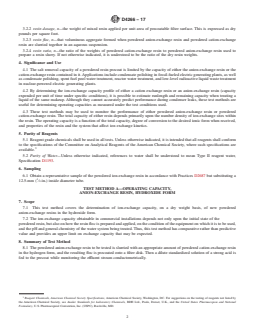

3.2.2 resin dosage, n—theweightofmixedresinappliedper
responsibility of the user of this standard to establish appro-
unit area of precoatable filter surface. This is expressed as dry
priate safety and health practices and determine the applica-
pounds per square foot.
bility of regulatory limitations prior to use.
3.2.3 resin floc, n—thatvoluminousaggregateformedwhen
1.4 This international standard was developed in accor-
powdered anion-exchange resin and powdered cation-
dance with internationally recognized principles on standard-
exchange resin are slurried together in an aqueous suspension.
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
3.2.4 resin ratio, n—the ratio of the weights of powdered
mendations issued by the World Trade Organization Technical
cation-exchange resin to powdered anion-exchange resin used
Barriers to Trade (TBT) Committee.
to prepare a resin slurry. If not otherwise indicated, it is
understood to be the ratio of the dry resin weights.
2. Referenced Documents
4. Significance and Use
2.1 ASTM Standards:
4.1 Thesaltremovalcapacityofapowderedresinprecoatis
D1125Test Methods for Electrical Conductivity and Resis-
limited by the capacity of either the anion-exchange resin or
tivity of Water
the cation-exchange resin contained in it.Applications include
D1129Terminology Relating to Water
condensatepolishinginfossil-fueledelectricgeneratingplants,
D1193Specification for Reagent Water
as well as condensate polishing, spent fuel pool water
treatment, reactor water treatment, and low-level radioactive
liquid waste treatment in nuclear-powered electric generating
These test methods are under the jurisdiction of ASTM Committee D19 on
plants.
Water and are the direct responsibility of Subcommittee D19.08 on Membranes and
Ion Exchange Materials.
4.2 By determining the ion-exchange capacity profile of
Current edition approved June 1, 2017. Published June 2017. Originally
ɛ1
either a cation exchange resin or an anion-exchange resin
approved in 1983. Last previous edition approved in 2009 as D4266–96 (2009) .
DOI: 10.1520/D4266-17.
(capacity expended per unit of time under specific conditions),
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
it is possible to estimate runlength and remaining capacity
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
when treating a liquid of the same makeup. Although they
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. cannot accurately predict performance during condenser leaks,
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D4266 − 17

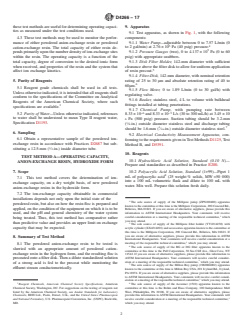

thesetestmethodsareusefulfordeterminingoperatingcapaci- 9. Apparatus
ties as measured under the test conditions used.

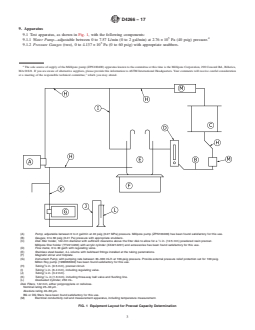

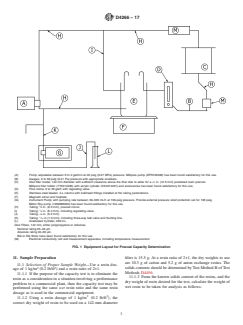

9.1 Test apparatus, as shown in Fig. 1, with the following
