ASTM F901-20

Standard Specification for Aluminum Transmission Tower Bolts and Nuts

ABSTRACT
This specification covers aluminum transmission tower bolts and nuts. Bolts shall be manufactured from alloy 2024 and nuts from alloy 6061 or 6262, and shall be cold formed, hot formed, or machined formed. Alloy materials for bolts and nuts shall conform to the chemical requirements of this specification. Bolts and nuts shall conform to the required tensile strength, dimensions, workmanship, finish, appearance, marking, packaging, and shipping. Test methods shall include chemical analysis, wedge tension test, shear test, and proof-stress test.
SCOPE
1.1 This specification covers aluminum structural bolts and nuts for use in the construction of aluminum transmission towers, substations, and similar aluminum structures.
1.2 Diameters of bolts and nuts furnished to this specification are 5/8 , 3/4 , and 7/8 in.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 30-Apr-2020
• ICS: 21.060.10 - Bolts, screws, studs
• ICS: 21.060.20 - Nuts
• Technical Committee: F16 - Fasteners
• Drafting Committee: F16.04 - Nonferrous Fasteners

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

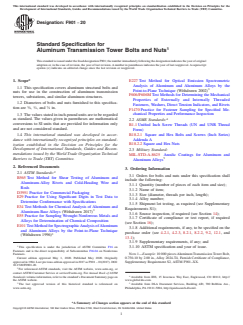

Designation:F901 −20
Standard Specification for
1
Aluminum Transmission Tower Bolts and Nuts
ThisstandardisissuedunderthefixeddesignationF901;thenumberimmediatelyfollowingthedesignationindicatestheyearoforiginal
adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.Asuperscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* E227 Test Method for Optical Emission Spectrometric
Analysis of Aluminum and Aluminum Alloys by the
1.1 This specification covers aluminum structural bolts and
3
Point-to-Plane Technique (Withdrawn 2002)
nuts for use in the construction of aluminum transmission
F606/F606M Test Methods for Determining the Mechanical
towers, substations, and similar aluminum structures.
Properties of Externally and Internally Threaded
1.2 Diameters of bolts and nuts furnished to this specifica-
Fasteners, Washers, Direct Tension Indicators, and Rivets
5 3 7
tion are ⁄8, ⁄4, and ⁄8 in.
F1470 Practice for Fastener Sampling for Specified Me-
chanical Properties and Performance Inspection
1.3 The values stated in inch-pound units are to be regarded
4
as standard. The values given in parentheses are mathematical
2.2 ASME Standards:
conversions to SI units that are provided for information only
B1.1 Unified Inch Screw Threads (UN and UNR Thread
and are not considered standard.
Form)
B18.2.1 Square and Hex Bolts and Screws (Inch Series)
1.4 This international standard was developed in accor-
dance with internationally recognized principles on standard- Addenda A
B18.2.2 Square and Hex Nuts
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
2.3 Military Standard:
mendations issued by the World Trade Organization Technical
MIL-STD-A-8625 Anodic Coatings for Aluminum and
5
Barriers to Trade (TBT) Committee.
Aluminum Alloys
2. Referenced Documents
3. Ordering Information
2
2.1 ASTM Standards:
3.1 Orders for bolts and nuts under this specification shall
B565 Test Method for Shear Testing of Aluminum and
include the following:
Aluminum-Alloy Rivets and Cold-Heading Wire and
3.1.1 Quantity (number of pieces of each item and size);
Rods
3.1.2 Name of item;
D3951 Practice for Commercial Packaging
3.1.3 Size (diameter, threads per inch, length);
E29 Practice for Using Significant Digits in Test Data to
3.1.4 Alloy number;
Determine Conformance with Specifications
3.1.5 Shipment lot testing, as required (see Supplementary
E34 Test Methods for Chemical Analysis of Aluminum and
Requirements S1);
3
Aluminum-Base Alloys (Withdrawn 2017)
3.1.6 Source inspection, if required (see Section 14);
E55 Practice for Sampling Wrought Nonferrous Metals and
3.1.7 Certificate of compliance or test report, if required
Alloys for Determination of Chemical Composition
(see Section 16);
E101 TestMethodforSpectrographicAnalysisofAluminum
3.1.8 Additional requirements, if any, to be specified on the
and Aluminum Alloys by the Point-to-Plane Technique
purchase order (see 4.2.1, 4.2.3, 8.2.1, 8.2.2, 9.2, 12.1, and
3
(Withdrawn 1996)
13.1);
3.1.9 Supplementary requirements, if any; and
1
This specification is under the jurisdiction of ASTM Committee F16 on
3.1.10 ASTM specification and year of issue.
Fasteners and is the direct responsibility of Subcommittee F16.04 on Nonferrous
Fasteners. NOTE 1—Example: 10 000 piecesAluminum Transmission Tower Bolt,
Current edition approved May 1, 2020. Published May 2020. Originally 0.750-10 by 2.00 in., Alloy 2024-T4, Furnish Certificate of Compliance,
approvedin1984.Lastpreviouseditionapprovedin2017asF901 – 01(2017).DOI:
Supplementary Requirement S2, ASTM F901–XX.
10.1520/F0901-20.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
4
Standards volume information, refer to the standard’s Document Summary page on Available from IHS, 15 Inverness Way East, Englewood, CO 80112, http://
the ASTM website. www.global.ihs.com.
3 5
The last approved version of this historical standard is referenced on Available from DLA Document Services, Building 4/D, 700 Robbins Ave.,
www.astm.org. Philadelphia, PA 19111-5094, http://quicksearch.dla.mil.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

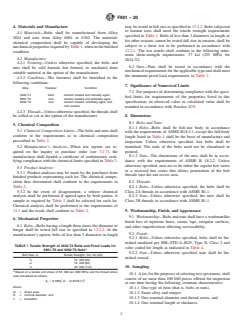

F901−20
4. Materials and Manufacture may be tested in full size as specified in 13.2.2. Bolts subjected
to tension tests shall meet the tensile strength requirements
4.1 Mate
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

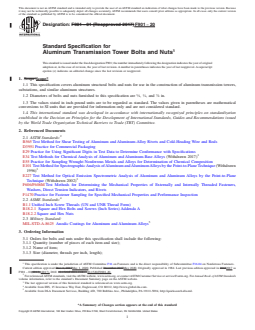

Designation: F901 − 01 (Reapproved 2017) F901 − 20
Standard Specification for
1
Aluminum Transmission Tower Bolts and Nuts
This standard is issued under the fixed designation F901; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Scope*
1.1 This specification covers aluminum structural bolts and nuts for use in the construction of aluminum transmission towers,
substations, and similar aluminum structures.
5 3 7
1.2 Diameters of bolts and nuts furnished to this specification are ⁄8, ⁄4, and ⁄8 in.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
B565 Test Method for Shear Testing of Aluminum and Aluminum-Alloy Rivets and Cold-Heading Wire and Rods
D3951 Practice for Commercial Packaging
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
3
E34 Test Methods for Chemical Analysis of Aluminum and Aluminum-Base Alloys (Withdrawn 2017)
E55 Practice for Sampling Wrought Nonferrous Metals and Alloys for Determination of Chemical Composition
E101 Test Method for Spectrographic Analysis of Aluminum and Aluminum Alloys by the Point-to-Plane Technique (Withdrawn
3
1996)
E227 Test Method for Optical Emission Spectrometric Analysis of Aluminum and Aluminum Alloys by the Point-to-Plane
3
Technique (Withdrawn 2002)
F606/F606M Test Methods for Determining the Mechanical Properties of Externally and Internally Threaded Fasteners,
Washers, Direct Tension Indicators, and Rivets
F1470 Practice for Fastener Sampling for Specified Mechanical Properties and Performance Inspection
4
2.2 ASME Standards:
B1.1 Unified Inch Screw Threads (UN and UNR Thread Form)
B18.2.1 Square and Hex Bolts and Screws (Inch Series) Addenda A
B18.2.2 Square and Hex Nuts
2.3 Military Standard:
5
MIL-STD-A-8625 Anodic Coatings for Aluminum and Aluminum Alloys
3. Ordering Information
3.1 Orders for bolts and nuts under this specification shall include the following:
3.1.1 Quantity (number of pieces of each item and size);
3.1.2 Name of item;
3.1.3 Size (diameter, threads per inch, length);
1
This specification is under the jurisdiction of ASTM Committee F16 on Fasteners and is the direct responsibility of Subcommittee F16.04 on Nonferrous Fasteners.
Current edition approved Dec. 1, 2017May 1, 2020. Published December 2017May 2020. Originally approved in 1984. Last previous edition approved in 20122017 as
F901 – 01(2012).(2017). DOI: 10.1520/F0901-01R17.10.1520/F0901-20.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
The last approved version of this historical standard is referenced on www.astm.org.
4
Available from IHS, 15 Inverness Way East, Englewood, CO 80112, http://www.global.ihs.com.
5
Available from DLA Document Services, Building 4/D, 700 Robbins Ave., Philadelphia, PA 19111-5094, http://quicksearch.dla.mil.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

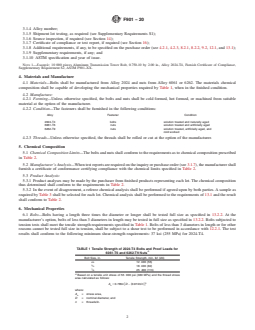

F901 − 20
3.1.4 Alloy number;
3.1.5 Shipment lot testing, as required (see Supplementary Requirements S1);
3.1.6 Source inspection, if required (see Section 14);
3.1.7 Certificate of compliance or test report, if required (see Section 16);
3.1.8 Additional requirements, if any, to be specified on the purchase order (see 4.2.1, 4.2.3, 8.2.1, 8.2.2, 9.2, 12.1, and 13.1);
3.1.9 Supplementary requirements, if any; and
3.1.10 ASTM specification and year of issue.
NOTE 1—Example: 10 000 pieces Aluminum Transmission Tower Bolt, 0.750-10 by 2.00 in., Alloy 2024-T
...
