ASTM D5194-24
(Test Method)Standard Test Method for Trace Chloride in Liquid Aromatic Hydrocarbons
Standard Test Method for Trace Chloride in Liquid Aromatic Hydrocarbons
SIGNIFICANCE AND USE
4.1 Organic and inorganic chlorine compounds can have a deleterious effect on equipment and reactions in processes involving aromatic hydrocarbons.
4.2 Maximum chloride levels are often specified for process streams and for aromatic hydrocarbon products.
SCOPE
1.1 This test method covers the determination of total chloride (organic and inorganic) in liquid aromatic hydrocarbons and cyclohexane.
1.2 The test method is applicable to samples with chloride concentrations of 1 mg/kg to 25 mg/kg.
1.3 Bromides and iodides, if present, will be calculated as chlorides.
1.4 Materials, such as styrene, that are polymerized by sodium biphenyl reagent cannot be analyzed by this test method.
1.5 In determining the conformance of the test results using this method to applicable specifications, results shall be rounded off in accordance with the rounding-off method of Practice E29.
1.6 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For a specific hazard statement, see Section 7.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

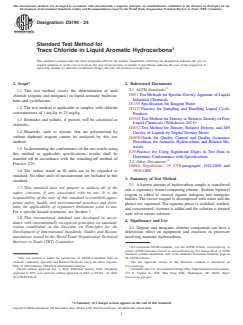

Designation: D5194 − 24
Standard Test Method for
1
Trace Chloride in Liquid Aromatic Hydrocarbons
This standard is issued under the fixed designation D5194; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 2. Referenced Documents
2
2.1 ASTM Standards:
1.1 This test method covers the determination of total
D891 Test Methods for Specific Gravity, Apparent, of Liquid
chloride (organic and inorganic) in liquid aromatic hydrocar-
Industrial Chemicals
bons and cyclohexane.
D1193 Specification for Reagent Water
1.2 The test method is applicable to samples with chloride
D3437 Practice for Sampling and Handling Liquid Cyclic
concentrations of 1 mg ⁄kg to 25 mg/kg.
Products
D3505 Test Method for Density or Relative Density of Pure
1.3 Bromides and iodides, if present, will be calculated as
3
Liquid Chemicals (Withdrawn 2023)
chlorides.
D4052 Test Method for Density, Relative Density, and API
1.4 Materials, such as styrene, that are polymerized by
Gravity of Liquids by Digital Density Meter
sodium biphenyl reagent cannot be analyzed by this test
D6809 Guide for Quality Control and Quality Assurance
method.
Procedures for Aromatic Hydrocarbons and Related Ma-
terials
1.5 In determining the conformance of the test results using
E29 Practice for Using Significant Digits in Test Data to
this method to applicable specifications, results shall be
Determine Conformance with Specifications
rounded off in accordance with the rounding-off method of
4
2.2 Other Documents:
Practice E29.
OSHA Regulations, 29 CFR paragraphs 1910.1000 and
1.6 The values stated in SI units are to be regarded as 1910.1200
standard. No other units of measurement are included in this
3. Summary of Test Method
standard.
3.1 A known amount of hydrocarbon sample is transferred
1.7 This standard does not purport to address all of the
into a separatory funnel containing toluene. Sodium biphenyl
safety concerns, if any, associated with its use. It is the
reagent is added to convert organic halogens into inorganic
responsibility of the user of this standard to establish appro-
halides. The excess reagent is decomposed with water and the
priate safety, health, and environmental practices and deter-
phases are separated. The aqueous phase is acidified, washed,
mine the applicability of regulatory limitations prior to use.
and concentrated. Acetone is added and the solution is titrated
For a specific hazard statement, see Section 7.
with silver nitrate solution.
1.8 This international standard was developed in accor-
4. Significance and Use
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the 4.1 Organic and inorganic chlorine compounds can have a
Development of International Standards, Guides and Recom-
deleterious effect on equipment and reactions in processes
mendations issued by the World Trade Organization Technical involving aromatic hydrocarbons.
Barriers to Trade (TBT) Committee.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on
1
This test method is under the jurisdiction of ASTM Committee D16 on
the ASTM website.
3
Aromatic, Industrial, Specialty and Related Chemicals and is the direct responsi- The last approved version of this historical standard is referenced on
bility of Subcommittee D16.04 on Instrumental Analysis. www.astm.org.
4
Current edition approved Jan. 1, 2024. Published January 2024. Originally Available from U.S. Government Printing Office Superintendent of Documents,
approved in 1991. Last previous edition approved in 2018 as D5194 – 18. DOI: 732 N. Capitol St., NW, Mail Stop: SDE, Washington, DC 20401, http://
10.1520/D5194-24. www.access.gpo.gov.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

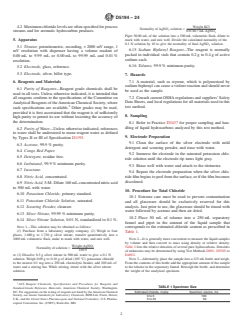

D5194 − 24
4.2 Maximum chloride levels are often specified for process Weight KCl
Normality of AgNO solution 5
3
streams and for aromatic hydrocarbon products. 0.0746 × mL AgNO
3
Pipet 50.00 mL of the solution into a 500 mL volumetric flask, dilute to
mark with water, and mix well. Divide the calculated normality of the
5. Apparatus
0.1 N solution by 10
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

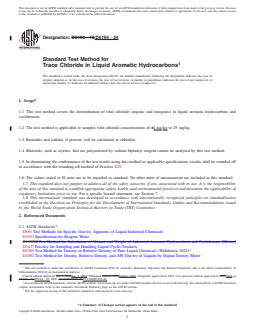

Designation: D5194 − 18 D5194 − 24
Standard Test Method for
1
Trace Chloride in Liquid Aromatic Hydrocarbons
This standard is issued under the fixed designation D5194; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This test method covers the determination of total chloride (organic and inorganic) in liquid aromatic hydrocarbons and
cyclohexane.
1.2 The test method is applicable to samples with chloride concentrations of 11 mg ⁄kg to 25 mg/kg.
1.3 Bromides and iodides, if present, will be calculated as chlorides.
1.4 Materials, such as styrene, that are polymerized by sodium biphenyl reagent cannot be analyzed by this test method.
1.5 In determining the conformance of the test results using this method to applicable specifications, results shall be rounded off
in accordance with the rounding-off method of Practice E29.
1.6 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use. For a specific hazard statement, see Section 7.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
D891 Test Methods for Specific Gravity, Apparent, of Liquid Industrial Chemicals
D1193 Specification for Reagent Water
D1555M Test Method for Calculation of Volume and Weight of Industrial Aromatic Hydrocarbons and Cyclohexane [Metric]
D3437 Practice for Sampling and Handling Liquid Cyclic Products
3
D3505 Test Method for Density or Relative Density of Pure Liquid Chemicals (Withdrawn 2023)
D4052 Test Method for Density, Relative Density, and API Gravity of Liquids by Digital Density Meter
1
This test method is under the jurisdiction of ASTM Committee D16 on Aromatic, Industrial, Specialty and Related Chemicals and is the direct responsibility of
Subcommittee D16.04 on Instrumental Analysis.
Current edition approved Jan. 1, 2018Jan. 1, 2024. Published January 2018January 2024. Originally approved in 1991. Last previous edition approved in 20132018 as
D5194 – 13.D5194 – 18. DOI: 10.1520/D5194-18.10.1520/D5194-24.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
The last approved version of this historical standard is referenced on www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

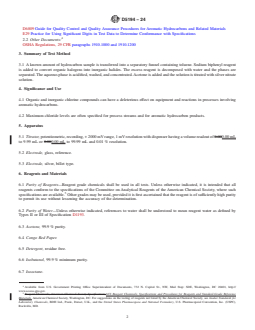

D5194 − 24
D6809 Guide for Quality Control and Quality Assurance Procedures for Aromatic Hydrocarbons and Related Materials
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
4
2.2 Other Documents:
OSHA Regulations, 29 CFR paragraphs 1910.1000 and 1910.1200
3. Summary of Test Method
3.1 A known amount of hydrocarbon sample is transferred into a separatory funnel containing toluene. Sodium biphenyl reagent
is added to convert organic halogens into inorganic halides. The excess reagent is decomposed with water and the phases are
separated. The aqueous phase is acidified, washed, and concentrated. Acetone is added and the solution is titrated with silver nitrate
solution.
4. Significance and Use
4.1 Organic and inorganic chlorine compounds can have a deleterious effect on equipment and reactions in processes involving
aromatic hydrocarbons.
4.2 Maximum chloride levels are often specified for process streams and for aromatic hydrocarbon products.
5. Apparatus
5.1 Titrator, potentiometric, recording, + 2000 mV range, 1 mV resolution with dispenser having a vol
...
