ASTM F2830-11(2017)
(Specification)Standard Specification for Manufacture and Joining of Polyethylene (PE) Gas Pressure Pipe With a Peelable Polypropylene (PP) Outer Layer
Standard Specification for Manufacture and Joining of Polyethylene (PE) Gas Pressure Pipe With a Peelable Polypropylene (PP) Outer Layer
ABSTRACT
This specification covers manufacturing and joining requirements for peelable or skinned polyethylene (PE) pipe, which is PE pipe meeting the requirements of Specification D2513, with a peelable outer layer of polypropylene (PP). The peelable PP layer does not contribute to outside diameter and wall thickness used for pressure rating or tensile loading calculations.
SCOPE
1.1 This standard specification covers manufacturing and joining requirements for peelable (skinned) polyethylene (PE) pipe, which is PE pipe meeting the requirements of Specification D2513, with a peelable outer layer of polypropylene (PP). These requirements are in addition to those in Specification D2513 for the PE pipe.
1.2 The peelable PP layer does not contribute to outside diameter and wall thickness used for pressure rating or tensile loading calculations.
1.3 The text of this standard references notes and footnotes which provide explanatory material. These notes and footnotes (excluding those in figures and tables) shall not be considered as requirements of the standard.
1.4 Units—The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

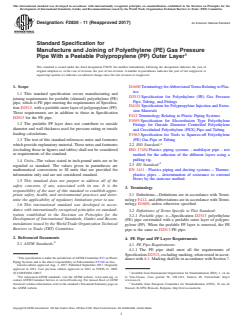

Designation:F2830 −11 (Reapproved 2017) An American National Standard
Standard Specification for
Manufacture and Joining of Polyethylene (PE) Gas Pressure
Pipe With a Peelable Polypropylene (PP) Outer Layer
This standard is issued under the fixed designation F2830; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D1600 Terminology forAbbreviatedTerms Relating to Plas-
tics
1.1 This standard specification covers manufacturing and
D2513 Specification for Polyethylene (PE) Gas Pressure
joining requirements for peelable (skinned) polyethylene (PE)
Pipe, Tubing, and Fittings
pipe, which is PE pipe meeting the requirements of Specifica-
D4101 Specification for Polypropylene Injection and Extru-
tion D2513, with a peelable outer layer of polypropylene (PP).
sion Materials
These requirements are in addition to those in Specification
F412 Terminology Relating to Plastic Piping Systems
D2513 for the PE pipe.
F1055 Specification for Electrofusion Type Polyethylene
1.2 The peelable PP layer does not contribute to outside
Fittings for Outside Diameter Controlled Polyethylene
diameter and wall thickness used for pressure rating or tensile
and Crosslinked Polyethylene (PEX) Pipe and Tubing
loading calculations.
F1563 Specification for Tools to Squeeze-off Polyethylene
(PE) Gas Pipe or Tubing
1.3 The text of this standard references notes and footnotes
which provide explanatory material. These notes and footnotes
2.2 ISO Standard:
(excluding those in figures and tables) shall not be considered
ISO 17454 Plastics piping systems - multilayer pipe - test
as requirements of the standard.
method for the adhesion of the different layers using a
pulling rig.
1.4 Units—The values stated in inch-pound units are to be
2.3 EN Standard:
regarded as standard. The values given in parentheses are
EN 1411 - Plastics piping and ducting systems – Thermo-
mathematical conversions to SI units that are provided for
plastics pipes – determination of resistance to external
information only and are not considered standard.
blows by the staircase method.
1.5 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
3. Terminology
responsibility of the user of this standard to establish appro-
3.1 Definitions—Definitions are in accordance with Termi-
priate safety, health, and environmental practices and deter-
nology F412, and abbreviations are in accordance with Termi-
mine the applicability of regulatory limitations prior to use.
nology D1600, unless otherwise specified.
1.6 This international standard was developed in accor-
dance with internationally recognized principles on standard-
3.2 Definitions of Terms Specific to This Standard:
ization established in the Decision on Principles for the
3.2.1 Peelable pipe, n—Specification D2513 polyethylene
Development of International Standards, Guides and Recom-
(PE) pipe coextruded with a peelable outer layer of polypro-
mendations issued by the World Trade Organization Technical
pylene (PP). When the peelable PP layer is removed, the PE
Barriers to Trade (TBT) Committee.
pipe is the same as D2513 PE pipe.
2. Referenced Documents
4. PE Pipe and PP Layer Requirements
2.1 ASTM Standards:
4.1 PE Pipe Requirements:
4.1.1 The PE pipe shall meet all the requirements of
Specification D2513, excluding marking, when tested in accor-
This specification is under the jurisdiction ofASTM Committee F17 on Plastic
dance with 6.1. Marking shall be in accordance with Section 7.
Piping Systems and is the direct responsibility of Subcommittee F17.60 on Gas.
Current edition approved Aug. 1, 2017. Published September 2017. Originally
approved in 2011. Last previous edition approved in 2011 as F2830–11. DOI:
10.1520/F2830-11R17. Available from International Organization for Standardization (ISO), 1, ch. de
For referenced ASTM standards, visit the ASTM website, www.astm.org, or la Voie-Creuse, Case postale 56, CH-1211, Geneva 20, Switzerland, http://
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM www.iso.ch.
Standards volume information, refer to the standard’s Document Summary page on Available from European Committee for Standardization (CEN), 36 rue de
the ASTM website. Stassart, B-1050, Brussels, Belgium, http://www.cenorm.be.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

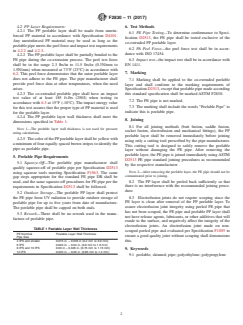

F2830−11 (2017)
4.2 PP Layer Requirements: 6. Test Methods
4.2.1 The PP peelable layer shall be made from unrein-
6.1 PE Pipe Testing—To determine conformance to Speci-
forced PP material in accordance with Specification D4101.
fication D2513, the PE pipe shall be tested exclusive of the
Any unreinforced PP material may be used as long as the
co-extruded PP peelable layer.
peelablepipemeetsthepeelforceandimpacttestrequirements
6.2 PA Peel Force—the peel for
...
