ASTM F1199-21
(Specification)Standard Specification for Cast (All Temperatures and Pressures) and Welded Pipe Line Strainers (150 psig and 150°F Maximum)
Standard Specification for Cast (All Temperatures and Pressures) and Welded Pipe Line Strainers (150 psig and 150°F Maximum)
ABSTRACT
This specification provides the minimum requirements for the design, fabrication, rating, marking, and testing of all cast pipe line strainers, and welded pipe line strainers used in services up to 150 psig and 150°F (1 MPa and 65°C) that are acceptable for use in marine environments. The strainers may be classified into three general construction categories, namely, simplex, duplex (or multiplex), and automatic (self-cleaning). They may also be further classified according to pressure ratings and types of port connections, port alignments relative to unit center lines, cover closures, valve types (in duplex), types of baskets or elements, materials of construction, and other features of design.
SCOPE
1.1 This specification covers all cast strainers and welded strainers in services up to 150 psig and 150°F (1 MPa and 65°C). For welded strainers used in services above 150 psig and 150°F, see Specification F1200.
1.2 This standard provides the minimum requirements for the design, fabrication, rating, marking, and testing of cast and welded pipe line strainers for services above 0°F (−18°C).
1.3 Strainers manufactured to this specification are acceptable for use in the marine environment.
1.4 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.5 The following safety hazards caveat pertains only to the test methods portion, Section 8, of this specification. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation:F1199 −21 An American National Standard
Standard Specification for
Cast (All Temperatures and Pressures) and Welded Pipe
Line Strainers (150 psig and 150°F Maximum)
This standard is issued under the fixed designation F1199; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
1.1 This specification covers all cast strainers and welded 2.1 ASTM Standards:
strainers in services up to 150 psig and 150°F (1 MPa and F1200 Specification for Fabricated (Welded) Pipe Line
65°C). For welded strainers used in services above 150 psig Strainers (Above 150 psig and 150°F (1 MPa and 65°C))
and 150°F, see Specification F1200. 2.2 ASME Standards:
ASME Boiler and Pressure Vessel Code, Section VIII,
1.2 This standard provides the minimum requirements for
Division 1Pressure Vessels
the design, fabrication, rating, marking, and testing of cast and
B1.20.1Pipe Threads, General Purpose, Inch
welded pipe line strainers for services above 0°F (−18°C).
B16.1Gray Iron Pipe Flanges and Flanged Fittings: Classes
1.3 Strainers manufactured to this specification are accept-
25, 125, and 250
able for use in the marine environment.
B16.3Malleable Iron Threaded Fittings: Classes 150 and
1.4 The values stated in inch-pound units are to be regarded
as standard. The values given in parentheses are mathematical B16.4Gray Iron Threaded Fittings: Classes 125 and 150
B16.5Pipe Flanges and Flanged Fittings: NPS 1/2 through
conversions to SI units that are provided for information only
and are not considered standard. NPS 24 Metric/Inch Standard
B16.11Forged Fittings, Socket-Welding and Threaded
1.5 The following safety hazards caveat pertains only to the
B16.15Cast Copper Alloy Threaded Fittings: Classes 125
test methods portion, Section 8, of this specification. This
and 250
standard does not purport to address all of the safety concerns,
B16.24Cast Copper Alloy Pipe Flanges, Flanged Fittings,
if any, associated with its use. It is the responsibility of the user
and Valves: Classes 150, 300, 600, 900, 1500, and 2500
of this standard to establish appropriate safety, health, and
B16.25Buttwelding Ends
environmental practices and determine the applicability of
B31.1Power Piping
regulatory limitations prior to use.
B31.3Processing Piping
1.6 This international standard was developed in accor-
2.3 MSS Standards:
dance with internationally recognized principles on standard-
SP-51150 lb Corrosion Resistant Cast Flanges and Flanged
ization established in the Decision on Principles for the
Fittings
Development of International Standards, Guides and Recom-
SP-63High Strength Wrought Welding Fittings
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
3. Terminology
3.1 Definitions:
3.1.1 basket or element, n—thereplaceablepartinastrainer
that performs the barrier separation of solid particles from
flowing fluid. It is normally removable for cleaning and
servicing and can be furnished in a wide variety of materials,
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on
This specification is under the jurisdiction of ASTM Committee F25 on Ships the ASTM website.
and Marine Technology and is the direct responsibility of Subcommittee F25.11 on Available from American Society of Mechanical Engineers (ASME), ASME
Machinery and Piping Systems. International Headquarters, Two Park Ave., New York, NY 10016-5990, http://
Current edition approved Sept. 1, 2021. Published September 2021. Originally www.asme.org.
approved in 1988. Last previous edition approved in 2019 as F1199–88 (2019). AvailablefromManufacturersStandardizationSocietyoftheValveandFittings
DOI: 10.1520/F1199-21. Industry(MSS),127ParkSt.,NE,Vienna,VA22180-4602,http://www.mss-hq.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

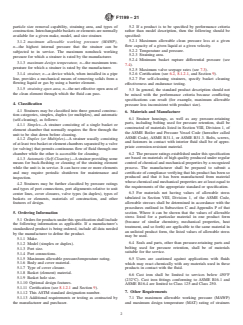

F1199−21
particle size removal capability, straining area, and types of 5.2 If a product is to be specified by performance criteria
construction.Interchangeablebasketsorelementsarenormally rather than model description, then the following should be
available for a given make, model, and size strainer. specified:
5.2.1 Maximum allowable clean pressure loss at a given
3.1.2 maximum allowable working pressure (MAWP),
flow capacity of a given liquid at a given velocity.
n—the highest internal pressure that the strainer can be
5.2.2 Temperature and pressure.
subjected to in service. The maximum nonshock working
5.2.3 Straining area.
pressure for which a strainer is rated by the manufacturer.
5.2.4 Minimum basket rupture differential pressure (see
3.1.3 maximum design temperature, n—the maximum tem-
7.4).
perature for which a strainer is rated by the manufacturer.
5.2.5 Maximum valve seepage rates (see 7.3).
3.1.4 strainer, n—a device which, when installed in a pipe
5.2.6 Certification (see 6.2, 8.1.2.1, and Section 9).
line, provides a mechanical means of removing solids from a
5.2.7 For self-cleaning strainers, specify basket cleaning
flowing liquid or gas by using a barrier element.
effectiveness and endurance testing.
3.1.5 straining open area, n—the net effective open area of
5.3 In general, the standard product description should not
the clean element through which the fluid can pass.
be mixed with the performance criteria because conflicting
specifications can result (for example, maximum allowable
4. Classification
pressure loss inconsistent with product size).
4.1 Strainers may be classified into three general construc-

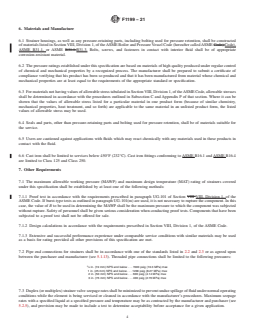

6. Materials and Manufacture
tion categories, simplex, duplex (or multiplex), and automatic
6.1 Strainer housings, as well as any pressure-retaining
(self-cleaning), as follows:
parts, including bolting used for pressure retention, shall be
4.1.1 Simplex—A strainer consisting of a single basket or
constructed of materials listed in Section VIII, Division 1, of
element chamber that normally requires the flow through the
the ASME Boiler and Pressure Vessel Code (hereafter called
unit to be shut down before cleaning.
ASME Code), ASME B31.1, or ASME B31.3. Bolts, screws,
4.1.2 Duplex (or Multiplex)—A strainer usually consisting
and fasteners in contact with interior fluid shall be of appro-
ofatleasttwobasketorelementchambersseparatedbyavalve
priate corrosion-resistant material.
(or valving) that permits continuous flow of fluid through one
6.2 The pressure ratings established under this specification
chamber while the other is accessible for cleaning.
are based on materials of high quality produced under regular
4.1.3 Automatic (Self-Cleaning)—Astrainerprovidingsome
control of chemical and mechanical properties by a recognized
means for back-flushing or cleaning of the straining element
while the unit is in service. It can have one or more elements process. The manufacturer shall be prepared to submit a
certificate of compliance verifying that his product has been so
and may require periodic shutdown for maintenance and
inspection. produced and that it has been manufactured from material
whose chemical and mechanical properties are at least equal to
4.2 Strainers may be further classified by pressure ratings
the requirements of the appropriate standard or specification.
and types of port connections, port alignments relative to unit
6.3 For materials no
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: F1199 − 88 (Reapproved 2019) F1199 − 21 An American National Standard
Standard Specification for
Cast (All Temperatures and Pressures) and Welded Pipe
Line Strainers (150 psig and 150°F Maximum)
This standard is issued under the fixed designation F1199; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers all cast strainers and welded strainers in services up to 150 psig and 150°F (1 MPa and 65°C). For
welded strainers used in services above 150 psig and 150°F, see Specification F1200.
1.2 This standard provides the minimum requirements for the design, fabrication, rating, marking, and testing of cast and welded
pipe line strainers for services above 0°F (−18°C).
1.3 Strainers manufactured to this specification are acceptable for use in the marine environment.
1.4 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.5 The following safety hazards caveat pertains only to the test methods portion, Section 8, of this specification. This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory
limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
This specification is under the jurisdiction of ASTM Committee F25 on Ships and Marine Technology and is the direct responsibility of Subcommittee F25.11 on
Machinery and Piping Systems.
Current edition approved Dec. 1, 2019Sept. 1, 2021. Published January 2020September 2021. Originally approved in 1988. Last previous edition approved in 20152019
as F1199 – 88 (2015).(2019). DOI: 10.1520/F1199-88R19.10.1520/F1199-21.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F1199 − 21

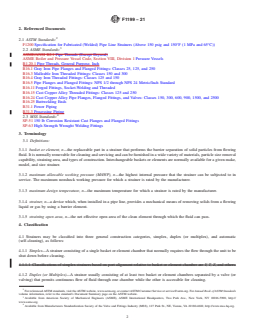

2. Referenced Documents
2.1 ASTM Standards:
F1200 Specification for Fabricated (Welded) Pipe Line Strainers (Above 150 psig and 150°F (1 MPa and 65°C))
2.2 ASME Standards:
ASME/ANSI B2.1 Pipe Threads (Except Dryseal)
ASME Boiler and Pressure Vessel Code, Section VIII, Division 1 Pressure Vessels
B1.20.1 Pipe Threads, General Purpose, Inch
B16.1 Gray Iron Pipe Flanges and Flanged Fittings: Classes 25, 125, and 250
B16.3 Malleable Iron Threaded Fittings: Classes 150 and 300
B16.4 Gray Iron Threaded Fittings: Classes 125 and 150
B16.5 Pipe Flanges and Flanged Fittings: NPS 1/2 through NPS 24 Metric/Inch Standard
B16.11 Forged Fittings, Socket-Welding and Threaded
B16.15 Cast Copper Alloy Threaded Fittings: Classes 125 and 250
B16.24 Cast Copper Alloy Pipe Flanges, Flanged Fittings, and Valves: Classes 150, 300, 600, 900, 1500, and 2500
B16.25 Buttwelding Ends
B31.1 Power Piping
B31.3 Processing Piping
2.3 MSS Standards:
SP-51 150 lb Corrosion Resistant Cast Flanges and Flanged Fittings
SP-63 High Strength Wrought Welding Fittings
3. Terminology
3.1 Definitions:
3.1.1 basket or element, n—the replaceable part in a strainer that performs the barrier separation of solid particles from flowing
fluid. It is normally removable for cleaning and servicing and can be furnished in a wide variety of materials, particle size removal
capability, straining area, and types of construction. Interchangeable baskets or elements are normally available for a given make,
model, and size strainer.
3.1.2 maximum allowable working pressure (MAWP), n—the highest internal pressure that the strainer can be subjected to in
service. The maximum nonshock working pressure for which a strainer is rated by the manufacturer.
3.1.3 maximum design temperature, n—the maximum temperature for which a strainer is rated by the manufacturer.
3.1.4 strainer, n—a device which, when installed in a pipe line, provides a mechanical means of removing solids from a flowing
liquid or gas by using a barrier element.
3.1.5 straining open area, n—the net effective open area of the clean element through which the fluid can pass.
4. Classification
4.1 Strainers may be classified into three general construction categories, simplex, duplex (or multiplex), and automatic
(self-cleaning), as follows:
4.1.1 Simplex—A strainer consisting of a single basket or element chamber that normally requires the flow through the unit to be
shut down before cleaning.
4.1.1.1 Classifications of simplex strainers based on port alignment relative to basket or element chamber are Y, T, Z, and others.
4.1.2 Duplex (or Multiplex)—A strainer usually consisting of at least two basket or element chambers separated by a valve (or
valving) that permits continuous flow of fluid through one chamber while the other is accessible for cleaning.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from American Society of Mechanical Engineers (ASME), ASME International Headquarters, Two Park Ave., New York, NY 10016-5990, http://
www.asme.org.
Available from Manufacturers Standardization Society of the Valve and Fittings Industry (MSS), 127 Park St., NE, Vienna, VA 22180-4602, http://www.mss-hq.org.
F1199 − 21
4.1.3 Automatic (Self-Cleaning)—A strainer providing some means for back-flushing or cleaning of the straining element while
the unit is in service. It can have one or more elements and may require periodic shutdown for maintenance and inspection.
4.2 Strainers may be further classified by pressure ratings and types of port connections, port alignments relative to unit center
lines, cover closures, valve types (in duplex), types of baskets or elements, materials of construction, and other features of design.
5. Ordering Information
5.1 Orders for products under this specification shall include the following information as applicable. If a manufacturer’s
standardized product is being ordered, include all data needed by the manufacturer to define the product.
5.1.1 Make.
5.1.2 Model (simplex or duplex).
5.1.3 Port size.
5.1.4 Port connections.
5.1.5 Maximum allowable pressure/temperature rating.
5.1.6 Body and cover material.
5.1.7 Type of cover closure.
5.1.8 Basket (element) material.
5.1.9 Basket hole size.
5.1.10 Optional design features.
5.1.11 Certification (see 8.1.2.1 and Section 9).
5.1.12 This ASTM standard designation number.
5.1.13 Additional requirements or testing as contracted by the manufacturer and purchaser.
5.2 If a product is to be specified by performance criteria rather than model description, then the following should be specified:
5.2.1 Maximum allowable clean pressure loss at a given flow capacity of a given liquid at a given velocity.
5.2.2 Temperature and pressure.
5.2.3 Straining area.
5.2.4 Minimum basket rupture differential pressure (see 7.4).
5.2.5 Maximum valve seepage rates (see 7.3).
5.2.6 Certification (see 6.2, 8.1.2.1, and Section 9).
5.2.7 For self-cleaning strainers, specify basket cleaning effectiveness and endurance testing.
5.3 In general, the standard product description should not be mixed with the performance criteria because conflicting
specifications can result (for example, maximum allow
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
