ASTM A519/A519M-23
(Specification)Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing
Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing
ABSTRACT
This specification covers for several grades of carbon and alloy steel mechanical tubing, either hot-finished or cold-finished. The steel used in the mechanical tubing may be cast in ingots or may be strand cast. When steel of different grades is sequentially strand cast, identification of the resultant transition material is required. The seamless tubing is a tubular product made without a welded seam. It is usually manufactured by hot working steel, and if necessary, by subsequently cold finishing the hot-worked tubular product to produce the desired shape, dimensions and properties. The tubes shall be furnished in the following shapes: round, square, rectangular and special sections. Heat analysis shall be made to determine the percentages of the elements specified. If secondary melting processes are used, the heat analysis shall be obtained from one remelted ingot or the product of one remelted ingot of each primary melt. The tubing shall be coated with a film of oil before shaping to retard rust when specified
SCOPE
1.1 This specification covers several grades of carbon and alloy steel seamless mechanical tubing. The grades are listed in Tables 1-3. When welding is used for joining the weldable mechanical tube grades, the welding procedure shall be suitable for the grade, the condition of the components, and the intended service.
1.2 This specification covers both seamless hot-finished mechanical tubing and seamless cold-finished mechanical tubing in sizes up to and including 12 3/4 in. [325 mm] outside diameter for round tubes with wall thicknesses as required.
1.3 The tubes shall be furnished in the following shapes, as specified by the purchaser: round, square, rectangular, and special sections.
1.4 Supplementary requirements of an optional nature are provided and when desired shall be so stated in the order.
1.5 The values stated in either SI units or inch-pound units are to be regarded separately as the standard. Within the text, the SI units are shown in brackets or parentheses. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. The inch-pound units shall apply unless the “M” designation of this specification is specified in the order. In this specification hard or rationalized conversions apply to diameter, lengths and tensile properties. Soft conversion applies to other SI measurements.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

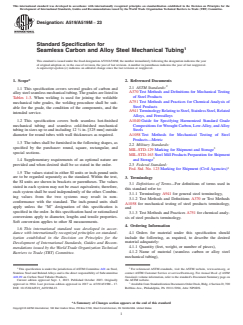

Designation: A519/A519M − 23
Standard Specification for
1
Seamless Carbon and Alloy Steel Mechanical Tubing
This standard is issued under the fixed designation A519/A519M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 2. Referenced Documents
2
2.1 ASTM Standards:
1.1 This specification covers several grades of carbon and
A370 Test Methods and Definitions for Mechanical Testing
alloy steel seamless mechanical tubing. The grades are listed in
of Steel Products
Tables 1-3. When welding is used for joining the weldable
A751 Test Methods and Practices for Chemical Analysis of
mechanical tube grades, the welding procedure shall be suit-
Steel Products
able for the grade, the condition of the components, and the
A941 Terminology Relating to Steel, Stainless Steel, Related
intended service.
Alloys, and Ferroalloys
1.2 This specification covers both seamless hot-finished
A1040 Guide for Specifying Harmonized Standard Grade
mechanical tubing and seamless cold-finished mechanical Compositions for Wrought Carbon, Low-Alloy, and Alloy
3
tubing in sizes up to and including 12 ⁄4 in. [325 mm] outside Steels
A1058 Test Methods for Mechanical Testing of Steel
diameter for round tubes with wall thicknesses as required.
Products—Metric
1.3 The tubes shall be furnished in the following shapes, as
2.2 Military Standards:
specified by the purchaser: round, square, rectangular, and
3
MIL-STD-129 Marking for Shipment and Storage
special sections.
MIL-STD-163 Steel Mill Products Preparation for Shipment
3
and Storage
1.4 Supplementary requirements of an optional nature are
2.3 Federal Standard:
provided and when desired shall be so stated in the order.
3
Fed. Std. No. 123 Marking for Shipment (Civil Agencies)
1.5 The values stated in either SI units or inch-pound units
are to be regarded separately as the standard. Within the text,
3. Terminology
the SI units are shown in brackets or parentheses. The values
3.1 Definitions of Terms—For definitions of terms used in
stated in each system may not be exact equivalents; therefore,
this standard refer to:
each system shall be used independently of the other. Combin-
3.1.1 Terminology A941 for general steel terminology,
ing values from the two systems may result in non-
3.1.2 Test Methods and Definitions A370 or Test Methods
conformance with the standard. The inch-pound units shall
A1058 for mechanical testing of steel products terminology,
apply unless the “M” designation of this specification is
and
specified in the order. In this specification hard or rationalized
3.1.3 Test Methods and Practices A751 for chemical analy-
conversions apply to diameter, lengths and tensile properties.
sis of steel products terminology.
Soft conversion applies to other SI measurements.
4. Ordering Information
1.6 This international standard was developed in accor-
4.1 Orders for material under this specification should
dance with internationally recognized principles on standard-
include the following, as required, to describe the desired
ization established in the Decision on Principles for the
material adequately:
Development of International Standards, Guides and Recom-
4.1.1 Quantity (feet, weight, or number of pieces),
mendations issued by the World Trade Organization Technical
4.1.2 Name of material (seamless carbon or alloy steel
Barriers to Trade (TBT) Committee.
mechanical tubing),
1 2
This specification is under the jurisdiction of ASTM Committee A01 on Steel, For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
A01.09 on Carbon Steel Tubular Products. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved Sept. 1, 2023. Published October 2023. Originally the ASTM website.
3
approved in 1964. Last previous edition approved in 2017 as A519/A519M – 17. Available from Standardization Documents Order Desk, Bldg. 4 Section D, 700
DOI: 10.1520/A0519_A0519M-23. Robbins Ave., Philadelphia, PA 19111-5094, Attn: NPODS.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
A519/A519M − 23

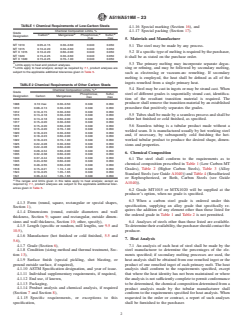

TABLE 1 Chemical Requirements of Low-Carbon Steels
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

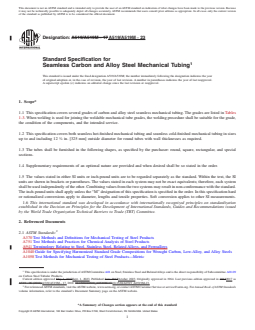

Designation: A519/A519M − 17 A519/A519M − 23
Standard Specification for
1
Seamless Carbon and Alloy Steel Mechanical Tubing
This standard is issued under the fixed designation A519/A519M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification covers several grades of carbon and alloy steel seamless mechanical tubing. The grades are listed in Tables
1-3. When welding is used for joining the weldable mechanical tube grades, the welding procedure shall be suitable for the grade,
the condition of the components, and the intended service.
1.2 This specification covers both seamless hot-finished mechanical tubing and seamless cold-finished mechanical tubing in sizes
3
up to and including 12 ⁄4 in. [325 mm] outside diameter for round tubes with wall thicknesses as required.
1.3 The tubes shall be furnished in the following shapes, as specified by the purchaser: round, square, rectangular, and special
sections.
1.4 Supplementary requirements of an optional nature are provided and when desired shall be so stated in the order.
1.5 The values stated in either SI units or inch-pound units are to be regarded separately as the standard. Within the text, the SI
units are shown in brackets or parentheses. The values stated in each system may not be exact equivalents; therefore, each system
shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
The inch-pound units shall apply unless the “M” designation of this specification is specified in the order. In this specification hard
or rationalized conversions apply to diameter, lengths and tensile properties. Soft conversion applies to other SI measurements.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
A370 Test Methods and Definitions for Mechanical Testing of Steel Products
A751 Test Methods and Practices for Chemical Analysis of Steel Products
A941 Terminology Relating to Steel, Stainless Steel, Related Alloys, and Ferroalloys
A1040 Guide for Specifying Harmonized Standard Grade Compositions for Wrought Carbon, Low-Alloy, and Alloy Steels
A1058 Test Methods for Mechanical Testing of Steel Products—Metric
1
This specification is under the jurisdiction of ASTM Committee A01 on Steel, Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee A01.09
on Carbon Steel Tubular Products.
Current edition approved May 1, 2017Sept. 1, 2023. Published June 2017October 2023. Originally approved in 1964. Last previous edition approved in 20122017 as
A519 – 06 (2012).A519/A519M – 17. DOI: 10.1520/A0519_A0519M-17.10.1520/A0519_A0519M-23.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
A519/A519M − 23

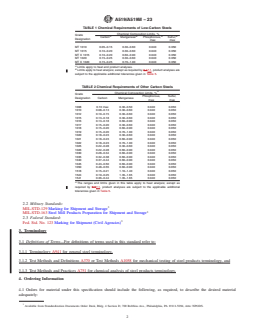

TABLE 1 Chemical Requirements of Low-Carbon Steels
Chemical Composition Limits, %
Grade
A B B B
Carbon Manganese Phosphorous, Sulfur,
Designation
max max
MT 1010 0.05–0.15 0.30–0.60 0.040 0.050
MT 1015 0.10–0.20 0.30–0.60 0.040 0.050
MT X 1015 0.10–0.20 0.60–0.90 0.040 0.050
MT 1020 0.15–0.25 0.30–0.60 0.040 0.050
MT X 1020 0.15–0.25 0.70–1.00 0.040 0.050
A
Limits apply to heat and product analyses.
B
Limits apply to heat analysis; except as required by 6.17.1, product analyses are
subject to the applicable additional tolerances given in Table 5.
TABLE 2 Chemical Requirements of Other Carbon Steels
A
Chemical Composition Limits, %
Grade
Phosphorous, Sulfur,
Designation Carbon Manganese
max max
1008 0.10 max 0.30–0.50 0.040 0.050
1010 0.08–0.13 0.30–0.60 0.040 0.050
1012 0.10–0.15 0.30–0.60 0.040 0.050
1015 0.13–0.18 0.30–0.60 0.040 0.050
1016 0.13–0.1
...
