ASTM F1899-14a(2019)
(Specification)Standard Specification for Food Waste Pulper Without Waterpress Assembly
Standard Specification for Food Waste Pulper Without Waterpress Assembly
ABSTRACT
This specification covers pulper assemblies intended for grinding of food scraps and limited amounts of cardboard, paper, and disposable plastic food service wear. Pulper assemblies shall be of the following types: Type A and Type B. Lubricating points shall be readily accessible, and the pulper shall be lubricated with the proper amount of lubricant prior to delivery. All surfaces of the machine, other than corrosion-resistant materials, shall be protected against corrosion in the use environment and shall present a neat appearance. Test method shall be performed to demonstrate the ability of the unit to meet the capacity requirements and to insure that there is no leakage during operation.
SCOPE
1.1 This specification covers pulper assemblies intended for grinding of food scraps and limited amounts of cardboard, paper, and disposable plastic food service ware.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 The following safety hazards caveat pertains only to the test method portion, Section 13, of this specification:
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

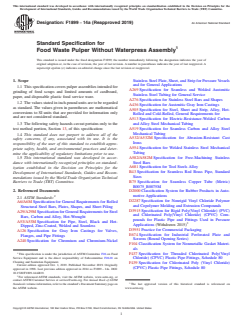

Designation: F1899 −14a (Reapproved 2019) An American National Standard
Standard Specification for
Food Waste Pulper Without Waterpress Assembly
This standard is issued under the fixed designation F1899; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Stainless Steel Plate, Sheet, and Strip for Pressure Vessels
and for General Applications
1.1 This specification covers pulper assemblies intended for
A269 Specification for Seamless and Welded Austenitic
grinding of food scraps and limited amounts of cardboard,
Stainless Steel Tubing for General Service
paper, and disposable plastic food service ware.
A276 Specification for Stainless Steel Bars and Shapes
1.2 The values stated in inch-pound units are to be regarded
A436 Specification for Austenitic Gray Iron Castings
as standard. The values given in parentheses are mathematical
A505 Specification for Steel, Sheet and Strip, Alloy, Hot-
conversions to SI units that are provided for information only
Rolled and Cold-Rolled, General Requirements for
and are not considered standard.
A513 Specification for Electric-Resistance-Welded Carbon
1.3 The following safety hazards caveat pertains only to the and Alloy Steel Mechanical Tubing
test method portion, Section 13, of this specification:
A519 Specification for Seamless Carbon and Alloy Steel
Mechanical Tubing
1.4 This standard does not purport to address all of the
A532/A532M Specification for Abrasion-Resistant Cast
safety concerns, if any, associated with its use. It is the
Irons
responsibility of the user of this standard to establish appro-
A554 Specification for Welded Stainless Steel Mechanical
priate safety, health, and environmental practices and deter-
Tubing
mine the applicability of regulatory limitations prior to use.
A582/A582M Specification for Free-Machining Stainless
1.5 This international standard was developed in accor-
Steel Bars
dance with internationally recognized principles on standard-
A681 Specification for Tool Steels Alloy
ization established in the Decision on Principles for the
B43 Specification for Seamless Red Brass Pipe, Standard
Development of International Standards, Guides and Recom-
Sizes
mendations issued by the World Trade Organization Technical
B75 Specification for Seamless Copper Tube (Metric)
Barriers to Trade (TBT) Committee.
B0075_B0075M
2. Referenced Documents D2000 Classification System for Rubber Products in Auto-
motive Applications
2.1 ASTM Standards:
D2287 Specification for Nonrigid Vinyl Chloride Polymer
A6/A6M Specification for General Requirements for Rolled
and Copolymer Molding and Extrusion Compounds
Structural Steel Bars, Plates, Shapes, and Sheet Piling
D3915 Specification for Rigid Poly(Vinyl Chloride) (PVC)
A29/A29M SpecificationforGeneralRequirementsforSteel
and Chlorinated Poly(Vinyl Chloride) (CPVC) Com-
Bars, Carbon and Alloy, Hot-Wrought
pounds for Plastic Pipe and Fittings Used in Pressure
A53/A53M Specification for Pipe, Steel, Black and Hot-
Applications (Withdrawn 2015)
Dipped, Zinc-Coated, Welded and Seamless
D3951 Practice for Commercial Packaging
A126 Specification for Gray Iron Castings for Valves,
E674 Specification for Industrial Perforated Plate and
Flanges, and Pipe Fittings
Screens (Round Opening Series)
A240 Specification for Chromium and Chromium-Nickel
F104 Classification System for Nonmetallic Gasket Materi-
als
F437 Specification for Threaded Chlorinated Poly(Vinyl
This specification is under the jurisdiction of ASTM Committee F26 on Food
Service Equipment and is the direct responsibility of Subcommittee F26.01 on
Chloride) (CPVC) Plastic Pipe Fittings, Schedule 80
Cleaning and Sanitation Equipment.
F439 Specification for Chlorinated Poly (Vinyl Chloride)
Current edition approved Oct. 1, 2019. Published November 2019. Originally
(CPVC) Plastic Pipe Fittings, Schedule 80
approved in 1998. Last previous edition approved in 2014 as F1899 – 14a. DOI:
10.1520/F1899-14AR19.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on The last approved version of this historical standard is referenced on
the ASTM website. www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

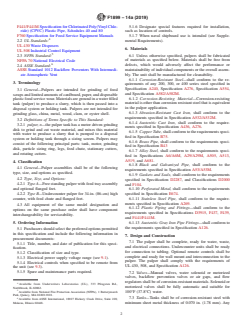

F1899 − 14a (2019)
F441/F441M Specification for Chlorinated Poly(Vinyl Chlo- 5.1.6 Designate special features required for installation,
ride) (CPVC) Plastic Pipe, Schedules 40 and 80 such as location of controls.
F760 Specification for Food Service Equipment Manuals 5.1.7 When naval shipboard use is intended (see Supple-
2.2 UL Standards: mental Requirements).
UL 430 Waste Disposers
6. Materials
UL 508 Industrial Control Equipment
2.3 NFPA Standard: 6.1 Unless otherwise specified, pulpers shall be fabricated
of materials as specified below. Materials shall be free from
NFPA 70 National Electrical Code
defects, which would adversely affect the performance or
2.4 ASSE Standard:
maintainability of individual components or the overall assem-
ASSE Standard 1012 Backflow Preventers With Intermedi-
bly. The unit shall be manufactured for cleanability.
ate Atmospheric Vent
6.1.1 Corrosion-Resistant Steel—shall conform to the re-
3. Terminology
quirements of any 200, 300, or 400 series steel specified in
Specification A240, Specification A276, Specification A554,
3.1 General—Pulpers are intended for grinding of food
and Specification A582/A582M.
scrapsandlimitedamountsofcardboard,paper,anddisposable
6.1.2 Corrosion-Resisting Material—Corrosion-resisting
plastic food service wear. Materials are ground in a water filled
material is other than corrosion resistant steel that is equivalent
tank (pulper) to produce a slurry, which is then passed into a
in the pulper application.
disposal system or holding tank. Pulpers are not intended for
6.1.3 Abrasion-Resistant Cast Iron, shall conform to the
grinding glass, china, metal, wood, clam, or oyster shell.
requirements specified in Specification A532/A532M.
3.2 Definitions of Terms Specific to This Standard:
6.1.4 Austenitic Cast Iron, shall conform to the require-
3.2.1 pulper, n—the pulper tank has a motor driven grinding
ments specified in Specification A436, A276.
disk to grind and cut waste material, and mixes this material
6.1.5 Copper Tube, shall conform to the requirements speci-
with water to produce a slurry that is pumped to a disposal
fied in Specification B75.
system or holding tank through a sizing screen. Pulpers may
6.1.6 Brass Pipe, shall conform to the requirements speci-
consist of the following principal parts: tank, motor, grinding
fied in Specification B43
disk, particle sizing ring, legs, feed chute, stationary cutters,
6.1.7 Alloy Steel, shall conform to the requirements speci-
and rotating cutters.
fied in Specifications A6/A6M, A29/A29M, A505, A513,
A519, and A681.
4. Classification
6.1.8 Black and Galvanized Pipe, shall conform to the
4.1 General—Pulper assemblies shall be of the following
requirements specified in Specification A53/A53M.
type, size, and options as specified.
6.1.9 Gaskets and Seals, shall conform to the requirements
4.2 Type, Size, and Options: specified in Specification D2287, and Classifications D2000
4.2.1 Type A—Free standing pulper with feed tray assembly
and F104.
and optional flanged feet.
6.1.10 Perforated Metal, shall conform to the requirements
4.2.2 Type B—Undercounter pulper for 34-in. (86-cm) high
specified in Specification E674.
counter, with feed chute and flanged feet.
6.1.11 Stainless Steel Pipe, shall conform to the require-
ments specified in Specification A269.
4.3 All equipment of the same model designation and
6.1.12 Plastic Piping and Fittings—shall conform to the
options on the same purchase order shall have component
requirements specified in Specifications D3915, F437, F439,
interchangeability for serviceability.
and F441/F441M.
5. Ordering Information 6.1.13 Austenitic Gray Iron Pipe Fittings—shall conform to
the requirements specified in Specification A126.
5.1 Purchasers should select the preferred options permitted
in this specification and include the following information in
7. Design and Construction
procurement documents:
7.1 The pulper shall be complete, ready for water, waste,
5.1.1 Title, number, and date of publication for this speci-
and electrical connections. Undercounter units shall be ready
fication.
for connection to tabling. Optional remote controls shall be
5.1.2 Classification of size and type.
complete and ready for wall mount and interconnection to the
5.1.3 Electrical power supply voltage range (see 9.1).
pulper. The pulper shall comply with the requirements of
5.1.4 Electrical controls when specified to be remote from
UL 430, 508, and Specification A126.
the unit (see 9.3).
5.1.5 Spare and maintenance parts required. 7.2 Valves—Manual valves, water solenoid or motorized
valves, backflow prevention valves or air gaps, and flow
regulators shall be of corrosion-resistant materials. So
...
