ASTM C1326-13(2023)
(Test Method)Standard Test Method for Knoop Indentation Hardness of Advanced Ceramics
Standard Test Method for Knoop Indentation Hardness of Advanced Ceramics
SIGNIFICANCE AND USE
5.1 For advanced ceramics, Knoop indenters are used to create indentations. The surface projection of the long diagonal is measured with optical microscopes.
5.2 The Knoop indentation hardness is one of many properties that is used to characterize advanced ceramics. Attempts have been made to relate Knoop indentation hardness to other hardness scales, but no generally accepted methods are available. Such conversions are limited in scope and should be used with caution, except for special cases where a reliable basis for the conversion has been obtained by comparison tests.
5.3 For advanced ceramics, the Knoop indentation is often preferred to the Vickers indentation since the Knoop long diagonal length is 2.8 times longer than the Vickers diagonal for the same force, and cracking is much less of a problem (1).5 On the other hand, the long slender tip of the Knoop indentation is more difficult to precisely discern, especially in materials with low contrast. The indentation forces chosen in this test method are designed to produce indentations as large as may be possible with conventional microhardness equipment, yet not so large as to cause cracking.
5.4 The Knoop indentation is shallower than Vickers indentations made at the same force. Knoop indents may be useful in evaluating coating hardnesses.
5.5 Knoop hardness is calculated from the ratio of the applied force divided by the projected indentation area on the specimen surface. It is assumed that the elastic springback of the narrow diagonal is negligible. (Vickers indenters are also used to measure hardness, but Vickers hardness is calculated from the ratio of applied force to the area of contact of the four faces of the undeformed indenter.)
5.6 A full hardness characterization includes measurements over a broad range of indentation forces. Knoop hardness of ceramics usually decreases with increasing indentation size or indentation force such as that shown in Fig. 1.6 The trend is known as the in...
SCOPE
1.1 This test method covers the determination of the Knoop indentation hardness of advanced ceramics. In this test, a pointed, rhombic-based, pyramidal diamond indenter of prescribed shape is pressed into the surface of a ceramic with a predetermined force to produce a relatively small, permanent indentation. The surface projection of the long diagonal of the permanent indentation is measured using a light microscope. The length of the long diagonal and the applied force are used to calculate the Knoop hardness which represents the material’s resistance to penetration by the Knoop indenter.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 Units—When Knoop and Vickers hardness tests were developed, the force levels were specified in units of grams-force (gf) and kilograms-force (kgf). This standard specifies the units of force and length in the International System of Units (SI); that is, force in newtons (N) and length in mm or μm. However, because of the historical precedent and continued common usage, force values in gf and kgf units are occasionally provided for information. This test method specifies that Knoop hardness be reported either in units of GPa or as a dimensionless Knoop hardness number.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

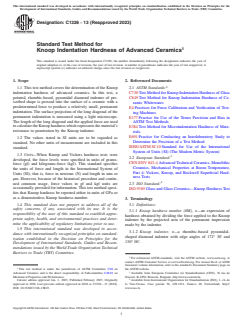

Designation: C1326 − 13 (Reapproved 2023)
Standard Test Method for
Knoop Indentation Hardness of Advanced Ceramics
This standard is issued under the fixed designation C1326; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
1.1 This test method covers the determination of the Knoop
2.1 ASTM Standards:
indentation hardness of advanced ceramics. In this test, a C730 Test Method for Knoop Indentation Hardness of Glass
pointed, rhombic-based, pyramidal diamond indenter of pre-
C849 Test Method for Knoop Indentation Hardness of Ce-
scribed shape is pressed into the surface of a ceramic with a
ramic Whitewares
predetermined force to produce a relatively small, permanent
E4 Practices for Force Calibration and Verification of Test-
indentation. The surface projection of the long diagonal of the
ing Machines
permanent indentation is measured using a light microscope.
E177 Practice for Use of the Terms Precision and Bias in
The length of the long diagonal and the applied force are used
ASTM Test Methods
to calculate the Knoop hardness which represents the material’s
E384 Test Method for Microindentation Hardness of Mate-
resistance to penetration by the Knoop indenter.
rials
E691 Practice for Conducting an Interlaboratory Study to
1.2 The values stated in SI units are to be regarded as
Determine the Precision of a Test Method
standard. No other units of measurement are included in this
IEEE/ASTM SI 10 Standard for Use of the International
standard.
System of Units (SI) (The Modern Metric System)
1.3 Units—When Knoop and Vickers hardness tests were
2.2 European Standard:
developed, the force levels were specified in units of grams-
CEN ENV 843-4 Advanced Technical Ceramics, Monolithic
force (gf) and kilograms-force (kgf). This standard specifies
Ceramics, Mechanical Properties at Room Temperature,
the units of force and length in the International System of
Part 4: Vickers, Knoop, and Rockwell Superficial Hard-
Units (SI); that is, force in newtons (N) and length in mm or
ness Tests
μm. However, because of the historical precedent and contin-
ued common usage, force values in gf and kgf units are
2.3 ISO Standard:
occasionally provided for information. This test method speci-
ISO 9385 Glass and Glass Ceramics—Knoop Hardness Test
fies that Knoop hardness be reported either in units of GPa or
as a dimensionless Knoop hardness number.
3. Terminology
1.4 This standard does not purport to address all of the
3.1 Definitions:
safety concerns, if any, associated with its use. It is the
3.1.1 Knoop hardness number (HK), n—an expression of
responsibility of the user of this standard to establish appro-
hardness obtained by dividing the force applied to the Knoop
priate safety, health, and environmental practices and deter-
indenter by the projected area of the permanent impression
mine the applicability of regulatory limitations prior to use.
made by the indenter.
1.5 This international standard was developed in accor-
3.1.2 Knoop indenter, n—a rhombic-based pyramidal-
dance with internationally recognized principles on standard-
shaped diamond indenter with edge angles of 172° 30' and
ization established in the Decision on Principles for the
130° 00'.
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on
This test method is under the jurisdiction of ASTM Committee C28 on the ASTM website.
Advanced Ceramics and is the direct responsibility of Subcommittee C28.01 on Available from European Committee for Standardization (CEN), 36 rue de
Mechanical Properties and Performance. Stassart, B-1050, Brussels, Belgium, http://www.cenorm.be.
Current edition approved Jan. 1, 2023. Published February 2023. Originally Available from International Organization for Standardization (ISO), 1, ch. de
approved in 1996. Last previous edition approved in 2018 as C1326 – 13 (2018). la Voie-Creuse, Case postale 56, CH-1211, Geneva 20, Switzerland, http://
DOI: 10.1520/C1326-13R23. www.iso.ch.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

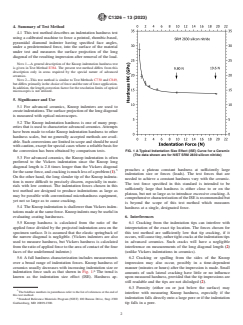

C1326 − 13 (2023)
4. Summary of Test Method
4.1 This test method describes an indentation hardness test
using a calibrated machine to force a pointed, rhombic-based,
pyramidal diamond indenter having specified face angles,
under a predetermined force, into the surface of the material
under test and measures the surface projection of the long
diagonal of the resulting impression after removal of the load.
NOTE 1—A general description of the Knoop indentation hardness test
is given in Test Method E384. The present test method differs from this
description only in areas required by the special nature of advanced
ceramics.
NOTE 2—This test method is similar to Test Methods C730 and C849,
but differs primarily in the choice of force and the rate of force application.
In addition, the length correction factor for the resolution limits of optical
microscopes is not utilized.
5. Significance and Use
5.1 For advanced ceramics, Knoop indenters are used to
create indentations. The surface projection of the long diagonal
is measured with optical microscopes.
5.2 The Knoop indentation hardness is one of many prop-
erties that is used to characterize advanced ceramics. Attempts
have been made to relate Knoop indentation hardness to other
hardness scales, but no generally accepted methods are avail-
able. Such conversions are limited in scope and should be used
with caution, except for special cases where a reliable basis for
FIG. 1 A Typical Indentation Size Effect (ISE) Curve for a Ceramic
the conversion has been obtained by comparison tests.
(The data shown are for NIST SRM 2830 silicon nitride)
5.3 For advanced ceramics, the Knoop indentation is often
preferred to the Vickers indentation since the Knoop long
diagonal length is 2.8 times longer than the Vickers diagonal
proaches a plateau constant hardness at sufficiently large
for the same force, and cracking is much less of a problem (1).
indentation size or forces (loads). The test forces that are
On the other hand, the long slender tip of the Knoop indenta-
needed to achieve a constant hardness vary with the ceramic.
tion is more difficult to precisely discern, especially in mate-
The test force specified in this standard is intended to be
rials with low contrast. The indentation forces chosen in this
sufficiently large that hardness is either close to or on the
test method are designed to produce indentations as large as
plateau, but not so large as to introduce excessive cracking. A
may be possible with conventional microhardness equipment,
comprehensive characterization of the ISE is recommended but
yet not so large as to cause cracking.
is beyond the scope of this test method which measures
5.4 The Knoop indentation is shallower than Vickers inden-
hardness at a single, designated force.
tations made at the same force. Knoop indents may be useful in
evaluating coating hardnesses. 6. Interferences
5.5 Knoop hardness is calculated from the ratio of the 6.1 Cracking from the indentation tips can interfere with
applied force divided by the projected indentation area on the interpretation of the exact tip location. The forces chosen for
specimen surface. It is assumed that the elastic springback of this test method are sufficiently low that tip cracking, if it
the narrow diagonal is negligible. (Vickers indenters are also occurs, will cause tiny, rather tight cracks at the indentation tips
used to measure hardness, but Vickers hardness is calculated in advanced ceramics. Such cracks will have a negligible
from the ratio of applied force to the area of contact of the four interference on measurements of the long diagonal length (2)
faces of the undeformed indenter.) (unlike Vickers indentations in ceramics).
5.6 A full hardness characterization includes measurements 6.2 Cracking or spalling from the sides of the Knoop
over a broad range of indentation forces. Knoop hardness of impression may also occur, possibly in a time-dependent
ceramics usually decreases with increasing indentation size or manner (minutes or hours) after the impression is made. Small
indentation force such as that shown in Fig. 1. The trend is amounts of such lateral cracking have little or no influence
known as the indentation size effect (ISE). Hardness ap-
upon measured hardness, provided that the tip impressions are
still readable and the tips are not dislodged (2).
6.3 Porosity (either on or just below the surface) may
The boldface numbers in parentheses refer to the list of references at the end of
interfere with measuring Knoop hardness, especially if the
this test method.
indentation falls directly onto a large pore or if the indentation
Standard Reference Materials Program (NIST) 100 Bureau Drive, Stop 2300
Gaithersburg, MD 20899-2300. tip falls in a pore.
C1326 − 13 (2023)

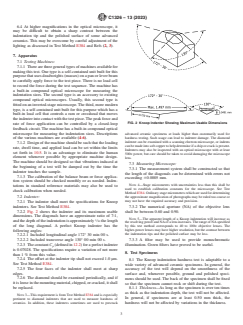

6.4 At higher magnifications in the optical microscope, it
may be difficult to obtain a sharp contrast between the
indentation tip and the polished surface of some advanced
ceramics. This may be overcome by careful adjustment of the
lighting as discussed in Test Method E384 and Refs (2, 3).
7. Apparatus
7.1 Testing Machines:
7.1.1 There are three general types of machines available for
making this test. One type is a self-contained unit built for this
purpose that uses deadweights (masses) on a pan or lever beam
to carefully apply force to the test piece. There is no load cell
to record the force during the test sequence. The machine has
a built-in compound optical microscope for measuring the
indentation sizes. The second type is an accessory to existing
compound optical microscopes. Usually, this second type is
fitted on an inverted-stage microscope. The third, more modern
type, is a self-contained unit built for this purpose which has a
built-in load cell that controls a ram or crosshead that moves
the indenter into contact with the test piece. The peak force and
FIG. 2 Knoop Indenter Showing Maximum Usable Dimensions
rate of force application can be controlled by a closed-loop
feedback circuit. The machine has a built-in compound optical
microscope for measuring the indentation sizes. Descriptions
advanced ceramic specimens at loads higher than customarily used for
hardness testing. Such usage can lead to indenter damage. The diamond
of the various machines are available (4-6).
indenter can be examined with a scanning electron microscope, or indents
7.1.2 Design of the machine should be such that the loading
can be made into soft copper to help determine if a chip or crack is present.
rate, dwell time, and applied load can be set within the limits
Indenters may also be inspected with an optical microscope with at least
set forth in 10.5. It is an advantage to eliminate the human
500× power, but care should be taken to avoid damaging the microscope
element whenever possible by appropriate machine design.
lens.
The machine should be designed so that vibrations induced at
7.3 Measuring Microscope:
the beginning of a test will be damped out by the time the
7.3.1 The measurement system shall be constructed so that
indenter touches the sample.
the length of the diagonals can be determined with errors not
7.1.3 The calibration of the balance beam or force applica-
exceeding 60.0005 mm.
tion system should be checked monthly or as needed. Inden-
NOTE 4—Stage micrometers with uncertainties less than this shall be
tations in standard reference materials may also be used to
used to establish calibration constants for the microscope. See Test
check calibration when needed.
Method E384. Ordinary stage micrometers which are used for determining
7.2 Indenter: the approximate magnification of photographs may be ruled too coarse or
may not have the required accuracy and precision.
7.2.1 The indenter shall meet the specifications for Knoop
indenters. See Test Method E384.
7.3.2 The numerical aperture (NA) of the objective lens
7.2.2 Fig. 2 shows the indenter and its maximum usable shall be between 0.60 and 0.90.
dimensions. The diagonals have an approximate ratio of 7:1,
NOTE 5—The apparent length of a Knoop indentation will increase as
and the depth of the indentation is approximately ⁄30 the length
the resolving power and NA of a lens increases. The range of NA specified
of the long diagonal. A perfect Knoop indenter has the
by this test method corresponds to 40 to 100× objective lenses. The
higher-power lenses may have higher resolution, but the contrast between
following angles:
the indentation tips and the polished surface may be less.
7.2.2.1 Included longitudinal angle 172° 30 min 00 s.
7.2.2.2 Included transverse angle 130° 00 min 00 s. 7.3.3 A filter may be used to provide monochromatic
7.2.3 The constant C (defined in 12.2) for a perfect indenter illumination. Green filters have proved to be useful.
p
is 0.07028. The specifications require a variation of not more
8. Test Specimens
than 1 % from this value.
7.2.4 The offset at the indenter tip shall not exceed 1.0 μm.
8.1 The Knoop indentation hardness test is adaptable to a
See Test Method E384.
wide variety of advanced ceramic specimens. In general, the
7.2.5 The four faces of the indenter shall meet at sharp
accuracy of the test will depend on the smoothness of the
edges.
surface and, whenever possible, ground and polished speci-
7.2.6 The diamond should be examined periodically, and if
mens should be used. The back of the specimen shall be fixed
it is loose in the mounting material, chipped, or cracked, it shall
so that the specimen cannot rock or shift during the test.
be replaced.
8.1.1 Thickness—As long as the specimen is over ten times
as thick as the indentation depth, the test will not be affected.
NOTE 3—This requirement is from Test Method E384 and is especially
In general, if specimens are at least 0.50 mm thick, the
pertinent to diamond indenters that are used to measure hardness of
ceramics. In addition, these indenters sometimes are used to precrack hardness will not b
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
