ASTM C1359-18e1

(Test Method)

Standard Test Method for Monotonic Tensile Strength Testing of Continuous Fiber-Reinforced Advanced Ceramics With Solid Rectangular Cross Section Test Specimens at Elevated Temperatures

Standard Test Method for Monotonic Tensile Strength Testing of Continuous Fiber-Reinforced Advanced Ceramics With Solid Rectangular Cross Section Test Specimens at Elevated Temperatures

SIGNIFICANCE AND USE
4.1 This test method may be used for material development, material comparison, quality assurance, characterization, reliability assessment, and design data generation.
4.2 Continuous fiber-reinforced ceramic matrix composites generally characterized by crystalline matrices and ceramic fiber reinforcements are candidate materials for structural applications requiring high degrees of wear and corrosion resistance, and elevated-temperature inherent damage tolerance (that is, toughness). In addition, continuous fiber-reinforced glass (amorphous) matrix composites are candidate materials for similar but possibly less demanding applications. Although flexural test methods are commonly used to evaluate strengths of monolithic advanced ceramics, the nonuniform stress distribution of the flexure test specimen, in addition to dissimilar mechanical behavior in tension and compression for CFCCs, leads to ambiguity of interpretation of strength results obtained from flexure tests for CFCCs. Uniaxially loaded tensile strength tests provide information on mechanical behavior and strength for a uniformly stressed material.
4.3 Unlike monolithic advanced ceramics that fracture catastrophically from a single dominant flaw, CFCCs generally experience “graceful” (that is, non-catastrophic, ductile-like stress-strain behavior) fracture from a cumulative damage process. Therefore, the volume of material subjected to a uniform tensile stress for a single uniaxially loaded tensile test may not be as significant a factor in determining the ultimate strengths of CFCCs. However, the need to test a statistically significant number of tensile test specimens is not obviated. Therefore, because of the probabilistic nature of the strengths of the brittle fibers and matrices of CFCCs, a sufficient number of test specimens at each testing condition is required for statistical analysis and design. Studies to determine the influence of test specimen volume or surface area on strength distributi...
SCOPE
1.1 This test method covers the determination of tensile strength, including stress-strain behavior, under monotonic uniaxial loading of continuous fiber-reinforced advanced ceramics at elevated temperatures. This test method addresses, but is not restricted to, various suggested test specimen geometries as listed in the appendixes. In addition, test specimen fabrication methods, testing modes (force, displacement, or strain control), testing rates (force rate, stress rate, displacement rate, or strain rate), allowable bending, temperature control, temperature gradients, and data collection and reporting procedures are addressed. Tensile strength as used in this test method refers to the tensile strength obtained under monotonic uniaxial loading, where monotonic refers to a continuous nonstop test rate with no reversals from test initiation to final fracture.
1.2 This test method applies primarily to advanced ceramic matrix composites with continuous fiber reinforcement: unidirectional (1D), bidirectional (2D), and tridirectional (3D) or other multi-directional reinforcements. In addition, this test method may also be used with glass (amorphous) matrix composites with 1D, 2D, 3D, and other multi-directional continuous fiber reinforcements. This test method does not directly address discontinuous fiber-reinforced, whisker-reinforced, or particulate-reinforced ceramics, although the test methods detailed here may be equally applicable to these composites.
1.3 The values stated in SI units are to be regarded as the standard and are in accordance with IEEE/ASTM SI 10.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Refer to Section 7 for specific precautions.
1.5 ...

General Information

Status
Published
Publication Date
31-Jul-2018
ICS
81.060.30 - Advanced ceramics
Technical Committee
C28 - Advanced Ceramics
Drafting Committee
C28.07 - Ceramic Matrix Composites
Current Stage
Ref Project

Relations

Replaces
ASTM C1359-18 - Standard Test Method for Monotonic Tensile Strength Testing of Continuous Fiber-Reinforced Advanced Ceramics with Solid Rectangular Cross Section Test Specimens at Elevated Temperatures
Effective Date
01-Aug-2018
Refers
ASTM E4-14 - Standard Practices for Force Verification of Testing Machines
Effective Date
01-Jun-2014
Refers
ASTM C1145-19 - Standard Terminology of Advanced Ceramics
Effective Date
01-Jul-2019
Refers
ASTM D3878-19 - Standard Terminology for Composite Materials
Effective Date
15-Apr-2019
Refers
ASTM D3878-19a - Standard Terminology for Composite Materials
Effective Date
15-Oct-2019
Refers
ASTM D3878-15 - Standard Terminology for Composite Materials
Effective Date
01-Jul-2015
Refers
ASTM D6856/D6856M-03(2016) - Standard Guide for Testing Fabric-Reinforced “Textile” Composite Materials
Effective Date
01-Sep-2016
Refers
ASTM D3878-16 - Standard Terminology for Composite Materials
Effective Date
01-Aug-2016
Refers
ASTM D3878-18 - Standard Terminology for Composite Materials
Effective Date
01-Apr-2018
Referred By
ASTM C1793-15 - Standard Guide for Development of Specifications for Fiber Reinforced Silicon Carbide-Silicon Carbide Composite Structures for Nuclear Applications
Effective Date
01-Aug-2018
Referred By
ASTM C1869-18(2023) - Standard Test Method for Open-Hole Tensile Strength of Fiber-Reinforced Advanced Ceramic Composites
Effective Date
01-Aug-2018
Referred By
ASTM C1783-15 - Standard Guide for Development of Specifications for Fiber Reinforced Carbon-Carbon Composite Structures for Nuclear Applications
Effective Date
01-Aug-2018

Buy Standard

ASTM C1359-18e1 - Standard Test Method for Monotonic Tensile Strength Testing of Continuous Fiber-Reinforced Advanced Ceramics With Solid Rectangular Cross Section Test Specimens at Elevated TemperaturesASTM C1359-18e1 - Standard Test Method for Monotonic Tensile Strength Testing of Continuous Fiber-Reinforced Advanced Ceramics With Solid Rectangular Cross Section Test Specimens at Elevated Temperatures
PreviousNext
Standard
ASTM C1359-18e1 - Standard Test Method for Monotonic Tensile Strength Testing of Continuous Fiber-Reinforced Advanced Ceramics With Solid Rectangular Cross Section Test Specimens at Elevated Temperatures
English language
30 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
´1

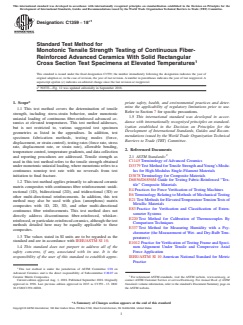

Designation: C1359 − 18
Standard Test Method for
Monotonic Tensile Strength Testing of Continuous Fiber-
Reinforced Advanced Ceramics With Solid Rectangular
1
Cross Section Test Specimens at Elevated Temperatures
This standard is issued under the fixed designation C1359; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1
ε NOTE—Fig. 12 was updated editorially in September 2018.
1. Scope* priate safety, health, and environmental practices and deter-
mine the applicability of regulatory limitations prior to use.
1.1 This test method covers the determination of tensile
Refer to Section 7 for specific precautions.
strength, including stress-strain behavior, under monotonic
1.5 This international standard was developed in accor-
uniaxial loading of continuous fiber-reinforced advanced ce-
dance with internationally recognized principles on standard-
ramics at elevated temperatures. This test method addresses,
ization established in the Decision on Principles for the
but is not restricted to, various suggested test specimen
Development of International Standards, Guides and Recom-
geometries as listed in the appendixes. In addition, test
mendations issued by the World Trade Organization Technical
specimen fabrication methods, testing modes (force,
Barriers to Trade (TBT) Committee.
displacement, or strain control), testing rates (force rate, stress
rate, displacement rate, or strain rate), allowable bending,
2. Referenced Documents
temperature control, temperature gradients, and data collection
2
and reporting procedures are addressed. Tensile strength as 2.1 ASTM Standards:
C1145Terminology of Advanced Ceramics
used in this test method refers to the tensile strength obtained
undermonotonicuniaxialloading,wheremonotonicreferstoa D3379TestMethodforTensileStrengthandYoung’sModu-
lus for High-Modulus Single-Filament Materials
continuous nonstop test rate with no reversals from test
initiation to final fracture. D3878Terminology for Composite Materials
D6856/D6856MGuide for Testing Fabric-Reinforced “Tex-
1.2 This test method applies primarily to advanced ceramic
tile” Composite Materials
matrix composites with continuous fiber reinforcement: unidi-
E4Practices for Force Verification of Testing Machines
rectional (1D), bidirectional (2D), and tridirectional (3D) or
E6Terminology Relating to Methods of MechanicalTesting
other multi-directional reinforcements. In addition, this test
E21TestMethodsforElevatedTemperatureTensionTestsof
method may also be used with glass (amorphous) matrix
Metallic Materials
composites with 1D, 2D, 3D, and other multi-directional
E83Practice for Verification and Classification of Exten-
continuous fiber reinforcements. This test method does not
someter Systems
directly address discontinuous fiber-reinforced, whisker-
E220Test Method for Calibration of Thermocouples By
reinforced,orparticulate-reinforcedceramics,althoughthetest
Comparison Techniques
methods detailed here may be equally applicable to these
E337Test Method for Measuring Humidity with a Psy-
composites.
chrometer (the Measurement of Wet- and Dry-Bulb Tem-
1.3 The values stated in SI units are to be regarded as the
peratures)
standard and are in accordance with IEEE/ASTM SI 10.
E1012Practice for Verification of Testing Frame and Speci-
1.4 This standard does not purport to address all of the men Alignment Under Tensile and Compressive Axial
safety concerns, if any, associated with its use. It is the Force Application
responsibility of the user of this standard to establish appro- IEEE/ASTM SI 10American National Standard for Metric
Practice
1
This test method is under the jurisdiction of ASTM Committee C28 on
Advanced Ceramics and is the direct responsibility of Subcommittee C28.07 on
2
Ceramic Matrix Composites. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Aug. 1, 2018. Published September 2018. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 1996. Last previous edition approved in 2013 as C1359–13. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/C1359-18E01. the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
´1
C1359 − 18
3.
...
