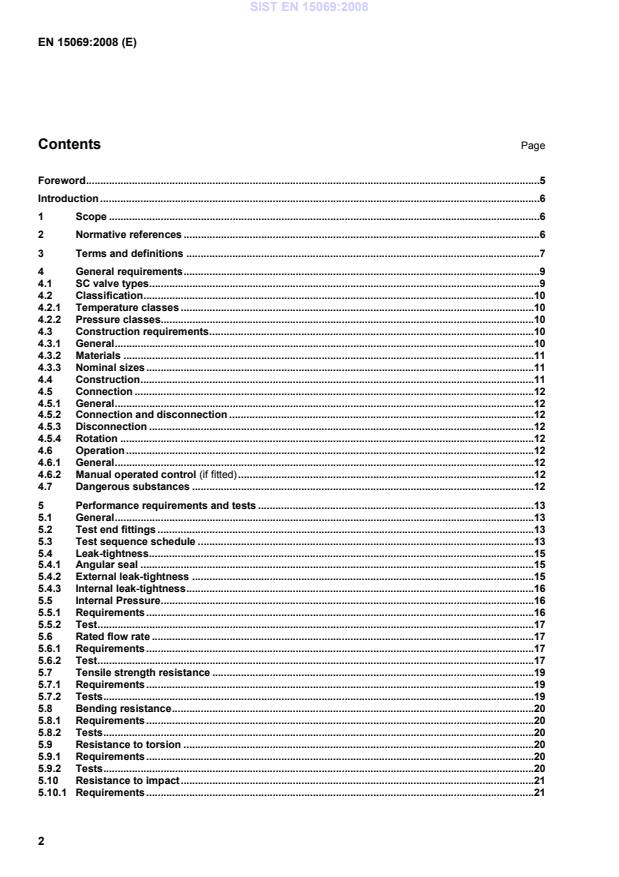

EN 15069:2008
(Main)Safety gas connection valves for metal hose assemblies used for the connection of domestic appliances using gaseous fuel
Safety gas connection valves for metal hose assemblies used for the connection of domestic appliances using gaseous fuel
These valves are suitable for connection of the fixed gas supply system to domestic appliances inside or outside a dwelling using 2nd or 3rd Family gases and at a pressure of up to and including 0,5 bar.
These valves are designed for the use with either movable appliances or for the connection of fixed appliances.
Sicherheitsgasanschlussarmaturen für den Anschluss von Gasgeräten mit Gasschlauchleitungen in der Hausinstallation für brennbare Gase
Diese Armaturen sind für die Verbindung von fest installierten Gaszuführungsleitungen an Haushalts Gas¬geräte im Inneren oder außerhalb von Wohnungen für Gase der 2. und 3. Familie und bei einem Gasdruck bis zu 0,5 bar geeignet.
Diese Armaturen sind zum Gebrauch mit entweder beweglichen Geräten oder für den Anschluss von fest installierten Geräten ausgelegt.
Dispositifs de raccordement de sécurité pour appareils à usage domestique utilisant les combustibles gazeux et alimentés par tuyau métallique onduleux
Ces dispositifs de raccordement de sécurité sont destinés aux raccordements d'appareils à usage domestique utilisant le gaz à l’intérieur ou à l’extérieur d’une habitation utilisant des gaz de la deuxième ou troisième famille de gaz et à une pression inférieure ou égale à 0,5 bar.
Ces dispositifs de raccordement de sécurité sont conçus pour être utilisés avec des appareils mobiles ou fixes.
Varnostni plinski ventili za kovinske cevne priključke za priključitev gospodinjskih plinskih aparatov
General Information
- Status
- Published
- Publication Date
- 18-Mar-2008
- Withdrawal Date
- 30-Dec-2009
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 18-Nov-2020
- Completion Date
- 23-Sep-2025
- Directive
- 89/106/EEC - Construction products
Overview
EN 15069:2008 (CEN) specifies requirements and test methods for safety gas connection valves (SC valves) used on metal hose assemblies for connecting domestic appliances to the fixed gas supply. The standard covers valves for use with 2nd and 3rd family gases at pressures up to and including 0.5 bar, and addresses both movable and fixed domestic appliances. EN 15069 defines construction, performance, testing and conformity assessment necessary to ensure safe, reliable gas connections in household installations.
Key topics and technical requirements
The standard addresses the full product lifecycle from design to conformity, including:
- Scope & classification
- Valve types and temperature and pressure classes relevant to domestic gas applications.
- Construction & materials
- Requirements for materials, nominal sizes, connections and operation (including manual controls and quick-connect designs).
- Performance tests
- Comprehensive test schedule covering: leak-tightness (internal, external, angular), internal pressure testing, rated flow-rate, tensile, bending and torsion resistance, and impact.
- Durability & environmental resistance
- Durability cycles for manual controls and connection/disconnection, thermal ageing, high/low temperature resistance, resistance to lubricants and corrosion.
- Safety-specific checks
- Overflow and stop resistance, electrical continuity, reaction to fire and resistance to gas.
- Conformity & quality control
- Type testing (initial and subsequent), Factory Production Control (FPC) requirements, installation instructions, and packaging.
- Informative annexes
- Design guidance for connections to pipework/portable gas bottles, and test end fitting details (Annex A, B) plus a clause-to-directive mapping (Annex ZA).
Applications
EN 15069 is directly applicable to:
- Manufacturers of safety gas connection valves and metal hose assemblies designing products for domestic gas appliances.
- Test laboratories performing type and routine tests (leakage, pressure, mechanical strength).
- Certification bodies and notified bodies assessing conformity to European requirements.
- Gas installers and specifiers selecting compliant connection valves for cookers, heaters and other household gas appliances.
- Regulators and safety authorities referencing harmonized product requirements for consumer safety.
Who should use this standard
- Product designers and R&D teams for gas fittings
- Quality managers implementing Factory Production Control (FPC)
- Test engineers and conformity assessors
- Installers and procurement officers sourcing compliant valves
Related standards
- Relevant ICS classifications: 23.060.01 (Valves in general) and 91.140.40 (Gas supply systems).
- Consult other CEN/CENELEC gas appliance and pipeline standards when integrating EN 15069 into a broader compliance strategy.
Keywords: EN 15069, safety gas connection valves, metal hose assemblies, domestic appliances, gas supply systems, leak-tightness, conformity assessment.
Frequently Asked Questions
EN 15069:2008 is a standard published by the European Committee for Standardization (CEN). Its full title is "Safety gas connection valves for metal hose assemblies used for the connection of domestic appliances using gaseous fuel". This standard covers: These valves are suitable for connection of the fixed gas supply system to domestic appliances inside or outside a dwelling using 2nd or 3rd Family gases and at a pressure of up to and including 0,5 bar. These valves are designed for the use with either movable appliances or for the connection of fixed appliances.
These valves are suitable for connection of the fixed gas supply system to domestic appliances inside or outside a dwelling using 2nd or 3rd Family gases and at a pressure of up to and including 0,5 bar. These valves are designed for the use with either movable appliances or for the connection of fixed appliances.
EN 15069:2008 is classified under the following ICS (International Classification for Standards) categories: 23.060.40 - Pressure regulators; 91.140.40 - Gas supply systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 15069:2008 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/131. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 15069:2008 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2008
9DUQRVWQLSOLQVNLYHQWLOL]DNRYLQVNHFHYQHSULNOMXþNH]DSULNOMXþLWHYJRVSRGLQMVNLK
SOLQVNLKDSDUDWRY
Safety gas connection valves for metal hose assemblies used for the connection of
domestic appliances using gaseous fuel
Sicherheitsgasanschlussarmaturen für den Anschluss von Gasgeräten mit
Gasschlauchleitungen in der Hausinstallation für brennbare Gase
Dispositifs de raccordement de sécurité pour appareils a usage domestique utilisant les
combustibles gazeux et alimentés par tuyau métallique onduleux
Ta slovenski standard je istoveten z: EN 15069:2008
ICS:
23.060.01 Ventili na splošno Valves in general
91.140.40 Sistemi za oskrbo s plinom Gas supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 15069
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2008
ICS 23.060.40; 91.140.40
English Version
Safety gas connection valves for metal hose assemblies used
for the connection of domestic appliances using gaseous fuel
Dispositifs de raccordement de sécurité pour appareils à Sicherheitsgasanschlussarmaturen für den Anschluss von
usage domestique utilisant les combustibles gazeux et Gasgeräten mit Gasschlauchleitungen in der
alimentés par tuyau métallique onduleux Hausinstallation für brennbare Gase
This European Standard was approved by CEN on 2 February 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2008 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15069:2008: E
worldwide for CEN national Members.
Contents Page
Foreword.5
Introduction .6
1 Scope .6
2 Normative references .6
3 Terms and definitions .7
4 General requirements.9
4.1 SC valve types.9
4.2 Classification.10
4.2.1 Temperature classes .10
4.2.2 Pressure classes.10
4.3 Construction requirements.10
4.3.1 General.10
4.3.2 Materials .11
4.3.3 Nominal sizes.11
4.4 Construction.11
4.5 Connection .12
4.5.1 General.12
4.5.2 Connection and disconnection .12
4.5.3 Disconnection .12
4.5.4 Rotation .12
4.6 Operation .12
4.6.1 General.12
4.6.2 Manual operated control (if fitted).12
4.7 Dangerous substances .12
5 Performance requirements and tests .13
5.1 General.13
5.2 Test end fittings .13
5.3 Test sequence schedule .13
5.4 Leak-tightness.15
5.4.1 Angular seal .15
5.4.2 External leak-tightness .15
5.4.3 Internal leak-tightness.16
5.5 Internal Pressure.16
5.5.1 Requirements.16
5.5.2 Test.17
5.6 Rated flow rate .17
5.6.1 Requirements.17
5.6.2 Test.17
5.7 Tensile strength resistance .19
5.7.1 Requirements.19
5.7.2 Tests.19
5.8 Bending resistance.20
5.8.1 Requirements.20
5.8.2 Tests.20
5.9 Resistance to torsion .20
5.9.1 Requirements.20
5.9.2 Tests.20
5.10 Resistance to impact.21
5.10.1 Requirements.21
5.10.2 Tests .21
5.11 Durability .22
5.11.1 Durability of the manually operated control SC valve.22
5.11.2 Durability of connection and disconnection .23
5.11.3 Rotation durability of the SC valve outlet.23
5.11.4 Temperature durability - Thermal ageing.23
5.12 High and low temperature resistance .24
5.12.1 Low temperature resistance.24
5.12.2 High temperature resistance (only for SC valve without TSD).26
5.12.3 Leak-tightness during thermal load (only for SC valve with TSD) .26
5.13 Resistance to lubricants.26
5.13.1 General .26
5.13.2 Requirement.26
5.13.3 Test .26
5.14 Reaction to fire .27
5.14.1 Requirement.27
5.14.2 Testing and assessment methods.27
5.15 Resistance to gas .27
5.15.1 General .27
5.15.2 Requirement.27
5.15.3 Test .27
5.16 Corrosion resistance.28
5.16.1 Requirement.28
5.16.2 Test .28
5.17 Operating torque for a manually operated control SC valve .28
5.17.1 Requirement.28
5.17.2 Test .28
5.18 Operating strength for a safety quick connection SC valve.29
5.18.1 Requirement.29
5.18.2 Test .29
5.19 Stop resistance.29
5.19.1 Requirement.29
5.19.2 Test .30
5.20 SC valves type 2 and 4.30
5.20.1 Leak-tightness of the OSD.30
5.20.2 Overflow safety rate .30
5.20.3 Overflow safety durability.31
5.20.4 Normal flow durability.31
5.21 Electrical continuity .32
5.21.1 Requirement.32
5.21.2 Test .32
5.22 Leak-tightness of the system with non-metal components.32
5.22.1 Requirement.32
5.22.2 Test .32
5.23 SC valves type 3 and 4.33
5.23.1 Reaction to temperature .33
6 Evaluation of conformity .33
6.1 General .33
6.2 Type testing .33
6.2.1 Initial type testing (ITT) .33
6.2.2 Subsequent type testing.34
6.3 Factory production control (FPC).34
6.3.1 General .34
6.3.2 FPC requirements for all manufacturers.34
6.3.3 Manufacturer-specific FPC system requirements .36
6.4 Installation instructions.37
6.5 Packaging.38
Annex A (informative) SC valve and hose fitting design requirements for connection to the gas
supply pipework or to the pressure reduction device of portable gas bottles .39
Annex B (informative) Test end fitting .58
Annex ZA (informative) Clauses of this European Standard addressing the provision of the EU
Construction Products Directive.59
ZA.1 Scope and relevant characteristics .59
ZA.2 Procedure for attestation of conformity of SC valves .60
ZA.2.1 System of attestation of conformity .60
ZA.2.2 EC Certificate and Declaration of conformity.63
ZA.3 CE marking and labeling.64
Bibliography .66
Foreword
This document (EN 15069:2008) has been prepared by Technical Committee CEN/TC 236 “Non industrial
manually operated shut-off valves for gas and particular combinations valves-other products”, the secretariat
of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by September 2008, and conflicting national standards shall be
withdrawn at the latest by December 2009.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive 89/106/EEC.
For relationship with EU Directive 89/106/EEC, see informative Annex ZA, which is an integral part of this
document.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
Introduction
This European Standard contains product characteristics relating to the safety of persons, animal and property
and the protection of their environment.
The objective of this European Standard is to achieve safe operation of connection valves by specifying the
requirements of performance, materials and test methods.
Safety gas connection valves are used internally to connect gas appliances including movable gas appliances
and externally to connect appliances such as grills, gas radiation heating, lights etc.
Valves manufactured to this European Standard are designed to be used with compatible hose assemblies
conforming to EN 14800 and prEN 15070:2007.
Attention is drawn to the need for careful quality control as given in EN ISO 9001:2000.
This European Standard is based on a balance of requirements given by the major national European Gas
Authorities for valves and metal hose assemblies for the connection of domestic gas appliances.
It reflects the recognised practise and technology of products approved today as well as the present culture of
usage by the consumer.
The introduction of new technologies supported by National Gas Authorities may require the adoption of this
European Standard regarding individual requirements and tests.
1 Scope
These valves are suitable for connection of the fixed gas supply system to domestic appliances inside or
nd rd
outside a dwelling using 2 or 3 Family gases and at a pressure of up to and including 0,5 bar.
These valves are designed for the use with either movable appliances or for the connection of fixed
appliances.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 377, Lubricants for applications in appliances and associated controls using combustible gases except
those designed for use in industrial processes
EN 437:2003, Test gases — Test pressures — Appliance categories
EN 549, Rubber materials for seals and diaphragms for gas appliances and gas equipment
EN 1503-1, Valves — Materials for bodies, bonnets and covers — Part 1: Steels specified in European
Standards
EN 1503-3, Valves — Materials for bodies, bonnets and covers — Part 3: Cast irons specified in European
Standards
EN 1503-4, Valves — Materials for bodies, bonnets and covers — Part 4: Copper alloys specified in European
Standards
EN 1775:2007, Gas supply — Gas pipework for buildings — Maximum operating pressure less than or equal
to 5 bar — Functional recommendations
EN 10222 (all parts), Steel forgings for pressure purposes
EN 10277-3, Bright steel products — Technical delivery conditions — Part 3: Free-cutting steels
EN 13501-1:2007, Fire classification of construction products and building elements — Part 1: Classification
using data from reaction to fire tests
EN 60335-1:2002, Household and similar electrical appliances — Safety — Part 1: General requirements
(IEC 60335-1:2001, modified)
EN ISO 9001:2000, Quality management systems — Requirements (ISO 9001:2000)
EN ISO 9227, Corrosion tests in artificial atmospheres — Salt spray tests (ISO 9227:2006)
EN ISO 11925-2, Reaction to fire tests — Ignitability of building products subjected to direct impingement of
flame — Part 2: Single-flame source test (ISO 11925-2:2002)
ISO 1817:2005, Rubber, vulcanized — Determination of the effect of liquids
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1 Connections
3.1.1
safety connection valve
component which permits or interrupts the flow of gas by the movement of a closure device which is operated
by the connection or disconnection of a metal hose assembly where the valve inlet is connected to the gas
installation pipework and whose outlet connects mechanically to the metal hose assembly and prevents any
gas flow if the hose assembly is disconnected.
In addition it can incorporate an overflow safety device or a thermal safety device.
It also can be combined with a manually operated valve
3.1.2
safety quick connection
end fitting consisting of two parts that is designed to permit quick connection and disconnection without tools,
the device is leak-tight such that it prevents the release of gas from the upstream pipe work when
disconnected and is designed to prevent accidental disconnection and incorrect operation
3.1.3
threaded connection
connection which is gas tight achieved either by metal to metal contact in the thread or by assistance of a
gasket. This connection can only be assembled and disassembled with an appropriate tool
3.2
SC valve
abbreviation used in this European Standard to denote a safety connection valve as defined in 3.1
3.3
domestic appliance
appliance intended for use by individual householders inside or outside a dwelling
3.4
standard reference conditions
conditions to which all measured values are corrected (temperature: 15 °C, absolute pressure 101,325 Pa, dry
air)
3.5
SC valve inlet
part of the SC valve which is connected to the gas installation pipe
3.6
SC valve outlet
part of the SC valve which is connected to the assembly
3.7 Leak-tightness
3.7.1
external leak-tightness
leak-tightness of a gas carrying component with respect to atmosphere. Distinction shall be made between:
external leak-tightness with the SC valve connected;
external leak-tightness with the SC valve disconnected
3.7.2
internal leak-tightness
leak-tightness between the inlet and outlet of the manually operated device of the SC valve (if it exists), with
the closure device moved to the closed position
3.8 Pressures
3.8.1
inlet pressure
pressure at the inlet of the SC valve
3.8.2
outlet pressure
pressure at the outlet of the SC valve
3.8.3
maximum operating pressure (MOP)
maximum pressure at which a SC valve can be operated continuously, under normal operating conditions
3.8.4
test pressure
pressure to be applied during the test
3.8.5
pressure drop
difference between the inlet and the outlet pressures
3.9 Flow
3.9.1
rated flow rate
flow rate of air under standard reference conditions, at a given pressure drop
3.9.2
overflow safety device (OSD)
safety device which automatically interrupts the flow of gas if it exceeds a preset value
3.9.3
overflow safety level
flow rate of air at which the overflow safety device interrupts the flow of gas
3.10 Temperatures
3.10.1
maximum operating temperature (MOT)
maximum temperature at which a SC valve can be operated continuously, under normal operating conditions
3.10.2
minimum operating temperature (mOT)
lowest temperature at which a SC valve can be operated continuously, under normal operating conditions
3.10.3
thermal safety device (TSD)
device that automatically shuts off the flow of gas when the temperature exceeds a preset value
3.11
closure device
movable part of the SC valve which shuts off the gas flow
3.12
manually operated control
mechanical independent device that shuts off the flow of gas under a voluntary action
3.13
screw-in connector
end fitting consisting of two parts that is designed to permit screw in connection and disconnection without
tools, the device is leak-tight such that it prevents the release of gas from the upstream pipe work when
disconnected and is designed to prevent accidental disconnection and incorrect operation
3.14
gas
term gas relates to a second or third family gas as referred to in EN 437:2003, Table 1. These gases are
commonly referred to as natural gases or liquefied petroleum gases (LPG)
4 General requirements
4.1 SC valve types
The SC valve is designed to have a combination of elements as shown in Figure 1.
Type 1 Type 2 Type 3 Type 4
Inlet Inlet Inlet Inlet
Outlet OSD TSD TSD
Outlet Outlet OSD
Outlet
Figure 1 — SC valve – Combination of elements and their sequence
No other combinations and sequence of elements as shown in Figure 1 shall be in conformity to this European
Standard.
4.2 Classification
4.2.1 Temperature classes
SC valves shall be divided into two temperature classes as follows:
Table 1 — SC valve temperature classes
Class Temperature range (°C)
T1 –20 to 60
T2 –40 to 60
4.2.2 Pressure classes
SC valves shall be divided into three pressure classes as follows:
Table 2 — SC valve pressure classes
Class MOP (Pa) MOP (bar)
P1 5 000 0,05
P2 5 0,2
0,2 × 10
P3 0,5
0,5 × 10
4.3 Construction requirements
4.3.1 General
The SC valve shall be constructed and assembled in such a way that its operating characteristics can not be
altered under the normal operating conditions of installation and use.
If it is possible after disconnection of the hose for foreign bodies to enter the SC valve and to alter its
operation the SC valve shall be provided with a protection device.
NOTE The SC valve can be protruding, embedded or semi-embedded in its support.
An overflow safety device, if fitted, shall comply with the requirements of 5.20.
4.3.2 Materials
The parts of the SC valve in contact with gas or the surrounding atmosphere, shall be manufactured from
corrosion resistant materials, or shall be suitably protected to withstand the corrosion resistance tests in 5.16.
The manufacturer shall provide a warning that if the SC valve is to be built into a wall it shall be protected from
its surroundings by appropriate means.
The parts of the housing which separate a gas-carrying compartment from the atmosphere shall be
manufactured from one of the following metals:
copper alloy excluding aluminium-bronze; according to EN 1503-4;
ductile cast iron excluding laminar cast iron; according to EN 1503-3;
forged steel and cast steel; according to EN 10222, EN 1503-1 or EN 10277-3;
austenitic stainless steel.
End fittings and non-permanently attached parts, whether surface finished or not, shall be manufactured from
stainless steel, or from copper alloys containing at least 57 % copper and up to a maximum permitted 3,5 %
lead.
Where there can be risk of stress corrosion cracking, any threaded parts manufactured from the above copper
alloys shall be stress relieved.
Springs and other moving parts shall be manufactured from corrosion resistant material or shall be coated to
protect against corrosion and shall be capable of retaining their protective coating despite any movement
resulting from the operation of the SC valve.
All markings shall be durable and resistant to atmospheric conditions. Labels and their markings shall neither
deteriorate nor lift or become unreadable by humidity and temperature for a reasonably economic working life.
Non-metal components and aluminium may be used in an overflow safety device directly in contact with gas
provided that in the event of a fracture of this part not more than 30 dm /h of air can escape at the MOP.
Rubber seals shall conform to EN 549.
Lubricants shall conform to EN 377.
4.3.3 Nominal sizes
The nominal size of SC valve shall be designated DN 8 and DN 12 and shall be determined by the flow rate
requirements given in 5.6. For the purpose of this standard DN 10 and DN 15 fittings shown in Annex A shall
be considered as DN 8 and DN 12 respectively.
4.4 Construction
All SC valve components, when under visual examination shall be clean and free from burrs and shall have no
sharp edges and corners which could cause damage, injury or incorrect operation.
SC valves shall be leak-tight and maintenance free. Seals for moving parts, which separate gas ways from the
atmosphere, shall maintain their original leak-tightness according to 5.4 without any manual adjustment.
It shall not be possible to interfere with the sealing device inside a SC valve and the OSD, if fitted. This
requirement can be evidenced by visual examination and shall apply both when the SC valve is connected
and when the SC valve is disconnected.
If a compression spring is used, the two end-faces of the spring shall be parallel and perpendicular to the axis
of the spring. The end coils of a spring shall not damage their mating faces.
The wall thickness from any gas way to atmosphere or to holes connected to the atmosphere, shall not be
less than 1 mm. Holes for screw, pins etc., which are used for the assembly of parts and for mounting, shall
not provide any leak path between gas ways and the atmosphere. This requirement shall be verified by
dimensional metrology.
4.5 Connection
4.5.1 General
The manufacturer shall declare the type of connection used and provide the necessary connection details as
part of the installation instructions in 6.4.
NOTE Annex A provides information on local and/or national regulations for connection types.
4.5.2 Connection and disconnection
The SC valve shall be designed such that when the hose is connected or disconnected, there shall be no
intermediate position in which leaks may occur.
4.5.3 Disconnection
After disconnection the SC valve shall automatically shut-off the gas flow as required in 5.4.2.
4.5.4 Rotation
In cases where rotation of the hose is possible, the hose shall be capable of rotating 360° in both directions
without disconnection.
4.6 Operation
4.6.1 General
The method used to connect and disconnect the hose to the SC valve shall be such that it prevents
disconnection without manual manipulation and subsequent incorrect operation.
4.6.2 Manual operated control (if fitted)
The manually operated control shall be such that the open and closed positions shall be without ambiguity.
In the case of a rotating manual actuator, rotation shall cover an angle of 90° in a clockwise direction for
closure.
In the open and closed position there shall be a system of stops satisfying the test described in 5.19.
4.7 Dangerous substances
Materials used in SC valve shall not release any dangerous substances in excess of the maximum permitted
levels specified in a relevant European Standard for the material or permitted in the national regulations of the
member state of destination.
5 Performance requirements and tests
5.1 General
Unless otherwise stated:
all pressures shall be in their static conditions and shall be relative to atmospheric pressure;
the ambient temperature for the tests shall be within the temperature limits given in 5.3;
the SC valves to be tested shall be stored in the laboratory for at least 30 min before the start of the tests,
so that their temperature has stabilized;
the tests shall be carried out using dry air and the flow measurements shall be adjusted to standard
reference conditions by the equation given in 5.6.2.
5.2 Test end fittings
Tests requiring the use of end fittings identical to those on the hose shall be carried out with dummy fittings as
described in Annex B. Such fittings shall have dimensions giving the largest tolerance field.
5.3 Test sequence schedule
If any sample fails one of the tests within the test sequence schedule given in Table 3 then all samples shall
be deemed to have failed to meet the type test requirements of this European Standard. The tests shall be
performed under ambient conditions. The following tolerances shall apply:
atmospheric pressure: (± 0,1) mbar air pressure: (± 5) %
flow rate: (± 5) % ambient temperature: (± 1) °C
temperature above 125 °C: (± 10) °C time: (± 0,1) %
dimensions: (± 0,1) mm
For each DN the tests shown in Tables 3 and 4 shall be performed in the sequence given.
Table 3 — SC valve test sequence schedule
Test No Tests SC 1 2 3 4 5 6 7 8 9 No of
valve No samples
5.4.1 Angular seal X X 2
5.4.3 Internal leak-tightness X X X X X X X 7
5.5 Internal pressure X X 2
5.6 Rated flow rate X 1
5.7 Tensile strength resistance X 1
5.8 Bending resistance X 1
5.9 Torsion resistance X 1
5.10 Impact resistance X 1
5.11.1 Durability manually operated SC X 1
valve
5.11.2 Durability connection/disconnect X 1
5.11.3 Rotation durability of the SC valve X 1
outlet
5.11.4 Durability ageing with temperature X 1
5.12.1 Low temperature resistance X X 2
5.12.2 High temperature resistance X 1
5.12.3 Leak tightness during thermal load X X 2
5.14 Reaction to fire X 1
5.16 Salt spray resistance X 1
5.17 Operating torque (manually operated X X 2
SC control)
5.18 Operating strength (quick X X 2
connection)
5.19 Stop resistance X 1
5.21 Electric continuity X 1
5.4.2 External leak-tightness X X X X X X X 7
System with overflow safety device
5.20.1 External leak-tightness X X 2
5.20.2 Overflow safety rate X X 2
5.20.3 Overflow safety durability X X 2
5.20.4 Normal flow durability X 1
5.22 Non-metal components X 1
System with thermal safety device
5.23.1 Reaction to temperature X 1
Table 4 — All non-metal parts test sequence schedule
Test No Tests SC valve No 1 2 3 4 5 6 No of samples
5.13 Resistance to lubricants X X X 3
5.15 Resistance to gas (n-pentane) X X X 3
5.4 Leak-tightness
5.4.1 Angular seal
5.4.1.1 Requirements
With the SC valve in the fully closed position, the angular distance between the gas port in the closure
member and both the inlet port and outlet port in the SC valve body, shall be at least 8º with a measurement
uncertainty of 1º.
5.4.1.2 Test
The procedure shall be as follows. Install the SC valve on a test rig which shall be capable of measuring the
angle of rotation of the actuator (e.g. a 360º graduated scaled pointer fixed to the actuator).
Connect the SC valve inlet to an air source at a pressure of 1,5 MOP.
Close the SC valve. Open the SC valve until the internal leakage is greater than what is required in 5.4.3. The
value measured shall satisfy the requirements of 5.4.1.1.
A bubble indicator or a similar flow measuring device shall be used to check that the flow has ceased.
5.4.2 External leak-tightness
5.4.2.1 Requirements
In either connected or unconnected position, the external leak-tightness of the SC valve shall be less than or
equal to 15 cm /h.
5.4.2.2 Tests
5.4.2.2.1 General
The tests shall be carried out in the direction of the normal flow of gas with the following test pressure:
Pe 1 = 20 mbar;
Pe 2 = 1,5 MOP.
The inaccuracy of the measurement shall not be greater than 4 cm³/h and the resolution shall be greater than
/h.
1 cm
5.4.2.2.2 Test in a connected position
The test shall be carried out with the closed test end fitting connected to the SC valve.
In a case where an OSD can be manually operated and there is an independent manually operated control, it
shall be successively set to the fully open, intermediate and fully closed position. The leakage rate shall be
measured for Pe1 and Pe2.
5.4.2.2.3 Test in an unconnected position
Prior to the test the SC valve shall be in a connected position and pressurised.
The SC valve shall then be disconnected and after 2 s the leakage rate shall be measured.
In cases where there is an independent manually operated control, it is successively set to the fully open,
intermediate and fully closed position.
The leakage rate shall be measured for 1,5 MOP.
5.4.3 Internal leak-tightness
5.4.3.1 Requirements
This requirement shall only apply to SC valves equipped with manually operated control.
In the connected position, the internal leak-tightness shall be less than or equal to 15 cm³/h.
5.4.3.2 Test
This test shall be carried out on samples n° 1 and n° 2 with suitable equipment giving the accuracies stated
below. The test shall be carried out in the direction of the normal flow of gas with air at the following test
pressure:
Pe = 20 mbar;
Pe = 1,5 MOP.
The inaccuracy of the measurement shall not be greater than 5 cm³/h and the resolution shall be greater than
1 cm /h.
The open test end fitting shall be connected to the unit and the manual control shall be set to fully closed.
The leakage rate shall be measured for pressure Pe1and Pe2.
5.5 Internal Pressure
5.5.1 Requirements
In either connected or unconnected position, the internal pressure test for a safety gas connection SC valve
shall be deemed to be satisfactory if after meeting the requirements of 5.5.2 the value of the leak measured
shall be less than or equal to 15 cm /h. The appropriate strength test pressure according to Table 5 shall be
maintained for at least 5 min.
Table 5 — Strength test pressure (STP) as a function of the maximum operating pressure (MOP)
MOP STP
bar bar
0,1 < MOP ≤ 0,5 > 1,75 MOP
MOP ≤ 0,1 ≥ 2,5 MOP
5.5.2 Test
The internal pressure test shall be carried out using air.
The appropriate strength test pressure according to Table 5 shall be maintained for at least 5 min.
The internal pressure test shall precede or be performed simultaneously with the tightness test.
5.6 Rated flow rate
5.6.1 Requirements
The minim
...
기사 제목: EN 15069:2008 - 가스 연결 밸브는 가스 연료를 사용하는 가정용 가전제품의 금속 호스 어셈블리에 사용됩니다. 기사 내용: 이 밸브는 거주지 내부 또는 외부에서 가정용 가전제품과 고정 가스 공급 시스템을 연결하기 위해 사용됩니다. 이 밸브는 2차 가족 가스와 3차 가족 가스를 사용하며, 최대 0.5 바의 압력에서 사용할 수 있습니다. 이 밸브는 이동식 가전제품 또는 고정식 가전제품과 연결하기 위해 설계되었습니다.
記事のタイトル:EN 15069:2008 - ガス接続バルブは、ガス燃料を使用する家電製品の金属ホースアセンブリに使用される 記事の内容:これらのバルブは、住宅内または住宅外の家電製品を固定ガス供給システムに接続するために適しています。これらのバルブは、第2家族ガスまたは第3家族ガスを使用し、最大0.5バールの圧力で使用することができます。これらのバルブは、移動式または固定式の家電製品に使用するために設計されています。
The article talks about EN 15069:2008, which is a safety standard for gas connection valves used for metal hose assemblies. These valves are used to connect domestic appliances to the gas supply system. They can be used both inside and outside of a dwelling and with 2nd or 3rd Family gases at a maximum pressure of 0.5 bar. The valves are designed to be used with either movable or fixed appliances.










Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
