EN 16713-3:2016

Domestic swimming pools - Water systems - Part 3: Water treatment - Requirements

This European Standard specifies requirements and test methods for equipment and means of pool water treatment utilized in domestic swimming pools.
This standard applies for swimming pools as defined in EN 16582-1 and will be read in conjunction with it.
This standard does not apply to:
-   pools for public use covered by EN 15288-1;
-   spas for domestic or public use;
-   paddling pools according to EN 71-8;
-   natural and nature like pools.
NOTE   For filtration systems see prEN 16713-1 and for circulation systems see prEN 16713-2.
The purpose of this standard is furthermore to ensure a consistently high quality of pool water in terms of hygiene in order to prevent damage to human health, particularly as a result of pathogens. At the same time, account is also to be taken of the well-being of the bathers (e.g. by minimizing the side effects caused by disinfectants). To this end, requirements are specified for water quality and water treatment.

Schwimmbäder für private Nutzung - Wassersysteme - Teil 3: Aufbereitung - Anforderungen

Diese Europäische Norm legt Anforderungen und Prüfverfahren für Geräte und Mittel zur Aufbereitung von Schwimmbeckenwasser fest, die in privaten Schwimmbädern verwendet werden.
Diese Norm gilt für Schwimmbäder nach EN 16582-1 und wird im Zusammenhang mit dieser Norm gelesen.
Diese Norm gilt nicht für:
 Schwimmbäder für die öffentliche Nutzung nach EN 15288-1;
 Warmsprudelbecken für die private oder öffentliche Nutzung;
 Planschbecken nach EN 71-8;
 Teiche und Naturschwimmbäder.
ANMERKUNG Zu Filtrationssystemen siehe EN 16713-1 und zu Umwälzsystemen siehe EN 16713-2.
Diese Norm soll außerdem eine gleichmäßig hohe hygienische Qualität des Schwimmbeckenwassers sicherstellen, um die menschliche Gesundheit vor Schäden, vor allem durch Pathogene, zu schützen. Gleichzeitig ist das Wohlbefinden der Badenden zu berücksichtigen (z. B. indem die durch Desinfektion verursachten Nebenwirkungen minimiert werden). Dazu werden die Anforderungen an die Wasserqualität und Wasseraufbereitung festgelegt.

Piscines privées à usage familial - Systèmes de distribution d'eau - Partie 3: Traitement - Exigences

La présente Norme européenne spécifie les exigences et les méthodes d'essai applicables aux équipements et systèmes de traitement de l'eau des piscines privées à usage familial.
La présente norme s'applique aux piscines définies dans l'EN 16582-1 et doit être lue conjointement avec cette dernière.
La présente norme ne s’applique pas :
-   aux piscines à usage collectif couvertes par l'EN 15288-1 ;
-   aux spas à usage privé familial ou à usage collectif ;
-   aux pataugeoires selon l'EN 71-8 ;
-   aux bassins naturels et analogues.
NOTE   Pour les systèmes de filtration, voir prEN 16713-1 et pour les systèmes de circulation, voir prEN 16713-2.
La présente norme a en outre pour but de maintenir la haute qualité sanitaire de l'eau des bassins afin d'éviter toute incidence néfaste sur la santé humaine, notamment suite à l'action d'agents pathogènes. Dans le même temps, le bien-être des baigneurs doit également être pris en compte (par exemple en minimisant les effets secondaires des désinfectants). À cet effet, des exigences relatives à la qualité et au traitement de l'eau sont spécifiées.

Plavalni bazeni za domačo uporabo - Vodni sistemi - 3. del: Priprava vode - Zahteve

Ta dokument določa zahteve in preskusne metode za opremo in sredstva za obdelavo bazenske vode, ki se uporablja v domačih plavalnih bazenih.Ta standard velja za plavalne bazene, kot je opredeljeno v standardu WI00402001. Ta standard ne velja za – klasificirane bazene, kot je opredeljeno v standardu EN 15288;– domače prostore za dobro počutje;– naravne in naravnim podobne bazene.OPOMBA: Za filtrirne sisteme in sisteme kroženja vode glej standarda prEN 16713 in prEN 16714.Namen tega standarda je tudi zagotoviti stalno visoko kakovost vode v kadeh ali bazenske vode v smislu higiene, da se prepreči tveganje za zdravje ljudi, zlasti kot posledica patogenov. Istočasno je treba upoštevati tudi dobrobit kopalcev (na primer skrb za zmanjšanje stranskih učinkov, ki jih povzročajo razkužila). V ta namen so določene zahteve za kakovost in čiščenje vode.

General Information

• Status: Published
• Publication Date: 09-Feb-2016
• Withdrawal Date: 30-Aug-2016
• ICS: 97.220.10 - Sports facilities
• Technical Committee: CEN/TC 402 - Private family Swimming Pools and related materials/equipment and accessories
• Drafting Committee: CEN/TC 402/WG 2 - Pool water circulation, filtration and treatment
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 21-Oct-2021
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 16713-3:2016 - Domestic swimming pools - Water systems - Part 3: Water treatment - Requirements

Overview

EN 16713-3:2016 - Domestic swimming pools - Water systems - Part 3: Water treatment - Requirements is a CEN standard that specifies requirements and test methods for pool water treatment equipment and procedures used in domestic swimming pools. Its objective is to ensure consistently high pool water quality and hygiene to protect human health (prevent pathogens) while minimizing adverse effects from disinfectants. The standard applies to pools defined in EN 16582-1 and explicitly excludes public pools (EN 15288-1), spas, paddling pools (EN 71-8) and natural/nature-like pools.

Key Topics

• Scope and safety: Obligations for manufacturers and installers to provide operating and chemical safety instructions for pool owners and operators.
• Fill water specifications: Recommendations for acceptable concentrations (e.g., iron ≤ 0.1 mg/l, copper ≤ 0.2 mg/l, manganese ≤ 0.05 mg/l, nitrates ≤ 50 mg/l) and guidance to test/treat non-mains water.
• Physical & chemical water quality parameters: Indicative values when using chlorine:
  • pH: 6.8–7.6
  • Free active chlorine (no cyanuric acid): 0.3–1.5 mg/l
  • Free chlorine with cyanuric acid: 1.0–3.0 mg/l
  • Cyanuric acid: max 100 mg/l
  • Combined chlorine: max 0.5 mg/l
  • Turbidity: max 1.5 FNU/NTU
  • Redox potential: min 650 mV (Ag/AgCl reference)
• Disinfection: Requirements and recommended disinfectants (chlorine/bromine forms), dosing approaches (pumps, feeders, electrochlorination) and measurement (free chlorine, redox). Special notes on chlorinated isocyanurates, sodium/calcium hypochlorite, BCDMH and hypobromous acid.
• Flocculation/coagulation: Use of aluminium- or iron-based coagulants (EN 15031, EN 15797), guidance on when flocculation is required (e.g., removing Cryptosporidium) and cautions about staining/corrosion with iron-based products.
• Operational controls: Emphasis on filtration, pH adjustment, water balance, dilution, cleaning of pool, overflow channels and balance tanks, and routine monitoring/maintenance.

Applications

• Practical for pool manufacturers, designers, installers and service companies specifying equipment and control systems for domestic pools.
• Useful to pool owners/operators for safe chemical handling, routine testing and maintaining water quality.
• Relevant for chemical suppliers, installers of dosing and measurement equipment, and conformity testing bodies verifying compliance with domestic pool water-treatment requirements.
• Supports safe selection of disinfection strategy, dosing systems and maintenance regimes to meet hygienic and bather-comfort goals.

Related Standards

• EN 16582‑1 / -2 / -3 (Domestic pools - general and specific requirements)
• EN 16713‑1 (Filtration systems) and EN 16713‑2 (Circulation systems)
• Chemical/agent standards referenced: EN 15031, EN 15032, EN 15072, EN 15073, EN 15077, EN 15796, EN 15797, EN 16380, EN 16400

Keywords: EN 16713-3:2016, domestic swimming pools, water treatment requirements, pool water quality, disinfection, flocculation, pH balance, redox potential.

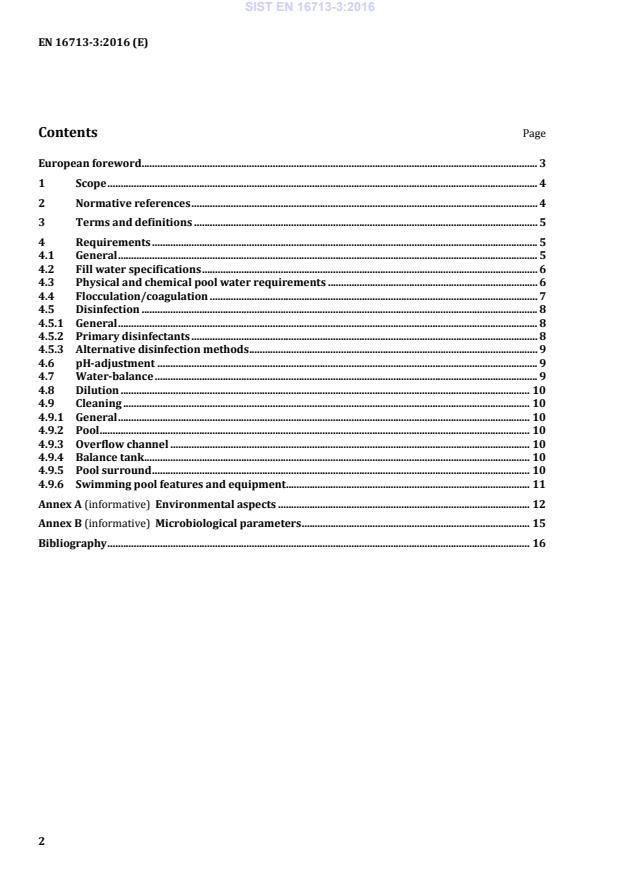

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.=DKWHYHSchwimmbäder für private Nutzung - Wassersysteme - Teil 3: Aufbereitung - AnforderungenPiscines privées à usage familial - Systèmes de distribution d'eau - Partie 3: Traitement - ExigencesDomestic swimming pools - Water systems - Part 3: Water treatment - Requirements97.220.10Športni objektiSports facilitiesICS:Ta slovenski standard je istoveten z:EN 16713-3:2016SIST EN 16713-3:2016en,fr,de01-april-2016SIST EN 16713-3:2016SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16713-3
February
t r s x ICS
{ yä t t rä s r English Version
Domestic swimming pools æ Water systems æ Part
uã Water treatment æ Requirements Piscines privées à usage familial æ Systèmes de distribution d 5eau æ Partie
uã Traitement æ Exigences
Schwimmbäder für private Nutzung æ Wassersysteme æTeil
uã Aufbereitung æ Anforderungen This European Standard was approved by CEN on
w December
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s x y s uæ uã t r s x ESIST EN 16713-3:2016

Environmental aspects . 12 Annex B (informative)
Microbiological parameters . 15 Bibliography . 16
...
