EN 14398-3:2003

Cryogenic vessels - Large transportable non-vacuum insulated vessels - Part 3: Operational requirements

1.1   This European Standard specifies operational requirements for large transportable non vacuum insulated cryogenic vessels of more than 1000 l volume.
1.2   This European Standard applies to vessels designed for cryogenic fluids specified in prEN 14398-1.

Kryo-Behälter - Große ortsbewegliche, nicht vakuum-isolierte Behälter - Teil 3: Betriebsanforderungen

1.1   Diese Europäische Norm legt Betriebsanforderungen für große ortsbewegliche nicht vakuum-isolierte Kryo-Behälter fest mit einem Fassungsraum von mehr als 1 000 Liter.
1.2   Die Norm gilt für Behälter für tiefkalte Fluide wie in prEN 14398-1festgelegt.

Récipients cryogéniques - Grands récipients transportables non isolés sous vide - Partie 3: Exigences de service

1.1   La présente Norme européenne spécifie les exigences de service relatives aux grands récipients cryogéniques transportables, non isolés sous vide, d'un volume excédant 1 000 l.
1.2   La présente Norme européenne s'applique à des récipients destinés à contenir les fluides cryogéniques spécifiés dans l'EN 14398-1.

Kriogene posode – Velike premične, vakuumsko neizolirane posode - 3. del: Zahteve za obratovanje

General Information

• Status: Published
• Publication Date: 26-Aug-2003
• Withdrawal Date: 28-Feb-2004
• ICS: 23.020.40 - Cryogenic vessels
• Technical Committee: CEN/TC 268 - Cryogenic vessels
• Drafting Committee: CEN/TC 268/WG 3 - Operational requirements
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 03-Mar-2024
• Completion Date: 03-Mar-2024
• Directive: 94/55/EC - Transport of dangerous goods by road
• Directive: 96/49/EC - Transport of dangerous goods by rail
• Directive: 96/86/EC - Transport of dangerous goods by road (94/55/EC Dir. amendment)
• Directive: 96/87/EC - Transport of dangerous goods by rail (96/49/EC Dir. amendment)
• Mandate: M/086 - Mandate to CEN for standardization in the field of transport of dangerous goods
• Ref Project: SIST EN 14398-3:2004 - Cryogenic vessels - Large transportable non-vacuum insulated vessels - Part 3: Operational requirements

Relations

• Amended By: EN 14398-3:2003/A1:2005 - Cryogenic vessels - Large transportable non vacuum insulated vessels - Part 3: Operational requirements
• Effective Date: 22-Dec-2008
• Parent: EN 14398-1:2003 - Cryogenic vessels - Large transportable non-vacuum insulated vessels - Part 1: Fundamental requirements
• Effective Date: 22-Dec-2008

Overview

EN 14398-3:2003 (CEN) specifies the operational requirements for large transportable non‑vacuum insulated cryogenic vessels. The standard applies to vessels with a capacity of more than 1000 L and intended for the cryogenic fluids defined in EN 14398-1. EN 14398-3 is Part 3 of the EN 14398 series (Part 1: Fundamental requirements; Part 2: Design, fabrication, inspection and testing; Part 3: Operational requirements) and was approved by CEN in 2003.

Key topics and technical requirements

• Scope and applicability
  • Covers operational aspects for large transportable non‑vacuum insulated vessels (>1000 L).
  • Does not address transport on public road, rail, sea or air (other regulations apply).
• Preliminaries before putting into service
  • Verification of vessel suitability, marking, placarding and handover documentation.
• Marking, placarding and documentation
  • Vessel-specific operating instructions, auxiliary equipment manuals, and inspection records must accompany the vessel and be retained by the owner.
• Personnel training
  • Competency-based training for filling, handling, operation and maintenance including hazards, emergency procedures, and personal protection; training records should be kept.
• General safety and operating practices
  • Visual checks, cleanliness (see EN 12300), handling of valves and pressurised parts, and precautions against cold embrittlement, oxygen enrichment/deficiency and heavy gas accumulation.
• Operational procedures
  • Written procedures and checklists for putting into service, filling (prefill checks, preparations, after‑fill checks), product withdrawal, change of service, taking out of service, maintenance and periodic inspection.
• Flammable gases
  • Additional safety requirements and guidance (electrical equipment, earthing, location and emergency procedures) specific to flammable cryogenic gases.
• Emergency procedures
  • Annex A provides an example emergency procedure; Annex B gives guidance on qualification of existing national vessels for EU use.

Practical applications and who uses this standard

• Intended for: vessel operators, owners, maintenance teams, plant engineers, safety managers, inspectors, and emergency responders.
• Practical uses:
  • Establishing safe operating procedures and checklists for cryogenic storage on site.
  • Training programs for personnel handling cryogenic fluids.
  • Preparing handover documentation and inspection records for compliance.
  • Integrating emergency response plans for spills, leaks or oxygen deficiency/enrichment events.

Related standards

• EN 14398-1:2003 - Fundamental requirements for cryogenic vessels
• EN 14398-2 - Design, fabrication, inspection and testing (Part 2)
• EN 12300 - Cleanliness for cryogenic service

Using EN 14398-3 helps organizations manage operational safety, regulatory compliance and risk when working with large transportable non‑vacuum cryogenic vessels.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2004
.ULRJHQHSRVRGH±9HOLNHSUHPLþQHYDNXXPVNRQHL]ROLUDQHSRVRGHGHO
=DKWHYH]DREUDWRYDQMH
Cryogenic vessels - Large transportable non-vacuum insulated vessels - Part 3:
Operational requirements
Kryo-Behälter - Große ortsbewegliche, nicht vakuum-isolierte Behälter - Teil 3:
Betriebsanforderungen
Récipients cryogéniques - Grands récipients transportables non isolés sous vide - Partie
3: Exigences de service
Ta slovenski standard je istoveten z: EN 14398-3:2003
ICS:
23.020.40 Proti mrazu odporne posode Cryogenic vessels
(kriogenske posode)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 14398-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2003
ICS 23.020.40
English version
Cryogenic vessels - Large transportable non-vacuum insulated
vessels - Part 3: Operational requirements
Récipients cryogéniques - Grands récipients transportables Kryo-Behälter - Große ortsbewegliche, nicht vakuum-
non isolés sous vide - Partie 3: Exigences de service isolierte Behälter - Teil 3: Betriebsanforderungen
This European Standard was approved by CEN on 10 July 2003.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2003 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14398-3:2003 E
worldwide for CEN national Members.

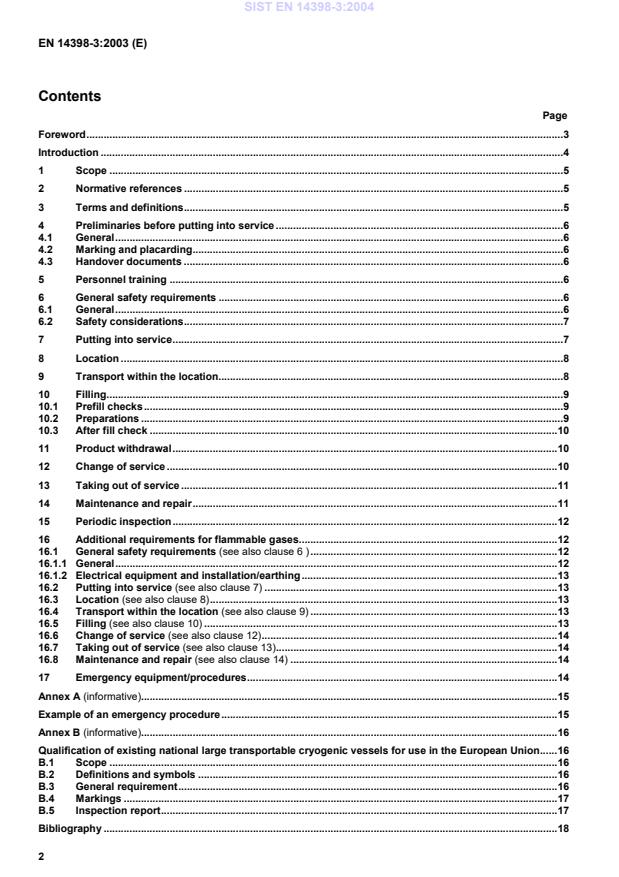

Contents
Page
Foreword.3
Introduction .4
1 Scope .5
2 Normative references .5
3 Terms and definitions.5
4 Preliminaries before putting into service .6
4.1 General.6
4.2 Marking and placarding.6
4.3 Handover documents .6
5 Personnel training .6
6 General safety requirements .6
6.1 General.6
6.2 Safety considerations.7
7 Putting into service.7
8 Location .8
9 Transport within the location.8
10 Filling.9
10.1 Prefill checks.9
10.2 Preparations .9
10.3 After fill check .10
11 Product withdrawal.10
12 Change of service .10
13 Taking out of service .11
14 Maintenance and repair.11
15 Periodic inspection.12
16 Additional requirements for flammable gases.12
16.1 General safety requirements (see also clause 6 ).12
16.1.1 General.12
16.1.2 Electrical equipment and installation/earthing.13
16.2 Putting into service (see also clause 7) .13
16.3 Location (see also clause 8).13
16.4 Transport within the location (see also clause 9) .13
16.5 Filling (see also clause 10) .13
16.6 Change of service (see also clause 12).14
16.7 Taking out of service (see also clause 13).14
16.8 Maintenance and repair (see also clause 14) .14
17 Emergency equipment/procedures.14
Annex A (informative).15
Example of an emergency procedure.15
Annex B (informative).16
Qualification of existing national large transportable cryogenic vessels for use in the European Union.16
B.1 Scope .16
B.2 Definitions and symbols .16
B.3 General requirement.16
B.4 Markings .17
B.5 Inspection report.17
Bibliography .18
Foreword
This document (EN 14398-3:2003) has been prepared by Technical Committee CEN/TC 268 “Cryogenic vessels”,
the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by February 2004, and conflicting national standards shall be withdrawn at the latest
by February 2004.
This document has been prepared under a mandate given to CEN by the European Commission and the European
Free Trade Association, and supports the objectives of the framework Directives on Transport of Dangerous
Goods.
This document has been prepared under a mandate given to CEN by the European Commission and the European
Free Trade Association, and supports the objectives of the framework Directives on Transport of Dangerous
Goods.
This European Standard has been submitted for reference into the RID and/or in the technical annexes of the ADR.
Therefore in this context the standards listed in the normative references and covering basic requirements of the
RID/ADR not addressed within the present standard are normative only when the standards themselves are
referred to in the RID and/or in the technical annexes of the ADR.
EN 14398 consists of the following parts under the general title, Cryogenic vessels – Large transportable non
vacuum insulated vessels :
Part 1 : Fundamental requirements;
Part 2 : Design, fabrication, inspection and testing;
Part 3 : Operational requirements.
The annexes A and B are informative.
This document includes a Bibliography.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal,
Slovakia, Spain, Sweden, Switzerland and the United Kingdom.
Introduction
Elements of this standard support the requirements of the framework Directives on Transport of Dangerous Goods
and other international, national or local requirements.
Large transportable cryogenic vessels are often partly equipped by the manufacturer, but can be installed or re-
installed by another party, such as the operator user or owner. For this reason some of the scope of this European
Standard, which includes putting into service, inspection, filling, maintenance and emergency procedure overlaps
with some of the Parts 1 and 2 of EN 14398.
Operational requirements for the usage of these vessels on public road, rail, sea and air are not covered in this
standard, but are defined in other international, national or local requirements.
1 Scope
1.1 This European Standard specifies operational requirements for large transportable non vacuum insulated
cryogenic vessels of more than 1000 l volume.
1.2 This European Standard applies to vessels designed for cryogenic fluids specified in EN 14398-1.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text, and the publications are listed hereafter. For
dated references, subsequent amendments to or revisions of any of these publications apply to this European
Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the
publication referred to applies (including amendments).
EN 12300, Cryogenic vessels - Cleanliness for cryogenic service.
EN 14398-1:2003, Cryogenic vessels – Large Transportable non-vacuum insulated vessels – Part 1: Fundamental
requirements.
3 Terms and definitions
For the purposes of this European Standard, the terms and definitions given in EN 14398-1:2003 and the following
apply.
3.1
putting into service
operation by which a vessel is prepared to be used. It applies to either a new vessel being used for the first time or
an existing vessel being returned to service
3.2
filling
operation by which a transportable vessel undergoes a prefill check, filling with a cryogenic fluid and an after fill
check
3.3
withdrawal
process by which product is taken from a vessel to the connected supply system
3.4
outdoor location
location outside of any building or structure and not enclosed by more than two walls
3.5
underground location
area or room whose ground or floor is on all sides sufficiently lower than the adjacent ground surfaces
3.6
vessel
vessel means large transportable cryogenic vessel as defined in EN 14398-1
4 Preliminaries before putting into service
4.1 General
Before putting into service, verification shall take place to ensure that the vessel is suitable for the intended service
and that the marking, placarding and handover documents are complete.
4.2 Marking and placarding
Marking and placarding shall be in accordance with the relevant transport regulations, see also EN 14398-1.
4.3 Handover documents
In addition to the manufacturer’s documentation, where necessary the cryogenic vessel shall be accompanied by
vessel specific documents and instructions for all items supplied covering:
the operation;
the auxiliary equipment;
the inspection records.
These documents shall be retained by the owner of the vessel.
The user shall have appropriate operating instructions available. Such instructions may be attached to the vessel in
a permanent manner, or carried by or available to the operator.
5 Personnel training
Only persons trained for the specific task shall be allowed to put into service, fill, handle, operate or maintain the
vessel.
The training programme shall include:
normal procedures;
product and hazard identification;
safe operating limits;
emergency procedures (see annex A);
physical and chemical properties of the vessel’s content and their effects on the human body;
personal protection.
Training shall be repeated as necessary to ensure that personnel remain competent. A record should be
maintained which details the training personnel have received.
6 General safety requirements
6.1 General
Before any operation the operator should ensure that all equipment is free from any obvious damage or defect
which can effect its safe operation.
Marking and placarding shall not be removed or defaced.
Consideration should be given to the product properties and the use of appropriate personal protective equipment.
Parts under pressure shall be disconnected only if they have been previously depressurised.
When under pressure, leaking valves or connections may only be tightened using suitable tools and procedures.
Direct flame or direct intense heat shall never be used to raise the pressure or de-ice frozen valves.
All surfaces which may come in contact with the product shall be kept free from oil and grease. For cleanliness
requirements, see EN 12300.
Outlets, seals and transfer hoses shall be checked to be clean, dry and free from contaminants and visible defects
before connection.
Vessels and transfer hoses shall not be modified without proper authorisation.
Consideration, shall be given to actions in specific conditions, e. g. thunderstorm.
Normal operating valves should normally be opened and closed slowly.
6.2 Safety considerations
In all operations and training the following safety considerations shall be taken into account:
small amounts of cryogenic fluids will produce large volumes of vaporised gas. Spillage of cryogenic fluids can
result in an oxygen deficient atmosphere, or in the case of vaporising oxygen, in an oxygen enriched
atmosphere. Provision is to be made for appropriate measures to take account of this, e.g. ventilation;
due to the possibility of cold embrittlement, cryogenic fluids shall only be used in product systems with
components which are suitable for low temperatures;
vaporising cryogenic fluids produce gases that are heavier than air and can accumulate in lower areas (e.g.
pits, trenches);
because of their extremely low temperatures, cryogenic fluids will produce cold burns when coming into
contact with the skin. Cold burns can also be produced from contact with uninsulated equipment and pipe;
to avoid dry ice plugs, parts under pressure of carbon dioxide e.g. pipes, hoses, shall be disconnected only if
they have been previously carefully depressurized.
7 Putting into service
This operation shall follow a written procedure and the results of the steps involved should be recorded (e.g. in a
check list). Such lists should be retained by the operating company.
Vessels and accessories shall be visually checked for damage.
It shall be verified that:
vessel and accessories are appropriate for the intended service, comply with the flow-sheet and are
appropriately marked and labelled; all labels shall be clearly displayed and appropriate for the product;
appropriate relief device(s) with a set pressure not higher than the maximum allowable working pressure of the
vessel is (are) fitted. Any relief devices requiring approval shall be correctly stamped and matching certificates
shall be available;
all operational valves should be operable;
all required checks and tests have been carried out.
The vessel shall be purged with an appropriate gas at a temperature above 0 °C until the gas emerging from the
vessel is sufficiently dry and pure.
The vessel shall be cooled down according to the manufacturer’s recommendations. Steps shall be taken to avoid
uncontrolled pressure rise due to rapid liquid vaporisation. The cool down gas chosen shall take into account the
risk of solidification.
Measuring and controlling devices (e.g. level gauge, pressure gauge etc.,) shall be checked for correct operation or
setting.
8 Location
The requirements listed in this clause are valid for storage/parking as well as other activities such as filling,
withdrawal etc.:
vessels shall be located in a suitable area such as in the open air or in a sufficiently ventilated enclosed area,
away from sources of heat (e.g. welding source, open fire etc.). Hot work shall be subject to appropriate safety
measures. The area shall be kept appropriately clean and suitable access shall be provided;
vessels should not be located underground. However, where this is unavoidable, relief valve outlet(s) should
be piped to a safe external venting point and the underground location shall have sufficient continuous
ventilation to deal with product releases arising from normal operation;
adequate ventilation shall be provided. In locations at, or above ground level, natural ventilation is generally
sufficient, provided that the room is large enough or that the outdoor area is not closely surrounded by walls. In
other circumstances, forced ventilation or other precautions shall be provided;
the floor of the designated transhipment area shall be level and strong enough to take the weight of the full
transport unit. The vessel shall be located at a sufficient distance from the normal paths used by people or
vehicles. Water accumulation in the vicinity of the vessel shall be avoided;
vessels and their components shall be protected against mechanical damage;
in case of eme
...
