Regulators with a capacity of up to and including 100 kg/h, having a maximum nominal outlet pressure of up to and including 4 bar, other than those covered by EN 12864 and their associated safety devices for butane, propane or their mixtures

This standard defines the constructional and operational characteristics, the safety requirements and test methods, the marking of regulators having a capacity of less than or equal to 100 kg/h, other than the regulators covered by EN 12864, for butane, propane or their mixtures, in the gaseous phase. Regulators for caravans up to 1,5 kg/h are covered by EN 12864.
NOTE 1 bar = 105 Pa
This European standard also applies to the safety devices which are included within regulators covered by this standard. The characteristics of these devices are given in annexes A and B.

Druckregelgeräte mit einem höchsten Ausgangsdruck bis einschließlich 4 bar und einem Durchfluss bis einschließlich 100 kg/h, die nicht in EN 12864 behandelt sind, für Butan, Propan oder deren Gemische sowie die dazugehörigen Sicherheitseinrichtungen

Détendeurs de débit inférieur ou égal à 100 kg/h, à pression de détente nominale maximale inférieure ou égale à 4 bar, autres que les détendeurs relevant de l'EN 12864, et leurs dispositifs de sécurité associés pour butane, propane ou leurs mélanges

Regulatorji s pretokom do vključno 100 kg/h z največjim imenskim izhodnim tlakom do vključno 4 bar, ki niso vključeni v SIST EN 12864, in s pripadajočimi varnostnimi napravami za butan, propan ali njuni zmesi - Dopolnilo A1

General Information

• Status: Not Published
• ICS: 23.060.40 - Pressure regulators
• Technical Committee: CEN/TC 181 - Dedicated liquified petroleum gas appliances
• Drafting Committee: CEN/TC 181/WG 8 - Pressure regulators and changeover devices
• Current Stage: 5060 - Closure of Vote - Formal Approval
• Start Date: 26-Aug-2008
• Due Date: 24-Mar-2008
• Completion Date: 26-Aug-2008
• Directive: 90/396/EEC - Appliances burning gaseous fuels
• Mandate: M/BC/CEN/89/6 - Standardization request to CEN concerning appliances burning gaseous fuels
• Ref Project: SIST EN 13785:2005/kprA1:2008 - Regulators with a capacity of up to and including 100 kg/h, having a maximum nominal outlet pressure of up to and including 4 bar, other than those covered by EN 12864 and their associated safety devices for butane, propane or their mixtures

Relations

• Merged Into: EN 13785:2005+A1:2008 - Regulators with a capacity of up to and including 100 kg/h, having a maximum nominal outlet pressure of up to and including 4 bar, other than those covered by EN 12864 and their associated safety devices for butane, propane or their mixtures
• Effective Date: 19-Jan-2023
• Amends: EN 13785:2005 - Regulators with a capacity of up to and including 100 kg/h, having a maximum nominal outlet pressure of up to and including 4 bar, other than those covered by EN 12864 and their associated safety devices for butane, propane or their mixtures
• Effective Date: 22-Dec-2008

Overview

EN 13785:2005/prA1 is a CEN draft amendment defining the constructional, operational and safety requirements for gas pressure regulators with a capacity of up to and including 100 kg/h and a maximum nominal outlet pressure of up to and including 4 bar, for butane, propane or their mixtures in the gaseous phase. The standard also covers associated safety devices incorporated in those regulators (see Annexes A and B). Regulators for caravans up to 1.5 kg/h are excluded (covered by EN 12864). Note: 1 bar = 10^5 Pa.

Keywords: EN 13785, LPG regulators, butane regulator, propane regulator, pressure regulator, safety devices, CEN standard.

Key Topics and Requirements

• Scope and applicability
  • Regulators ≤100 kg/h and nominal outlet pressure ≤4 bar for LPG (butane/propane/mixtures).
  • Includes integrated safety devices and their characteristics (Annexes A & B).
• Definitions and interfaces
  • Clarified definitions such as quick coupling, tap (manual closing device), self-closing valve, and freely rotating outlet connection.
• Materials
  • Zinc alloys limited to Zn Al4 or Zn Al4 Cu1 (ISO 301); brass to EN 12164/EN 12165.
  • Non-metallic components allowed only if not exposed to temperatures above 80 °C.
• Mechanical design and connections
  • Threaded seals allowed up to nominal diameter DN50; parallel internal threads in zinc/aluminium permitted up to DN10.
  • Country-specific inlet/outlet thread and non-threaded connection tables (Annex G/H) detail national practices.
• Adjustment and tamper-control
  • Adjuster cannot be removed except when in the minimum-pressure position; rotational adjustment increases pressure clockwise.
• Performance and testing
  • Impact resistance requirements for cylinder-mounted regulators (must survive specified fall and continue to operate).
  • Endurance test limits: closing pressure change within ±5% and regulation curves must remain within specified envelope.
• Safety device performance
  • Devices must cut off flow only when downstream pressure meets or exceeds the minimum inlet pressure required by the device.

Applications

• Design, manufacture and certification of LPG pressure regulators for domestic, commercial and light industrial uses where capacities ≤100 kg/h apply.
• Selection and testing of regulators mounted on LPG cylinders or fitted into gas distribution equipment.
• Product compliance documentation for market access within CEN member states.

Who Should Use This Standard

• Regulator and valve manufacturers
• Test laboratories and conformity assessment bodies
• Gas appliance designers and OEMs (LPG systems)
• Safety and compliance engineers, installers and distributors
• National standardization and regulatory authorities

Related Standards

• EN 12864 (caravan regulators ≤1.5 kg/h)
• EN 13786 (related CEN/TC 181 work)
• EN 12164 / EN 12165 (copper/brass material specs)
• EN ISO 7253 (salt spray corrosion testing)

This standard is essential for ensuring safe, interoperable and market-compliant LPG regulators across Europe.

Standards Content (Sample)

SLOVENSKI SIST EN
13785:2005/oprA1:2006
PREDSTANDARD
julij 2006
Regulatorji s pretokom do vključno 100 kg/h z največjim imenskim izhodnim
tlakom do vključno 4 bar, ki niso vključeni v SIST EN 12864, in s pripadajočimi
varnostnimi napravami za butan, propan ali njuni zmesi - Dopolnilo A1
Regulators with a capacity of up to and including 100 kg/h, having a maximum
nominal outlet pressure of up to and including 4 bar, other than those covered by
EN 12864 and their associated safety devices for butane, propane or their
mixtures - Amendment A1
ICS 23.060.40 Referenčna številka
SIST EN 13785:2005/oprA1:2006(en)
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD
DRAFT
EN 13785:2005
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
May 2006
ICS
English Version
Regulators with a capacity of up to and including 100 kg/h,
having a maximum nominal outlet pressure of up to and
including 4 bar, other than those covered by EN 12864 and their
associated safety devices for butane, propane or their mixtures
Détendeurs de débit inférieur ou égal à 100 kg/h, à Druckregelgeräte mit einem höchsten Ausgangsdruck bis
pression de détente nominale maximale inférieure ou égale einschließlich 4 bar und einem Durchfluss bis einschließlich
à 4 bar, autres que les détendeurs relevant de l'EN 12864, 100 kg/h, die nicht in EN 12864 geregelt sind, für Butan,
et leurs dispositifs de sécurité associés pour butane, Propan oder deren Gemische sowie die dazugehörigen
propane ou leurs mélanges Sicherheitseinrichtungen
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 181.
This draft amendment A1, if approved, will modify the European Standard EN 13785:2005. If this draft becomes an amendment, CEN
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of this amendment
into the relevant national standard without any alteration.
This draft amendment was established by CEN in three official versions (English, French, German). A version in any other language made
by translation under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status
as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13785:2005/prA1:2006: E
worldwide for CEN national Members.

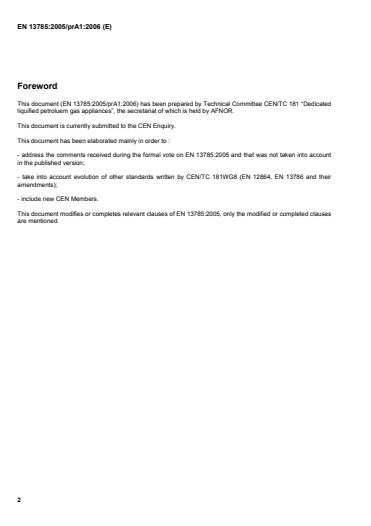

Foreword
