EN 6098:2019

Aerospace series - Rod-end with bearing per EN 6097 in corrosion resisting steel, extra wide inner ring, external threaded shank - Dimensions and loads - Inch series

This European standard specifies the characteristics of adjustable rod ends consisting of:
-   a spherical plain bearing, metal to metal, in corrosion resisting steel, extra wide series (EN 6097);
-   a rod–end with threaded shank with an optional longitudinal groove for locking purposes.
They are intended for use in fixed or moving parts of the aircraft structure and their control mechanisms.

Luft- und Raumfahrt - Ösenkopf mit Gelenklager nach EN 6097 aus korrosionsbeständigem Stahl, extra breiter Innenring, mit Außengewinde - Maße und Belastungen, Inch Reihe

Série aérospatiale — Embout à rotule lisse suivant EN 6097, en acier résistant à la corrosion, bague intérieure extra large, avec filetage extérieur — Dimensions et charges — Série en inches

La présente norme européenne spécifie les caractéristiques des embouts ajustables qui se composent :
-   d’une rotule lisse, métal à métal, en acier résistant à la corrosion, série extra large (EN 6097) ;
-   d’un embout avec tige filetée et gorge longitudinale optionnelle pour verrouillage.
Elles sont destinées à être utilisées pour les parties fixes ou mobiles de la structure de l’aéronef et leurs mécanismes de contrôle.

Aeronavtika - Končnik z očesom in ležajem po EN 6097 iz korozijsko odpornega jekla, z zelo velikim notranjim obročem in navojno ročico - Mere in obremenitve - Palčne mere

Ta evropski standard določa karakteristike nastavljivih končnikov z očesom, ki so sestavljeni iz:
 zglobnega drsnega ležaja, kovina na kovino, iz korozijsko odpornega jekla, zelo širokega tipa (EN 6097);
 končnika z očesom in navojno ročico z izbirnim vzdolžnim utorom za zaklepanje.
Namenjeni so za uporabo v fiksnih ali premikajočih se delih ogrodja letala in njihovih nadzornih mehanizmih.

General Information

• Status: Published
• Publication Date: 30-Apr-2019
• Withdrawal Date: 29-Nov-2019
• ICS: 49.035 - Components for aerospace construction
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 3/S 1 - Parts of Mechanical Systems
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 01-May-2019
• Completion Date: 01-May-2019
• Ref Project: SIST EN 6098:2019 - Aerospace series - Rod-end with bearing per EN 6097 in corrosion resisting steel, extra wide inner ring, external threaded shank - Dimensions and loads - Inch series

Overview - EN 6098:2019 (Aerospace rod-ends, inch series)

EN 6098:2019 is a European aerospace standard that defines rod‑ends with spherical plain bearings (inch series) made from corrosion resisting steel with an extra wide inner ring and an external threaded shank. It applies to adjustable rod‑ends that combine a metal‑to‑metal spherical plain bearing (per EN 6097) and a threaded rod‑end body (optionally with a longitudinal groove for locking). These components are intended for use in fixed or moving parts of aircraft structures and control mechanisms.

Key topics and technical requirements

• Scope and configuration
  • Covers geometry, dimensions, tolerances and mass (figures and Tables 1–2) for the inch series.
  • Specifies extra wide inner ring bearings per EN 6097 and rod‑end bodies with external UNJ/rolled threads.
• Materials and hardness
  • Inner and outer rings: see EN 6097 (corrosion resisting steel).
  • Rod‑end body: material per SAE AMS 5643, hardness typically 35 ≤ HRC ≤ 42.
• Surface treatment and roughness
  • Acceptable finishes: passivation (ISO 8074) or cadmium plating & chromating per EN 2133 (thickness ranges noted).
  • Surface roughness requirements are specified (measured before treatment).
• Threads and groove options
  • Threads per aerospace thread standards (ISO 3161 / rolled thread standards ISO 3353).
  • Optional longitudinal groove (toomer locking) per NAS 559 convention.
• Loads, clearance and testing
  • Static axial/radial and fatigue loads defined in Table 4 (axial proof, ultimate radial, fatigue spectra).
  • Clearance classes (normal/reduced) and verification methods per EN 6099.
  • Annex A: verification of fatigue loads and standard fatigue spectrum.
• Marking, designation and quality
  • Rules for designation, marking (EN 2424) and quality management requirements included.

Practical applications and users

• Who uses EN 6098:2019
  • Aerospace designers and stress engineers specifying rod‑ends for airframe and flight control linkages.
  • Manufacturers of aerospace rod‑ends and spherical plain bearings.
  • Procurement, quality and certification teams verifying compliance for aircraft components.
• Typical applications
  • Control surface linkages, actuator attachments, landing gear mechanisms and other moving or fixed structural joints where corrosion resistance, controlled dimensions and predictable fatigue performance are critical.

Related standards (select)

• EN 6097 - Spherical plain bearing, extra wide inner ring (product standard)
• EN 6099 - Rod‑ends - technical specifications and testing
• ISO 3161, ISO 3353 - Aerospace thread specifications
• EN 2133, ISO 8074 - Surface treatment standards
• SAE AMS 5643, MIL‑PRF greases - material and lubrication references

Keywords: EN 6098:2019, rod‑end, spherical plain bearing, aerospace, inch series, corrosion resisting steel, dimensions and loads.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2019
Aeronavtika - Končnik z očesom in ležajem po EN 6097 iz korozijsko odpornega
jekla, z zelo velikim notranjim obročem in navojno ročico - Mere in obremenitve -
Palčne mere
Aerospace series - Rod-end with bearing per EN 6097 in corrosion resisting steel, extra
wide inner ring, external threaded shank - Dimensions and loads - Inch series
Luft- und Raumfahrt - Ösenkopf mit Gelenklager nach EN 6097 aus
korrosionsbeständigem Stahl, extra breiter Innenring, mit Außengewinde - Maße und
Belastungen, Inch Reihe
Série aérospatiale - Embout, avec rotule lisse suivant EN 6097, en acier résistant à la
corrosion, bague intérieure extra large, avec filetage extérieur - Dimensions et charges -
Série en Inches
Ta slovenski standard je istoveten z: EN 6098:2019
ICS:
49.035 Sestavni deli za letalsko in Components for aerospace
vesoljsko gradnjo construction
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 6098
EUROPEAN STANDARD
NORME EUROPÉENNE
May 2019
EUROPÄISCHE NORM
ICS 49.035
English Version
Aerospace series - Rod-end with bearing per EN 6097 in
corrosion resisting steel, extra wide inner ring, external
threaded shank - Dimensions and loads - Inch series
Série aérospatiale - Embout à rotule lisse suivant EN Luft- und Raumfahrt - Ösenkopf mit Gelenklager nach
6097, en acier résistant à la corrosion, bague intérieure EN 6097 aus korrosionsbeständigem Stahl, extra
extra large, avec filetage extérieur - Dimensions et breiter Innenring, mit Außengewinde - Maße und
charges - Série en inches Belastungen, Inch-Reihe
This European Standard was approved by CEN on 5 November 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6098:2019 E
worldwide for CEN national Members.

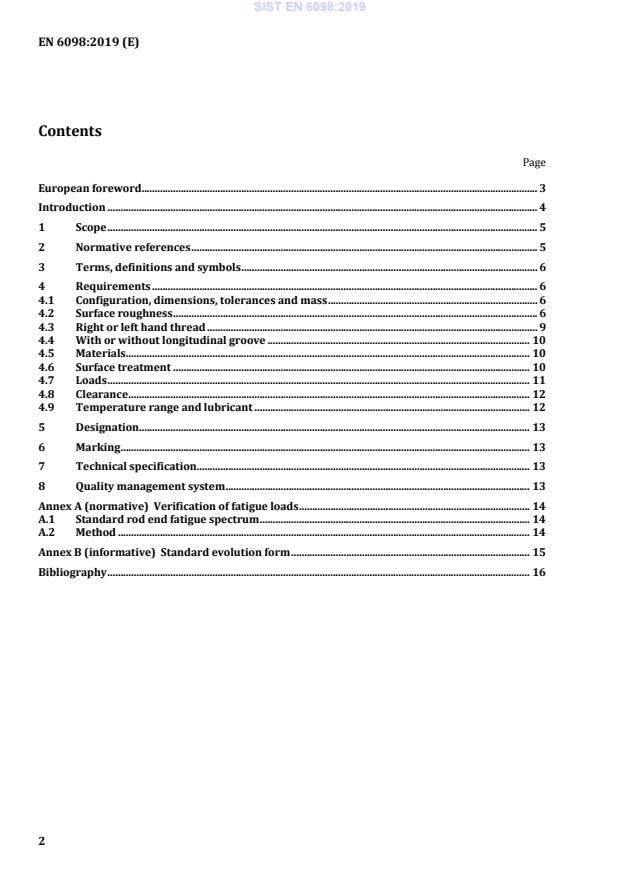

Contents
Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and symbols . 6
4 Requirements . 6
4.1 Configuration, dimensions, tolerances and mass . 6
4.2 Surface roughness . 6
4.3 Right or left hand thread . 9
4.4 With or without longitudinal groove . 10
4.5 Materials . 10
4.6 Surface treatment . 10
4.7 Loads . 11
4.8 Clearance . 12
4.9 Temperature range and lubricant . 12
5 Designation. 13
6 Marking . 13
7 Technical specification . 13
8 Quality management system . 13
Annex A (normative) Verification of fatigue loads . 14
A.1 Standard rod end fatigue spectrum . 14
A.2 Method . 14
Annex B (informative) Standard evolution form . 15
Bibliography . 16

European foreword
This document (EN 6098:2019) has been prepared by the Aerospace and Defence Industries
Association of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by November 2019, and conflicting national standards
shall be withdrawn at the latest by November 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Introduction
This document is published at edition P2. Former P1 and drafts may exist of Airbus development only
but without any ASD-STAN official publication. In consequence configuration management
discrepancies with these unofficial documents are under Airbus responsibility.
1 Scope
This European standard specifies the characteristics of adjustable rod ends consisting of:
 a spherical plain bearing, metal to metal, in corrosion resisting steel, extra wide series (EN 6097);
 a rod–end with threaded shank with an optional longitudinal groove for locking purposes.
They are intended for use in fixed or moving parts of the aircraft structure and their control
mechanisms.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2133, Aerospace series — Cadmium plating of steels with specified tensile strength ≤ 1 450 MPa,
copper, copper alloys and nickel alloys
EN 2424, Aerospace series — Marking of aerospace products
EN 6097, Aerospace series — Bearing, spherical plain, metal to metal, extra wide inner ring in corrosion
resisting steel — Dimensions and loads — Inch series
EN 6099, Rod-ends with plain bearing, metal to metal — Technical Specification
ISO 1132-1, Rolling bearings — Tolerances — Part 1: Terms and definitions
ISO 3161, Aerospace — UNJ threads — General requirements and limit dimensions
ISO 3353-1, Aerospace — Lead and runout threads — Part 1: Rolled external threads
ISO 3353-2, Aerospace — Lead and runout threads — Part 2: Internal threads
ISO 8074, Aerospace — Surface treatment of austenitic stainless steel parts
MIL-PRF-23827, Grease, aircraft and instrument, gear and actuator screw, NATO code No.G-354 metric
MIL-PRF-46010, Lubricant, solid film, heat cured, corrosion — inhibiting, NATO Code-S-1738
MIL-PRF-81322, Grease, aircraft, general purpose, wide temperature range, NATO Code G-395
NAS 559, Lock-rod end (key type)

1 In preparation at the date of publication of this European standard (see www.asd-stan.org).
2 Published by: Department of Defense (DoD), the Pentagon, Washington, D.C., 20307, USA.
3 Published by: Aerospace Industries Association of America, Inc. (AIA), 1250 Eye Street, N.W., Washington, D.C.
20005-3924, USA
SAE AMS 5643, Steel, corrosion resistant, bars, wire, forgings, tubing and rings 16Cr-4.0Ni-0.30Cb-4.0Cu,
Solution and Precipitation Heat
...
