Standards Content (Sample)
SLOVENSKI STANDARD
01-december-2019
Nadomešča:
SIST EN 12390-4:2001
Preskušanje strjenega betona - 4. del: Tlačna trdnost - Specifikacija za stiskalnice
Testing hardened concrete - Part 4: Compressive strength - Specification for testing
machines
Prüfung von Festbeton - Teil 4: Bestimmung der Druckfestigkeit - Anforderungen an
Prüfmaschinen
Essais pour béton durci - Partie 4 : Résistance à la compression - Caractéristiques des
machines d'essai
Ta slovenski standard je istoveten z: EN 12390-4:2019
ICS:
91.100.30 Beton in betonski izdelki Concrete and concrete
products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 12390-4
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2019
EUROPÄISCHE NORM
ICS 91.100.30 Supersedes EN 12390-4:2000
English Version
Testing hardened concrete - Part 4: Compressive strength -
Specification for testing machines
Essais pour béton durci - Partie 4 : Résistance à la Prüfung von Festbeton - Teil 4: Bestimmung der
compression - Caractéristiques des machines d'essai Druckfestigkeit - Anforderungen an Prüfmaschinen
This European Standard was approved by CEN on 19 August 2019.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12390-4:2019 E
worldwide for CEN national Members.

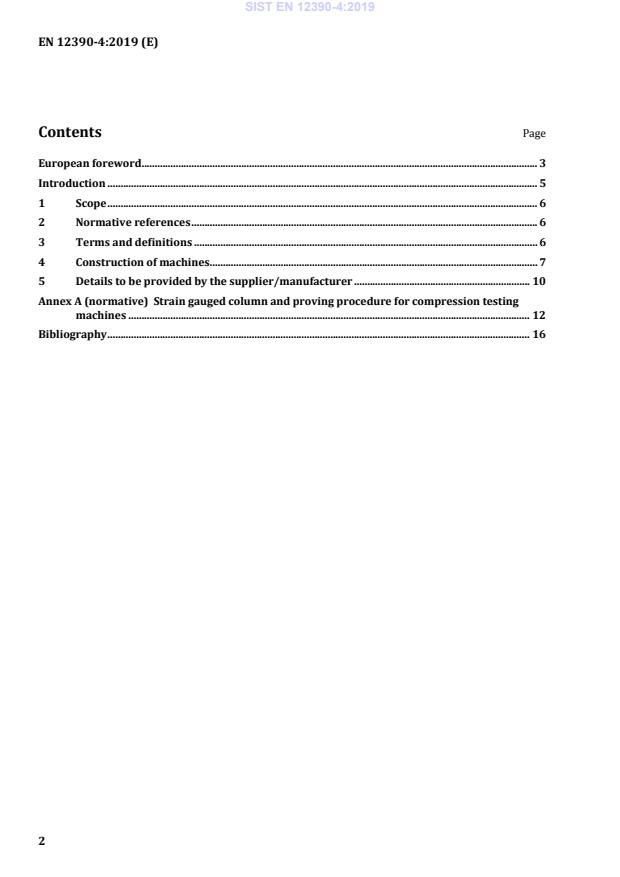

Contents Page
European foreword . 3
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Construction of machines . 7
5 Details to be provided by the supplier/manufacturer . 10
Annex A (normative) Strain gauged column and proving procedure for compression testing
machines . 12
Bibliography . 16
European foreword
This document (EN 12390-4:2019) has been prepared by Technical Committee CEN/TC 104 “Concrete
and related products”, the secretariat of which is held by SN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2020, and conflicting national standards shall be
withdrawn at the latest by April 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12390-4:2000.
This standard is one of a series on testing concrete.
EN 12390, Testing hardened concrete, consists of the following parts:
— Part 1: Shape, dimensions and other requirements for specimens and moulds;
— Part 2: Making and curing specimens for strength tests;
— Part 3: Compressive strength of test specimens;
— Part 4: Compressive strength – Specification for testing machines;
— Part 5: Flexural strength of test specimens;
— Part 6: Tensile splitting strength of test specimens;
— Part 7: Density of hardened concrete;
— Part 8: Depth of penetration of water under pressure;
— Part 10: Determination of the carbonation resistance of concrete at atmospheric levels of carbon
dioxide;
— Part 11: Determination of the chloride resistance of concrete, unidirectional diffusion;
— Part 12: Determination of the potential carbonation resistance of concrete: Accelerated carbonation
method (in preparation);
— Part 13: Determination of secant modulus of elasticity in compression;
— Part 14: Semi-adiabatic method for the determination of heat released by concrete during its
hardening process;
— Part 15: Adiabatic method for the determination of heat released by concrete during its hardening
process;
— Part 16: Determination of the shrinkage of concrete;
— Part 17: Determination of creep of concrete in compression.
— the text is aligned with EN ISO 7500-1 to avoid duplication;
— machines to be Class 1 except those manufactured before 2000 where Class 2 is acceptable;
— increase in verification points and new limits of acceptance over working range;
— description of verification procedure for strain gauge column;
— deletion of Annex B.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Introduction
The requirements for testing machines set out in this document have been formulated to satisfy the
needs of those compressive tests on concrete specimens which are specified in EN 206:2013+A1:2016.
Machines conforming to this standard can be suitable for other uses, but this needs to be carefully
considered on an individual test basis. Particular care needs to be taken before using machines
conforming to this document for compressive tests on small specimens, e.g. those with lateral
dimensions significantly less than 100 mm. The main concern is that the ball-seating fitted to the upper
platen can be too large to align satisfactorily on the top of such small specimens and special adaptations
can be required. Another concern is the ability to accurately determine the failure load of small or low
strength specimens.
1 Scope
This document specifies the requirements for the performance of compression testing machines for the
measurement of the compressive strength of concrete.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 6507-1, Metallic materials - Vickers hardness test - Part 1: Test method (ISO 6507-1)
EN ISO 7500-1:2018, Metallic materials - Calibration and verification of static uniaxial testing machines -
Part 1: Tension/compression testing machines - Calibration and verification of the force-measuring system
(ISO 7500-1:2018)
EN ISO 4287, Geometrical product specifications (GPS) - Surface texture: Profile method - Terms,
definitions and surface texture parameters (ISO 4287)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
auxiliary platen
separate platen usually of a size equal to the designated size of the specimen being tested
3.2
contact area
part of the platen that comes into contact with the specimen
3.3
indicated force
force indicated on the machine scale(s) or display
3.4
indication range
total force range, from zero to maximum, displayed on the machine
3.5
machine platens
lower platen and upper platen both centred on the central vertical axis of the machine and where the
upper platen is spherically seated
3.6
measuring range
part of an indication range over which the machine conforms with the accuracy values specified in
EN ISO 7500-1
3.7
spacing block
metal block to adjust the space available to test specimens
3.8
true force
force indicated on a calibrated force proving device
4 Construction of machines
4.1 Machine platens, auxiliary platens and spacing blocks
NOTE The use of auxiliary platens is optional.
4.1.1 Machine and auxiliary platens shall be made of a material which shall not deform irreversibly
when the machine is used.
4.1.2 Machine and auxiliary platens shall have a hardness value of at least 570HV30 (or 53HRC) when
tested in accordance with EN ISO 6507-1.
4.1.3 The flatness tolerance for machine platens and auxiliary platens shall be 0,03 mm for the area in
contact with the specimen.
NOTE For the purpose of this document, flatness can be assessed by the measurement of straightness in four
positions (see EN 12390-1:2012, Annex B).
4.1.4 The roughness value (R ) for the surface texture of machine and auxiliary platens shall be in the
a
range 0,4 μm to 3,2 μm, when assessed in accordance with EN ISO 4287 for the area in contact with the
specimens.
4.1.5 The area of machine platens (including auxiliary platens) in contact with the specimen shall be
at least as great as the area of the specimen being tested. The distance between opposite edges of a
square platen, or the diameter of a circular platen, shall not be less than the designated size of the
specimen.
4.1.6 The two contact faces of an auxiliary platen shall be parallel to a tolerance of 0,05 mm.
4.1.7 Auxiliary platens shall be at least 23 mm thick.
4.1.8 Spacing blocks may be used if there is a requirement to reduce the distance between the
machine platens.
For stability reasons, the total number of spacing blocks shall not exceed four. Spacing blocks shall be
precisely centred along the machine axis.
4.1.9 A spacing block may be either circular or square in section and shall be rigidly supported from
below.
A minimum diameter or length of side of 200 mm is recommended for spacing blocks.
4.1.10 Spacing blocks shall comply with the flatness and parallelism tolerances required for auxiliary
platens (see 4.1.3 and 4.1.6).
4.1.11 Spacing blocks shall be positioned below the lower machine platen and not in contact with the
specimen.
4.1.12 Spacing blocks shall be precisely positioned centrally on the vertical machine axis.
4.2 Force measurement
4.2.1 Force indicator
The machine shall be provided with:
— dials or digital displays which allow the force to be read to the accuracy specified in 4.2.2;
— a system which allows the maximum force sustained to be read after completion of the test, until
reset;
— displays readable from the operating position.
The machine force indication system shall not be affected by explosive failure of the specimen.
The lowest verifiable value of each measuring range shall be less than or equal to 20 % of the maximum
value of the range. If the machine is equipped with several indication ranges, the above requirement
shall apply to each range.
4.2.2 Force indicator accuracy
For machines built after the publication of the first edition of this standard (year 2000), the required
accuracy of the force indication shall be class 1 according to EN ISO 7500-1:2018, Table 1 (maximum
relative error of indication = ± 1 %).
Machines built before the publication of the first edition of this standard (year 2000) shall conform to
the requirements of Table 1 in EN ISO 7500-1:2018, Class 2 (maximum relative error of
indication = ± 2 %) unless national provisions specify differently.
The accuracy of force indication shall be maintained under any or all of the following circumstances:
— mains voltage fluctuations of –14 % to +10 %;
— at a temperature of 10 °C to 35 °C;
— at a relative humidity of up to 80 %.
NOTE Where electrical or other interference exists, this can affect the accuracy of force indication and special
provisions to overcome this interference can be necessary.
4.3 Force control
4.3.1 The compression testing machine shall be provided with a control system. The control system
shall enable the machine to be verified and to allow force to be applied smoothly and without shock. It
shall also allow the force to be applied at constant rates prescribed in the relevant Standard
4.3.2 The control system may be operated either by manual or automatic means.
4.3.3 A load rate indicator and/or a pacer shall be fitted on the machine. The pacer shall indicate a
rate within at least ± 5 % of the specified rate.
It is recommended th
...
Die Norm EN 12390-4:2019 gibt eine umfassende Anleitung zu den Anforderungen an die Leistung von Druckprüfmaschinen zur Messung der Druckfestigkeit von Beton vor. Diese Norm ist von zentraler Bedeutung für die Bauindustrie, da sie sicherstellt, dass die Testverfahren für die Druckfestigkeit konsistent und zuverlässig sind. Ein herausragendes Merkmal dieser Norm ist die detaillierte Spezifikation der technischen Anforderungen, die an die Prüfmaschinen gestellt werden. Die Standardisierung ermöglicht es, eine einheitliche Qualität und Genauigkeit bei der Prüfung von Beton zu gewährleisten. Dadurch wird die Vergleichbarkeit der Testergebnisse zwischen verschiedenen Laboren und Anwendungen fördert, was für die Qualitätssicherung und die Einhaltung von Baunormen entscheidend ist. Die Relevanz der Norm EN 12390-4:2019 erstreckt sich über verschiedene Aspekte der Bauindustrie. Sie gewährleistet nicht nur die strukturelle Integrität von Betonbauwerken, sondern trägt auch zur Sicherheit von Bauprojekten bei. Ingenieure und Prüfinstitute profitieren von der klaren Struktur, die diese Norm bietet, um die Druckfestigkeit von Beton objektiv und messbar zu bewerten. Zusammengefasst bietet die SIST EN 12390-4:2019 eine essentielle Grundlage für die Prüfung der Druckfestigkeit von Beton und stellt sicher, dass die eingesetzten Prüfmaschinen den erforderlichen Standards entsprechen. Die Norm bleibt somit ein unverzichtbares Dokument für die Gewährleistung der Bauqualität und der Sicherheit in der Praxis.
La norme SIST EN 12390-4:2019 est un document essentiel qui définit les exigences relatives aux machines de test de compression utilisées pour mesurer la résistance à la compression du béton durci. Cette norme est d'une grande importance dans le domaine du test des matériaux, car elle assure un cadre standardisé pour le fonctionnement et la performance de ces équipements critiques. L'un des points forts de cette norme est sa capacité à garantir la précision dans la mesure de la résistance à la compression. En définissant des spécifications claires pour les machines de test, la norme contribue à minimiser les variations dans les résultats des essais, ce qui est crucial pour les ingénieurs et les architectes qui dépendent de ces données pour évaluer la qualité du béton. De plus, la norme SIST EN 12390-4:2019 est pertinente non seulement pour les laboratoires d'essai, mais également pour les producteurs de matériel d'essai, car elle établit des critères de performance qui doivent être respectés lors de la fabrication et de l'utilisation des machines. Cela favorise une amélioration constante des équipements et des pratiques dans le secteur. En termes de portée, cette norme couvre les aspects techniques nécessaires pour évaluer l'efficacité des machines de compression, ce qui en fait un outil indispensable pour garantir la fiabilité des résultats d'essai de résistance à la compression du béton. En intégrant des exigences sur la calibration, l'entretien, et les méthodes de vérification, la norme renforce la confiance dans le processus de test et les résultats obtenus. En somme, la norme SIST EN 12390-4:2019 représente une référence incontournable pour toute organisation impliquée dans le test de la résistance à la compression du béton, offrant à la fois des directives claires et un engagement envers la qualité et l'intégrité des essais.
SIST EN 12390-4:2019 표준은 경화된 콘크리트의 압축 강도를 측정하기 위한 압축 시험 기계의 성능 요구 사항을 명확하게 규정하고 있습니다. 이 문서는 콘크리트의 신뢰성 있는 강도 평가를 위해 필요한 기계적 요구 사항을 제시하며, 시험 기계의 정확성 및 일관성을 보장하는 데 중점을 두고 있습니다. 이 표준의 강점 중 하나는 압축 시험 기계에 대한 명확한 규정을 설정함으로써 다양한 시험 환경에서의 일관성을 확보한다는 점입니다. 이는 콘크리트의 압축 강도 평가가 정확하고 반복 가능하도록 하여 건설 산업에서의 품질 보증에 크게 기여합니다. 또한, 표준은 기계의 성능 기준을 명시함으로써 제조업체와 사용자가 둘 다 규준에 따라 기계를 설계하고 운영할 수 있는 기준을 제공합니다. SIST EN 12390-4:2019의 내용은 현재 건설 산업의 요구에 부합하며, 압축 시험 기계의 성능뿐만 아니라 그 시험 절차의 신뢰성을 높이는 데 중요한 역할을 합니다. 이러한 표준은 콘크리트 구조물의 안전성과 내구성을 확보하는 데 필수적인 요소로, 관련 업계의 종합적인 품질 관리 전략에 중심적인 위치를 차지합니다. 따라서 SIST EN 12390-4:2019 표준은 경화된 콘크리트의 압축 강도를 측정하는 과정에서 필수적인 지침을 제공하며, 해당 분야의 전문가들에게 큰 도움이 되는 문서라고 할 수 있습니다.
標準「SIST EN 12390-4:2019」は、圧縮強度試験に関わる重要なドキュメントであり、特にコンクリートの圧縮試験機の性能要件を明確に定義しています。この標準の範囲は、コンクリートの圧縮強度測定に必要な試験機の性能を確保することにあり、業界のニーズに応えるための基準を提供しています。 この標準の強みは、その明確で具体的な要求事項にあります。圧縮試験機の精度、再現性、信頼性についてのガイドラインが含まれており、試験結果の一貫性を保証します。また、最新の技術や方法論を反映しているため、コンクリートの品質管理においても非常に価値があります。このような要件により、建設業界の専門家は質の高いコンクリートの供給を確実にすることができます。 さらに、この標準は、グローバルなコンテキストでのコンクリートの性能評価においても広く認識されており、その適用性が高いことから、さまざまな国や地域においても有用です。特に、圧縮強度試験はコンクリートの品質評価において基本的なステップであり、構造物の安全性に直結するため、この標準の relevance（関連性）は非常に高いものです。 総じて、SIST EN 12390-4:2019は、圧縮強度測定のための試験機に関して、必要な要求事項とガイドラインを提供する非常に優れた標準です。コンクリートに関連するさまざまなプロジェクトにおいて、その適用を奨励することが推奨されます。
The standard EN 12390-4:2019 outlines specific requirements for the performance of compression testing machines used to measure the compressive strength of hardened concrete. This standard is crucial as it ensures that testing machines provide accurate and consistent results, which is essential for quality control in concrete production and construction. One of the primary strengths of EN 12390-4:2019 is its comprehensive scope, which covers all necessary specifications for the functionality and calibration of testing machines. By establishing clear guidelines, the standard helps manufacturers and users of testing equipment maintain compliance with internationally recognized practices, enhancing the credibility of test results. Additionally, the relevance of this standard is underscored by the rise in construction projects requiring stringent quality assurance measures. As concrete is a predominant material in modern construction, ensuring its compressive strength through standardized testing is imperative for structural safety and durability. This standard not only facilitates compliance with regulatory requirements but also fosters a greater understanding of the importance of accurate testing processes. Furthermore, EN 12390-4:2019 addresses potential variations in testing conditions and machine performance, offering solutions and adjustments to mitigate risks associated with improper testing. This forward-thinking approach strengthens the reliability of concrete testing and promotes best practices across the industry. Overall, the document serves as an essential reference for testing laboratories, construction firms, and equipment manufacturers, paving the way for improved confidence in the structural integrity of concrete through standardized compressive strength testing methodologies.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
