DRAFT
EUROPEAN STANDARD
prEN 54-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2020
ICS 13.220.20 Will supersede EN 54-1:2011
English Version
Fire detection and fire alarm systems - Part 1: Introduction

Systèmes de détection et d'alarme incendie - Partie 1 : Brandmeldeanlagen - Teil 1: Einleitung

Introduction

This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee

CEN/TC 72.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations

which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC

Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are

aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without

notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 54-1:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 54-1:2020
prEN 54-1:2020 (E)

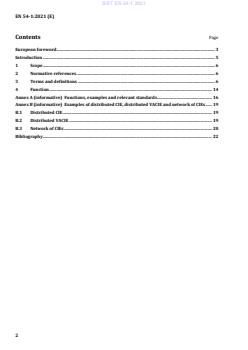

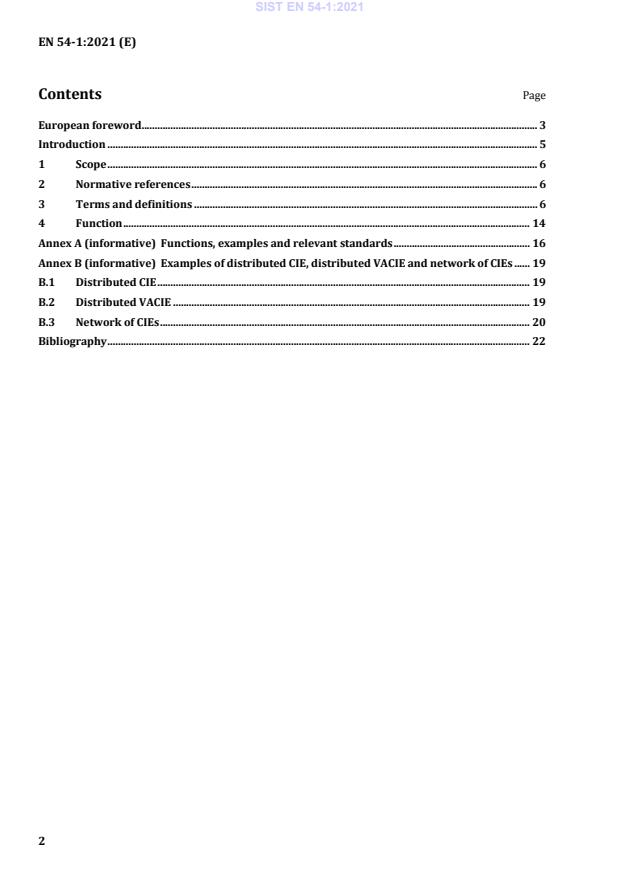

Contents Page

European foreword .......................................................................................................................................................................... 3

Introduction ........................................................................................................................................................................................ 5

1 Scope ...................................................................................................................................................................................... 7

2 Normative references ...................................................................................................................................................... 7

3 Terms and definitions ..................................................................................................................................................... 7

4 Function ............................................................................................................................................................................. 15

Annex A (informative) Functions, examples and relevant standards ..................................................................... 17

Annex B (informative) Examples of distributed CIE and network of CIEs ........................................................... 20

---------------------- Page: 4 ----------------------
oSIST prEN 54-1:2020
prEN 54-1:2020 (E)
European foreword

This document (prEN 54-1:2020) has been prepared by Technical Committee CEN/TC 72 “Fire

detection and fire alarm systems”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 54-1:2011.

EN 54, Fire detection and fire alarm systems, is currently composed with the following parts:

— Part 1: Introduction
— Part 2: Control and indicating equipment
— Part 3: Fire alarm devices — Sounders
— Part 4: Power supply equipment
— Part 5: Heat detectors — Point heat detectors

— Part 6: Heat sensitive detectors — Rate of rise point detectors without a static element

— Part 7: Smoke detectors — Point detectors using scattered light, transmitted light or ionization

— Part 10: Flame detectors — Point detectors
— Part 11: Manual call points
— Part 12: Smoke detectors — Line detectors using an optical light beam
— Part 13: Compatibility assessment of system components

— Part 14: Guidelines for planning, design, installation, commissioning, use and maintenance

(CEN/TS 54-14)
— Part 16: Voice alarm control and indicating equipment
— Part 17: Short-circuit isolators
— Part 18: Input/output devices
— Part 20: Aspirating smoke detectors
— Part 21: Alarm transmission and fault warning routine equipment
— Part 22: Resettable line type heat detectors
— Part 23 Fire alarm devices — Visual alarm devices
— Part 24: Components of voice alarm systems — Loudspeakers
— Part 25: Components using radio links
---------------------- Page: 5 ----------------------
oSIST prEN 54-1:2020
prEN 54-1:2020 (E)
— Part 26: Point fire detectors using carbon monoxide sensors
— Part 27: Duct smoke detectors
— Part 28: Non-resettable line type heat detectors

— Part 29: Multi-sensor fire detectors — Point detectors using a combination of smoke and heat sensors

— Part 30: Multi-sensor fire detectors — Point detectors using a combination of carbon monoxide and

heat sensors

— Part 31: Multi-sensor fire detectors — Point detectors using a combination of smoke, carbon monoxide

and optionally heat sensors

— Part 32: Guidelines for the planning, design, installation, commissioning, use and maintenance of voice

alarm systems

NOTE This list includes standards that are in preparation and other standards may be added. For

current status of published standards refer to https://www.cen.eu.
---------------------- Page: 6 ----------------------
oSIST prEN 54-1:2020
prEN 54-1:2020 (E)
Introduction
General

This document gives the necessary information for the intended use of the series of EN 54 standards.

The EN 54 series applies to fire detection and alarm systems for buildings and civil engineering works

composed of several components that communicate for the purpose of detecting fire at the earliest

practicable moment, and:

— to give audible and/or visible signals to the occupants of the building who may be at risk from a

fire;

— to provide remote fire alarms to organizations having authority to take care of buildings and their

environment;

— to give signals to initiate, in the event of a fire, the operation of other fire protection and

equipment/systems.
The EN 54-series specifies:

— product characteristics, test methods and performance criteria against which the effectiveness and

reliability of the component parts of fire detection and fire alarm systems can be assessed and

declared;

— requirements for compatibility and connectability of components when combined into a system;

— guidelines for application of fire detection and fire alarm systems in buildings and civil engineering

works.

The EN 54 series may be used for other applications e.g. mines and ships, but one should consider the

specific nature of each application before use. Additional performance and environmental tests may be

necessary. This does not preclude the manufacture or use of systems having special characteristics

suitable for the protection of specific risks against specific hazards.

As this revision of the standard includes terms and definitions collated from specific parts of EN 54,

there may now be some duplication of terms and definitions in other parts. This situation will be

corrected in future revisions of the different parts of EN 54 so that definitions are defined only once and

are applied consistently throughout the series.

The functions of a fire detection and fire alarm system may be grouped to form subsystems such as a

fire detection subsystem and a voice alarm subsystem.

As the system is required to function satisfactorily, not only under fire conditions, but also when

exposed to conditions likely to be met in practice, the tests specified in the EN 54 series are intended to

assess the performance of the components and the system under such conditions.

The performance of components is assessed from the results obtained in the specified tests. This

performance does not ensure that this component will necessarily function correctly when connected

with another component also conforming to the relevant part of EN 54 (e.g. control and indicating

equipment with a fire detector), unless both components have been assessed together as conforming to

the requirements for a system.
Open Descriptions to express product performance

Many of the product standards in the EN 54 series fall under the Construction Product Regulation

(305/2011/EU – CPR) and, as such, they are prepared for citation in the Official Journal of the European

Union (OJEU) as Harmonized standards (hENs). This regulation places constraints on how the EN 54

---------------------- Page: 7 ----------------------
oSIST prEN 54-1:2020
prEN 54-1:2020 (E)

products standards are prepared and an approach using “open descriptions” is being phased in to

realize the “common technical language” expected by the CPR and thus facilitate ongoing citation in the

OJEU.

In the past the EN 54 series specified the minimum performance using pass/fail criteria. In the CPR the

pass/fail criteria is not allowed. This contradiction can be overcome by using descriptions of

performance, which are allowed by the CPR, particullarly if the descriptions are open (allows open trade

for products with different performances). This “open descriptions” approach is being phased into the

EN 54 series and introduces standard descriptors “X” and “0” to express, respectively, when an optional

characteristic is not provided (X) and when the performance of a characteristic is not within defined

criteria (0). Other descriptors (e.g. “1”, “2”, “A1”, “A2”) express when the performance of a characteristic

is within defined criteria. Together, these descriptors establish a “common technical language” which

can be used by member states to specify the requirements for FDAS components.

This “open descriptions” approach is being phased into the EN 54 series. It is easy to recognize those

parts which have adopted the approach because the descriptors and corresponding criteria for each

product characteristic are expressed in tabular form.
---------------------- Page: 8 ----------------------
oSIST prEN 54-1:2020
prEN 54-1:2020 (E)
1 Scope

This document defines the terms and definitions that are used throughout EN 54 series of standards. It

gives the principles on which each part of the series has been based and describes the functions carried

out by the components of a fire detection and fire alarm system.

This document applies to fire detection and fire alarm systems for buildings and civil engineering

works.

This document does not apply to smoke alarm devices which are covered by EN 14604.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 16763:2017, Services for fire safety systems and security systems
3 Terms and definitions
For the purposes of this document, the following terms and definitions.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
access level
one of several states of equipment in which selected
— controls can be operated,
— manual operations can be carried out,
— indications are visible, and/or
— information can be obtained
3.2
addressable device
device that can be individually identified at the CIE
3.3
aerosol tunnel

test arrangement, producing a well-controlled increase of an artificial aerosol for the purpose of a

reproducible assessment of the response behaviour of a smoke detector
3.4
ancillary equipment
equipment which supports fire related functions not currently defined in EN 54
---------------------- Page: 9 ----------------------
oSIST prEN 54-1:2020
prEN 54-1:2020 (E)
3.5
aspirating smoke detector

smoke detector, in which air and aerosols are drawn through a sampling device and carried to one or

more smoke sensing elements by an integral aspirator (e.g. fan or pump)

Note 1 to entry: Each smoke-sensing element may contain more than one sensor exposed to the same smoke

sample.
3.6
building management system

facilities used to monitor, control and manage equipment installed in a building for comfort, safety

and/or security purposes
3.7
combustion gas detector

fire detector sensitive to gaseous products of combustion and/or thermal decomposition

EXAMPLE Carbon monoxide fire detector
3.8
commissioning
activating and testing of the system according to the design
[Source: EN 16763:2017, 2.12]
3.9
compatibility

ability of a component of the system to operate with another component of the same system

3.10
competent person

individual who, in relation to the work undertaken, has the necessary knowledge, skill, tools and

experience to complete the defined task satisfactorily and safely
3.11
component

device contained in one housing, that performs a function, several funtions or part of a function of a fire

detection and fire alarm system

EXAMPLE Fire detectors, alarm devices and control and indicating equipment are components of a fire

detection and fire alarm system.

Note 1 to entry: Where a function is distributed in separate housings each housing is considered as a separate

component.
3.12
control and indicating equipment
CIE

component of a fire detection and fire alarm system through which other components may be supplied

with power and which:
a) is used:

1) to receive the signals from the connected detectors and/or manual call points;

---------------------- Page: 10 ----------------------
oSIST prEN 54-1:2020
prEN 54-1:2020 (E)
2) to determine whether these signals correspond to a fire alarm condition;
3) to indicate any such fire alarm condition audibly and visually;
4) to indicate the location of the danger.

b) is used to monitor correct functioning of the system and give audible and visible warning of any

faults (e.g. short circuit, line breakage, or fault in the power supply); and, if necessary is able to pass

on the fault warning through fault warning routing equipment to a fault warning receiving centre;

c) if necessary, is able to pass on the fire alarm signal; for example:
i) to audible or visible fire alarm devices or to a voice alarm system;
ii) to the fire alarm routing function to a fire alarm receiving centre;
iii) to the control function for fire protection equipment or systems;
iv) to fire brigade panel;
v) to other systems or equipment not covered by EN 54.
3.13
control for fire protection equipment or system

device used to actuate fire protection equipment or fire protection systems after receiving a signal from

the control and indicating equipment
3.14
detachable component

component which comprises two or more parts where parts may be removed from fixed part connected

to the transmission path without tools
3.15
detachable detector
detector which is designed for removal of the head from its base

Note 1 to entry: The use of detachable detectors can assist during maintenance without disconnecting the fixed

wiring.
3.16
distributed CIE

a single CIE which is contained in cabinets, which are physically separated from each other

Note 1 to entry: The requirements are given in EN 54-2.
Note 2 to entry: See Annex B for examples.
3.17
distributed VACIE

a single VACIE which is contained in cabinets, which are physically separated from each other

Note 1 to entry: The requirements are given in EN 54-16.
Note 2 to entry: See Annex B for examples.
---------------------- Page: 11 ----------------------
oSIST prEN 54-1:2020
prEN 54-1:2020 (E)
3.18
duct smoke detector
detector that monitors the air in air duct to detect smoke
3.19
earth fault

unwanted connenction between earth potential and; any part of the CIE or VACIE, transmission paths to

the CIE or VACIE, or transmission paths between parts of the CIE or VACIE
3.20
emergency microphone

microphone for use by the fire service or trained operators as part of a voice alarm system

3.21
fault warning receiving centre

centre from which the necessary corrective measures can be initiated on receipt of fault signals

3.22
fault warning routi
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
