Glass in building - Adhesive backed polymeric film - Part 1: Definitions and requirements

This European Standard defines adhesive backed polymeric film based on biaxially oriented polyester film, and the performance characteristics of adhesive backed polymeric film for use on glass in buildings.
This European Standard does not apply to adhesive backed polymeric films manufactured using polyvinylchloride (PVC).
Other requirements, not specified in this standard, may apply to other glass or glazing products, e.g. laminated glass or insulating glass units, when adhesive backed polymeric film is included as part of the original assembly or manufacture of the glazing product. These additional requirements are specified in the appropriate product standard. Adhesive backed polymeric film, in this case, does not lose its mechanical or thermal characteristics.

Glas im Bauwesen - Selbstklebende Polymerfolie - Teil 1: Begriffe und Anforderungen

Die vorliegende Europäische Norm definiert selbstklebende Polymerfolie basierend auf biaxial orientierter Polyesterfolie und die Leistungsmerkmale der selbstklebenden Polymerfolie im Hinblick auf den Einsatz in Verbindung mit Glas im Bauwesen.
Die vorliegende Europäische Norm gilt nicht für selbstklebende Polymerfolien, die unter Verwendung von Polyvinylchlorid (PVC) hergestellt wurden.
Für andere Gläser oder Verglasungen, wie zum Beispiel Verbundglas- oder Isolierglaseinheiten, können weitere in der vorliegenden Norm nicht festgelegte Anforderungen gelten, wenn die selbstklebende Polymerfolie Bestandteil der ursprünglichen Baugruppe oder Fertigung des Verglasungsprodukts ist. Diese zusätzlichen Anforderungen sind in der entsprechenden Produktnorm festgelegt. Selbstklebende Polymerfolie verliert in diesem Fall nicht ihre mechanischen oder thermischen Merkmale.

Verre dans la construction - Film polymère adhésif - Partie 1: Définitions et exigences

La présente Norme européenne définit les films polymères adhésifs à base de film polyester orienté de façon biaxiale et les caractéristiques de performance des films polymères adhésifs destinés à être utilisés sur du verre dans la construction.
La présente Norme européenne n’ s’applique pas aux films polymères adhésifs fabriqués à partir de chlorure de polyvinyle (PVC).
D'autres exigences, qui ne sont pas spécifiées dans la présente norme, peuvent s'appliquer à d'autres produits verriers ou à des vitrages, par exemple les vitrages en verre feuilleté ou en verre isolant, lorsqu'un film polymère adhésif fait partie intégrante de l'assemblage d'origine ou de la fabrication du vitrage. Ces exigences supplémentaires sont spécifiées dans la norme de produit correspondante. Dans ce cas, le film polymère adhésif ne perd pas ses caractéristiques mécaniques ou thermiques.

Steklo v gradbeništvu - Samolepljiva polimerna folija - 1. del: Definicije in zahteve

Standard EN 15752-1 določa samolepljivo polimerno folijo na podlagi dvoosno obrnjene poliestrske folije in lastnosti delovanja samolepljive polimerne folije za uporabo na steklu v stavbah. Ta evropski standard se ne uporablja za samolepljivo polimerno folijo, proizvedeno z uporabo polivinilklorida (PVC). Druge zahteve, ki niso opredeljene v tem standardu, se lahko uporabljajo za druge steklene ali zastekljevalne proizvode, npr. za lepljeno steklo ali izolacijsko steklo, kadar je samolepljiva polimerna folija vključena kot del izvirnega sestava ali proizvodnje zastekljevalnega proizvoda. Te dodatne zahteve so določene v ustreznem standardu za proizvod. Samolepljiva polimerna folija v tem primeru ne izgubi mehanskih ali toplotnih lastnosti.

General Information

Status
Published
Publication Date
05-Aug-2014
Current Stage
9060 - Closure of 2 Year Review Enquiry - Review Enquiry
Due Date
03-Mar-2020
Completion Date
03-Mar-2020

Buy Standard

Standard
EN 15752-1:2014
English language
36 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Draft
FprEN 15752-1:2014
English language
35 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Steklo v gradbeništvu - Samolepljiva polimerna folija - 1. del: Definicije in zahteveGlas im Bauwesen - Selbstklebende Polymerfolie - Teil 1: Begriffe und AnforderungenVerre dans la construction - Film polymère adhésif - Partie 1: Définitions et exigencesGlass in building - Adhesive backed polymeric film - Part 1: Definitions and requirements83.140.10Filmi in folijeFilms and sheets81.040.20Steklo v gradbeništvuGlass in buildingICS:Ta slovenski standard je istoveten z:EN 15752-1:2014SIST EN 15752-1:2014en,fr,de01-september-2014SIST EN 15752-1:2014SLOVENSKI

STANDARD
SIST EN 15752-1:2014
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15752-1
August 2014 ICS 81.040.20; 83.140.10 English Version

Glass in building - Adhesive backed polymeric film - Part 1: Definitions and requirements

Verre dans la construction - Film polymère adhésif - Partie 1: Définitions et exigences

Glas im Bauwesen - Selbstklebende Polymerfolie - Teil 1: Begriffe und Anforderungen This European Standard was approved by CEN on 15 May 2014.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15752-1:2014 ESIST EN 15752-1:2014

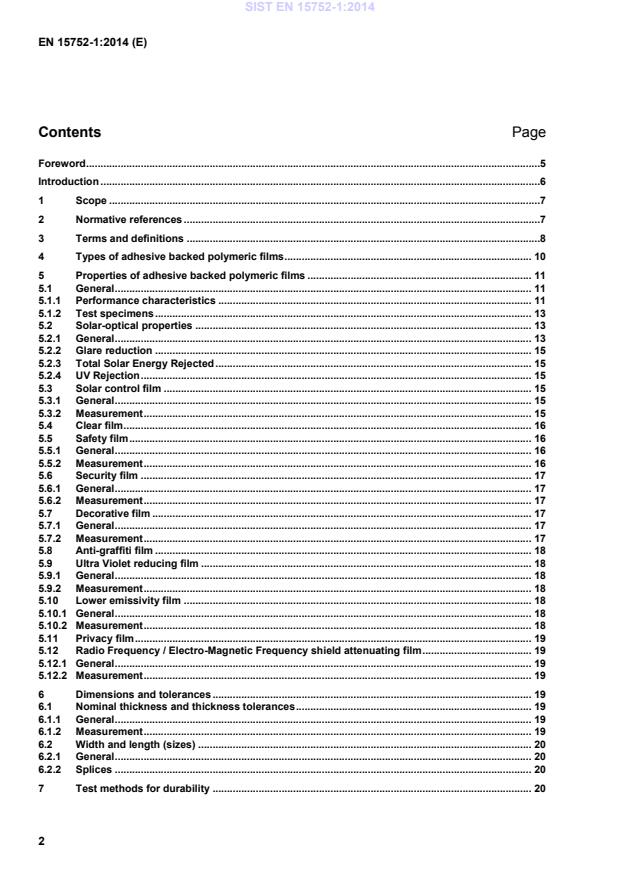

EN 15752-1:2014 (E) 2 Contents Page Foreword ..............................................................................................................................................................5 Introduction .........................................................................................................................................................6 1 Scope ......................................................................................................................................................7 2 Normative references ............................................................................................................................7 3 Terms and definitions ...........................................................................................................................8 4 Types of adhesive backed polymeric films ...................................................................................... 10 5 Properties of adhesive backed polymeric films .............................................................................. 11 5.1 General ................................................................................................................................................. 11 5.1.1 Performance characteristics ............................................................................................................. 11 5.1.2 Test specimens ................................................................................................................................... 13 5.2 Solar-optical properties ..................................................................................................................... 13 5.2.1 General ................................................................................................................................................. 13 5.2.2 Glare reduction ................................................................................................................................... 15 5.2.3 Total Solar Energy Rejected .............................................................................................................. 15 5.2.4 UV Rejection ........................................................................................................................................ 15 5.3 Solar control film ................................................................................................................................ 15 5.3.1 General ................................................................................................................................................. 15 5.3.2 Measurement ....................................................................................................................................... 15 5.4 Clear film .............................................................................................................................................. 16 5.5 Safety film ............................................................................................................................................ 16 5.5.1 General ................................................................................................................................................. 16 5.5.2 Measurement ....................................................................................................................................... 16 5.6 Security film ........................................................................................................................................ 17 5.6.1 General ................................................................................................................................................. 17 5.6.2 Measurement ....................................................................................................................................... 17 5.7 Decorative film .................................................................................................................................... 17 5.7.1 General ................................................................................................................................................. 17 5.7.2 Measurement ....................................................................................................................................... 17 5.8 Anti-graffiti film ................................................................................................................................... 18 5.9 Ultra Violet reducing film ................................................................................................................... 18 5.9.1 General ................................................................................................................................................. 18 5.9.2 Measurement ....................................................................................................................................... 18 5.10 Lower emissivity film ......................................................................................................................... 18 5.10.1 General ................................................................................................................................................. 18 5.10.2 Measurement ....................................................................................................................................... 18 5.11 Privacy film .......................................................................................................................................... 19 5.12 Radio Frequency / Electro-Magnetic Frequency shield attenuating film ...................................... 19 5.12.1 General ................................................................................................................................................. 19 5.12.2 Measurement ....................................................................................................................................... 19 6 Dimensions and tolerances ............................................................................................................... 19 6.1 Nominal thickness and thickness tolerances .................................................................................. 19 6.1.1 General ................................................................................................................................................. 19 6.1.2 Measurement ....................................................................................................................................... 19 6.2 Width and length (sizes) .................................................................................................................... 20 6.2.1 General ................................................................................................................................................. 20 6.2.2 Splices ................................................................................................................................................. 20 7 Test methods for durability ............................................................................................................... 20 SIST EN 15752-1:2014
