EN 13763-15:2025
(Main)Explosives for civil uses - Detonators and detonating cord relays - Part 15: Verification of equivalent initiating capability of electric, non-electric and electronic detonators
Explosives for civil uses - Detonators and detonating cord relays - Part 15: Verification of equivalent initiating capability of electric, non-electric and electronic detonators
This document specifies a method of determining the equivalent initiating capability of electric detonators, non-electric detonators and electronic detonators.
This document specifies a functioning test (after storage) at high and low temperatures.
This document is not applicable to surface connectors or detonating cord relays.
This document applies to explosives for civil uses.
Explosivstoffe für zivile Zwecke - Zünder und Sprengschnurverzögerer - Teil 15: Bestimmung der Zündstärke elektrischer, nicht-elektrischer und elektronischer Zünder
Dieses Dokument legt ein Verfahren für die Bestimmung der Zündstärke von elektrischen Zündern, nichtelektrischen Zündern und elektronischen Zündern fest.
Dieses Dokument legt eine Funktionsprüfung (nach der Lagerung) bei hohen und bei niedrigen Temperaturen fest.
Dieses Dokument gilt nicht für Oberflächenverbinder und Sprengschnurverzögerer.
Dieses Dokument gilt für Explosivstoffe für zivile Zwecke.
Explosifs à usage civil - Détonateurs et relais pour cordeau détonant - Partie 15: Vérification de la capacité d’amorçage équivalente des détonateurs électriques, non électriques et électroniques
Le présent document spécifie une méthode d’essai pour la vérification de la capacité d’amorçage équivalente des détonateurs électriques, non électriques et électroniques.
Le présent document ne s’applique pas aux détonateurs qui ne sont pas conçus pour fonctionner sous l’eau.
Le présent document ne s’applique pas aux détonateurs pyrotechniques et semi-finis, aux connecteurs de surface, aux fils d’amorce, aux tubes à transmission d’ondes de choc, aux relais pour cordeau détonant, aux manchons d’accouplement et aux systèmes d’amorçage électroniques.
Eksplozivi za civilno uporabo - Detonatorji in zakasnilniki - 15. del: Preverjanje enakovredne sprožitvene sposobnosti električnih, neelektričnih in elektronskih detonatorjev
General Information
Relations
Standards Content (Sample)

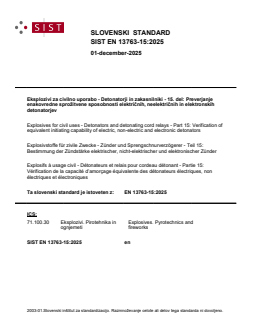

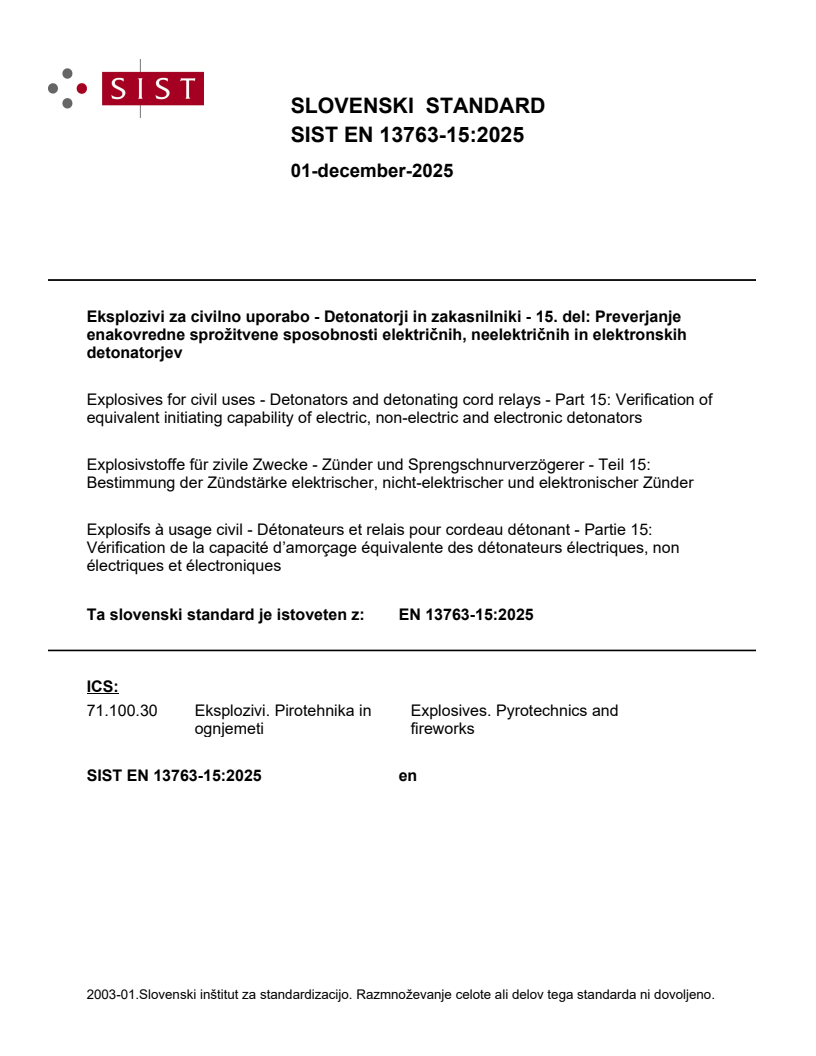

SLOVENSKI STANDARD
01-december-2025
Eksplozivi za civilno uporabo - Detonatorji in zakasnilniki - 15. del: Preverjanje
enakovredne sprožitvene sposobnosti električnih, neelektričnih in elektronskih
detonatorjev
Explosives for civil uses - Detonators and detonating cord relays - Part 15: Verification of
equivalent initiating capability of electric, non-electric and electronic detonators
Explosivstoffe für zivile Zwecke - Zünder und Sprengschnurverzögerer - Teil 15:
Bestimmung der Zündstärke elektrischer, nicht-elektrischer und elektronischer Zünder
Explosifs à usage civil - Détonateurs et relais pour cordeau détonant - Partie 15:
Vérification de la capacité d’amorçage équivalente des détonateurs électriques, non
électriques et électroniques
Ta slovenski standard je istoveten z: EN 13763-15:2025
ICS:
71.100.30 Eksplozivi. Pirotehnika in Explosives. Pyrotechnics and
ognjemeti fireworks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

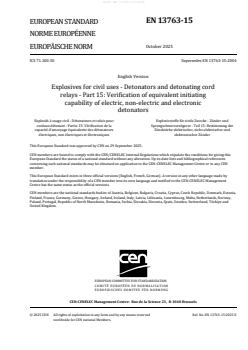

EN 13763-15
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2025
EUROPÄISCHE NORM
ICS 71.100.30 Supersedes EN 13763-15:2004
English Version
Explosives for civil uses - Detonators and detonating cord
relays - Part 15: Verification of equivalent initiating
capability of electric, non-electric and electronic
detonators
Explosifs à usage civil - Détonateurs et relais pour Explosivstoffe für zivile Zwecke - Zünder und
cordeau détonant - Partie 15: Vérification de la Sprengschnurverzögerer - Teil 15: Bestimmung der
capacité d'amorçage équivalente des détonateurs Zündstärke elektrischer, nicht-elektrischer und
électriques, non électriques et électroniques elektronischer Zünder
This European Standard was approved by CEN on 29 September 2025.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13763-15:2025 E
worldwide for CEN national Members.

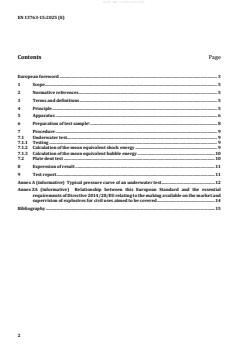

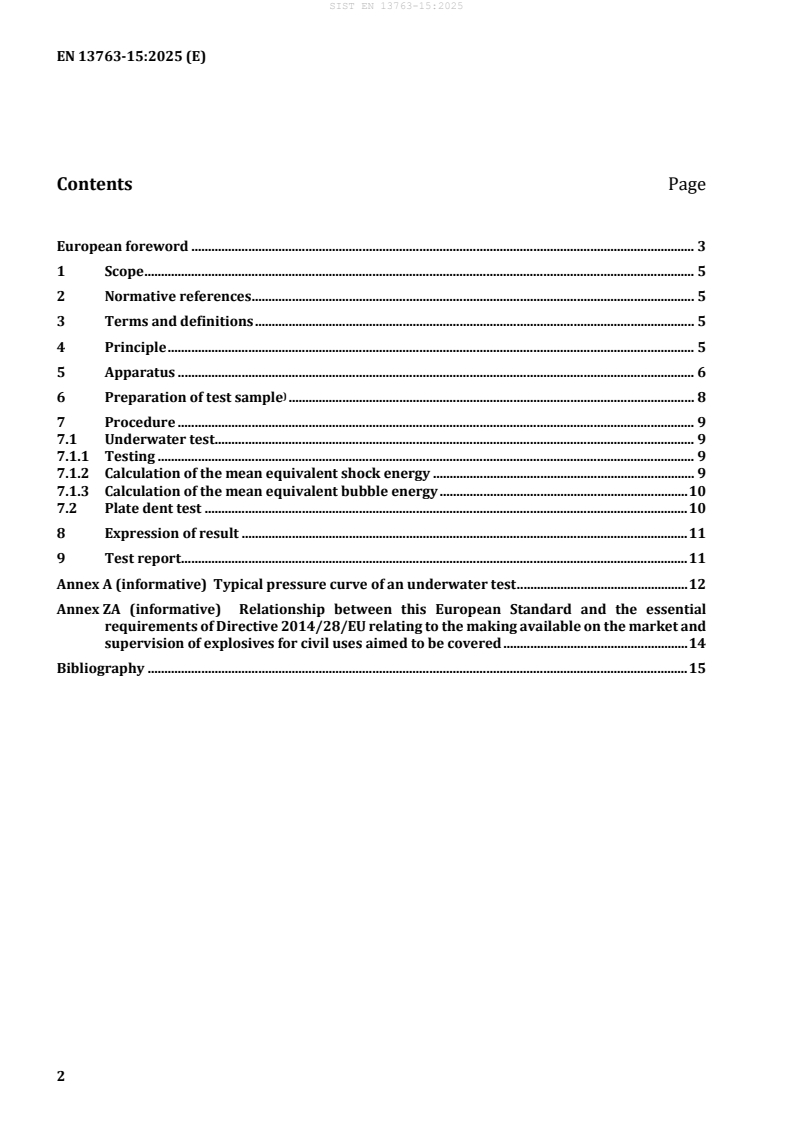

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 5
5 Apparatus . 6
)
6 Preparation of test sample . 8
7 Procedure . 9
7.1 Underwater test . 9
7.1.1 Testing . 9
7.1.2 Calculation of the mean equivalent shock energy . 9
7.1.3 Calculation of the mean equivalent bubble energy . 10
7.2 Plate dent test . 10
8 Expression of result . 11
9 Test report . 11
Annex A (informative) Typical pressure curve of an underwater test . 12
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/28/EU relating to the making available on the market and
supervision of explosives for civil uses aimed to be covered . 14
Bibliography . 15
European foreword
This document (EN 13763-15:2025) has been prepared by Technical Committee CEN/TC 321 “Explosives
for civil uses”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2026, and conflicting national standards shall be
withdrawn at the latest by April 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13763-15:2004.
EN 13763-15:2004:
a) the document title has been changed from “Detonators and relays — Part 15: Determination of
equivalent initiating capability” to “Detonators and detonating cord relays — Part 15: Verification of
equivalent initiating capability of electric, non-electric and electronic detonators”;
b) the Introduction has been removed;
c) the Scope has been revised to clarify the covered and not covered explosives as well as the
applicability of the test method with regard to the temperature range of use and resistance to water;
d) the normative references have been updated;
e) Clause 4 “Principle” has been added;
f) the clause “Apparatus” together with its figures has been revised;
g) the clause “Test pieces” is now called “Preparation of test sample”;
h) the clause “Procedure” has been revised and further detailed, the former “underwater initiating
capability test” is now called “underwater test” and the former “functioning test at high and low
temperatures” is now called “plate dent test”;
i) Clause 8 “Expression of results” has been added;
j) the clause “Test report” does no longer require conformity with EN ISO/IEC 17025 and the
information to be provided has been revised;
k) the former Annex A “Specifications for reference detonators” has been removed and can now be
found in FprEN 13763-1:2025;
l) the former Annex B “Range of applicability of the test method” has been removed;
m) the former Annex C is now Annex A “Typical pressure curve of an underwater test” and has been
editorially revised;
n) Annex ZA has been updated;
o) the Bibliography has been added and lists EN ISO/IEC 17025:2017.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
A list of all parts in the EN 13763 series, published under the general title Explosives for civil uses —
Detonators and detonating cord relays, can be found on the CEN website.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies a test method for the verification of the equivalent initiating capability of electric,
non-electric and electronic detonators.
This document is not applicable to detonators that are not designed to function under water.
This document is not applicable to plain detonators, semi-finished detonators, surface connectors,
leading wires, shock tubes, detonating cord relays, coupling accessories and electronic initiation systems.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 573-3:2019, Aluminium and aluminium alloys — Chemical composition and form of wrought
products — Part 3: Chemical composition and form of products
EN 13763-1:2025, Explosives for civil uses — Detonators and detonating cord relays — Part 1:
Requirements
EN 13857-1:2025, Explosives for civil uses — Part 1: Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13857-1:2025 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org
4 Principle
The initiating capability of a detonator is an important characteristic with regard to safe and reliable
functioning.
For the verification of the initiating capability of a detonator, test pieces are subjected to an underwater
test and to a plate dent test.
By means of the underwater test it is verified that the detonator to be tested, shows an equal or stronger
initiating capability than the specified corresponding reference detonator. Test pieces and reference
detonators are initiated under water. From the measured pressure over time, the values of the so-called
equivalent shock energy and equivalent bubble energy are calculated and used as indicators for the
comparison of the initiating capability.
NOTE The detonation of an explosive charge under water generates a spherical shock wave and a volume of
gas in a bubble, which expands and then collapses. The shock wave and the volume of gas bear a specific relationship
indicating the energy released through the detonation. The parameters equivalent shock energy and equivalent
bubble energy represent this energy but aren’t energy values themselves; they can be derived from the measured
shock wave pressure and the time between the maximum pressure peak and the first collapse of the gas bubble.
By means of the plate dent test it is verified that the tested detonator shows an initiating capability over
the specified temperature range of use that does not deviate too much from the performance at
(20 ± 5) °C. Test pieces are either conditioned at (20 ± 5) °C, at the minimum temperature of use or at the
highest temperature of use as specified for the detonator, and then initiated after being placed on a
witness plate. The obtained indentations on the witness plates are measured and compared.
5 Apparatus
5.1 Water tank, with a volume of at least 500 l and with minimum dimensions to immerse the
positioning frame (5.2) with the attached test piece (see Clause 6) and the pressure sensor (5.3) so that
a distance between the test piece and any other object is ≥ 200 mm, see Figure 1.
As an alternative, a body of water for carrying out blasting tests may be used instead of a water tank.
5.2 Positioning frame, made from a material that is dimensionally stable when immersed into water
for duration of the test (see Clause 7). The positioning frame shall allow the immersion of a test piece (see
Clause 6) or a reference detonator (5.9), respectively, and the pressure sensor (5.3) to water depth of
(400 ± 5) mm as measured from the lowest points of the test piece or the reference detonator (5.9) as
shown in Figure 1. The positioning frame shall keep the test piece or the reference detonator and the
pressure sensor at a horizontal distance of (400 ± 5) mm measured between their centrelines (see
Figure 1).
Dimensions in millimetres
Key
1 example for the positioning frame (5.2)
2 water tank (5.1)
...
