EN 2004-7:2017
(Main)Aerospace series - Test methods for aluminium and aluminium alloy products - Part 7: Reference blocks for the calibration of measuring equipment used in the determination of electrical conductivity of wrought aluminium and aluminium alloys
Aerospace series - Test methods for aluminium and aluminium alloy products - Part 7: Reference blocks for the calibration of measuring equipment used in the determination of electrical conductivity of wrought aluminium and aluminium alloys
This European Standard defines different types of electrical conductivity reference blocks, to be used for the calibration of eddy current conductivity measuring equipment, their method of production and calibration.
It is to be used in conjunction with EN 2004-1.
Luft- und Raumfahrt - Prüfverfahren für Erzeugnisse aus Aluminium und Aluminiumlegierungen - Teil 7: Referenzblöcke zur Eichung von Messgeräten zur Bestimmung der elektrischen Leitfähigkeit von gekneteten Aluminium und Aluminium-Legierungen
Diese Europäische Norm legt verschiedene Typen von Vergleichsblöcken für elektrische Leitfähigkeit zur Kalibrierung von Messgeräten für die Bestimmung der elektrischen Leitfähigkeit nach dem Wirbelstrom-verfahren sowie ihre Herstellungs- und Kalibrierungsverfahren fest.
Sie ist in Verbindung mit EN 2004 1 zu verwenden.
Série aérospatiale - Méthodes d'essais applicables aux produits en aluminium et alliages d'aluminium - Partie 7 : Blocs de référence pour l'étalonnage pour la détermination de la conductivité électrique d'aluminium et d'alliages d'aluminium corroyés
La présente norme européenne définit les différents types de blocs de référence de la conductivité électrique, qui doivent être utilisés pour l'étalonnage de l'équipement de mesure de la conductivité du courant de Foucault, ainsi que la méthode de production de ces blocs et leur étalonnage.
Elle doit être utilisée conjointement avec l'EN 2004-1.
Aeronavtika - Preskusne metode za proizvode iz aluminija in aluminijeve zlitine - 7. del: Primerjalne ploščice za umerjanje merilne opreme, ki se uporablja za ugotavljanje električne prevodnosti gnetenega aluminija in aluminijevih zlitin
Ta evropski standard opredeljuje različne tipe primerjalnih ploščic električne prevodnosti, ki se uporabljajo za umerjanje opreme za merjenje vrtinčnega toka, njihovega načina proizvodnje in umerjanja.
Standard je treba uporabljati v povezavi s standardom EN 2004-1.
General Information
- Status
- Published
- Publication Date
- 01-Aug-2017
- Withdrawal Date
- 27-Feb-2018
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 4/S 5 - Test Methods
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 02-Aug-2017
- Completion Date
- 02-Aug-2017
Overview
EN 2004-7:2017 (CEN) specifies reference blocks for the calibration of eddy‑current electrical conductivity measuring equipment used on wrought aluminium and aluminium alloys. It defines three hierarchical block types - master reference standards, secondary reference blocks, and operating reference blocks - and covers their production, calibration, identification, recordkeeping and calibration schedules. EN 2004-7 is intended to be used in conjunction with EN 2004-1 (determination of electrical conductivity) and references ISO 10012-1 for uncertainty evaluation and metrological confirmation.
Key topics and technical requirements
- Definitions and traceability:
- Master reference standards: held by National or Accredited Laboratories and traceable to electrical standards.
- Secondary reference blocks: calibrated against master standards; used to maintain traceability.
- Operating reference blocks: calibrated against secondary blocks for routine instrument calibration.
- Calibration environment and normalization:
- Calibrate at 20 °C ± 2 °C, results normalized to 20.00 °C.
- Temperature stability during operating-block calibration: actual variation within ±0.5 °C.
- Physical and material requirements:
- Surface roughness not greater than R = 1.6 µm.
- Secondary blocks: square or circular, thickness ≥ 4 mm, sides/diameter ≥ 30 mm (dimensions must avoid edge effects).
- Anodised protection layers (10–15 µm) must have lift‑off compensation applied.
- Performance and uncertainty:
- Surface conductivity variation (eddy current) should not exceed 0.05 MS/m; frequency-dependent variation (10 kHz–100 kHz) also ≤ 0.05 MS/m.
- Secondary block certificates: electrical conductivity in MS/m, test frequency and normalization temperature; maximum overall uncertainty ≤ ±0.7% (95% confidence).
- Calibration practice:
- Typical calibration frequency: 60 kHz (or within master standard’s calibrated range).
- Eddy‑current meter verification: meter must read secondary block certified value within ±0.2 MS/m or ±0.3% IACS before use.
- Operating block readings acceptable if within ±2 MS/m or ±3.5% IACS of the applicable secondary block; linear (or non‑linear) interpolation is permitted to determine calibrated values.
- Schedules and records:
- Secondary blocks: calibrated at intervals ≤ 4 years.
- Operating blocks: calibrated at intervals ≤ 13 months.
- Unique identification, calibration dates, uncertainty and full calibration records required.
Applications
- Ensures reliable calibration of eddy‑current conductivity equipment used in:
- Aerospace manufacturing and inspection of wrought aluminium components.
- Quality control labs and NDT facilities measuring aluminium alloy conductivity.
- Materials verification where conductivity is used to infer alloy composition, heat‑treatment condition or electrical performance.
Who should use this standard
- Aerospace manufacturers, NDT service providers, calibration laboratories, quality assurance personnel, and national standards bodies who require traceable, reproducible electrical conductivity measurements on aluminium alloys.
Related standards
- EN 2004-1 - Determination of electrical conductivity of wrought aluminium alloys
- ISO 10012-1 - Quality assurance requirements for measuring equipment (metrological confirmation)
Keywords: EN 2004-7, electrical conductivity reference blocks, eddy current conductivity calibration, aluminium alloys, calibration traceability, secondary reference blocks, operating reference blocks.
Frequently Asked Questions
EN 2004-7:2017 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Test methods for aluminium and aluminium alloy products - Part 7: Reference blocks for the calibration of measuring equipment used in the determination of electrical conductivity of wrought aluminium and aluminium alloys". This standard covers: This European Standard defines different types of electrical conductivity reference blocks, to be used for the calibration of eddy current conductivity measuring equipment, their method of production and calibration. It is to be used in conjunction with EN 2004-1.
This European Standard defines different types of electrical conductivity reference blocks, to be used for the calibration of eddy current conductivity measuring equipment, their method of production and calibration. It is to be used in conjunction with EN 2004-1.
EN 2004-7:2017 is classified under the following ICS (International Classification for Standards) categories: 49.025.20 - Aluminium. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase EN 2004-7:2017 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-oktober-2017
$HURQDYWLND3UHVNXVQHPHWRGH]DSURL]YRGHL]DOXPLQLMDLQDOXPLQLMHYH]OLWLQH
GHO 3ULPHUMDOQHSORãþLFH]DXPHUMDQMHPHULOQHRSUHPHNLVHXSRUDEOMD]D
XJRWDYOMDQMHHOHNWULþQHSUHYRGQRVWLJQHWHQHJDDOXPLQLMDLQDOXPLQLMHYLK]OLWLQ
Aerospace series - Test methods for aluminium and aluminium alloy products - Part 7:
Reference blocks for the calibration of measuring equipment used in the determination of
electrical conductivity of wrought aluminium and aluminium alloy
Luft- und Raumfahrt - Prüfverfahren für Erzeugnisse aus Aluminium und
Aluminiumlegierungen - Teil 7: Referenzblöcke zur Eichung von Meßgeräten zur
Bestimmung der elektrischen Leitfähigkeit von gekneteten Aluminium und Aluminium-
Legierungen
Série aérospatiale - Méthodes d'essais applicables aux produits en aluminium et alliages
d'aluminium - Partie 7 : Blocs de référence pour l'étalonnage pour la détermination de la
conductivité électrique d'aluminium et d'alliages d'aluminium corroyés
Ta slovenski standard je istoveten z: EN 2004-7:2017
ICS:
49.025.20 Aluminij Aluminium
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 2004-7
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2017
EUROPÄISCHE NORM
ICS 49.025.20
English Version
Aerospace series - Test methods for aluminium and
aluminium alloy products - Part 7: Reference blocks for the
calibration of measuring equipment used in the
determination of electrical conductivity of wrought
aluminium and aluminium alloys
Série aérospatiale - Méthodes d'essais applicables aux Luft- und Raumfahrt - Prüfverfahren für Erzeugnisse
produits en aluminium et alliages d'aluminium - Partie aus Aluminium und Aluminiumlegierungen - Teil 7:
7 : Blocs de référence pour l'étalonnage pour la Referenzblöcke zur Eichung von Meßgeräten zur
détermination de la conductivité électrique Bestimmung der elektrischen Leitfähigkeit von
d'aluminium et d'alliages d'aluminium corroyés gekneteten Aluminium und Aluminium-Legierungen
This European Standard was approved by CEN on 14 May 2017.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2004-7:2017 E
worldwide for CEN national Members.

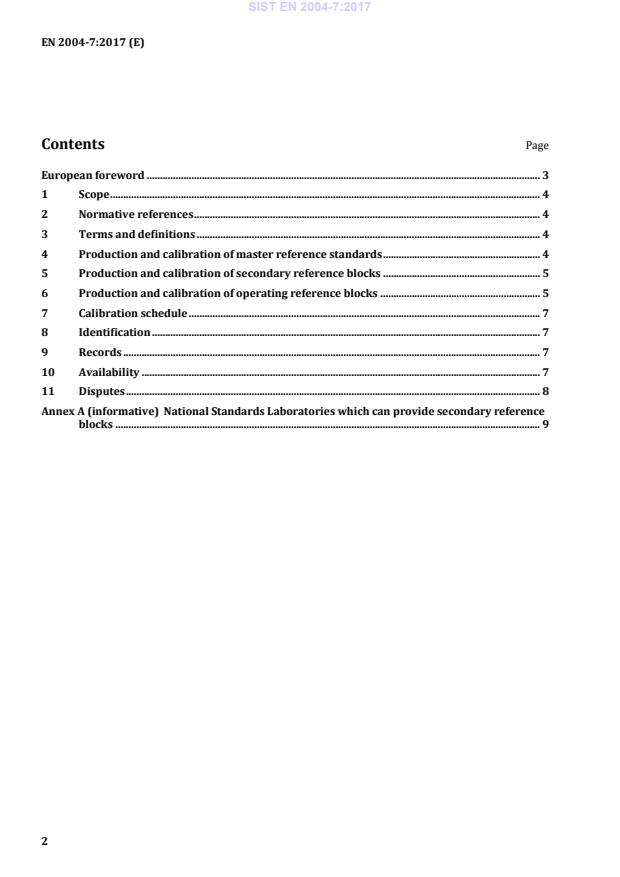

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Production and calibration of master reference standards . 4
5 Production and calibration of secondary reference blocks . 5
6 Production and calibration of operating reference blocks . 5
7 Calibration schedule . 7
8 Identification . 7
9 Records . 7
10 Availability . 7
11 Disputes . 8
Annex A (informative) National Standards Laboratories which can provide secondary reference
blocks . 9
European foreword
This document (EN 2004-7:2017) has been prepared by the Aerospace and Defence Industries
Association of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this European
Standard has received the approval of the National Associations and the Official Services of the member
countries of ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2018, and conflicting national standards shall
be withdrawn at the latest by February 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
the United Kingdom.
1 Scope
This European Standard defines different types of electrical conductivity reference blocks, to be used for
the calibration of eddy current conductivity measuring equipment, their method of production and
calibration.
It is to be used in conjunction with EN 2004-1.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 2004-1, Aerospace series - Test methods for aluminium and aluminium alloy products - Part 1:
Determination of electrical conductivity of wrought aluminium alloys
ISO 10012-1, Quality assurance requirements for measuring equipment - Part 1: Metrological confirmation
system for measuring equipment
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
master reference standards
a set of electrical conductivity reference standards, held by a National Standards Laboratory or an
Accredited Laboratory and traceable to electrical reference standards
Note 1 to entry: This set is maintained as the reference standard against which all the corresponding secondary
reference blocks shall be calibrated.
3.2
secondary reference blocks
sets of electrical conductivity reference blocks calibrated by a National Standards Laboratory or an
Accredited Laboratory against its master reference standards using eddy current conductivity measuring
equipment. Individual companies or organisations may hold sets of secondary reference blocks
Note 1 to entry: These blocks are the means by which traceability to the master reference standards is
maintained.
3.3
operating reference blocks
sets of electrical conductivity reference blocks prepared and calibrated by competent personnel against
secondary reference blocks using eddy current conductivity measuring equipment
Note 1 to entry: The operating reference blocks are used for routine instrument calibration.
4 Production and calibration of master refere
...
EN 2004-7:2017の標準は、航空宇宙分野におけるアルミニウムおよびアルミニウム合金製品の試験方法に関する重要な文書であり、特に導電率の測定に使用される測定機器のキャリブレーションのための基準ブロックに焦点を当てています。この標準は、異なる種類の電気伝導率参照ブロックを定義し、渦電流導電率測定機器のキャリブレーションに使用する際の生産方法およびキャリブレーション手順を詳細に説明しています。 この標準の強みは、航空宇宙産業における材料特性を正確に測定するために必要不可欠な枠組みを提供している点です。EN 2004-1との併用により、測定機器の性能を確実に確立し、比較可能な結果を得ることができます。これにより、導電率の定量的評価が可能となり、航空機の安全性や材料の信頼性を向上させることに寄与します。 また、EN 2004-7:2017は、製造業者や研究機関にとって、統一された基準のもとで信頼性のある測定を行うための重要なガイドラインとなるため、業界全体においても高い関連性を持っています。この標準文書に従うことで、さまざまなアルミニウムおよびアルミニウム合金の導電率に関するデータの整合性が保証されるため、研究や製品開発における信頼性が向上します。 したがって、EN 2004-7:2017は航空宇宙分野における材料評価の基盤を築くための重要な標準であり、その意義は高く評価されています。
SIST EN 2004-7:2017 표준은 항공 우주 분야에서 알루미늄 및 알루미늄 합금 제품의 전기 전도도 측정을 위한 전기 전도도 참조 블록을 정의합니다. 이 표준은 전류 검사 장비의 교정을 위해 사용되는 다양한 유형의 전도도 참조 블록에 대한 세부 사항을 포함하고 있으며, 이러한 블록의 생산 및 교정 방법을 명시하는 데 중점을 둡니다. 이 표준은 EN 2004-1과 함께 사용되도록 설계되었습니다. 이 표준의 중요한 강점 중 하나는 전기 전도도 측정의 정확성을 높이는 데 기여하는 전도도 참조 블록에 대한 명확한 지침을 제공한다는 것입니다. 특히, 이 표준은 항공 우주 산업에서 전기 전도도를 측정해야 하는 다양한 응용 분야에서의 신뢰성과 일관성을 보장합니다. 또한, 알루미늄 및 알루미늄 합금 제품의 품질 관리를 위한 필수 도구로 자리 잡고 있습니다. 표준의 적용 범위는 전도도 측정을 요구하는 모든 제조업체 및 연구 기관에 해당하며, 이는 알루미늄 및 알루미늄 합금을 사용하는 다양한 산업 분야에서의 혁신과 품질 개선을 촉진합니다. 따라서 SIST EN 2004-7:2017은 현대 항공 우주 산업에서 주어진 요구 사항을 충족시키는데 매우 중요한 역할을 합니다. 결론적으로, SIST EN 2004-7:2017 표준은 전기 전도도 측정 장비의 교정을 위한 참조 블록의 제작 및 사용에 대한 명확하고 신뢰할 수 있는 지침을 제공하여, 해당 분야의 품질 및 안전성을 높이는 데 큰 기여를 하고 있습니다.
The standard SIST EN 2004-7:2017 offers a comprehensive framework for the development, production, and calibration of electrical conductivity reference blocks specifically designed for wrought aluminium and aluminium alloys. This standard is essential for ensuring the reliability and accuracy of eddy current conductivity measuring equipment used across various applications in the aerospace industry. One of the primary strengths of this standard lies in its detailed categorization of reference blocks, which facilitates a standardized approach to calibration practices. By defining different types of reference blocks, the standard provides clarity and specificity, allowing manufacturers and users to select the appropriate type based on their specific conductivity measurement needs. This versatility enhances the utility of the standard across diverse scenarios and applications within the aerospace sector. Moreover, the method of production and calibration outlined in EN 2004-7:2017 is critical for the assurance of measurement consistency and traceability, which is a vital aspect when it comes to quality control in aerospace manufacturing processes. The emphasis on maintaining stringent calibration methods supports the integrity of testing procedures, ultimately contributing to improved safety and performance standards in aerospace components made of aluminium and its alloys. The standard is also relevant in the context of regulatory compliance, as it aligns with established European directives and supports manufacturers in meeting industry requirements. This aspect is particularly pertinent given the increasing regulatory scrutiny surrounding aerospace materials and components, where the emphasis on quality assurance cannot be overstated. In summary, SIST EN 2004-7:2017 plays a pivotal role in the standardization of electrical conductivity measurement in wrought aluminium and aluminium alloys, offering a structured approach to the calibration of measuring equipment. Its strengths in detailing reference block types and calibration methods underscore its relevance and practicality within the aerospace industry.
Die Norm EN 2004-7:2017 ist ein wesentlicher Bestandteil der Luft- und Raumfahrtindustrie und definiert spezifische Anforderungen für Testmethoden von Aluminium- und Aluminiumlegierungsprodukten. Der Fokus dieser Norm liegt auf dem Einsatz von Referenzblöcken zur Kalibrierung von Messgeräten, die zur Bestimmung der elektrischen Leitfähigkeit von bearbeitetem Aluminium und seinen Legierungen verwendet werden. Ein hervorstechendes Merkmal dieser Norm ist die detaillierte Beschreibung der verschiedenen Typen von elektrisch leitfähigen Referenzblöcken. Diese Vielfalt ermöglicht eine präzise Anpassung an unterschiedliche Anforderungen der Messgeräte und sorgt für eine hohe Genauigkeit und Zuverlässigkeit in den Testergebnissen. Die Norm stellt sicher, dass die Referenzblöcke eine konsistente Leistung bieten, was für die Kalibrierung unerlässlich ist. Die Einführung eines klaren Produktions- und Kalibrierungsverfahrens für diese Referenzblöcke ist ein weiterer wichtiger Aspekt. Diese methodisch standardisierte Vorgehensweise erhöht nicht nur die Qualität der Produkte, sondern trägt auch zur Vereinheitlichung der Prozesse innerhalb der Branche bei. Damit wird sichergestellt, dass alle Beteiligten über die gleichen Qualitätsstandards verfügen, was für die Sicherheit und Effizienz in der Luft- und Raumfahrt von entscheidender Bedeutung ist. Die Relevanz der Norm EN 2004-7:2017 erstreckt sich über die reine Kalibrierung von Messgeräten hinaus. Sie unterstützt Hersteller und Prüflabore dabei, die Qualität ihrer Produkte zu gewährleisten und die gesetzlichen Anforderungen zu erfüllen. Diese Norm ist somit ein unverzichtbares Instrument für Unternehmen, die in der Luft- und Raumfahrt tätig sind und die Eigenschaften ihrer Aluminium- und Aluminiumlegierungsprodukte genau bestimmen müssen. Durch die Kombination aus präzisen Kalibrierungsmethoden und klar definierten Referenzstandards bietet die EN 2004-7:2017 nicht nur einen Beitrag zur technischen Exzellenz, sondern fördert auch das Vertrauen in die Qualität von Produkten, die in kritischen Anwendungen eingesetzt werden. Insgesamt stärkt diese Norm die Wettbewerbsfähigkeit der Branche und gewährleistet eine hohe Sicherheit und Leistungsfähigkeit in der Luftfahrttechnik.
La norme EN 2004-7:2017, intitulée « Série Aérospatiale - Méthodes d'essai pour les produits en aluminium et alliages d'aluminium - Partie 7 : Blocs de référence pour l'étalonnage des équipements de mesure utilisés dans la détermination de la conductivité électrique de l'aluminium travaillé et des alliages d'aluminium », revêt une grande importance dans le secteur aérospatial. Son objectif principal est de définir différents types de blocs de référence pour la conductivité électrique, essentiels dans l’étalonnage des équipements de mesure par courants de Foucault. L'un des points forts de cette norme est sa précision dans la définition des méthodes de production et d'étalonnage des blocs de référence. Cela garantit que les instruments de mesure respectent des standards de qualité élevés et uniformes, ce qui est crucial pour la fiabilité des résultats dans les applications aérospatiales. De plus, en se basant sur la norme EN 2004-1, la norme EN 2004-7:2017 assure une cohérence dans les protocoles d'essai, renforçant ainsi la validité des mesures effectuées. La pertinence de cette norme se manifeste également dans son application pratique. En facilitant l'étalonnage des équipements de mesure de conductivité électrique, elle contribue à améliorer le contrôle qualité des matériaux en aluminium et alliages d'aluminium, essentiels dans la fabrication aéronautique. La norme permet ainsi aux industriels de s'assurer de la performance des matériaux utilisés, garantissant ainsi la sécurité et la durabilité des structures aéronautiques. En résumé, la norme EN 2004-7:2017 est un document fondamental pour les professionnels de l'aérospatial, car il établit des critères clairs et précis pour l'étalonnage des équipements de mesure, tout en assurant l'homogénéité et la fiabilité des évaluations de conductivité électrique. Ce faisant, elle soutient l'intégrité et la performance des produits dérivés de l'aluminium et de ses alliages, renforçant ainsi l'importance de cette norme dans le secteur.
