Welding - Fusion-welded joints in steel, nickel, titanium and their alloys (beam welding excluded) - Quality levels for imperfections (ISO 5817:2023)

This document specifies quality levels of imperfections in fusion-welded joints (except for beam welding) in all types of steel, nickel, titanium and their alloys. It applies to material thickness ≥ 0,5 mm. It covers fully penetrated butt welds and all fillet welds. Its principles can also be applied to partial-penetration butt welds.
Quality levels for beam-welded joints in steel are presented in ISO 13919-1.
Three quality levels are given in order to permit application to a wide range of welded fabrication. They are designated by symbols B, C and D. Quality level B corresponds to the highest requirement on the finished weld.
Several types of loads are considered, e.g. static load, thermal load, corrosion load, pressure load. Additional guidance on fatigue loads is given in Annex B.
The quality levels refer to production and good workmanship.
This document is applicable to:
a)       non-alloy and alloy steels;
b)       nickel and nickel alloys;
c)        titanium and titanium alloys;
d)       manual, mechanized and automatic welding;
e)       all welding positions;
f)         all types of welds, e.g. butt welds, fillet welds and branch connections;
g)       the following welding processes and their sub-processes, as defined in ISO 4063:
—     11 metal arc welding without gas protection;
—     12 submerged arc welding;
—     13 gas-shielded metal arc welding;
—     14 gas-shielded arc welding with non-consumable tungsten electrode;
—     15 plasma arc welding;
—     31 oxyfuel gas welding (for steel only).
Metallurgical aspects, such as grain size and hardness, are not covered by this document.

Schweißen - Schmelzschweißverbindungen an Stahl, Nickel, Titan und deren Legierungen (ohne Strahlschweißen) - Bewertungsgruppen von Unregelmäßigkeiten (ISO 5817:2023)

Dieses Dokument legt Bewertungsgruppen von Unregelmäßigkeiten an Schmelzschweißverbindungen (aus¬genommen Strahlschweißen) für alle Sorten von Stahl, Nickel, Titan und deren Legierungen fest. Es ist anwendbar für Werkstückdicken ≥ 0,5 mm. Es behandelt voll durchgeschweißte Stumpfnähte und alle Arten von Kehlnähten. Die Grundsätze dieses Dokuments können auch für teilweise durchgeschweißte Stumpfnähte angewendet werden.
Bewertungsgruppen für strahlgeschweißte Verbindungen an Stahl enthält die ISO 13919 1.
Die drei Bewertungsgruppen sind so festgelegt, dass sie eine breite Anwendung in der schweißtechnischen Fertigung erlauben. Sie werden bezeichnet durch die Kennbuchstaben B, C und D. Die Bewertungsgruppe B entspricht den höchsten Anforderungen an die Schweißnaht.
Es werden einige Arten von Belastungen berücksichtigt, z. B. statische Belastung, Wärmebelastung, Kor-rosionsbelastung, Druckbelastung. Zusätzliche Leitlinien für Ermüdungsbeanspruchungen sind in Anhang B angegeben.
Die Bewertungsgruppen beziehen sich auf die Produktion und auf eine gute Fertigungsqualität.
Dieses Dokument ist anwendbar für:
a)   unlegierte und legierte Stähle;
b)   Nickel und Nickellegierungen;
c)   Titan und Titanlegierungen;
d)   manuelles, mechanisiertes und automatisches Schweißen;
e)   alle Schweißpositionen;
f)   alle Schweißverbindungen, z. B. Stumpfnähte, Kehlnähte und Rohrabzweigungen;
g)   die folgenden Schweißprozesse und ihre zugeordneten Einzelprozesse nach ISO 4063:
—   11 Metall-Lichtbogenschweißen ohne Gasschutz;
—   12 Unterpulverschweißen;
—   13 Metall-Schutzgasschweißen;
—   14 Wolfram-Schutzgasschweißen;
—   15 Plasmaschweißen;
—   31 Gasschweißen mit Sauerstoff-Brenngas-Flamme (nur für Stahl).
Metallurgische Gesichtspunkte wie Korngröße und Härte werden von diesem Dokument nicht erfasst.

Soudage - Assemblages en acier, nickel, titane et leurs alliages soudés par fusion (soudage par faisceau exclu) - Niveaux de qualité par rapport aux défauts (ISO 5817:2023)

Le présent document spécifie les niveaux de qualité par rapport aux défauts dans les assemblages soudés par fusion (à l’exclusion du soudage par faisceau) sur tous types d’acier, de nickel, de titane et leurs alliages. Il s’applique à des épaisseurs de matériau ≥ 0,5 mm. Il couvre les soudures bout à bout à pleine pénétration et toutes les soudures d’angle. Ses principes peuvent également s’appliquer aux soudures bout à bout à pénétration partielle.
Les niveaux de qualité pour les assemblages en acier soudés par faisceau sont présentés dans l’ISO 13919-1.
Trois niveaux de qualité sont donnés dans le but de permettre son application à une large gamme de fabrications soudées. Ils sont désignés par les symboles B, C et D. Le niveau de qualité B correspond à l’exigence la plus élevée pour la soudure terminée.
Plusieurs types de charge sont pris en compte, par exemple la charge statique, la charge thermique, la corrosion, la pression. Des lignes directrices supplémentaires sur les charges de fatigue sont données à l'Annexe B.
Les niveaux de qualité concernent la fabrication et la qualité du travail.
Le présent document est applicable:
a)       aux aciers alliés et non alliés;
b)       au nickel et à ses alliages;
c)        au titane et à ses alliages;
d)       au soudage manuel, mécanisé et automatique;
e)       à toutes les positions de soudage;
f)         à tous les types de soudures, par exemple soudures bout à bout, soudures d’angle et piquages;
g)       aux procédés de soudage suivants et à leurs sous-catégories, comme définies dans l’ISO 4063:
—     11 soudage à l’arc avec électrode fusible sans protection gazeuse;
—     12 soudage à l’arc sous flux (en poudre);
—     13 soudage à l’arc avec électrode fusible sous protection gazeuse;
—     14 soudage à l’arc avec électrode réfractaire sous protection gazeuse;
—     15 soudage plasma;
—     31 soudage oxygaz (pour acier uniquement).
Le présent document ne traite pas des aspects métallurgiques, tels que la grosseur de grain ou la dureté.

Varjenje - Talilno zvarjeni spoji na jeklu, niklju, titanu in njihovih zlitinah (izključeno varjenje s snopom) - Stopnje sprejemljivosti nepravilnosti (ISO 5817:2023)

Ta dokument določa stopnje sprejemljivosti nepopolnosti pri talilno zvarjenih spojih (razen pri varjenju s snopom) za vse vrste jekla, niklja, titana in njihovih zlitin. Uporablja se za debelino materiala ≥ 0,5 mm. Pokriva vse soležne zvare in kotne zvare s popolno prevaritvijo. Načela tega dokumenta je mogoče uporabiti tudi za soležne zvare z delno prevaritvijo.
Ravni kakovosti za spoje, zvarjene s snopom, so predstavljene v standardu ISO 13919-1.
Za uporabo pri širokem naboru varjenih izdelkov so določene tri stopnje sprejemljivosti. Označene so s simboli B, C in D. Stopnja sprejemljivosti B ustreza najvišjim zahtevam za končne zvare.
Uporablja se več vrst obremenitve npr. statična obremenitev, toplotna obremenitev, korozijska obremenitev, tlačna obremenitev. Dodatne smernice glede obremenitev za utrujanje so podane v Dodatku B.
Ravni kakovosti se nanašajo na proizvodnjo in dobro izdelavo.
Ta dokument se uporablja za:
a)       nelegirana in legirana jekla;
b)       nikelj in njegove zlitine;
c)        titan in njegove zlitine;
d)       ročno, mehanizirano in avtomatsko varjenje;
e)       vse položaje pri varjenju;
f)         vse vrste zvarov, npr. soležni zvari, kotni zvari in Y-zvari;
g)       naslednje postopke varjenja in njihove pod-postopke, kot to določa standard ISO 4063:
– 11 obločno varjenje brez zaščitnih plinov;
– 12 obločno varjenje pod praškom;
– 13 obločno varjenje v zaščitnih plinih;
– 14 varjenje v zaščitnih plinih z nepotrošnimi elektrodami;
– 15 obločno varjenje s plazmo;
– 31 plamensko varjenje s kisikom (samo za jeklo).
Ta dokument ne zajema metalurških vidikov, npr. velikosti zrn in trdnosti.

General Information

Status
Published
Publication Date
14-Mar-2023
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
15-Mar-2023
Completion Date
15-Mar-2023

Relations

Buy Standard

Standard
EN ISO 5817:2023
English language
34 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Standard
EN ISO 5817:2023 (EN)
English language
34 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Standard
EN ISO 5817:2023 (DE)
German language
38 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-maj-2005
Nadomešča:
SIST EN ISO 5817:2014
Varjenje - Talilno zvarjeni spoji na jeklu, niklju, titanu in njihovih zlitinah
(izključeno varjenje s snopom) - Stopnje sprejemljivosti nepravilnosti (ISO
5817:2023)
Welding - Fusion-welded joints in steel, nickel, titanium and their alloys (beam welding
excluded) - Quality levels for imperfections (ISO 5817:2023)
Schweißen - Schmelzschweißverbindungen an Stahl, Nickel, Titan und deren
Legierungen (ohne Strahlschweißen) - Bewertungsgruppen von Unregelmäßigkeiten
(ISO 5817:2023)
Soudage - Assemblages en acier, nickel, titane et leurs alliages soudés par fusion
(soudage par faisceau exclu) - Niveaux de qualité par rapport aux défauts (ISO
5817:2023)
Ta slovenski standard je istoveten z: EN ISO 5817:2023
ICS:
25.160.40 Varjeni spoji in vari Welded joints and welds
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

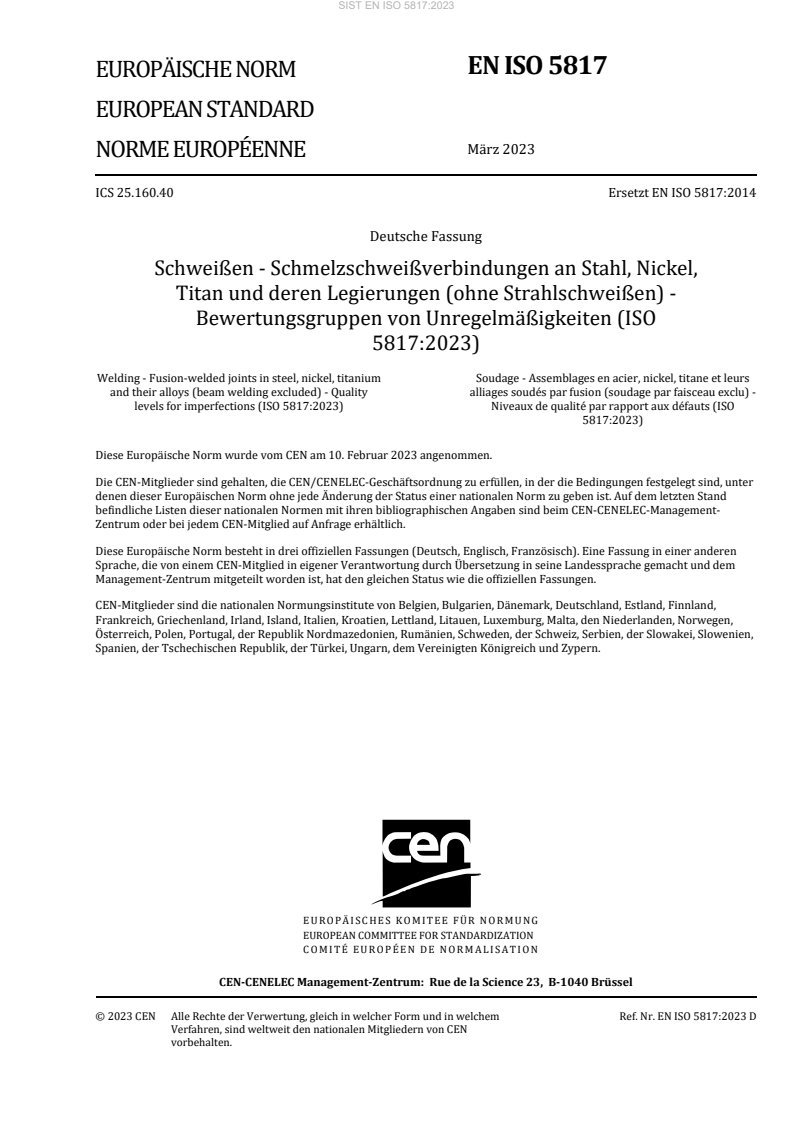

EN ISO 5817
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2023
EUROPÄISCHE NORM
ICS 25.160.40 Supersedes EN ISO 5817:2014
English Version
Welding - Fusion-welded joints in steel, nickel, titanium
and their alloys (beam welding excluded) - Quality levels
for imperfections (ISO 5817:2023)
Soudage - Assemblages en acier, nickel, titane et leurs Schweißen - Schmelzschweißverbindungen an Stahl,
alliages soudés par fusion (soudage par faisceau exclu) Nickel, Titan und deren Legierungen (ohne
- Niveaux de qualité par rapport aux défauts (ISO Strahlschweißen) - Bewertungsgruppen von
5817:2023) Unregelmäßigkeiten (ISO 5817:2023)
This European Standard was approved by CEN on 10 February 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 5817:2023 E
worldwide for CEN national Members.

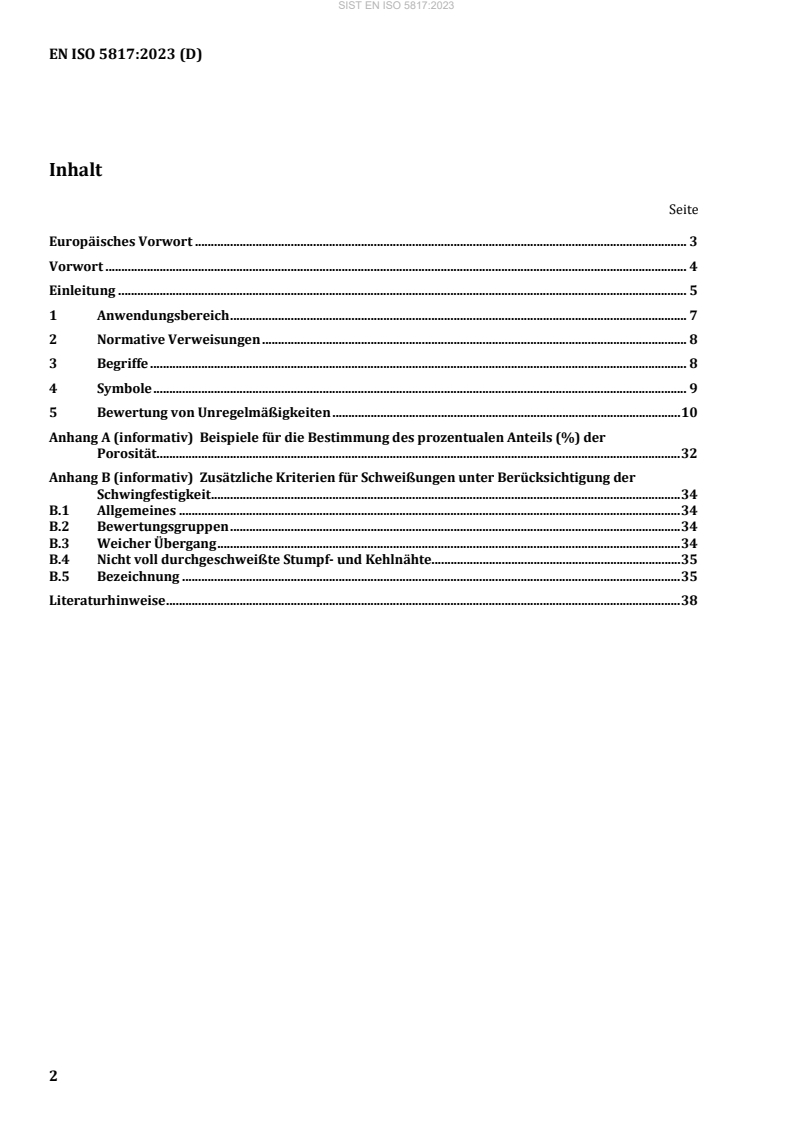

Contents Page
European foreword . 3

European foreword
This document (EN ISO 5817:2023) has been prepared by Technical Committee ISO/TC 44 "Welding
and allied processes" in collaboration with Technical Committee CEN/TC 121 “Welding and allied
processes” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2023, and conflicting national standards
shall be withdrawn at the latest by September 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 5817:2014.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 5817:2023 has been approved by CEN as EN ISO 5817:2023 without any modification.

INTERNATIONAL ISO
STANDARD 5817
Fourth edition
2023-02
Welding — Fusion-welded joints in
steel, nickel, titanium and their alloys
(beam welding excluded) — Quality
levels for imperfections
Soudage — Assemblages en acier, nickel, titane et leurs alliages
soudés par fusion (soudage par faisceau exclu) — Niveaux de qualité
par rapport aux défauts
Reference number
ISO 5817:2023(E)
ISO 5817:2023(E)
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 5817:2023(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Symbols . 3
5 A ssessment of imperfections .4
Annex A (informative) Examples of determination of percentage (%) porosity.21
Annex B (informative) Additional criteria for welds in steel subject to fatigue .23
Bibliography .26
iii
ISO 5817:2023(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 44, Welding and allied processes,
Subcommittee SC 10, Quality management in the field of welding, in collaboration with the European
Committee for Standardization (CEN) Technical Committee CEN/TC 121, Welding and allied processes,
in accordance with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This fourth edition cancels and replaces the third edition (ISO 5817:2014), which has been technically
revised.
The main changes are as follows:
— editorial updates;
— actual throat thickness a used in Table 1, nos 1.3, 1.4, 1.16 and 3.2;
A,
— figures for Table 1, nos 1.4, 1.5, 1.6, 1.11, 1.14, 1.16, 1.19, 2.12, 2.13 and 4.1 changed or added;
— Table 1, no. 4.1: exclusion of several imperfections and change of acceptance criteria;
— Former Annex B deleted.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html. Official
interpretations of ISO/TC 44 documents, where they exist, are available from this page:
https://committee.iso.org/sites/tc44/home/interpretation.html.
iv
ISO 5817:2023(E)
Introduction
This document is intended to be used as a reference in the drafting of application codes and/or other
application standards. It contains a simplified selection of fusion weld imperfections based on the
designations given in ISO 6520-1.
Some of the imperfections described in ISO 6520-1 have been used directly and some have been grouped
together. The basic numerical referencing system from ISO 6520-1 has been used.
The purpose of this document is to specify dimensions of typical imperfections which might be
expected in normal fabrication. It may be used within a quality system for the production of welded
joints. It provides three sets of dimensional values from which a selection can be made for a particular
application. The quality level necessary in each case should be specified by the application standard or
the responsible designer in conjunction with the manufacturer, user and/or other parties concerned.
The quality level shall be prescribed before the start of production, preferably at the enquiry or order
stage. For special purposes, additional details may be prescribed. If the welds will be subsequently
coated with a protective coating, lining or paint, the welds might require more thorough post weld
treatment or surface finishing to achieve the requirements in ISO 8501-3.
The quality levels given in this document provide basic reference data and are not specifically related
to any particular application. They refer to types of welded joint in fabrication and not to the complete
product or component itself. It is possible, therefore, that different quality levels are applied to
individual welded joints in the same product or component.
The main part of the document takes no account for fitness or design for purpose. Annex B gives a
possibility to address design for purpose for fatigue applications.
It would normally be expected that for a particular welded joint the dimensional limits for imperfections
can all be covered by specifying one quality level. In some cases, it can be necessary to specify different
quality levels for different imperfections in the same welded joint. The choice of quality level for any
application should take account of design considerations, subsequent processing (e.g. surfacing), mode
of stressing (e.g. static, dynamic), service conditions (e.g. temperature, environment) and consequences
of failure. Economic factors are also important and should include not only the cost of welding but also
of inspection, testing and repair.
Although this document includes types of imperfection relevant to the fusion welding processes listed
in Clause 1, only those which are applicable to the process and application in question need to be
considered.
Imperfections are quoted in terms of their actual dimensions, and their detection and evaluation
can require the
...


SLOVENSKI STANDARD
01-maj-2023
Nadomešča:
SIST EN ISO 5817:2014
Varjenje - Talilno zvarjeni spoji na jeklu, niklju, titanu in njihovih zlitinah
(izključeno varjenje s snopom) - Stopnje sprejemljivosti nepravilnosti (ISO
5817:2023)
Welding - Fusion-welded joints in steel, nickel, titanium and their alloys (beam welding
excluded) - Quality levels for imperfections (ISO 5817:2023)
Schweißen - Schmelzschweißverbindungen an Stahl, Nickel, Titan und deren
Legierungen (ohne Strahlschweißen) - Bewertungsgruppen von Unregelmäßigkeiten
(ISO 5817:2023)
Soudage - Assemblages en acier, nickel, titane et leurs alliages soudés par fusion
(soudage par faisceau exclu) - Niveaux de qualité par rapport aux défauts (ISO
5817:2023)
Ta slovenski standard je istoveten z: EN ISO 5817:2023
ICS:
25.160.40 Varjeni spoji in vari Welded joints and welds
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 5817
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2023
EUROPÄISCHE NORM
ICS 25.160.40 Supersedes EN ISO 5817:2014
English Version
Welding - Fusion-welded joints in steel, nickel, titanium
and their alloys (beam welding excluded) - Quality levels
for imperfections (ISO 5817:2023)
Soudage - Assemblages en acier, nickel, titane et leurs Schweißen - Schmelzschweißverbindungen an Stahl,
alliages soudés par fusion (soudage par faisceau exclu) Nickel, Titan und deren Legierungen (ohne
- Niveaux de qualité par rapport aux défauts (ISO Strahlschweißen) - Bewertungsgruppen von
5817:2023) Unregelmäßigkeiten (ISO 5817:2023)
This European Standard was approved by CEN on 10 February 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 5817:2023 E
worldwide for CEN national Members.

Contents Page
European foreword . 3

European foreword
This document (EN ISO 5817:2023) has been prepared by Technical Committee ISO/TC 44 "Welding
and allied processes" in collaboration with Technical Committee CEN/TC 121 “Welding and allied
processes” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2023, and conflicting national standards
shall be withdrawn at the latest by September 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 5817:2014.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 5817:2023 has been approved by CEN as EN ISO 5817:2023 without any modification.

INTERNATIONAL ISO
STANDARD 5817
Fourth edition
2023-02
Welding — Fusion-welded joints in
steel, nickel, titanium and their alloys
(beam welding excluded) — Quality
levels for imperfections
Soudage — Assemblages en acier, nickel, titane et leurs alliages
soudés par fusion (soudage par faisceau exclu) — Niveaux de qualité
par rapport aux défauts
Reference number
ISO 5817:2023(E)
ISO 5817:2023(E)
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 5817:2023(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Symbols . 3
5 A ssessment of imperfections .4
Annex A (informative) Examples of determination of percentage (%) porosity.21
Annex B (informative) Additional criteria for welds in steel subject to fatigue .23
Bibliography .26
iii
ISO 5817:2023(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 44, Welding and allied processes,
Subcommittee SC 10, Quality management in the field of welding, in collaboration with the European
Committee for Standardization (CEN) Technical Committee CEN/TC 121, Welding and allied processes,
in accordance with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This fourth edition cancels and replaces the third edition (ISO 5817:2014), which has been technically
revised.
The main changes are as follows:
— editorial updates;
— actual throat thickness a used in Table 1, nos 1.3, 1.4, 1.16 and 3.2;
A,
— figures for Table 1, nos 1.4, 1.5, 1.6, 1.11, 1.14, 1.16, 1.19, 2.12, 2.13 and 4.1 changed or added;
— Table 1, no. 4.1: exclusion of several imperfections and change of acceptance criteria;
— Former Annex B deleted.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html. Official
interpretations of ISO/TC 44 documents, where they exist, are available from this page:
https://committee.iso.org/sites/tc44/home/interpretation.html.
iv
ISO 5817:2023(E)
Introduction
This document is intended to be used as a reference in the drafting of application codes and/or other
application standards. It contains a simplified selection of fusion weld imperfections based on the
designations given in ISO 6520-1.
Some of the imperfections described in ISO 6520-1 have been used directly and some have been grouped
together. The basic numerical referencing system from ISO 6520-1 has been used.
The purpose of this document is to specify dimensions of typical imperfections which might be
expected in normal fabrication. It may be used within a quality system for the production of welded
joints. It provides three sets of dimensional values from which a selection can be made for a particular
application. The quality level necessary in each case should be specified by the application standard or
the responsible designer in conjunction with the manufacturer, user and/or other parties concerned.
The quality level shall be prescribed before the start of production, preferably at the enquiry or order
stage. For special purposes, additional details may be prescribed. If the welds will be subsequently
coated with a protective coating, lining or paint, the welds might require more thorough post weld
treatment or surface finishing to achieve the requirements in ISO 8501-3.
The quality levels given in this document provide basic reference data and are not specifically related
to any particular application. They refer to types of welded joint in fabrication and not to the complete
product or component itself. It is possible, therefore, that different quality levels are applied to
individual welded joints in the same product or component.
The main part of the document takes no account for fitness or design for purpose. Annex B gives a
possibility to address design for purpose for fatigue applications.
It would normally be expected that for a particular welded joint the dimensional limits for imperfections
can all be covered by specifying one quality level. In some cases, it can be necessary to specify different
quality levels for different imperfections in the same welded joint. The choice of quality level for any
application should take account of design considerations, subsequent processing (e.g. surfacing), mode
of stressing (e.g. static, dynamic), service conditions (e.g. temperature, environment) and consequences
of failure. Economic factors are also important and should include not only the cost of welding but also
of inspection, testing and repair.
Although this document includes types of imperfection relevant to the fusion welding processes listed
in Clause 1, only those which are applicable to the process and application in question need to be
considered.
Imperfections are quoted in terms of their actual dimensions, and their detection and evaluation
can require the
...


SLOVENSKI STANDARD
01-maj-2023
Nadomešča:
SIST EN ISO 5817:2014
Varjenje - Talilno zvarjeni spoji na jeklu, niklju, titanu in njihovih zlitinah
(izključeno varjenje s snopom) - Stopnje sprejemljivosti nepravilnosti (ISO
5817:2023)
Welding - Fusion-welded joints in steel, nickel, titanium and their alloys (beam welding
excluded) - Quality levels for imperfections (ISO 5817:2023)
Schweißen - Schmelzschweißverbindungen an Stahl, Nickel, Titan und deren
Legierungen (ohne Strahlschweißen) - Bewertungsgruppen von Unregelmäßigkeiten
(ISO 5817:2023)
Soudage - Assemblages en acier, nickel, titane et leurs alliages soudés par fusion
(soudage par faisceau exclu) - Niveaux de qualité par rapport aux défauts (ISO
5817:2023)
Ta slovenski standard je istoveten z: EN ISO 5817:2023
ICS:
25.160.40 Varjeni spoji in vari Welded joints and welds
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 5817
EUROPÄISCHE NORM
EUROPEAN STANDARD
März 2023
NORME EUROPÉENNE
ICS 25.160.40 Ersetzt EN ISO 5817:2014
Deutsche Fassung
Schweißen - Schmelzschweißverbindungen an Stahl, Nickel,
Titan und deren Legierungen (ohne Strahlschweißen) -
Bewertungsgruppen von Unregelmäßigkeiten (ISO
5817:2023)
Welding - Fusion-welded joints in steel, nickel, titanium Soudage - Assemblages en acier, nickel, titane et leurs
and their alloys (beam welding excluded) - Quality alliages soudés par fusion (soudage par faisceau exclu) -
levels for imperfections (ISO 5817:2023) Niveaux de qualité par rapport aux défauts (ISO
5817:2023)
Diese Europäische Norm wurde vom CEN am 10. Februar 2023 angenommen.

Die CEN-Mitglieder sind gehalten, die CEN/CENELEC-Geschäftsordnung zu erfüllen, in der die Bedingungen festgelegt sind, unter
denen dieser Europäischen Norm ohne jede Änderung der Status einer nationalen Norm zu geben ist. Auf dem letzten Stand
befindliche Listen dieser nationalen Normen mit ihren bibliographischen Angaben sind beim CEN-CENELEC-Management-
Zentrum oder bei jedem CEN-Mitglied auf Anfrage erhältlich.

Diese Europäische Norm besteht in drei offiziellen Fassungen (Deutsch, Englisch, Französisch). Eine Fassung in einer anderen
Sprache, die von einem CEN-Mitglied in eigener Verantwortung durch Übersetzung in seine Landessprache gemacht und dem
Management-Zentrum mitgeteilt worden ist, hat den gleichen Status wie die offiziellen Fassungen.

CEN-Mitglieder sind die nationalen Normungsinstitute von Belgien, Bulgarien, Dänemark, Deutschland, Estland, Finnland,
Frankreich, Griechenland, Irland, Island, Italien, Kroatien, Lettland, Litauen, Luxemburg, Malta, den Niederlanden, Norwegen,
Österreich, Polen, Portugal, der Republik Nordmazedonien, Rumänien, Schweden, der Schweiz, Serbien, der Slowakei, Slowenien,
Spanien, der Tschechischen Republik, der Türkei, Ungarn, dem Vereinigten Königreich und Zypern.

EUROPÄISCHES KOMITEE FÜR NORMUNG
EUROPEAN COMMITTEE FOR STANDARDIZATION

COMITÉ EUROPÉEN DE NORMALISATION

CEN-CENELEC Management-Zentrum: Rue de la Science 23, B-1040 Brüssel
© 2023 CEN Alle Rechte der Verwertung, gleich in welcher Form und in welchem Ref. Nr. EN ISO 5817:2023 D
Verfahren, sind weltweit den nationalen Mitgliedern von CEN
vorbehalten.
Inhalt
Seite
Europäisches Vorwort . 3
Vorwort . 4
Einleitung . 5
1 Anwendungsbereich . 7
2 Normative Verweisungen . 8
3 Begriffe . 8
4 Symbole . 9
5 Bewertung von Unregelmäßigkeiten . 10
Anhang A (informativ) Beispiele für die Bestimmung des prozentualen Anteils (%) der
Porosität . 32
Anhang B (informativ) Zusätzliche Kriterien für Schweißungen unter Berücksichtigung der
Schwingfestigkeit . 34
B.1 Allgemeines . 34
B.2 Bewertungsgruppen . 34
B.3 Weicher Übergang . 34
B.4 Nicht voll durchgeschweißte Stumpf- und Kehlnähte. 35
B.5 Bezeichnung . 35
Literaturhinweise . 38

Europäisches Vorwort
Dieses Dokument (EN ISO 5817:2023) wurde vom Technischen Komitee ISO/TC 44 „Welding and allied
processes“ in Zusammenarbeit mit dem Technischen Komitee CEN/TC 121 „Schweißen und verwandte
Verfahren“ erarbeitet, dessen Sekretariat von DIN gehalten wird.
Diese Europäische Norm muss den Status einer nationalen Norm erhalten, entweder durch Veröffentlichung
eines identischen Textes oder durch Anerkennung bis September 2023, und etwaige entgegenstehende
nationale Normen müssen bis September 2023 zurückgezogen werden.
Es wird auf die Möglichkeit hingewiesen, dass einige Elemente dieses Dokuments Patentrechte berühren
können. CEN ist nicht dafür verantwortlich, einige oder alle diesbezüglichen Patentrechte zu identifizieren.
Dieses Dokument ersetzt EN ISO 5817:2014.
Rückmeldungen oder Fragen zu diesem Dokument sollten an das jeweilige nationale Normungsinstitut/natio-
nale Gremium des Anwenders gerichtet werden. Eine vollständige Liste dieser Institute ist auf den Internet-
seiten von CEN abrufbar.
Entsprechend der CEN CENELEC Geschäftsordnung sind die nationalen Normungsinstitute der folgenden
Länder gehalten, diese Europäische Norm zu übernehmen: Belgien, Bulgarien, Dänemark, Deutschland, die
Republik Nordmazedonien, Estland, Finnland, Frankreich, Griechenland, Irland, Island, Italien, Kroatien,
Lettland, Litauen, Luxemburg, Malta, Niederlande, Norwegen, Österreich, Polen, Portugal, Rumänien,
Schweden, Schweiz, Serbien, Slowakei, Slowenien, Spanien, Tschechische Republik, Türkei, Ungarn,
Vereinigtes Königreich und Zypern.
Anerkennungsnotiz
Der Text von ISO 5817:2023 wurde von CEN als EN ISO 5817:2023 ohne irgendeine Abänderung genehmigt.
Vorwort
ISO (die Internationale Organisation für Normung) ist eine weltweite Vereinigung nationaler Normungs-
institute (ISO-Mitgliedsorganisationen). Die Erstellung von Internationalen Normen wird üblicherweise von
Technischen Komitees von ISO durchgeführt. Jede Mitgliedsorganisation, die Interesse an einem Thema hat,
für welches ein Technisches Komitee gegründet wurde, hat das Recht, in diesem Komitee vertreten zu sein.
Internationale staatliche und nichtstaatliche Organisationen, die in engem Kontakt mit ISO stehen, nehmen
ebenfalls an der Arbeit teil. ISO arbeitet bei allen elektrotechnischen Normungsthemen eng mit der Inter-
nationalen Elektrotechnischen Kommission (IEC) zusammen.
Die Verfahren, die bei der Entwicklung dieses Dokuments angewendet wurden und die für die weitere Pflege
vorgesehen sind, werden in den ISO/IEC-Directives, Teil 1 beschrieben. Es sollten insbesondere die unter-
schiedlichen Annahmekriterien für die verschiedenen ISO-Dokumentenarten beachtet werden. Dieses Doku-
ment wurde in Übereinstimmung mit den Gestaltungsregeln der ISO/IEC-Directives, Teil 2 erarbeitet (siehe
www.iso.org/directives).
Es wird auf die Möglichkeit hingewiesen, dass einige Elemente dieses Dokuments Patentrechte berühren
können. ISO ist nicht dafür verantwortlich, einige oder alle diesbezüglichen Patentrechte zu identifizieren.
Details zu allen während der Entwicklung des Dokuments identifizierten Patentrechten finden sich in der
Einleitung und/oder in der ISO-Liste der erhaltenen Patenterklärungen (siehe www.iso.org/patents).
Jeder in diesem Dokument verwendete Handelsname dient nur zur Unterrichtung der Anwender und bedeutet
keine Anerkennung.
Für eine Erläuterung des freiwilligen Charakters von Normen, der Bedeutung ISO-spezifischer Begriffe und
Ausdrücke in Bezug auf Konformitätsbewertungen sowie Informationen darüber, wie ISO die Grundsätze der
Welthandelsorganisation (WTO, en: World Trade Organization) hinsichtlich technischer Handelshemmnisse
(TBT, en: Technical Barriers to Trade) berücksichtigt, siehe www.iso.org/iso/foreword.html.
Dieses Dokument wurde vom Technischen Komitee ISO/TC 44, Welding and allied processes, Unterkomitee
SC 10, Quality management in the field of welding, in Zusammenarbeit mit dem Europäischen Komitee für
Normung (CEN), Technisches Komitee CEN/TC 121, Schweißen und verwandte Verfahren, in Übereinstimmung
mit der Vereinbarung zur technischen Zusammenarbeit zwischen ISO und CEN (Wiener Vereinbarung)
erarbeitet.
Diese vierte Ausgabe ersetzt die dritte Ausgabe (ISO 5817:2014), die technisch überarbeitet wurde.
Die wesentlichen Änderungen sind folgende:
— redaktionelle Überarbeitung;
— in Tabelle 1, Nrn. 1.3, 1.4, 1.16 und 3.2, wurde die tatsächliche Kehlnahtdicke a verwendet;
A
— die Bilder für Tabelle 1, Nrn. 1.4, 1.5, 1.6, 1.11, 1.14, 1.16, 1.19, 2.12, 2.13 und 4.1, wurden verändert oder
hinzugefügt;
— Tabelle 1, Nr. 4.1: Ausschluss mehrerer Unregelmäßigkeiten und Änderung der Annahmekriterien;
— früherer Anhang B wurde gestrichen.
Rückmeldungen oder Fragen zu diesem Dokument sollten an das jeweilige nationale Normungsinstitut des
Anwenders gerichtet werden. Eine vollständige Auflistung dieser Institute ist unter
www.iso.org/members.html zu finden. Offizielle Auslegungen von Dokumenten aus dem ISO/TC 44, falls
vorhanden, sind auf dieser Internetseite verfügbar:
https://committee.iso.org/sites/tc44/home/interpretation.html.
Einleitung
Dieses Dokument soll zur Bezugnahme bei der Erstellung von Anwendungsregeln und/oder anderen
Anwendungsnormen dienen. Es enthält eine vereinfachte Auswahl von Unregelmäßigkeiten an
Schmelzschweißverbindungen mit Benennungen entsprechend der ISO 6520-1.
Einige Unregelmäßigkeiten nach der ISO 6520-1 sind direkt und andere als Gruppen benutzt worden. Das
grundlegende Nummernbezugssystem nach der ISO 6520-1 wurde angewendet.
Der Zweck dieses Dokuments ist, typische Unregelmäßigkeiten festzulegen, die bei einer normalen Fertigung
erwartet werden können. Es kann in einem Qualitätssystem für die Herstellung von geschweißten Ver-
bindungen benutzt werden. Es legt drei Gruppen von Werten für die Maße fest, aus denen eine Auswahl für
eine bestimmte Anwendung getroffen werden kann. Die Bewertungsgruppe, die für den Einzelfall notwendig
ist, sollte durch die Anwendungsnorm oder durch den verantwortlichen Konstrukteur zusammen mit dem
Hersteller, Anwender und/oder anderen betroffenen Stellen festgelegt werden. Die Bewertungsgruppe muss
vor Fertigungsbeginn vorzugsweise im Angebots- oder Bestellstadium festgelegt werden. In Sonderfällen
dürfen Zusatzangaben festgelegt werden. Wenn die Schweißnähte anschließend mit einer Schutzschicht,
Auskleidung oder Farbe beschichtet werden, benötigen die Schweißnähte möglicherweise eine gründlichere
Nachbehandlung oder Oberflächenbehandlung, um den Anforderungen der ISO 8501-3 zu entsprechen.
Bewertungsgruppen nach diesem Dokument sind vorgesehen, um Grundbezugsdaten zur Verfügung zu stellen
und beziehen sich nicht auf irgendeine spezifische Anwendung. Sie beziehen sich auf die Schweißnähte in der
Fertigung und nicht auf das ganze Erzeugnis oder Bauteil selbst. Es ist deshalb möglich, dass unterschiedliche
Bewertungsgruppen für die jeweilige Schweißnaht am gleichen Bauteil oder Erzeugnis vorgeschrieben
werden.
Der Hauptteil des Dokuments berücksichtigt weder die Eignung noch die zweckmäßige Auslegung. Anhang B
bietet eine Möglichkeit, die Zweckmäßigkeit der Auslegung für Anwendungen unter Schwingungsbeanspru-
chung zu berücksichtigen.
Im Normalfall ist anzunehmen, dass für eine einzelne Schweißnaht die Toleranzwerte für die Unregelmäßig-
keiten durch Festlegen einer Bewertungsgruppe bestimmt werden können. In einigen Fällen kann es nötig
sein, unterschiedliche Bewertungsgruppen für verschiedene Unregelmäßigkeiten in der gleichen Schweiß-
naht festzulegen. Bei der Auswahl der Bewertungsgruppen für eine bestimmte Anwendung sollten die Kon-
struktionsgegebenheiten, die nachfolgenden Prozesse (z. B. Oberflächenbehandlung), die Beanspruchungs-
arten (z. B. statisch, dynamisch), die Betriebsbedingungen (z. B. Temperatur, Umgebung) und die Fehlerfolgen
beachtet werden. Wirtschaftliche Faktoren sind ebenfalls wichtig und sollten nicht allein die Kosten für das
Schweißen, sondern auch die für das Beaufsichtigen, Prüfen und Ausbessern enthalten.
Obwohl dieses D
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
