Railway applications - Tank wagons - Part 6: Manholes

This European Standard applies to manholes on tank wagons used for the transport of dangerous substances. Safety functions of these devices are subject to RID requirements and not described in this document.
This European Standard specifies the dimensions for the interchangeability of seals and other wearing parts and defines also the important dimensions for:
- manholes for gas tank wagons located in one end of the tank;
- manholes for gas tank wagons located on the top of the tank including the arrangement of fittings;
- bolted manholes for tank wagons for liquid substances located on the top of the tank;
- swing bolt manholes for tank wagons for liquid substances located on the top of the tank.
Quick closing/opening manholes are permitted but are not covered by this European Standard.
This European Standard applies to new tank wagons built after the 1st January 2010.

Bahnanwendungen - Kesselwagen - Teil 6: Mannloch

Diese Europäische Norm gilt für Mannlöcher von Kesselwagen für den Transport von gefährlichen Gütern. Sicherheitsfunktionen dieser Einrichtungen unterliegen den Anforderungen der RID und werden in diesem Dokument nicht beschrieben.
Diese Europäische Norm legt die Abmessungen für die Tauschbarkeit von Dichtungen und anderen Verschleißteilen sowie Hauptmaße und Anordnung für:
-   Mannlöcher für Druckgaskesselwagen, im Tankboden angeordnet;
-   Mannlöcher für Druckgaskesselwagen, auf dem Tankscheitel angeordnet, einschließlich der Anordnung der Armaturen;
-   geschraubte Mannlochdeckel für Kesselwagen für flüssige Stoffe, auf dem Tankscheitel angeordnet;
-   Klappdome für Kesselwagen für flüssige Stoffe, auf dem Tankscheitel angeordnet
fest.
Schnell schließende/öffnende Mannlöcher sind zulässig, werden aber in dieser Europäischen Norm nicht behandelt.
Diese Europäische Norm gilt für neue Kesselwagen, die nach dem 1. Januar 2010 gebaut werden.

Applications ferroviaires - Wagons citernes - Partie 6: Trous d'homme

La présente Norme européenne s’applique aux trous d’homme sur les wagons citernes utilisés pour le transport de matières dangereuses. Les fonctions de sécurité de ces dispositifs sont soumises aux exigences du RID et ne sont pas décrites dans le présent document.
La présente Norme européenne définit les dimensions pour l’interchangeabilité des joints et autres pièces susceptibles d’usure et définit également les dimensions essentielles pour :
-   les trous d’homme présents sur les wagons gaz et situés sur l’un des fonds de la citerne ;
-   les trous d’homme présents sur les wagons gaz et situés sur le dessus de la citerne, y compris la disposition des équipements ;
-   les trous d’homme boulonnés sur les wagons de transport de matières liquides situés sur le dessus de la citerne ;
-   les trous d’homme à boulons basculants sur les wagons de transport de matières liquides situés sur le dessus de la citerne.
Les trous d’homme à ouverture/fermeture rapide sont autorisés, mais ne sont pas traités dans la présente Norme européenne.
La présente Norme européenne s’applique aux nouveaux wagons citernes fabriqués après le 1er janvier 2010.

Železniške naprave - Vagoni-cisterne - 6. del: Vstopne odprtine

Ta evropski standard velja za vstopne odprtine na vagonih-cisternah, ki se uporabljajo za prevoz nevarnih snovi. Za varnostne funkcije naprav veljajo zahteve RID in niso opisane v tem dokumentu. Ta evropski standard določa mere za zamenljivost tesnil in drugih potrošnih delov ter opredeljuje pomembne mere za: vstopne odprtine za cisterne-vagone za pline, ki so na enem koncu cisterne; vstopne odprtine za cisterne-vagone za pline, ki so na vrhu cisterne, vključno z razvrstitvijo fitingov; privijačene vstopne odprtine za vagone-cisterne za tekoče snovi, ki so na vrhu cisterne; z očesnim vijakom privijačene vstopne odprtine za cisterne-vagone za tekoče snovi, ki so na vrhu cisterne. Vstopne odprtine za hitro zapiranje/odpiranje so dovoljene, a jih ta evropski standard ne zajema. Ta evropski standard velja za nove vagone-cisterne, narejene po 1. januarju 2010.

General Information

Status
Published
Publication Date
28-Jun-2011
Current Stage
9093 - Decision to confirm - Review Enquiry
Completion Date
13-Jun-2022

Relations

Buy Standard

Standard
EN 12561-6:2011
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Železniške naprave - Vagoni-cisterne - 6. del: Vstopne odprtineBahnanwendungen - Kesselwagen - Teil 6: MannlochApplications ferroviaires - Wagons citernes - Partie 6: Trous d'hommeRailway applications - Tank wagons - Part 6: Manholes45.060.20Železniški vagoniTrailing stock13.300Varstvo pred nevarnimi izdelkiProtection against dangerous goodsICS:Ta slovenski standard je istoveten z:EN 12561-6:2011SIST EN 12561-6:2011en,fr,de01-oktober-2011SIST EN 12561-6:2011SLOVENSKI

STANDARDSIST EN 12561-6:20041DGRPHãþD
SIST EN 12561-6:2011
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12561-6
June 2011 ICS 13.300; 45.060.20 Supersedes EN 12561-6:2002English Version
Railway applications - Tank wagons - Part 6: Manholes
Applications ferroviaires - Wagons citernes - Partie 6: Trous d'homme

Bahnanwendungen - Kesselwagen - Teil 6: Mannloch This European Standard was approved by CEN on 3 June 2011.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12561-6:2011: ESIST EN 12561-6:2011

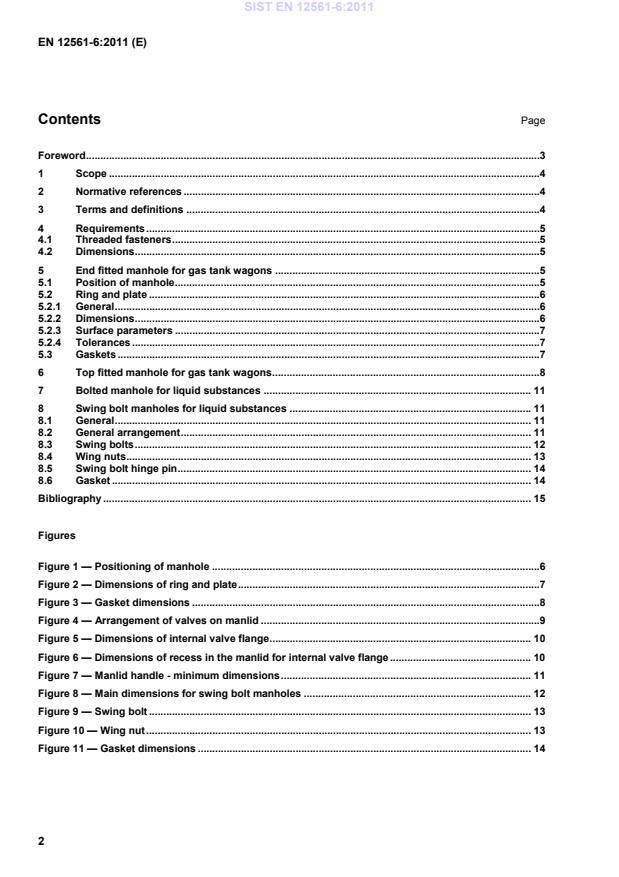

EN 12561-6:2011 (E) 2 Contents Page Foreword ..............................................................................................................................................................31 Scope ......................................................................................................................................................42 Normative references ............................................................................................................................43 Terms and definitions ...........................................................................................................................44 Requirements .........................................................................................................................................54.1 Threaded fasteners ................................................................................................................................54.2 Dimensions .............................................................................................................................................55 End fitted manhole for gas tank wagons ............................................................................................55.1 Position of manhole...............................................................................................................................55.2 Ring and plate ........................................................................................................................................65.2.1 General ....................................................................................................................................................65.2.2 Dimensions .............................................................................................................................................65.2.3 Surface parameters ...............................................................................................................................75.2.4 Tolerances ..............................................................................................................................................75.3 Gaskets ...................................................................................................................................................76 Top fitted manhole for gas tank wagons .............................................................................................87 Bolted manhole for liquid substances ............................................................................................. 118 Swing bolt manholes for liquid substances .................................................................................... 118.1 General ................................................................................................................................................. 118.2 General arrangement .......................................................................................................................... 118.3 Swing bolts .......................................................................................................................................... 128.4 Wing nuts ............................................................................................................................................. 138.5 Swing bolt hinge pin ........................................................................................................................... 148.6 Gasket .................................................................................................................................................. 14Bibliography ..................................................................................................................................................... 15 Figures Figure 1 — Positioning of manhole ..................................................................................................................6Figure 2 — Dimensions of ring and plate .........................................................................................................7Figure 3 — Gasket dimensions .........................................................................................................................8Figure 4 — Arrangement of valves on manlid .................................................................................................9Figure 5 — Dimensions of internal valve flange ........................................................................................... 10Figure 6 — Dimensions of recess in the manlid for internal valve flange ................................................. 10Figure 7 — Manlid handle - minimum dimensions ....................................................................................... 11Figure 8 — Main dimensions for swing bolt manholes ............................................................................... 12Figure 9 — Swing bolt ..................................................................................................................................... 13Figure 10 — Wing nut ...................................................................................................................................... 13Figure 11 — Gasket dimensions .................................................................................................................... 14 SIST EN 12561-6:2011

EN 12561-6:2011 (E) 3 Foreword This document (EN 12561-6:2011) has been prepared by Technical Committee CEN/TC 256 “Railway applications”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by December 2011, and conflicting national standards shall be withdrawn at the latest by December 2011. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 12561-6:2002. This European Standard Railway applications — Tank wagons consists of the following parts:  Part 1: Identification plates for tank wagons for the carriage of dangerous goods;  Part 2: Bottom emptying devices for liquid products including vapour return;  Part 3: Bottom filling and emptying devices for gases liquefied under pressure;  Part 4: Devices for top filling and emptying of liquid products;  Part 5: Devices for vapour return while filling or emptying of liquid products;  Part 6: Manholes;  Part 7: Platforms and ladders;  Part 8: Heating connections. The changes made during this revision are editorial because of the change of the title of part 1 and the necessary updates of references. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are

...
