EN 12385-7:2002
(Main)Steel wire ropes - Safety - Part 7: Locked coil ropes for mine shafts
General Information
- Abstract
This European Standard specifies the additional materials, manufacturing and testing requirements for full-locked coil hoist and half-locked and full-locked coil guide ropes for mine shafts to those given in Part 1.
The additional hazards covered by this European Standard are identified in clause 4.
For information only, typical breaking forces for both full-locked coil hoist ropes and half-locked and full-locked coil guide ropes, based on one particular combination of wire tensile strength grades in each case, are given in annex B (hoist ropes) and annex C (guide ropes) for some of the more common sizes of rope.
- Status
- Published
- Publication Date
- 22-Oct-2002
- Withdrawal Date
- 29-Apr-2003
- Technical Committee
- CEN/TC 168 - Chains, ropes, webbing, slings and accessories - safaty
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 04-Jun-2023
- Completion Date
- 04-Jun-2023
Overview
EN 12385-7:2002 - Steel wire ropes - Safety - Part 7: Locked coil ropes for mine shafts (CEN) specifies the additional materials, manufacturing and testing requirements for full-locked coil hoist ropes and half-locked / full-locked coil guide ropes used in mine shafts. It supplements the general requirements of EN 12385-1 and addresses hazards specific to locked coil rope constructions. Annexes provide practical data (typical breaking forces) and order/installation information.
Key topics and technical requirements
- Scope: Requirements specific to locked coil hoist and guide ropes for mining applications, with hazards identified in Clause 4.
- Materials and wire grades: Wire for hoist ropes must meet EN 10264-3; tensile strength grades for various wire components are defined (examples in the standard). Guide-rope wires follow the grades and tolerances given in Annex A.
- Wire finish and lubrication: Acceptable finishes include bright or zinc-coated (class D). Lubricants must comply with ISO 3156; friction hoist rope lubricants should also consider DIN 21258 to match sheave lining and friction characteristics.
- Rope construction: Defined constructions for full-locked coil hoist ropes, half-locked and full-locked guide ropes, including outer-layer wire arrangements and centre wire options.
- Dimensional and mass tolerances:
- Diameter tolerance: measured diameter within ±2% of nominal.
- Difference between diameter measurements: not to exceed 4% of nominal diameter.
- Length mass tolerance: ±4% of specified nominal length mass.
- Length tolerance: actual length ≥ specified and ≤ specified +2%.
- Breaking force and testing:
- Manufacturer specifies minimum breaking force; typical values shown in Annex B for reference.
- Spinning loss factors: 0.835 for full-locked coil hoist ropes, 0.925 for half-locked coil guide ropes (unless otherwise stated).
- Breaking-force tests per EN 12385-1 (Method 1) on samples from each production length.
- Verification and certificates: Visual inspections for lubricant/lubrication and construction; certificates must state measured diameter, measured breaking force, measured length mass and reel dimensions. Additional test results may be included.
Applications and users
EN 12385-7 is essential for:
- Rope manufacturers designing locked coil hoist and guide ropes for shafts
- Mine owners, procurement specialists and specifiers preparing enquiries and orders
- Safety engineers and maintenance teams responsible for selection, testing and inspection
- Testing laboratories verifying breaking force and dimensional compliance
Practical notes: locked coil ropes are often custom-designed for specific shaft conditions - purchasers should negotiate lubricant choice, joint requirements, reel limits and installation details per Annex C.
Related standards
- EN 12385-1 (General requirements)
- EN 12385-2 (Definitions, designation, classification)
- EN 10264-3 (Wire for ropes)
- ISO 3156 (Rope lubricants)
- DIN 21258 (Friction hoist rope preservatives)
Keywords: EN 12385-7:2002, steel wire ropes, locked coil ropes, mine shafts, hoist ropes, guide ropes, breaking force, rope manufacture, CEN.
Relations
- Effective Date
- 03-Jun-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard
Element Materials Technology
Materials testing and product certification.
Inštitut za kovinske materiale in tehnologije
Institute of Metals and Technology. Materials testing, metallurgical analysis, NDT.
Sponsored listings
Frequently Asked Questions
EN 12385-7:2002 is a standard published by the European Committee for Standardization (CEN). Its full title is "Steel wire ropes - Safety - Part 7: Locked coil ropes for mine shafts". This standard covers: This European Standard specifies the additional materials, manufacturing and testing requirements for full-locked coil hoist and half-locked and full-locked coil guide ropes for mine shafts to those given in Part 1. The additional hazards covered by this European Standard are identified in clause 4. For information only, typical breaking forces for both full-locked coil hoist ropes and half-locked and full-locked coil guide ropes, based on one particular combination of wire tensile strength grades in each case, are given in annex B (hoist ropes) and annex C (guide ropes) for some of the more common sizes of rope.
This European Standard specifies the additional materials, manufacturing and testing requirements for full-locked coil hoist and half-locked and full-locked coil guide ropes for mine shafts to those given in Part 1. The additional hazards covered by this European Standard are identified in clause 4. For information only, typical breaking forces for both full-locked coil hoist ropes and half-locked and full-locked coil guide ropes, based on one particular combination of wire tensile strength grades in each case, are given in annex B (hoist ropes) and annex C (guide ropes) for some of the more common sizes of rope.
EN 12385-7:2002 is classified under the following ICS (International Classification for Standards) categories: 77.140.65 - Steel wire, wire ropes and link chains. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 12385-7:2002 has the following relationships with other standards: It is inter standard links to ISO 4346:1977, EN 12385-2:2002+A1:2008, EN 292-2:1991/A1:1995, EN 15112:2006, EN 1050:1996, EN 10264-3:2023, EN 12385-1:2002, EN 13814-2:2019+A1:2024, EN 13782:2005, EN 13814:2004, EN 13814-2:2019. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 12385-7:2002 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

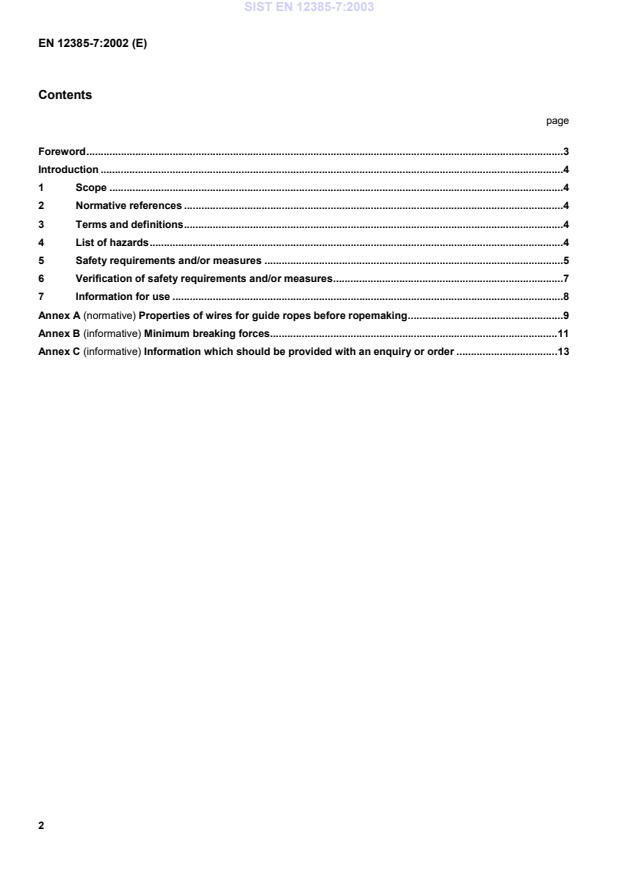

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Drahtseile aus Stahldraht - Sicherheit - Teil 7: Verschlossene Spiralseile für Schachtförderanlagen des BergbausCâbles en acier - Sécurité - Partie 7: Câbles clos d'extraction pour puits de mineSteel wire ropes - Safety - Part 7: Locked coil ropes for mine shafts77.140.65Jeklene žice, jeklene vrvi in verigeSteel wire, wire ropes and link chainsICS:Ta slovenski standard je istoveten z:EN 12385-7:2002SIST EN 12385-7:2003en01-maj-2003SIST EN 12385-7:2003SLOVENSKI
STANDARD
CEN TC 168prEN 12385-7CEN TC 168Secretariat:
BSISteel wire ropes — Safety — Part 7: Locked coil ropes for mine shaftsStahldrahtseile — Sicherheit — Teil 7: Verschlossene Spiralseile für Schachtförderanlagen des BergbausCâbles en acier — Sécurité — Partie 7: Câbles clos d'extraction pour puits de mineICS:
Descriptors:
Document type:
European StandardDocument subtype:
Document stage:
Formal VoteDocument language:
EH:\SWREAD\CENTC168\WG2\12385\pt5,7,8,9\EN 12385-7 (E).doc
STD Version 1.0SIST EN 12385-7:2003
EN 10264-3 for full-locked coil hoist ropes and b)
annex A for locked coil guide ropes.The tensile strength grades of shaped wires of full-locked coil hoist ropes shall be in accordance with Table 1, with theexception that the centre wire may be of a lower grade. In this case it shall have torsion and bend values not less thanthose given for 1570 grade:Table 1 — Tensile strength grades of wiresRound wire N/mm2Shaped wire N/mm215701270177013701860147019601570—1670—1770The tensile strength grades of all wires of half-locked and full-locked coil guide rope shall be 780, 880, 980, 1080,1180, 1270, 1370 or 1470 N/mm2. The tensile strength tolerance for wire for guide ropes shall not exceed+250 N/mm2.5.2.2 LubricantThe lubricant(s) shall comply with ISO 3156.The lubricant(s) for friction hoist ropes shall comply with DIN 21258, taking account of: a)
the coefficient of friction between the rope and the drive sheave; and b)
the chemical compatibility of the lubricant with the respective sheave linings.NOTEThe purchaser should specify any particular lubricant requirements (see introduction).5.3 Rope manufacture5.3.1 Wire finishThe finish of the wires shall be bright, zinc coated class D or a combination of both provided that in any one layer thefinish is the same.SIST EN 12385-7:2003
...
