EN 12299:2009

Railway applications - Ride comfort for passengers - Measurement and evaluation

This standard specifies methods for quantifying the effects of vehicle body motions on ride comfort for passengers and vehicle assessment with respect to ride comfort. The effect considered is:
   discomfort, associated with relatively low levels of acceleration and roll velocity.
Other effects, not included in the standard, are associated with higher acceleration levels:
   health risk effect: physical damage and psychological deterioration.
The standard applies to passengers travelling in railway vehicles on railway lines, including main, secondary and suburban lines. This standard could be used as a guide for other railway vehicles, for example locomotives, metros, trams, etc.
The standard applies to passengers in good health.
This standard applies to measurements of motions. It also applies to simulated motions.

Bahnanwendungen - Fahrkomfort für Fahrgäste - Messung und Auswertung

Diese Europäische Norm legt Methoden zur Bewertung der Auswirkungen von Bewegungen des Fahrzeugs auf den Fahrkomfort der Fahrgäste und für die Fahrzeugbewertung fest.
Die hier betrachteten Auswirkungen sind:
   Unannehmlichkeiten in Verbindung mit relativ kleinen Beschleunigungen und Rollgeschwindigkeiten.
Andere Einflüsse in Zusammenhang mit höheren Beschleunigungspegeln sind nicht in dieser Norm erfasst:
   Gesundheitsrisiko: körperlicher Schaden und psychische Störung.
Die Norm betrifft Schienenfahrzeuge, die zur Beförderung von Fahrgästen ausgelegt sind, einschließlich Neben- und Vorortstrecken. Sie kann aber auch als Leitfaden für andere Eisenbahnfahrzeuge, z. B. Lokomotiven, U Bahnen und Straßenbahnen usw. verwendet werden.
Diese Norm bezieht sich auf Fahrgäste, die sich in einem gesundheitlich guten Allgemeinzustand befinden.
Sie gilt für Bewegungsmessungen, kann aber auch für Simulationen angewendet werden.

Applications ferroviaires - Confort de marche des voyageurs - Mesurage et évalutation

La présente norme spécifie des méthodes de détermination des effets des mouvements de la caisse du véhicule sur
le confort de marche des voyageurs et l'évaluation du véhicule du point de vue du confort de marche. L'effet
considéré est :
l'inconfort, lié à des niveaux d'accélération et une vitesse de roulis relativement faibles.
Les autres effets, non couverts par la présente norme, sont liés à des niveaux d'accélération plus élevés :
risques pour la santé : dommages physiques et psychologiques.
La présente norme s'applique aux personnes voyageant dans les véhicules ferroviaires sur des lignes ferroviaires,
incluant les lignes principales, secondaires et les lignes de banlieue. La présente norme peut être utilisée comme
guide pour d'autres véhicules ferroviaires comme par exemple les locomotives, les métros, les tramways, etc.
La norme s'applique à des voyageurs en bonne santé.
La présente norme s'applique aux mesures de mouvements. Elle s'applique également aux mouvements simulés.

Železniške naprave - Udobnost vožnje potnikov - Meritve in vrednotenje

General Information

• Status: Withdrawn
• Publication Date: 07-Apr-2009
• Withdrawal Date: 13-Apr-2025
• ICS: 45.060.20 - Trailing stock
• Technical Committee: CEN/TC 256 - Railway applications
• Drafting Committee: CEN/TC 256/WG 7 - Ride comfort
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 30-Oct-2024
• Completion Date: 14-Apr-2025
• Directive: 2001/16/EC - Directive 2001/16/EC of the European Parliament and of the Council of 19 March 2001 on the interoperability of the trans-European conventional rail system
• Directive: 2008/57/EC - Directive 2008/57/EC of the European Parliament and of the Council of 17 June 2008 on the interoperability of the rail system within the Community (Recast)
• Directive: 93/38/EEC - Procurement procedures of entities operating in the water, energy, transport and telecommunications sectors
• Mandate: M/024 - Mandate to CEN/CENELEC/ETSI for programming and standardization in the field of railway equipment
• Mandate: M/334 - Mandate for programming and standardisation addressed to CEN, CENELEC and ETSI in the field of the Interoperability of the trans-european conventional rail system
• Ref Project: SIST EN 12299:2009 - Railway applications - Ride comfort for passengers - Measurement and evaluation

Relations

• Replaces: ENV 12299:1999 - Railway applications - Ride comfort for passengers - Measurement and evaluation
• Effective Date: 15-Apr-2009
• Replaced By: EN 12299:2024 - Railway applications - Ride comfort for passengers - Measurement and evaluation
• Effective Date: 28-Jan-2023

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Železniške naprave - Udobnost vožnje potnikov - Meritve in vrednotenjeBahnanwendungen - Fahrkomfort für Fahrgäste - Messung und AuswertungApplications ferroviaires - Confort de marche des voyageurs - Mesurage et évalutationRailway applications - Ride comfort for passengers - Measurement and evaluation45.060.20Železniški vagoniTrailing stock13.160Vpliv vibracij in udarcev na ljudiVibration and shock with respect to human beingsICS:Ta slovenski standard je istoveten z:EN 12299:2009SIST EN 12299:2009en01-junij-2009SIST EN 12299:2009SLOVENSKI
STANDARDSIST ENV 12299:20011DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 12299April 2009ICS 45.060.20Supersedes ENV 12299:1999
English VersionRailway applications - Ride comfort for passengers -Measurement and evaluationApplications ferroviaires - Confort de marche desvoyageurs - Mesurage et évalutationBahnanwendungen - Fahrkomfort für Fahrgäste - Messungund AuswertungThis European Standard was approved by CEN on 7 March 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 12299:2009: ESIST EN 12299:2009

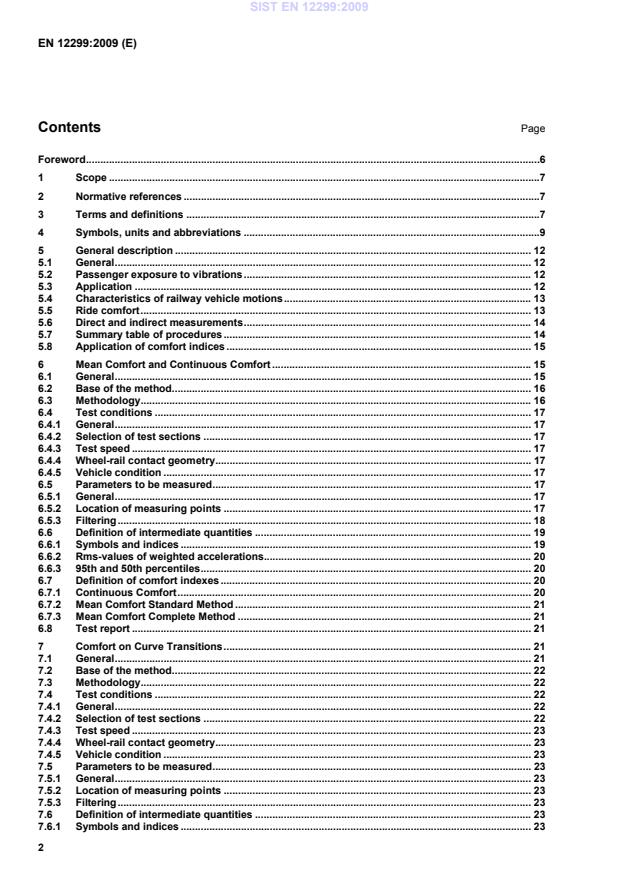

Reference system . 34 Annex B (normative)
Measurement techniques. 36 B.1 General. 36 B.2 Measuring equipment . 36 B.2.1 General. 36 B.2.2 Accelerometers and processing amplifiers . 36 B.2.3 Recording equipment . 37 B.2.4 Fixing transducers to the floor . 37 B.3 Seat measuring devices and their applications . 37 Annex C (normative)
Weighting curves . 40 C.1 General. 40 C.2 Filter functions . 40 C.2.1 General. 40 C.2.2 Band-limiting filter . 41 C.2.3 Acceleration to velocity transition . 41 C.2.4 Upward gradient . 41 C.2.5 Overall frequency weighting . 41 C.2.6 Reduction of the upper limit of the frequency range in vertical direction . 42 C.3 Tolerances . 42 C.4 Diagrams . 44 Annex D (informative)
Presentation of test report . 47 D.1 General. 47 D.2 Aim of test . 47 D.3 Test performer . 47 D.4 References . 47 SIST EN 12299:2009

Vehicle assessment with respect to Mean Comfort Standard Method . 55 E.1 General . 55 E.2 Track geometric quality . 55 E.3 Test conditions . 55 E.3.1 Selection of test sections and test zones . 55 E.3.2 Test speed . 56 E.3.3 Wheel-rail contact geometry . 56 E.3.4 Vehicle condition . 56 E.4 Acceptable modifications of the methods for Mean Comfort evaluation . 56 E.5 Test report . 57 Annex F (informative)
Guideline for the application of direct tests . 58 Annex G (informative)
Workflow for numerical integration . 59 Annex H (informative)
Determining quantities . 60 Bibliography . 62 Figures Figure 1 — Locations of measuring points Passenger coach (Conventional or articulated). 18 Figure 2 — Location of measuring points Double-Deck vehicle (Conventional or articulated) . 18 Figure 3 — Interpretation of the terms, max1sy&& and max1sy&&&in the CTP formula . 26 Figure 4 — Interpretation of the term max1sϕ& in the CTP formula . 27 Figure 5 — Relevant time periods iAon curve transition . 27 Figure 6 — Interpretation of )(ty2s&& and )(typp&& for calculation of DEP . 31 Figure A.1 — Local reference system for a vehicle body . 34 Figure A.2 — Local reference systems for a person in a seated position . 35 Figure A.3 — Local reference system for a person in standing position . 35 Figure B.1 — Seat pan measuring device (for y- and z-direction) . 37 Figure B.2 — Seat pan measuring device . 38 Figure B.3 — Seat back measurement device . 39 Figure C.1 — Tolerances for bW . 42 SIST EN 12299:2009

supersedes ENV 12299:1999. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. SIST EN 12299:2009

This standard applies to measurements of motions. It also applies to simulated motions. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 14363, Railway applications — Testing for the acceptance of running characteristics of railway vehicles — Testing of running behaviour and stationary tests EN ISO 5353, Earth-moving machinery, and tractors and machinery for agriculture and forestry - Seat index point (ISO 5353:1995) EN ISO 8041, Human response to vibration - Measuring instrumentation (ISO 8041:2005) ISO 2631-1, Mechanical vibration and shock — Evaluation of human exposure to whole-body vibration —
Part 1: General requirements ISO 5348, Mechanical vibration and shock — Mechanical mounting of accelerometers 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 passengers people travelling in a railway vehicle, without specific activities related to the transport 3.2 ride comfort complex sensation produced during the application of oscillations and/or inertia forces, via whole-body transmission caused by the railway vehicle body motions
3.3 interfaces contact parts between the vehicle body or seat and the passenger with the function of sustaining and guiding the passenger and of transmitting the weight of the same to the vehicle body itself, e.g. floor-feet SIST EN 12299:2009

3.13 test zone continuous five-minute period, which is used for Mean Comfort evaluation 3.14 five-second time period sampling period, of which 60 forms the test zone 3.15 reference system local reference system for a vehicle body is defined through: Origin: on the floor of the vehicle body, in the central position between the two body-bogie centre pivots (existing or ideally defined) Axis:  x-axis: longitudinal  y-axis: lateral  z-axis: vertical
Roll motions ()ϕ are defined as rotation around the x-axis. SIST EN 12299:2009

T [s] Integration variable τ [s] Vehicle speed V [km/h] Frequency f [Hz] Interface, the floor (Plancher in French) P [-] Interface, the seat pan (Assise in French)
A [-] Interface, the seat back (Dossier in French) D [-] Frequency weighting curve for vertical direction
bW [-] Frequency weighting curve for longitudinal direction (backrest),
cW [-] Frequency weighting curve for lateral/longitudinal direction,
dW [-] Low-pass filter pW [-] n-tile k [-] Percentile n [%] Number of samples N [-] Imaginary unit i [-] Root mean square rms [-] Parameter Longitudinal axis Lateral Axis Vertical Axis Translational Accelerations on running gear [m/s2] Wheel set i – iy&& – Translational Accelerations in vehicle body [m/s2] Leading end of passenger compartment – *EIy&& *EIz&& Over leading bogie – *Iy&& *Iz&& Body centre *Mx&& *My&& *Mz&& SIST EN 12299:2009

cwXDa dwYAa bwZAa Floor, weighted dW, bW, rms dwXPa dwYPa bwZPa Floor, Weighted dW, bW, rms, 50th percentile dwXP50a dwYP50a bwZP50a Seat, weighted cW,dW, bW, rms, 95th percentile cwXD95a dwYA95a bwZA95a Floor, weighted dW, bW, rms, 95th percentile dwXP95a dwYP95a bwZP95a One-second average – )(ty1s&& – Two-second average – )(ty2s&& – Peak to peak – )(typp&& – One-second average, maximum absolute value – max1sy&& – Two-second average, absolute value – )(ty2s&& – Translational jerk in vehicle body [m/s3] One-second average – )(ty1s&&& – One-second average, maximum absolute value – max1sy&&& – Angular velocity in vehicle body [rad/s] Body )(t*ϕ& – – Weighted pW )(t*Wpϕ& – – One-second average )(t1sϕ& – – One-second average, maximum absolute value max1sϕ& – – SIST EN 12299:2009

CTP – Comfort on Discrete Events – DEP – Constants for Passenger Comfort on curve transitions and discrete events Parameter Symbol Unit Constant in acceleration component in Curve Transitions A [s²/m] Constant in acceleration component in Curve Transitions B [s³/m] Constant in acceleration component in Curve Transitions C [-] Constant in roll velocity component in Curve Transitions D [s/rad] Constant in roll velocity component in Curve Transitions E [-] Constant in acceleration component in Discrete Events a [s²/m] Constant in acceleration component in Discrete Events b [s²/m] Constant in acceleration component in Discrete Events e [-] Transfer functions Parameter Symbol Unit Corner frequencies, n=1,2,3,4,5,6 nf [Hz] Resonant quality factors, n=1,2,3,4 nQ [-] Gain K [-] High pass transfer function )(fHh [-] Low pass transfer function )(fHl [-] Acceleration to velocity transfer function )(fHt [-] Upward gradient transfer function )(fHs [-]
This standard defines as the Standard Method:
a) The Standard Method for Mean Comfort evaluation, taking into account the effects of vibration exposure measured on the floor of the vehicle body. This standard also defines several methods for special applications: b) taking into account the short time effects of vibration exposure measured on the floor of the vehicle body as Continuous Comfort for the longitudinal, lateral, and vertical direction; c) taking into account the vibration exposure measured on the seat or other interfaces on ride comfort as the Complete Method for Mean Comfort evaluation; d) taking into account the effects of: 1) discrete events (Comfort on Discrete Events) and 2) running on curve transitions (Comfort on Curve Transitions) on ride comfort. e) taking into account the vibration exposure measured on the floor of the vehicle body for the purpose of vehicle assessment with respect to ride comfort.
5.2 Passenger exposure to vibrations Railway transport exposes passengers to vibrations related to the dynamic motions of the vehicle body. The motions of the vehicle body transmit their effects to the human body through the following interfaces: a) in the standing position: 1) floor – feet b) in the seated position: 1) headrest – neck 2) arm rest – arms 3) seat – hip 4) backrest – back
5) floor – feet The type of transmission is whole-body transmission which acts on the whole body through the interfaces. 5.3 Application Table 2 lists the items included or excluded from this standard: SIST EN 12299:2009

respect to ride comfort
— on health — on activities — on motion sickness Vibration transfer — on whole body through
interfaces — through floor interface — on single body part — on whole surface Test procedure — definitions — reference system — requirements — measurement and evaluation
rules — report guidance — notes or attributes related to
service quality and/or
passenger expectation — limiting values Posture and activities of passenger — standing — seated — lying — performing specific actions
(reading,
writing etc.) Type of measurement — indirect measurement, i.e.
measurement of motion
environment by different motion
quantities — direct measurements (by
asking test subjects) — combined measurements
5.4 Characteristics of railway vehicle motions The basic typical motion characteristics, referred to the type of measurement and evaluation, are: a) Different properties, depending on the type of evaluation: 1) quasi-stationary (Mean Comfort) 2) non-stationary (Comfort on Curve Transitions and Comfort on Discrete Events). b) The frequency range of motions expected in rail vehicles includes, in the lateral direction: 1) up to 15 Hz: due to track characteristics, vehicle body swing-roll and yaw modes at lower frequencies, and suspensions characteristics and vehicle body modes at higher frequencies; c) The frequency range of motions expected in rail vehicles includes, in the vertical direction: 1) up to 40 Hz: due to track characteristics, suspensions characteristics, wheel defects, vehicle body modes; d) Range of frequencies from 0 Hz (quasi-static) to 2 Hz for Comfort on Curve Transitions and for Discrete Events. 5.5 Ride comfort The ride comfort for passengers is the complex sensation, produced on the passenger by the vehicle body motions of the railway vehicle, transmitted to the whole body through the interfaces. SIST EN 12299:2009
...
