EN 17528:2022
(Main)Clothing - Physiological effects - Measurement of water vapour resistance by means of a sweating manikin
Clothing - Physiological effects - Measurement of water vapour resistance by means of a sweating manikin
This document specifies the requirements of the sweating manikin and the test procedure used to measure the water vapour resistance of a clothing ensemble, as it becomes effective for the wearer in practical use in a defined environment, with the wearer either standing or moving. This water vapour resistance, among other parameters, can be used to determine the effect of clothing on the physiology of the wearer in specific climate/activity scenarios.
Bekleidung - Physiologische Wirkungen - Messung des Wasserdampfdurchgangswiderstandes mittels einer schwitzenden Prüfpuppe
Dieses Dokument legt die Anforderungen an die schwitzende Prüfpuppe und das Prüfverfahren zur Messung des Wasserdampfdurchgangswiderstands einer Bekleidungskombination fest, wie sich diese bei der prakti¬schen Verwendung in einer festgelegten Umgebung auf den stehenden oder sich bewegenden Träger aus¬wirkt. Dieser Wasserdampfdurchgangswiderstand kann neben anderen Parametern verwendet werden, um die Wirkung der Bekleidung auf die Physiologie des Trägers unter bestimmten klimatischen Bedingungen oder Tätigkeits¬szenarien zu bestimmen.
Vêtements - Effets physiologiques - Mesurage de la résistance à la vapeur d’eau à l’aide d’un mannequin transpirant
Le présent document spécifie les exigences applicables au mannequin transpirant et le mode opératoire d’essai utilisé pour mesurer la résistance à la vapeur d’eau d’un ensemble de vêtements, au moment où il devient efficace pour la personne qui le porte dans la pratique, dans un environnement défini, que cette personne soit immobile ou en mouvement. Cette résistance à la vapeur d’eau, entre autres paramètres, peut être utilisée pour déterminer l’effet du vêtement sur la physiologie de la personne qui le porte dans des scénarios de climat/d’activités spécifiques.
Oblačila - Fiziološki učinki - Merjenje odpornosti proti vodni pari s pomočjo lutke za potenje
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
01-december-2022
Oblačila - Fiziološki učinki - Merjenje odpornosti proti vodni pari s pomočjo lutke
za potenje
Clothing - Physiological effects - Measurement of water vapour resistance by means of a
sweating manikin
Bekleidung - Physiologische Wirkungen - Messung des
Wasserdampfdurchgangswiderstandes mittels einer schwitzenden Prüfpuppe
Vêtements - Effets physiologiques - Mesurage de la résistance à la vapeur d’eau à l'aide
du mannequin transpirant
Ta slovenski standard je istoveten z: EN 17528:2022
ICS:
61.020 Oblačila Clothes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 17528
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2022
EUROPÄISCHE NORM
ICS 61.020
English Version
Clothing - Physiological effects - Measurement of water
vapour resistance by means of a sweating manikin
Vêtements - Effets physiologiques - Mesurage de la Bekleidung - Physiologische Wirkungen - Messung des
résistance à la vapeur d'eau à l'aide du mannequin Wasserdampfdurchgangswiderstandes mittels einer
transpirant schwitzenden Prüfpuppe
This European Standard was approved by CEN on 29 August 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17528:2022 E
worldwide for CEN national Members.

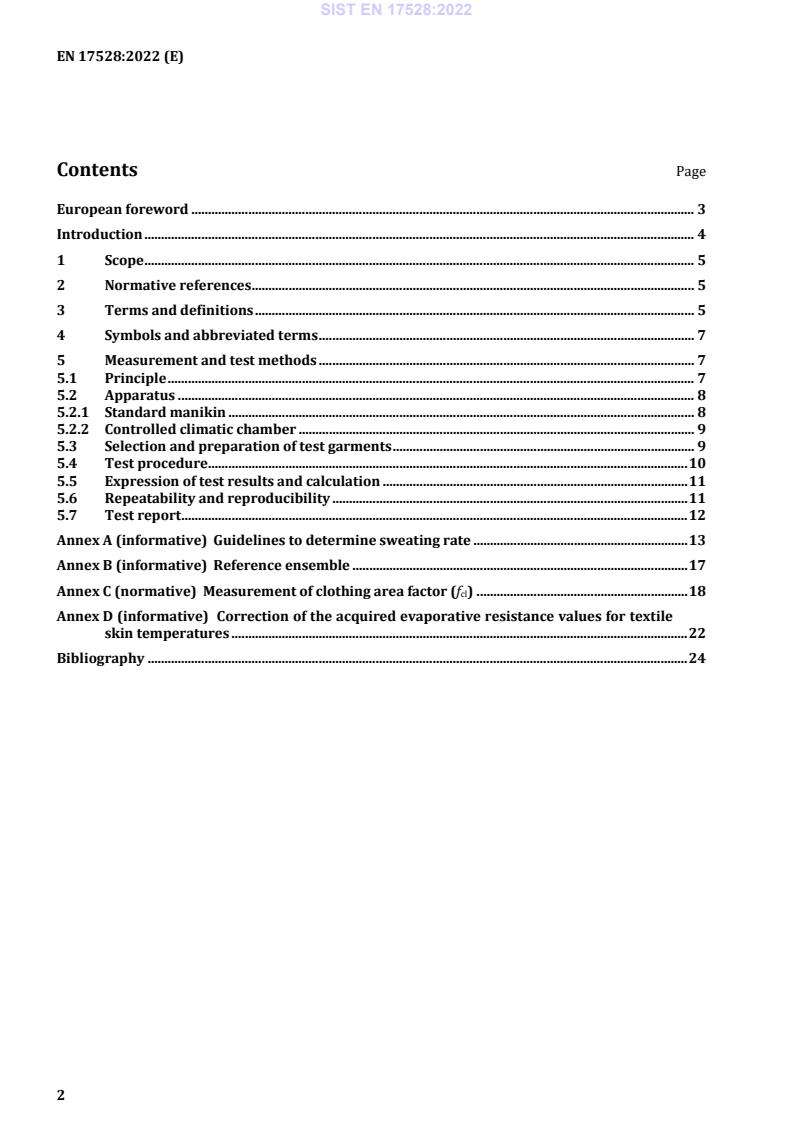

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Symbols and abbreviated terms . 7
5 Measurement and test methods . 7
5.1 Principle . 7
5.2 Apparatus . 8
5.2.1 Standard manikin . 8
5.2.2 Controlled climatic chamber . 9
5.3 Selection and preparation of test garments . 9
5.4 Test procedure . 10
5.5 Expression of test results and calculation . 11
5.6 Repeatability and reproducibility . 11
5.7 Test report . 12
Annex A (informative) Guidelines to determine sweating rate . 13
Annex B (informative) Reference ensemble . 17
Annex C (normative) Measurement of clothing area factor (f ) . 18
cl
Annex D (informative) Correction of the acquired evaporative resistance values for textile
skin temperatures . 22
Bibliography . 24
European foreword
This document (EN 17528:2022) has been prepared by Technical Committee CEN/TC 248 “Textiles and
Textile Products”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2023 and conflicting national standards shall be
withdrawn at the latest by April 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Introduction
The type of clothing worn by people directly affects the heat exchange between the human body and the
environment. The heat transfer is both sensible (conduction, convection, and radiation) and latent
(evaporation). The water vapour resistance of a clothing ensemble is dependent upon the designs and
materials used in the component garments, the amount of body surface area covered by the clothing,
the distribution of the layers over the body, looseness or tightness of fit, and the increased surface area
for heat loss. Water vapour resistance measurements made on fabrics alone do not take these factors
into account. Measurements of the resistance to evaporative heat loss provided by clothing can be used
with thermal insulation values (EN ISO 15831) to determine the comfort or stress of people in different
environments.
1 Scope
This document specifies the requirements of the sweating manikin and the test procedure used to
measure the water vapour resistance of a clothing ensemble, as it becomes effective for the wearer in
practical use in a defined environment, with the wearer either standing or moving. This water vapour
resistance, among other parameters, can be used to determine the effect of clothing on the physiology of
the wearer in specific climate/activity scenarios.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 11092, Textiles - Physiological effects - Measurement of thermal and water-vapour resistance
under steady-state conditions (sweating guarded-hotplate test) (ISO 11092)
EN ISO 15831, Clothing - Physiological effects - Measurement of thermal insulation by means of a thermal
manikin (ISO 15831)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
clothing ensemble
group of garments worn together on the body at the same time
3.2
water vapour resistance of clothing
water-vapour pressure difference between the manikin’s skin surface and ambient atmosphere divided
by the resulting evaporative heat flux per unit area in the direction of the gradient of water-vapour
pressure
3.3
total water vapour resistance of clothing
R
et,M
total water-vapour resistance from manikin’s surface to ambient atmosphere, including clothing and
boundary air layer, under defined conditions measured with a stationary manikin
Note 1 to entry: R is expressed in square metres pascal per watt (m⋅Pa/W).
et,M
3.4
resultant total water vapour resistance of clothing
R
etr,M
total water-vapour resistance from manikin’s surface to ambient atmosphere, including clothing and
boundary air layer, under defined conditions measured with a manikin moving its legs and arms
Note 1 to entry: Retr,M is expressed in square metres pascal per watt (m⋅Pa/W).
3.5
air water vapour resistance
R
ea,M
water-vapour resistance of the boundary (surface) air layer around the sweating nude manikin, under
defined conditions measured with a stationary manikin
Note 1 to entry: Rea,M is expressed in square metres pascal per watt (m⋅Pa/W).
3.6
resultant air water vapour resistance
R
ear,M
water-vapour resistance of the boundary (surface) air layer around the sweating nude manikin, under
defined conditions measured with a manikin moving its legs and arms
Note 1 to entry: R is expressed in square metres pascal per watt (m⋅Pa/W).
ear,M
3.7
basic water vapour resistance of clothing
Recl,M
water-vapour resistance from manikin’s surface to the outer clothing surface (including enclosed air
layers), under defined conditions measured with a stationary manikin
Note 1 to entry: R is expressed in square metres pascal per watt (m⋅Pa/W).
ecl,M
3.8
resultant basic water vapour resistance of clothing
R
eclr,M
water-vapour resistance from manikin’s surface to the outer clothing surface (including enclosed air
layers), under defined conditions measured with a manikin moving its legs and arms
Note 1 to entry: Reclr,M is expressed in square metres pascal per watt (m⋅Pa/W).
3.9
effective water vapour resistance of clothing
R
ecle,M
difference between water-vapour resistance provided to a sweating manikin by a clothing ensemble
and the water-vapour resistance of the sweating nude manikin, under defined conditions measured
with a stationary manikin
Note 1 to entry: Recle,M is expressed in square metres pascal per watt (m⋅Pa/W).
Note 2 to entry: R is calculated with Formula (9).
ecle,M
3.10
resultant effective water vapour resistance of clothing
R
ecler,M
difference between water-vapour resistance provided to a sweating manikin by a clothing ensemble
and the water-vapour resistance of the sweating nude manikin, under defined conditions measured
with a manikin moving its legs and arms
Note 1 to entry: R is expressed in square metres pascal per watt (m⋅Pa/W).
ecler,M
Note 2 to entry: R is calculated with Formula (10).
ecler,M
3.11
clothing area factor
f
cl
ratio of the outer surface of the clothed manikin to the surface area of the nude manikin
Note 1 to entry: fcl is dimensionless and is always higher or equal to 1.
4 Symbols and abbreviated terms
A total wet body surface area of the manikin m
w
ai surface area of the body segment i of the manikin m
f fraction of the total manikin surface area represented by the surface area of segment i
i
H total heating power supplied to the manikin W
e
H heating power supplied to the body segment i of the manikin W
ei
RH relative humidity of the air within the climatic chamber %
T air temperature within the climatic chamber °C
a
T mean surface temperature of the manikin °C
s
T surface temperature of the body segment i of the manikin °C
si
p water vapour pressure of the air within the climatic chamber Pa
a
p water vapour pressure at the manikin’s sweating surface Pa
s
psi water vapour pressure at the body segment i of the manikin’s sweating surface Pa
v air speed in the climatic chamber m/s
a
5 Measurement and test methods
5.1 Principle
The components of the clothing ensemble to be tested are placed on the manikin in the same
arrangement as in practical use.
The manikin in the shape and size of an adult human body and, for the measurement of R , with
etr,M
movable legs and arms, is internally heated to a constant surface temperature, uniform over its body.
...
