EN 12697-16:2024
(Main)Bituminous mixtures - Test methods - Part 16: Abrasion by studded tyres
Bituminous mixtures - Test methods - Part 16: Abrasion by studded tyres
This document specifies two test methods (method A and method B) for determining the susceptibility of abrasion by studded tyres, tested on cylindrical specimens of bituminous mixtures. The test methods are applicable to bituminous mixtures with aggregate with upper sieve size not exceeding 22 mm.
The tests are applicable to laboratory produced specimens or cores drilled from a slab or pavement.
NOTE 1 Method A originates from the “Prall”-method, which has been improved by comprehensive Nordic research work. The method correlates with abrasion in the field when using paving grade bitumen. According to Nordic experience, by method A the correlation between laboratory and abrasion in field is not established when polymer modified bitumen or rubber modified bitumen, etc. is used.
NOTE 2 Method B originates from Finnish experience and is suitable also when polymer modified bitumen is used. The correlation between laboratory and abrasion in field is not established when rubber is used.
Asphalt - Prüfverfahren - Teil 16: Abrieb durch Spikereifen
Dieses Dokument legt zwei Prüfverfahren (Verfahren A und Verfahren B) für die Bestimmung der Empfindlichkeit gegenüber dem durch Spikereifen verursachten Abrieb durch Prüfung von zylindrischen Probekörpern aus Asphalt fest. Die Prüfverfahren sind für Asphalt mit Gesteinskörnung mit einer oberen Korngröße von höchstens 22 mm anwendbar.
Die Prüfungen sind anwendbar für im Labor hergestellte Probekörper oder für aus Platten oder der Fahrbahnbefestigung entnommene Bohrkernproben.
ANMERKUNG 1 Verfahren A ist vom „Prall“-Verfahren abgeleitet, das durch umfassende skandinavische Forschungs-arbeiten verbessert wurde. Das Verfahren korreliert mit dem Abrieb in der Praxis bei Verwendung von Straßenbau-bitumen. Entsprechend den skandinavischen Erfahrungen mit Verfahren A ist die Korrelation zwischen dem Abrieb im Labor und in Feldversuchen nicht gegeben, wenn polymermodifiziertes Bitumen oder kautschukmodifiziertes Bitumen usw. verwendet wird.
ANMERKUNG 2 Verfahren B beruht auf finnischen Erfahrungen und ist auch bei Verwendung von polymer-modifiziertem Bitumen geeignet. Die Korrelation zwischen dem Abrieb im Labor und in Feldversuchen ist nicht gegeben, wenn kautschukmodifiziertes Bitumen verwendet wird.
Mélanges bitumineux - Méthodes d'essai - Partie 16 : Abrasion par pneus à crampons
Le présent document spécifie deux méthodes d’essai (méthode A et méthode B) pour déterminer la sensibilité à l’abrasion des pneus à crampons, dont l’essai est effectué sur des éprouvettes cylindriques de mélanges bitumineux. Les méthodes d’essai sont applicables aux mélanges bitumineux contenant des granulats dont la dimension supérieure d’ouverture du tamis ne dépasse pas 22 mm.
Les essais sont applicables aux éprouvettes fabriquées en laboratoire ou aux carottes prélevées dans une dalle ou une chaussée.
NOTE 1 La méthode A provient de la méthode « Prall », qui a été améliorée par des travaux de recherche nordiques approfondis. Cette méthode correspond à l’abrasion sur le terrain lors de l’utilisation de bitume routier usuel. Selon les expériences nordiques menées sur la méthode A, la corrélation entre l’abrasion en laboratoire et l’abrasion sur le terrain n’est pas établie lorsque du bitume ou du caoutchouc modifié par des polymères, etc. est utilisé.
NOTE 2 La méthode B provient d’une expérience finlandaise et est notamment adaptée lors de l’utilisation de bitume modifié par des polymères. La corrélation entre l’abrasion en laboratoire et l’abrasion sur le terrain n’est pas établie lorsque du caoutchouc est utilisé.
Bitumenske zmesi - Preskusne metode - 16. del: Obraba zaradi gum ježevk
General Information
Relations
Standards Content (Sample)

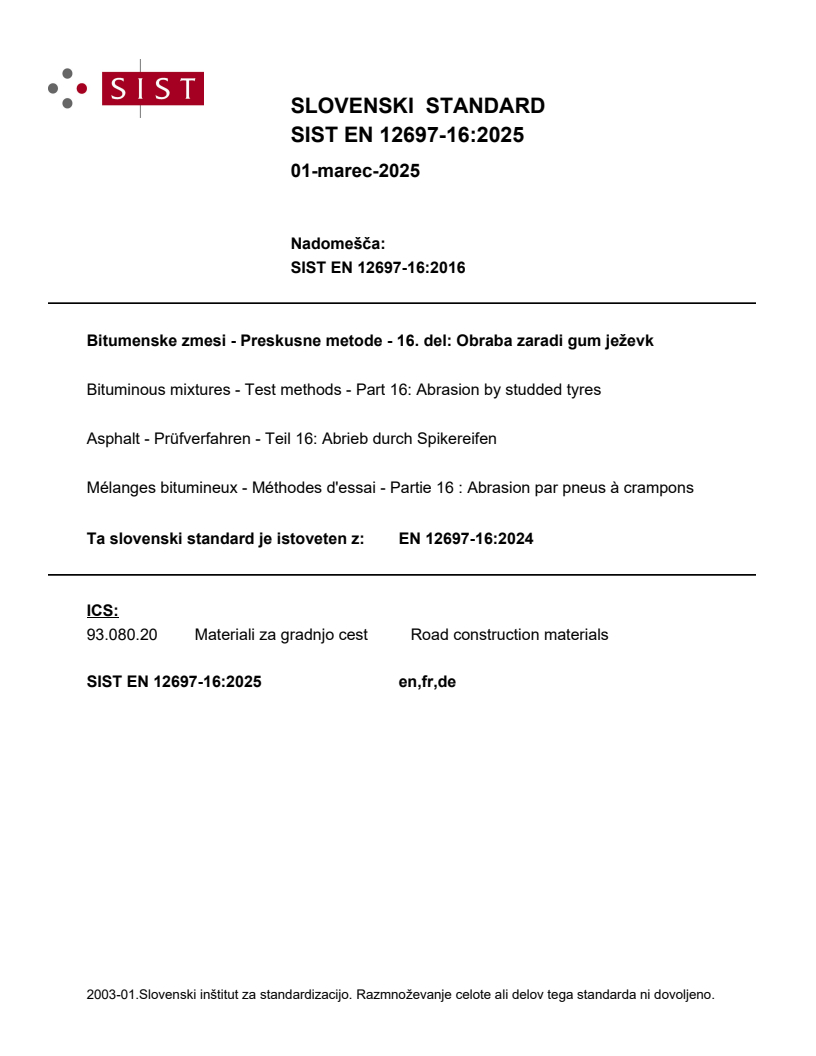

SLOVENSKI STANDARD
oSIST prEN 12697-16:2023
01-december-2023
Bitumenske zmesi - Preskusne metode - 16. del: Obraba zaradi gum ježevk
Bituminous mixtures - Test methods - Part 16: Abrasion by studded tyres
Asphalt - Prüfverfahren - Teil 16: Abrieb durch Spikereifen
Mélanges bitumineux - Méthodes d'essai - Partie 16 : Abrasion par pneus à crampons
Ta slovenski standard je istoveten z: prEN 12697-16
ICS:
93.080.20 Materiali za gradnjo cest Road construction materials
oSIST prEN 12697-16:2023 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
oSIST prEN 12697-16:2023
oSIST prEN 12697-16:2023

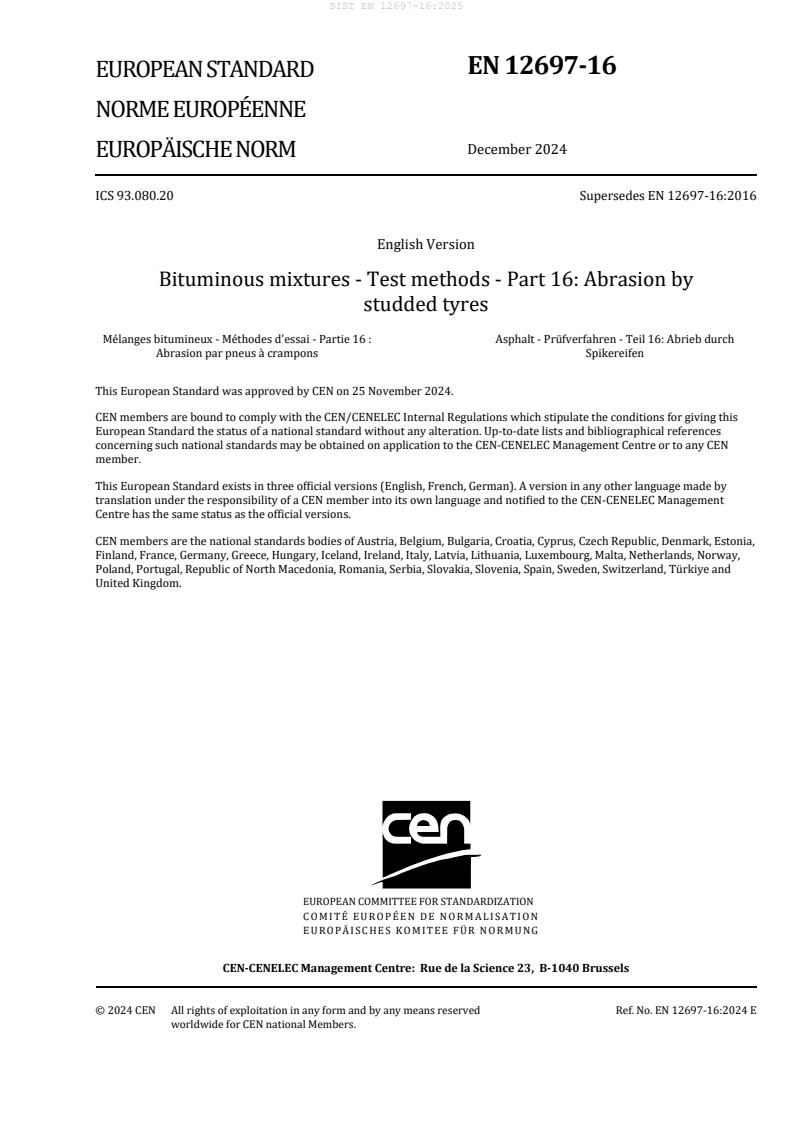

DRAFT
EUROPEAN STANDARD
prEN 12697-16
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2023
ICS 93.080.20 Will supersede EN 12697-16:2016
English Version
Bituminous mixtures - Test methods - Part 16: Abrasion by
studded tyres
Mélanges bitumineux - Méthodes d'essai - Partie 16 : Asphalt - Prüfverfahren - Teil 16: Abrieb durch
Abrasion par pneus à crampons Spikereifen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 227.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 12697-16:2023 E
worldwide for CEN national Members.
oSIST prEN 12697-16:2023
prEN 12697-16:2023 (E)

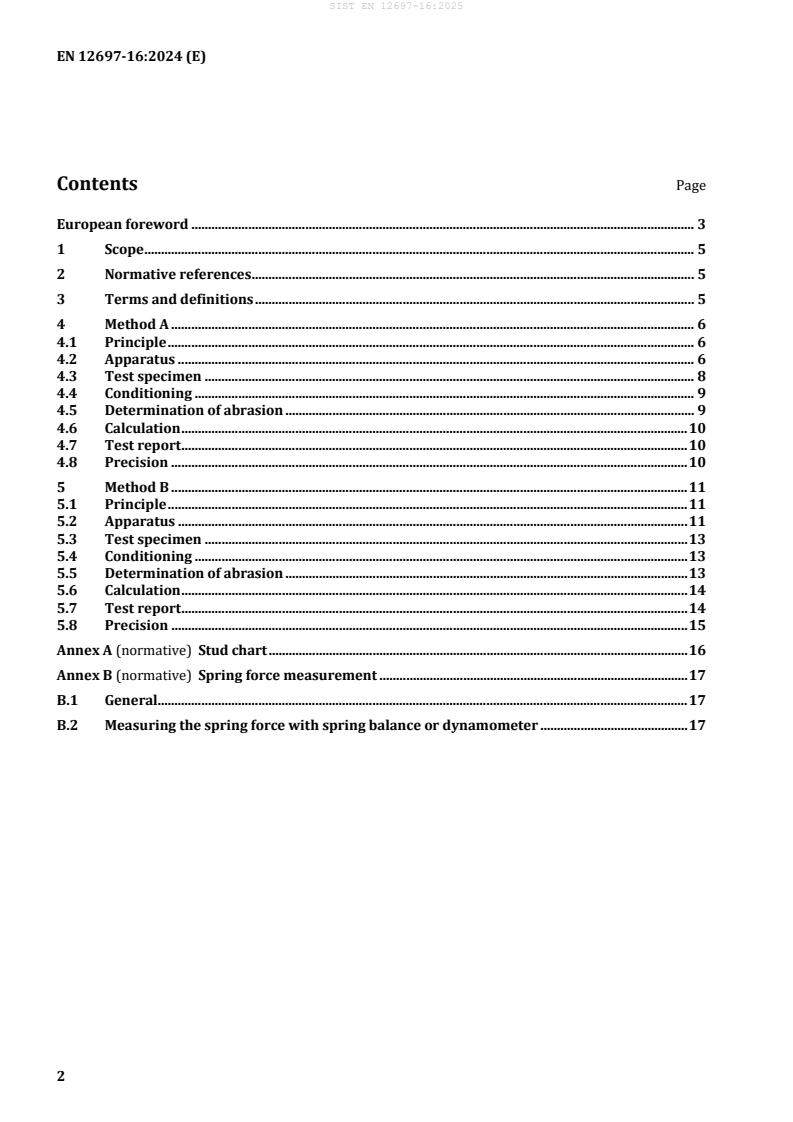

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Method A . 5
4.1 Principle . 5
4.2 Apparatus . 5
Figure 1 — Abrasion apparatus, in general . 6
Figure 2 — Lid of stainless steel . 7
4.3 Test specimen . 7
4.4 Conditioning . 8
4.5 Determination of abrasion . 8
4.6 Calculation . 9
4.7 Test report . 9
4.8 Precision . 9
5 Method B . 10
5.1 Principle . 10
5.2 Apparatus . 10
Figure 3 — Abrasion apparatus . 11
5.3 Test specimen . 11
5.4 Conditioning . 12
5.5 Determination of abrasion . 12
5.6 Calculation . 12
5.7 Test report . 13
5.8 Precision . 13
Annex A (normative) Stud chart . 15
Figure A.1 — Stud chart . 15
Annex B (normative) Spring force measurement . 16
B.1 General. 16
B.2 Measuring the spring force with spring balance or dynamometer . 16
B.2.1 Measuring equipment . 16
B.2.2 Procedure and an example . 16
Figure B.1 — Measuring the spring force with dynamometer . 17
oSIST prEN 12697-16:2023
prEN 12697-16:2023 (E)
European foreword
This document (prEN 12697-16:2023) has been prepared by Technical Committee CEN/TC 227 Road
materials, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 12697-16:2016.
prEN 12697-16:2023 includes the following significant technical changes with respect to
EN 12697-16:2016:
— general editorial update according to current standard template and CEN/CENELEC Internal
Regulations Part 3:2022;
— [2] deletion of “for hot mix asphalt” in titles of occurring test methods in EN 12697-series;
— [4.2.9] revised description of requirement. “Accuracy” amended to “maximum permissible error”;
— [4.3.2] deletion of Clause 4.3.2. Following Clauses re-numbered;
— [4.3.2] clarification of paragraph. (Clause 4.3.3 in previous version);
— [4.3.3] deletion of NOTE. (Clause 4.3.4 in previous version);
— [4.7] update of the contents in the test report;
— [5.2.6] update of the contents in the test report;
— [5.2.6] “accuracy” amended to “maximum permissible error”;
— [5.2.7] “accuracy” amended to “maximum permissible error”;
— [5.2.9] revised description of requirement. “Accuracy” amended to “maximum permissible error”;
— [5.3.2] deletion of Clause 4.3.2. Following Clauses re-numbered;
— [5.7] update of the contents in the test report;
— [Bibliography] deleted reference to EN 12697-29, Bituminous mixtures - Test method for hot mix
asphalt - Part 29: Determination of the dimensions of a bituminous specimen. Clause deleted.
A list of all parts in a series can be found on the CEN website: www.cencenelec.eu.
oSIST prEN 12697-16:2023
prEN 12697-16:2023 (E)
1 Scope
This document specifies two test methods (method A and method B) for determining the susceptibility
of abrasion by studded tyres, tested on cylindrical specimens of bituminous mixtures. The test methods
are applicable to bituminous mixtures with aggregate with upper sieve size not exceeding 22 mm.
The tests are applicable to laboratory produced specimens or cores drilled from a slab or pavement.
NOTE 1 Method A originates from the ‘Prall’-method, which has been improved by comprehensive Nordic
research work. The method correlates with abrasion in the field when using paving grade bitumen. According to
Nordic experience by method A the correlation between laboratory and abrasion in field is not established when
polymer modified bitumen or rubber modified bitumen, etc. is used.
NOTE 2 Method B originates from Finnish experience and is suitable also when polymer modified bitumen is
used. The correlation between laboratory and abrasion in field is not established when rubber is used.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12697-6, Bituminous mixtures - Test methods - Part 6: Determination of bulk density of bituminous
specimens
EN 12697-27, Bituminous mixtures - Test methods - Part 27: Sampling
EN 12697-30, Bituminous mixtures - Test methods - Part 30: Specimen preparation by impact compactor
EN 12697-31, Bituminous mixtures - Test methods - Part 31: Specimen preparation by gyratory
compactor
EN 12697-32, Bituminous mixtures - Test methods - Part 32: Specimen preparation by vibratory
compactor
EN 12697-33, Bituminous mixtures — Test methods — Part 33: Specimen prepared by roller compactor
ISO 3290-1, Rolling bearings — Balls — Part 1: Steel balls
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
3.1
abrasion
loss of mass by abrasive action
Note 1 to entry: Expressed as volume loss in millilitres (ml).
oSIST prEN 12697-16:2023
prEN 12697-16:2023 (E)
4 Method A
4.1 Principle
A cylindrical specimen having a diameter of 100 mm and a height of 30 mm is brought to a temperature
of 5 °C. The specimen is worn by abrasive action during 15 min by 40 steel spheres. The loss of volume
in millilitre is recorded and is reported as the abrasion value.
4.2 Apparatus
Abrasion apparatus according to Figure 1, including a stroke, (43 ± 1) mm, and a connection rod, length
(200 ± 5) mm.
The stroke height shall be measured in a way that possible backlash is included in the stroke height.
The equipment shall be mounted on a concrete foundation, the mass should be at least 300 kg, or be
attached to a concrete floor. If rubber feet are used, they shall be of such quality that the equipment
does not come into self-oscillation.
4.2.1 Sample collar of stainless steel for test specimen with inner diameter (102,0 ± 0,2) mm, to
enable fitting of specimens made by EN 12697-30, and inner height at least 35 mm. Thickness about
6 mm. (Figure 1).
NOTE The measurement for inner diameter is required on new manufactured equipment. Some earlier made
equipment could have an inner diameter that is smaller than the tolerance requirement but it does not have
influence on the wearing surface area; however, the smaller diameter might limit the possibility to enable fitting of
specimens made by EN 12697-30.
oSIST prEN 12697-16:2023
prEN 12697-16:2023 (E)
Key
1 rubber plate 6 inlet/ outlet for cooling water
2 O-ring 7 flat rubber ring
3 stroke 8 specimen
4 lid 9 sample collar
5 steel spheres 10 connection rod
Figure 1 — Abrasion apparatus, in general
4.2.2 Lid to abrasion apparatus of stainless steel with ports for water flow. The lid shall have an
inner diameter (90 ± 1) mm and inner height (39,5 ± 0,2) mm. Thickness about 6 mm to enable tight
fitting (with o-ring) into the sample collar. Diameter of the outlet ports Ø (6,0 ± 0,1) mm. (Figure 2).
oSIST prEN 12697-16:2023
prEN 12697-16:2023 (E)
Dimensions in
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
