CEN/TR 14073-1:2004

Office furniture - Storage furniture - Part 1: Dimensions

This Technical Report gives recommendations for dimensions for office storage furniture.
The dimensions given in this Technical Report are based on the dimensions of the various products (i.e. ways of
data storing) to be stored in the furniture. Annex A gives some examples of storage furniture.
This Technical Report does not apply to high density mechanised filing systems, rotary filing systems, or drawing
office storage furniture.

Büromöbel - Büroschränke - Teil 1: Maße

Mobilier de bureau - Meubles de rangement - Partie 1 : Dimensions

Le présent Rapport Technique donne des recommandations pour les dimensions des meubles de rangement de bureau.
Les dimensions données dans ce Rapport Technique sont basées sur les dimensions des divers produits (c'est à dire les moyens de stocker des données) à ranger dans les meubles. L'annexe A donne des exemples de meubles de rangement.
Ce Rapport Technique ne s'applique pas aux systèmes mécanisés d'archivage, aux systèmes de classement rotatifs et aux meubles de rangement pour plans.

Pisarniško pohištvo – Shranjevalno pohištvo – 1. del: Mere

General Information

• Status: Published
• Publication Date: 08-Jun-2004
• ICS: 97.140 - Furniture
• Technical Committee: CEN/TC 207 - Furniture
• Drafting Committee: CEN/TC 207/WG 3 - Thermal insulation of building equipment and industrial installations - Procedure for the determination of reference thermal conductivity of products - Revision
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 09-Jun-2004
• Completion Date: 09-Jun-2004
• Ref Project: SIST-TP CEN/TR 14073-1:2004 - Office furniture - Storage furniture - Part 1: Dimensions

Overview

CEN/TR 14073-1:2004 - Office furniture - Storage furniture - Part 1: Dimensions (CEN, 2004) is a Technical Report that gives recommended dimensions for office storage furniture. The recommendations are based on the physical sizes of the items to be stored (paper formats, filing systems and common informatic media). The report is informative and aimed at harmonizing storage furniture sizing across European office furniture manufacturers. It excludes high-density mechanised filing systems, rotary filing systems and drawing-office storage furniture. Annex A provides examples of storage furniture.

Key topics and technical requirements

• Scope and basis: Dimensions are derived from the dimensions of stored items (paper documents, paper files, informatic/computer media).
• Common paper formats (from EN ISO 216):
  • A3: 420 × 297 mm
  • A4: 297 × 210 mm
  • A5: 210 × 148 mm
  • Also lists: Foolscap, Folio, Listing formats
• Paper filing sizes (typical lever-arch and suspended files):
  • Lever-arch (A4): 320 × 290 mm, thickness 50–70 mm
  • Suspended file pockets (A4): ~275 × 330 or 262 × 318 mm, thickness 15–50 mm
• Informatic (computer) media dimensions:
  • 3.5” diskette examples, Zip, SyQuest, compact discs, VHS cassettes, etc., with typical heights/widths and thicknesses listed
• Dimensional guidance for furniture:
  • Manufacturers should specify outer (overall) dimensions (height, width, depth).
  • Inner storage space dimensions and modular combinations of data/paper storage must be defined by manufacturers.
  • Storage units intended to sit next to fixed-height work tables should match external height conventions (see EN 527-1).
  • When combined with desks or screens, widths/heights should be related to desk/screen dimensions and EN 527-1 / EN 1023-1.

Practical applications and who uses it

• Target users:
  • Office furniture designers and manufacturers
  • Workspace planners, architects and interior designers
  • Procurement teams specifying cabinets and storage systems
  • Facility managers and ergonomic consultants
• Practical uses:
  • Designing cabinets, bookcases, filing cabinets and shelving with appropriate internal spacing for A4 lever-arch files, suspended files, CDs, tapes and other media
  • Ensuring storage units align with desks and screen heights for ergonomic and aesthetic consistency
  • Creating product datasheets and dimensional specifications for manufacturing or tender documents

Related standards

• EN ISO 216 - Writing paper sizes (A and B series)
• EN 527-1 - Office furniture - Work tables and desks - Dimensions
• EN 1023-1 - Office furniture - Screens - Dimensions

This Technical Report is a practical reference for specifying and designing office storage furniture dimensions that accommodate common paper formats and media, and for ensuring compatibility with desks and screens used in modern office layouts.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2004
Pisarniško pohištvo – Shranjevalno pohištvo – 1. del: Mere
Office furniture - Storage furniture - Part 1: Dimensions
Büromöbel - Büroschränke - Teil 1: Maße
Mobilier de bureau - Meubles de rangement - Partie 1 : Dimensions
Ta slovenski standard je istoveten z: CEN/TR 14073-1:2004
ICS:
97.140 Pohištvo Furniture
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

TECHNICAL REPORT
CEN/TR 14073-1
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
June 2004
ICS 97.140
English version
Office furniture - Storage furniture - Part 1: Dimensions
Mobilier de bureau - Meubles de rangement - Partie 1 : Büromöbel - Büroschränke - Teil 1: Maße
Dimensions
This Technical Report was approved by CEN on 12 October 2003. It has been drawn up by the Technical Committee CEN/TC 207.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 14073-1:2004: E
worldwide for CEN national Members.

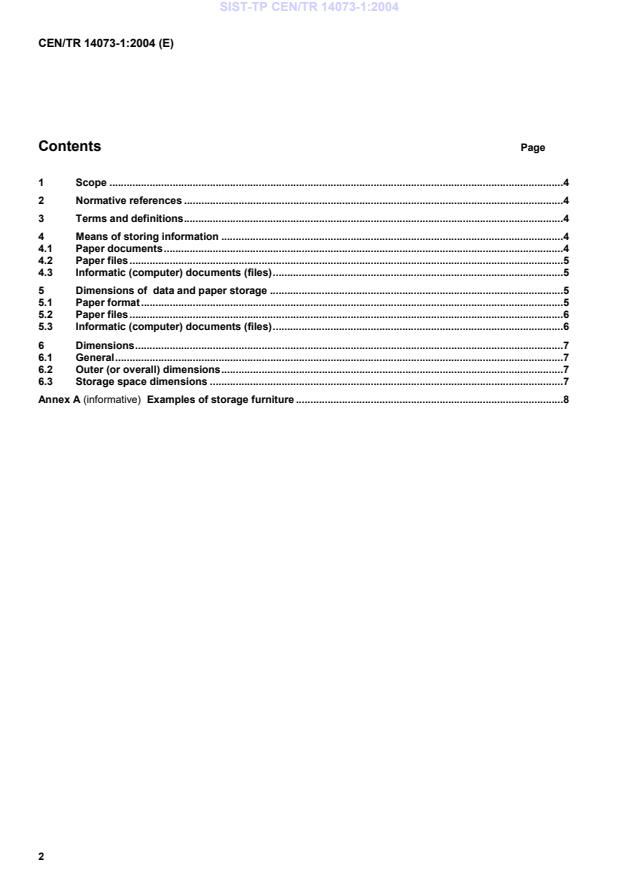

Contents Page
1 Scope .4
2 Normative references .4
3 Terms and definitions.4
4 Means of storing information .4
4.1 Paper documents.4
4.2 Paper files.5
4.3 Informatic (computer) documents (files).5
5 Dimensions of data and paper storage .5
5.1 Paper format.5
5.2 Paper files.6
5.3 Informatic (computer) documents (files).6
6 Dimensions.7
6.1 General.7
6.2 Outer (or overall) dimensions.7
6.3 Storage space dimensions .7
Annex A (informative) Examples of storage furniture .8
Foreword
This document CEN/TR 14073-1:2004 has been prepared by Technical Committee CEN/TC 207 “Furniture”, the
secretariat of which is held by UNI.
This document provides information on the dimensions of office storage furniture.
The information given in this report reflects the current state-of the art derived from the experience of the European
office furniture manufacturers. It might be subject to revision in order to be kept up-to-date with developments of
needs and products as well.
Annex A is informative.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to announce this Technical Report: Austria, Belgium, Cyprus, Czech Republic, Denma
...
