EN ISO 10717:2010

Footwear - Test method for slide fasteners - Burst strength (ISO 10717:2010)

ISO 10717:2010 specifies a test method intended to assess the burst strength of a closed slide fastener for footwear. The method is applicable to all types of slide fastener.

Schuhe - Prüfverfahren für Reißverschlüsse - Berstfestigkeit (ISO 10717:2010)

Diese Internationale Norm legt ein Prüfverfahren zur Beurteilung der Berstfestigkeit eines geschlossenen Reißverschlusses für Schuhe fest. Das Verfahren gilt für sämtliche Arten von Reißverschlüssen.

Chaussures - Méthode d'essai pour les fermetures éclair - Résistance à l'éclatement (ISO 10717:2010)

L'ISO 10717:2010 spécifie une méthode d'essai destinée à évaluer la résistance à l'éclatement d'une fermeture éclair fermée de chaussure. La méthode s'applique à tous les types de fermetures éclair.

Obutev - Preskusna metoda za zadrge - Razpočna trdnost (ISO 10717:2010)

Ta mednarodni standard določa preskusno metodo za oceno razpočne trdnosti zaprte zadrge za obutev. Metoda velja za vse vrste zadrg.

General Information

• Status: Published
• Publication Date: 30-Nov-2010
• Withdrawal Date: 29-Jun-2011
• ICS: 61.040 - Headgear. Clothing accessories. Fastening of clothing
• ICS: 61.060 - Footwear
• Technical Committee: CEN/TC 309 - Footwear
• Drafting Committee: CEN/TC 309/WG 1 - Minimum performance requirements and test methods for components for footwear
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 01-Dec-2010
• Due Date: 19-Dec-2010
• Completion Date: 01-Dec-2010
• Ref Project: SIST EN ISO 10717:2011 - Footwear - Test method for slide fasteners - Burst strength (ISO 10717:2010)

Overview

EN ISO 10717:2010 - Footwear: Test method for slide fasteners - Burst strength (ISO 10717:2010) specifies a laboratory procedure to assess the burst strength of closed slide fasteners (zippers) used in footwear. The method is applicable to all types of slide fastener and provides repeatable means to measure the force at which a fastener fails when a localized distension is forced through the closed chain.

Key topics and technical requirements

• Scope: Test method for burst strength of closed slide fasteners for footwear - applicable to all slide fastener types.
• Principle: Clamp a portion of the closed fastener leaving a circular free area, then force a spherical-ended plunger through the centre until failure; record the peak force.
• Specimen conditioning: Condition samples at 23 °C and 50% RH for 24 hours prior to testing and perform tests under the same environment.
• Test fixture:
  • Circular free area diameter: (25 ± 1) mm.
  • Central plunger ball diameter: (6.25 ± 0.05) mm.
  • Plunger movement speed: (0.20 ± 0.05) mm/s.
  • Force measurement range and accuracy: 0–800 N with 10 N accuracy (or equivalent per ISO 17693).
• Sampling & repetitions: Three test positions required - either three fasteners tested at centre or one fastener tested near each end and the centre; maintain minimum spacing of 15 cm between test points if multiple tests on same length.
• Results & reporting:
  • Record maximum force (nearest 10 N) at failure and type of failure (e.g., teeth separated, teeth pulled off stringer, teeth broken).
  • Calculate and report the arithmetic mean of three maximum forces.
  • Test report must reference ISO 10717:2010, describe samples, date of test, mean force, failure types and counts, and any deviations from the method.

Applications and users

• Who uses it: Footwear manufacturers, component (zipper) suppliers, independent test laboratories, quality assurance teams, product designers and compliance officers.
• Practical uses:
  • Quality control and incoming inspection of slide fasteners.
  • Supplier validation and acceptance testing.
  • Comparative evaluation during product development (material and design choices).
  • Supporting durability and safety claims in product specifications or procurement.
  • Evidence for conformity with customer or regulatory requirements.

Related standards

• ISO 17693 - Footwear test methods for uppers - resistance to damage on lasting (referenced for force-measuring devices).
• ISO 19952 - Footwear vocabulary (terms and definitions).
• Additional referenced documents: ISO 17709, ISO 18454 for sampling and conditioning guidance.

Keywords: EN ISO 10717:2010, burst strength, slide fastener testing, footwear zip test, zipper burst strength, slide fastener test method, footwear testing.

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2011
2EXWHY3UHVNXVQDPHWRGD]D]DGUJH5D]SRþQDWUGQRVW,62
Footwear - Test method for slide fasteners - Burst strength (ISO 10717:2010)
Schuhe - Prüfverfahren für Reißverschlüsse - Berstfestigkeit (ISO 10717:2010)
Chaussures - Méthode d'essai pour les fermetures éclair - Résistance à l'éclatement
(ISO 10717:2010)
Ta slovenski standard je istoveten z: EN ISO 10717:2010
ICS:
61.040 3RNULYDOD'RGDWNLN Headgear. Clothing
REODþLORP6SHQMDQMHREODþLO accessories. Fastening of
clothing
61.060 Obuvala Footwear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 10717
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2010
ICS 61.060
English Version
Footwear - Test method for slide fasteners - Burst strength (ISO
10717:2010)
Chaussures - Méthode d'essai pour les fermetures éclair - Schuhe - Prüfverfahren für Reißverschlüsse -
Résistance à l'éclatement (ISO 10717:2010) Berstfestigkeit (ISO 10717:2010)
This European Standard was approved by CEN on 27 November 2010.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2010 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 10717:2010: E
worldwide for CEN national Members.

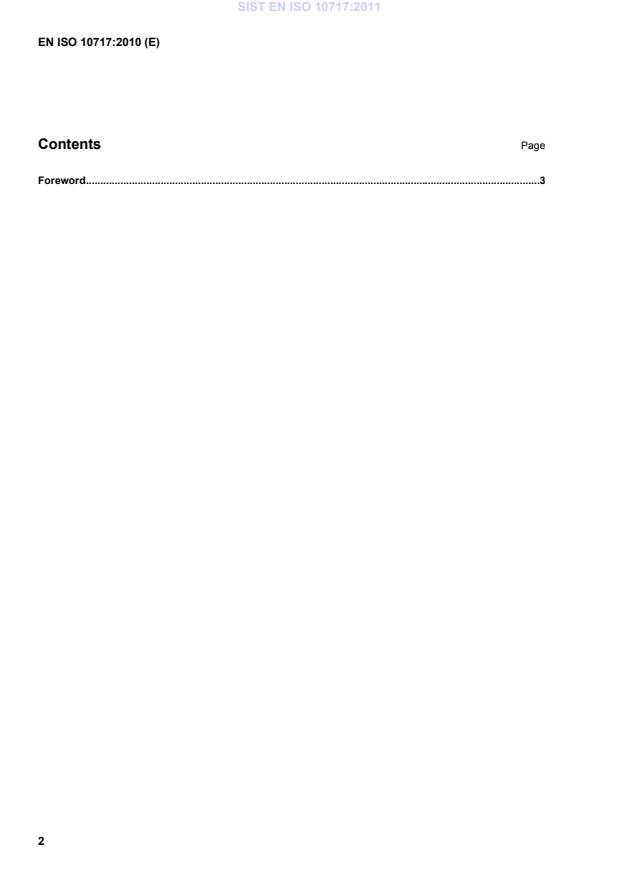

Contents Page
Foreword .3
Foreword
This document (EN ISO 10717:2010) has been prepared by Technical Committee CEN/TC 309 “Footwear” in
collaboration with Technical Committee ISO/TC 216 “Footwear” the secretariat of which is held by AENOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by June 2011, and conflicting national standards shall be withdrawn at
the latest by June 2011.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

INTERNATIONAL ISO
STANDARD 10717
First edition
2010-12-01
Footwear — Test method for slide
fasteners — Burst strength
Chaussures — Méthode d'essai pour les fermetures éclair —
Résistance à l'éclatement
Reference number
ISO 10717:2010(E)
©
ISO 2010
ISO 10717:2010(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2010 – All rights reserved

ISO 10717:2010(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International S
...
