EN 14120:2003+A1:2007
(Main)Protective clothing - Wrist, palm, knee and elbow protectors for users of roller sports equipment - Requirements and test methods
Protective clothing - Wrist, palm, knee and elbow protectors for users of roller sports equipment - Requirements and test methods
This European Standard specifies the requirements and test methods for ergonomics, innocuousness, comfort, restraint, strength, abrasion, impact performance as well as provisions for marking and instructions supplied by the manufacturer for wrist, palm, knee and elbow protectors (hereinafter referred to as protectors) for all users of roller sports equipment.
It does not apply to protectors used in roller sports hockey.
Schutzkleidung - Handgelenk-, Handflächen-, Knie- und Ellenbogenschützer für Benutzer von Rollsportgeräten - Anforderungen und Prüfverfahren
Diese Europäische Norm legt Anforderungen und Prüfverfahren hinsichtlich Ergonomie, Unschädlichkeit, Bequemlichkeit, Befestigung, Festigkeit, Abrieb, Stoßdämpfung sowie Bestimmungen zur Kennzeichnung und Herstellerinformation für Handgelenk , Handflächen-, Knie- und Ellenbogenschützer (nachfolgend Protektoren genannt) für alle Benutzer von Rollsportgeräten fest.
Sie gilt nicht für Protektoren, die beim Rollsport-Hockey verwendet werden.
Vêtements de protection - Dispositifs de protection des poignets,des paumes, des genoux et des coudes pour les utilisateurs d'équipements de sports à roulettes - Exigences et méthodes d'essai
Varovalna obleka - Ščitniki zapestja, dlani, kolena in komolca za uporabnike opreme za športe na koleščkih - Zahteve in preskusne metode
General Information
- Status
- Published
- Publication Date
- 12-Jun-2007
- Technical Committee
- CEN/TC 162 - Protective clothing including hand and arm protection and lifejackets
- Drafting Committee
- CEN/TC 162/WG 11 - Body protection for sports
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 03-Mar-2020
- Completion Date
- 03-Mar-2020
Relations
- Effective Date
- 19-Jan-2023
- Effective Date
- 22-Dec-2008
Overview
EN 14120:2003+A1:2007 (CEN) is the European standard that specifies requirements and test methods for wrist, palm, knee and elbow protectors used by users of roller sports equipment (e.g., roller skates, inline skates, skateboards). The standard covers ergonomics, innocuousness (chemical safety), comfort, restraint, strength, abrasion resistance, impact performance, marking and manufacturer instructions. It does not apply to protectors used in roller sports hockey.
Key topics and technical requirements
- Performance levels: Two levels are defined - Level 1 for normal roller sports and Level 2 for acrobatic roller sports (higher performance demands). Performance is assessed against three user body-mass ranges (A: ≤25 kg, B: >25–50 kg, C: >50 kg).
- Ergonomics & comfort: Protectors must allow normal movement and not hinder expected roller-sport activities.
- Innocuousness (chemical & physical safety): Materials and components shall not harm users; manufacturers must list main composition and label known hazardous substances. Annex A gives guidance on chemical innocuousness assessment.
- Restraint (retention): Protectors must remain positioned during movement and impacts. Maximum permitted displacements are specified (e.g., elbow protectors: 20 mm for range A, 40 mm for B, 50 mm for C; knee: 30/50/60 mm; wrist/palm: 20 mm for all ranges).
- Abrasion resistance & impact strength: Abrasion layers must resist perforation; abrasion-resistant layers must not split or break under specified impact tests.
- Impact performance: Knee, palm and elbow protectors are tested for peak force transmission; the standard defines test methods and allowable limits for compliance (see clause 6.7).
- Wrist-specific requirements: Continuous adjustment of restraint system, defined stiffness elements (minimum dimensions by user mass range: e.g., length from wrist up the arm 30/40/50 mm; towards fingertip 40/50/60 mm; palmar width 15/20/25 mm) and limits on wrist extension as specified in the standard.
- Testing & sampling: New protectors tested; sampling rules (two pairs per size, or four pairs if only one size); measurement uncertainty and conditioning requirements are specified.
Applications and who uses this standard
- Manufacturers & product designers: to design, test and certify wrist, palm, knee and elbow protectors for the European market.
- Testing laboratories & conformity assessors: to perform abrasion, impact and retention testing per clause 6.
- Retailers & procurement teams: to validate claims and choose appropriate protectors for target users (normal vs acrobatic use).
- Sports organizations, safety officers and regulators: to set equipment recommendations and ensure user protection.
Related standards
- EN 1082-1 (glove/arm guard test methods)
- EN 13595-2 (impact abrasion resistance methods)
- ISO 6344-2 (abrasive grain size analysis)
Keywords: EN 14120:2003+A1:2007, wrist protectors, knee protectors, elbow protectors, palm protectors, roller sports, test methods, abrasion resistance, impact performance, ergonomics, innocuousness, CEN.
Frequently Asked Questions
EN 14120:2003+A1:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Protective clothing - Wrist, palm, knee and elbow protectors for users of roller sports equipment - Requirements and test methods". This standard covers: This European Standard specifies the requirements and test methods for ergonomics, innocuousness, comfort, restraint, strength, abrasion, impact performance as well as provisions for marking and instructions supplied by the manufacturer for wrist, palm, knee and elbow protectors (hereinafter referred to as protectors) for all users of roller sports equipment. It does not apply to protectors used in roller sports hockey.
This European Standard specifies the requirements and test methods for ergonomics, innocuousness, comfort, restraint, strength, abrasion, impact performance as well as provisions for marking and instructions supplied by the manufacturer for wrist, palm, knee and elbow protectors (hereinafter referred to as protectors) for all users of roller sports equipment. It does not apply to protectors used in roller sports hockey.
EN 14120:2003+A1:2007 is classified under the following ICS (International Classification for Standards) categories: 13.340.40 - Hand and arm protection; 13.340.50 - Leg and foot protection. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14120:2003+A1:2007 has the following relationships with other standards: It is inter standard links to EN 14120:2003, EN 14120:2003/prA1. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14120:2003+A1:2007 is associated with the following European legislation: EU Directives/Regulations: 2016/425, 89/686/EEC, 93/68/EEC, 93/95/EEC, 96/58/EC; Standardization Mandates: M/031. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 14120:2003+A1:2007 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Schutzkleidung - Handgelenk-, Handflächen-, Knie- und Ellenbogenschützer für Benutzer von Rollsportgeräten - Anforderungen und PrüfverfahrenVetements de protection - Dispositifs de protection des poignets,des paumes, des genoux et des coudes pour les utilisateurs d'équipements de sports a roulettes - Exigences et méthodes d'essaiProtective clothing - Wrist, palm, knee and elbow protectors for users of roller sports equipment - Requirements and test methods97.220.40Oprema za športe na prostem in vodne športeOutdoor and water sports equipment13.340.50Varovanje nog in stopalLeg and foot protection13.340.40Varovanje dlani in rokHand and arm protectionICS:Ta slovenski standard je istoveten z:EN 14120:2003+A1:2007SIST EN 14120:2003+A1:2007en,fr,de01-november-2007SIST EN 14120:2003+A1:2007SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14120:2003+A1
June 2007 ICS 13.340.40; 13.340.50 Supersedes EN 14120:2003English Version
Protective clothing - Wrist, palm, knee and elbow protectors for users of roller sports equipment - Requirements and test methods
Vêtements de protection - Dispositifs de protection des poignets,des paumes, des genoux et des coudes pour les utilisateurs d'équipements de sports à roulettes - Exigences et méthodes d'essai
Schutzkleidung - Handgelenk-, Handflächen-, Knie- und Ellenbogenschützer für Benutzer von Rollsportgeräten - Anforderungen und Prüfverfahren This European Standard was approved by CEN on 13 February 2003 and includes Amendment 1 approved by CEN on 10 May 2007.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2007 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14120:2003+A1:2007: ESIST EN 14120:2003+A1:2007

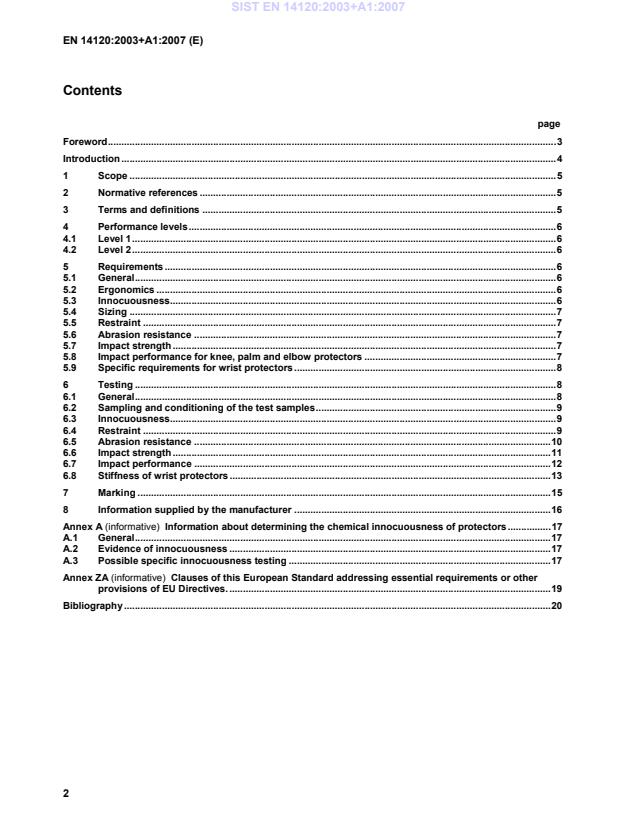

Information about determining the chemical innocuousness of protectors.17 A.1 General.17 A.2 Evidence of innocuousness.17 A.3 Possible specific innocuousness testing.17 Annex ZA (informative)
Clauses of this European Standard addressing essential requirements or other provisions of EU Directives.19 Bibliography.20
ranges of body mass as follows: a) range A: Users of up to 25 kg body mass; b) range B: Users of body mass more than 25 kg to 50 kg; c) range C: Users of body mass above 50 kg. Combined protectors such as palm and wrist protectors shall meet the requirements for each protector. 5.2 Ergonomics Protectors shall be so designed and manufactured that in the foreseeable conditions of use for which they are intended the user can perform the roller sports normally and unhindered whilst enjoying protection at the specified limit. 5.3 Innocuousness Protectors shall be safe to use and fit for their purpose. They shall be designed and manufactured to provide protection when used according to the manufacturer’s instructions, without endangering the user or others. There shall not be hard or sharp edges, seams, buckles or other items on the surfaces of the products that could harm the user or others during normal use. Examination shall be made according to 6.3. Construction materials and incorporated substances, shall not harm those coming into contact with them. The manufacturer shall list in the information supplied with the protectors the main composition of the protectors and shall label any protector containing substances or preparations generally known to be hazardous. Information about determining the chemical innocuousness of protectors is given in annex A. SIST EN 14120:2003+A1:2007
Elbow protector 20 40 50
Knee protector 30 50 60
Wrist protector 20 20 20
Palm protector 20 20 20
5.6 Abrasion resistance When tested in accordance with 6.5 the abrasion resistant layer of the protector shall not be perforated. 5.7 Impact strength When tested in accordance with 6.6 the abrasion resistant layer of the knee, elbow, wrist or palm protector shall not break or split. 5.8 Impact performance for knee, palm and elbow protectors A protector complies with this standard if the mean value of the peak force does not exceed the values in Table 2 when tested in accordance with 6.7. Table 2 — Impact performance requirements for knee, palm and elbow protectors Protectors level 1 Protectors level 2 Range of body mass Range of body mass A B C A B C r e r e r e r e r e r e Kind of protector mm J mm J mm J mm J mm J mm J Maxi-mumpeakforcekN
Knee protectors 25
3 35 8
50 12 25
50 25 6
Elbow protectors
12,5 1
17,54
12,5
7,5
17,5 10
25 15 4
Palm protectors 100
3 100
4 100
5 100
8 100 10 3 r
is the radius of curvature of the anvil e
is the impact energy SIST EN 14120:2003+A1:2007
Length from the wrist up to the arm 30 40 50
Length from the wrist towards the
finger tip 40 50 60
Width in the palmar region 15 20 25
Testing in accordance with 6.1. 6 Testing 6.1 General If no specific methods are specified compliance with the requirements of this European Standard shall be examined by measurement, visual inspection and tactile examination. For the tests new protectors shall be used. Measuring instruments unless otherwise specified shall be accurate to ± 2 % of the pass/fail level of the characteristic being measured. For each of the required sequences of measurements performed in accordance with this standard a corresponding estimate of the uncertainty of the final result shall be determined. The uncertainty of measurement shall be expressed in the form ± X. It shall be used in determining whether a “Pass” performance has been achieved. If the final result minus X is below the pass level when the requirement that a certain value shall be exceeded, the sample shall be deemed to have failed. NOTE It is anticipated that values of uncertainty of measurement will be usually between 2 % and 5 % of the measured value for force and length measurements. SIST EN 14120:2003+A1:2007
...
Die Norm EN 14120:2003+A1:2007 befasst sich mit dem Thema der Schutzausrüstung für Benutzer von Rollersportgeräten, insbesondere mit Handgelenk-, Handflächen-, Knie- und Ellenbogenschonern. Der Umfang dieser europäischen Norm ist klar definiert und legt spezifische Anforderungen sowie Prüfmethoden fest, die für Ergonomie, Unbedenklichkeit, Komfort, Einschränkung, Festigkeit, Abriebfestigkeit und Stoßdämpfung gelten. Diese umfassende Abdeckung stellt sicher, dass die Schoner nicht nur den erforderlichen Schutz bieten, sondern auch benutzerfreundlich sind. Eine der größten Stärken dieser Norm ist die Fokussierung auf die Ergonomie, die sicherstellt, dass die Schoner bequem und angenehm zu tragen sind. Dies ist besonders wichtig für aktive Benutzer von Rollersportgeräten, die eine optimale Bewegungsfreiheit benötigen. Zudem wird in der Norm das Thema Unbedenklichkeit adressiert, was bedeutet, dass nur Materialien verwendet werden dürfen, die für die Gesundheit der Benutzer sicher sind. Darüber hinaus behandelt die Norm wichtige Aspekte wie Abrieb- und Stoßfestigkeit und legt damit wesentliche Anforderungen fest, die für den Schutz des Körpers unerlässlich sind. Diese Leistungsmerkmale sind besonders relevant für den Einsatz von Schoner in verschiedenen Rollersportarten, da sie das Risiko von Verletzungen signifikant reduzieren. Ein weiterer signifikanter Vorteil dieser Norm ist die klare Regelung bezüglich der Kennzeichnung und der vom Hersteller zur Verfügung gestellten Anweisungen. Diese Aspekte tragen dazu bei, dass die Benutzer umfassend informiert werden und die Schoner richtig und effektiv einsetzen können. Wichtig ist auch, dass die Norm nicht für Schoner gilt, die spezifisch für das Rollersport-Hockey entwickelt wurden. Diese klar definierte Ausnahmeregelung sorgt dafür, dass die Normen für unterschiedliche Anwendungen angemessen bleiben, ohne Verwirrung oder Unsicherheit bei den Benutzern zu schaffen. Insgesamt bietet die EN 14120:2003+A1:2007 einen fundierten und umfassenden Rahmen, um die Qualität und Sicherheit von Handgelenk-, Handflächen-, Knie- und Ellenbogenschonern für Benutzer von Rollersportgeräten zu gewährleisten. Die Norm ist zeitgemäß und relevant, um sowohl die Bedürfnisse der Benutzer als auch die Anforderungen an die Schutzausrüstung im Bereich des Rollersports zu erfüllen.
이 표준 문서 EN 14120:2003+A1:2007은 롤러 스포츠 장비 사용자들을 위한 보호복의 손목, 손바닥, 무릎 및 팔꿈치 보호대에 대한 요구사항 및 시험 방법을 명시하고 있습니다. 이 유럽 표준은 인체 공학, 무해성, 편안함, 구속력, 강도, 마모, 충격 성능을 포함하여 제조자가 제공하는 마킹 및 사용 설명서에 대한 조항을 포함하고 있습니다. 이는 롤러 스포츠 장비의 사용자에게 필요한 보호대의 안전성과 효과를 보장하기 위한 필수적 요소입니다. 이 표준은 여러 가지 강점을 지니고 있습니다. 첫째, 사용자 편의를 고려한 인체 공학적 설계 기준을 제시하여, 보호대가 장시간 착용 시에도 사용자가 느끼는 불편함을 최소화합니다. 둘째, 무해성 요구사항을 통해 피부와의 접촉 시 안전성을 보장하며, 지나치게 자극을 줄 수 있는 소재의 사용을 금지합니다. 셋째, 마모 및 충격 성능 시험을 통해 보호대의 내구성과 기능성을 검증함으로써 실제 롤러 스포츠 활동 시 높은 수준의 보호를 제공합니다. 또한, 표준은 사용자가 롤러 스포츠 장비를 사용할 때 반드시 알아야 할 필요한 정보를 제조자가 제공하도록 규정함으로써, 사용자가 제품을 안전하고 효과적으로 사용할 수 있도록 돕습니다. 이는 보호대에 대한 소비자의 신뢰를 높이는 중요한 요소로 작용합니다. EN 14120:2003+A1:2007 표준은 롤러 스포츠 장비 사용자에게 필수적인 보호장치의 안전성과 품질을 보장하는 데 있어 매우 중요한 문서입니다. 이러한 표준을 준수함으로써, 롤러 스포트 장비의 사용자들은 보다 안전하고 즐겁게 활동할 수 있는 환경을 조성할 수 있습니다.
SIST EN 14120:2003+A1:2007は、ローラースポーツ機器の利用者向けの保護具、具体的には手首、手のひら、膝、肘のプロテクターに関する重要な欧州規格です。この標準は、エルゴノミクス、無害性、快適性、拘束力、強度、摩耗、衝撃性能、およびメーカーによるマーキングや指示に関する要求事項と試験方法を明確に定義しています。 この基準の範囲は、すべてのローラースポーツ機器の使用者を対象にしており、保護具の安全性と性能を確保するための重要なガイドラインを提供しています。特に、エルゴノミクスや快適性に関しては、使用者が長時間使用可能な設計が求められており、これにより事故を未然に防ぐための効果的な装備が確保されます。 また、無害性や衝撃性能といった側面も極めて重要であり、これにより使用者の安全を守るための耐久性と信頼性が確保されています。さらに、摩耗試験や強度試験は、実際の使用状況における保護具のパフォーマンスを評価するための明確な基準を提供しているため、消費者は自分に合ったプロテクターを選びやすくなります。 SIST EN 14120は、ローラー競技における安全性向上に大いに貢献しており、特にレジャーや競技としてのローラースポーツに関与する全ての人々にとって非常に関連性の高い規格となっています。そのため、この基準に基づいて製造されたプロテクターは、すべてのユーザーに対して高い安全基準を提供すると同時に、快適な体験を約束します。
The standard EN 14120:2003+A1:2007 provides a comprehensive framework for the requirements and test methods necessary to ensure the safety and performance of protective clothing, specifically focusing on wrist, palm, knee, and elbow protectors used by individuals engaged in roller sports. The scope of this European Standard is significant, as it encompasses essential factors such as ergonomics, innocuousness, comfort, restraint, strength, and abrasion resistance. One of the strengths of this standard lies in its thorough examination of impact performance, which is crucial for safeguarding users during potential falls or collisions common in roller sports activities. By specifying clear performance requirements, this standard ensures that users can rely on their protectors to provide adequate protection, thereby minimizing the risk of injury. Additionally, the standard's emphasis on marking and instructions supplied by the manufacturer directly addresses user needs for understanding correct usage and care of the protective gear. This feature enhances the product's usability and reliability in real-world scenarios, promoting a safe sporting experience. Another relevant aspect of EN 14120:2003+A1:2007 is its targeted scope; it specifically excludes protectors used in roller sports hockey. This delineation allows for a more tailored approach in the design and testing of protective gear for roller sports, ensuring that the specific needs and safety requirements of the broader roller sports community are met without conflating them with those of other disciplines. Overall, EN 14120:2003+A1:2007 stands out as a pivotal standard in the realm of protective clothing for roller sports users, combining rigorous testing methodologies with practical safety requirements. Its relevance in promoting safety and performance in skateboarding, rollerblading, and other roller sports is indispensable as it supports manufacturers in developing effective protective gear.
La norme EN 14120:2003+A1:2007 constitue un cadre essentiel pour la sécurité des utilisateurs d'équipements de sports de glisse. Elle se concentre spécifiquement sur les exigences et les méthodes d'essai relatives aux protecteurs de poignet, de paume, de genou et de coude. Cette norme européenne s'applique à tous les utilisateurs, garantissant ainsi un niveau de protection adéquat pour une large gamme d'activités. L'un des points forts de cette norme est son approche holistique englobant des critères variés tels que l'ergonomie, l'innocuité, le confort, ainsi que la résistance et la performance d'impact. En définissant des exigences claires, elle assure non seulement la protection physique des utilisateurs mais également leur confort pendant l'utilisation des protections. Les dispositions concernant le marquage et les instructions fournies par le fabricant ajoutent une couche supplémentaire de sécurité en permettant aux utilisateurs de comprendre et d'appliquer correctement les protections. La norme ne s'applique toutefois pas aux protecteurs utilisés dans le hockey de roller, ce qui précise son champ d'application et renforce sa pertinence pour d'autres disciplines. En résumé, la norme EN 14120:2003+A1:2007 est un document fondamental qui garantit que les protecteurs pour les sports de glisse répondent à des exigences de sécurité rigoureuses, tout en offrant un confort indispensable pour les utilisateurs.
